| ₹ 46965.0 includes GST and import duties. | |
| B2B customers can avail ₹ 7162.16 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Viltrox DC-A1 Overview
From Manufacturer
The lightweight DC-A1 7" HDMI 2.0 High-Bright Monitor from Viltrox lets you view your camera's image on an ultrabright, sharp 7" display. The DC-A1 supports up to DCI/UHD 4K60 via the HDMI video input and can send the signal to another display through an HDMI loop-through output. This model features multiple image tools such as histogram and waveform, and its high 2800 cd/m? brightness makes it suitable for outdoor use in bright sunlight.

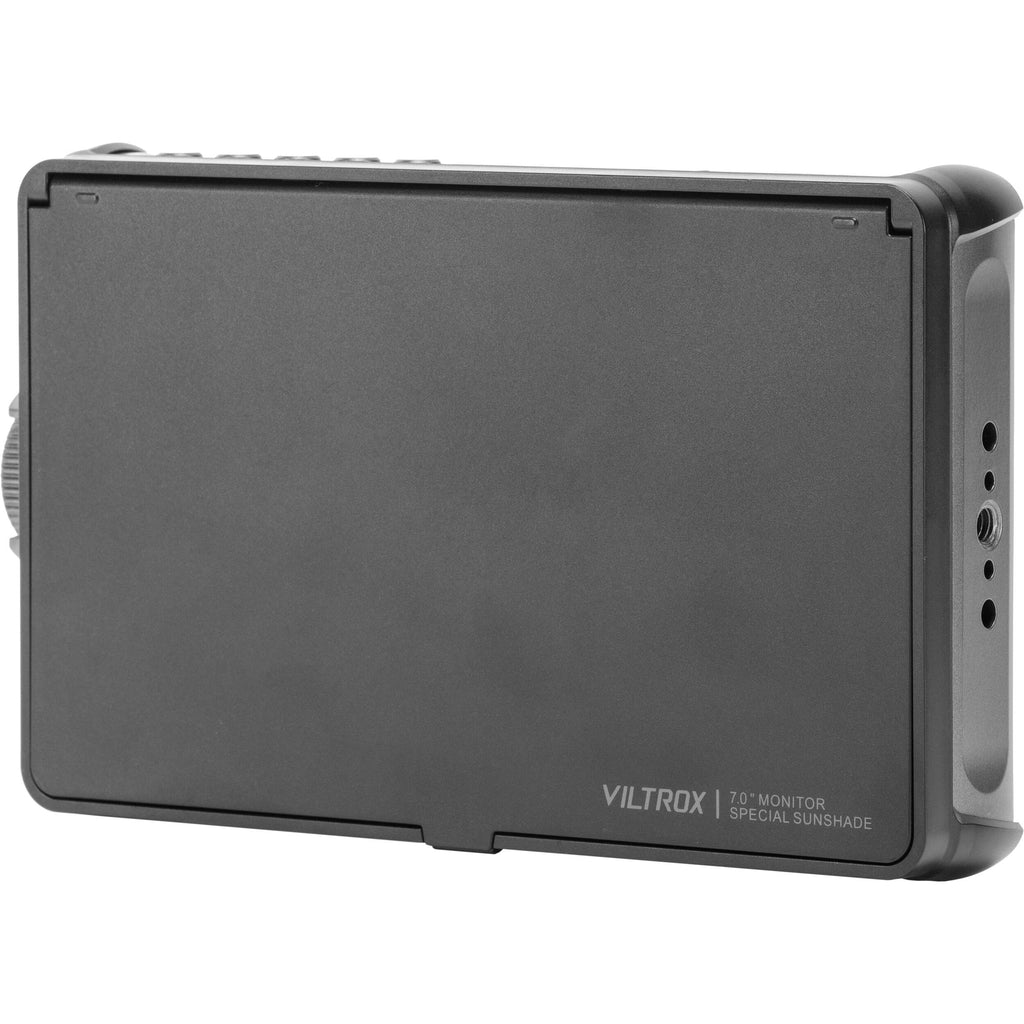

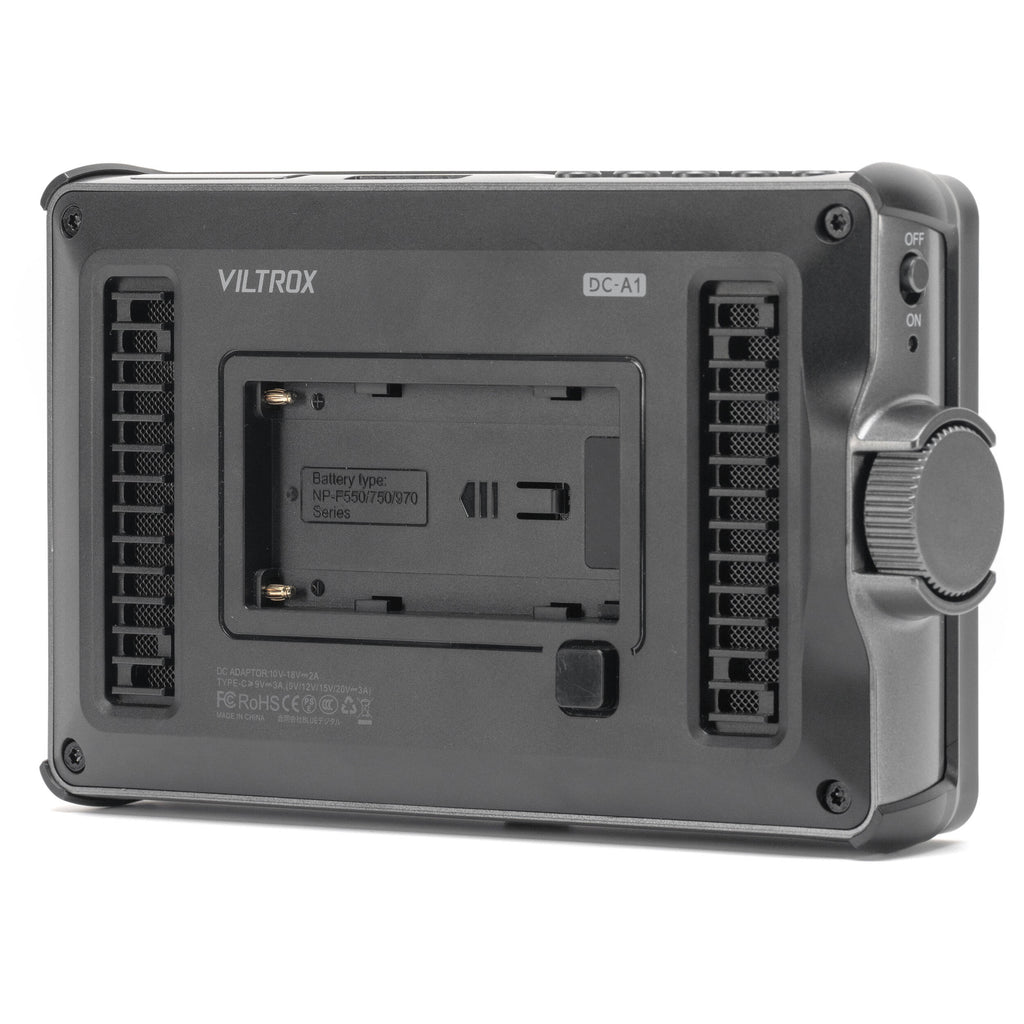

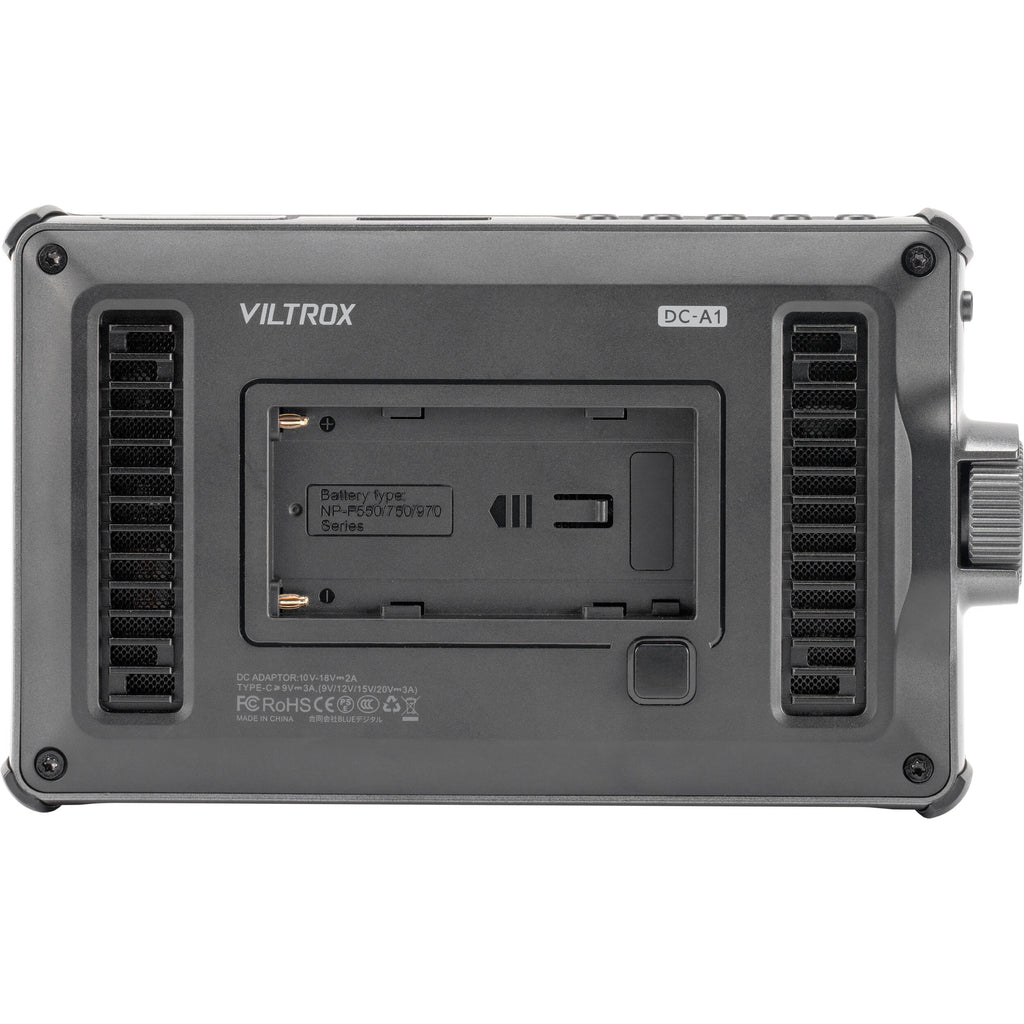

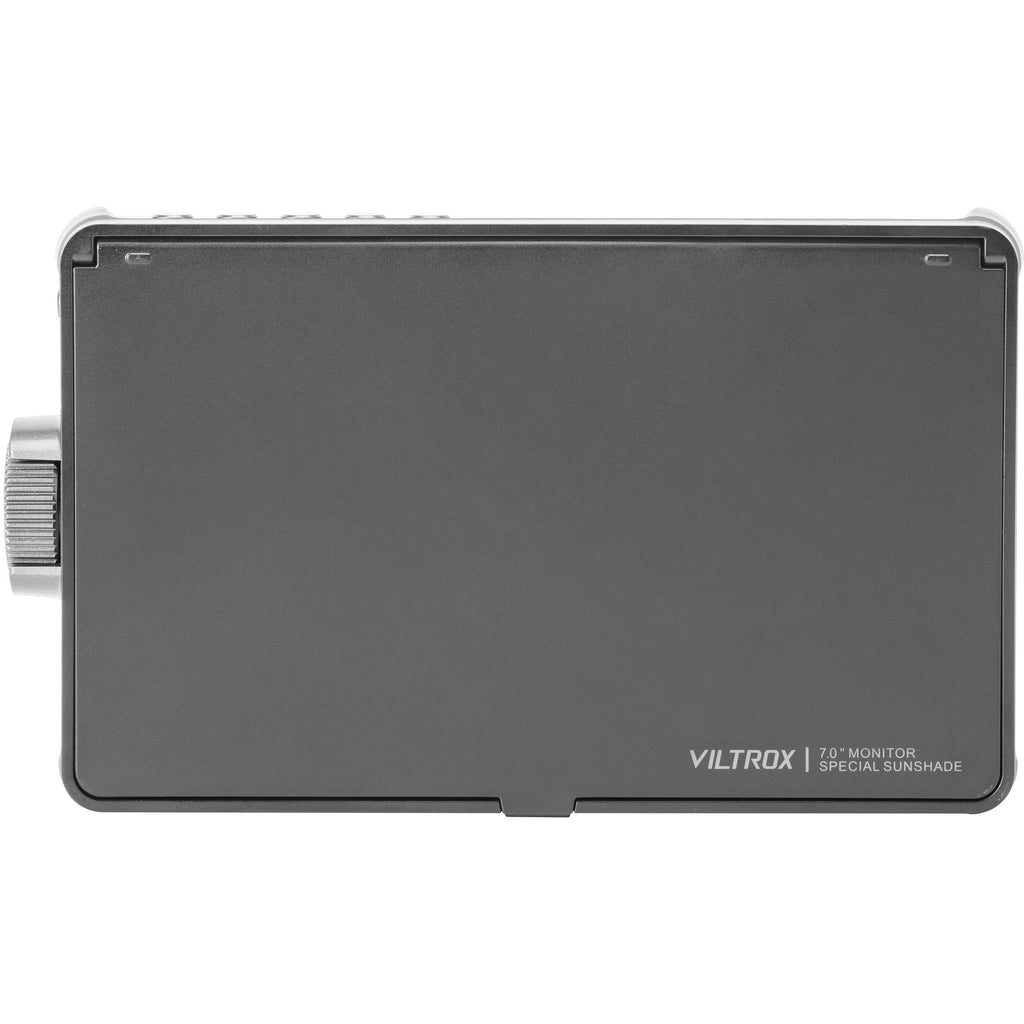

The DC-A1 features a 1920 x 1080 display that supports live view from your camera, and you can monitor the audio via its built-in speaker or 3.5mm headphone jack. At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with the L-series battery, or you can power it with a separately available DC barrel or USB-C adapter. The camera mounts onto a cage, camera, or rig using the included tilt/swivel shoe adapter mount, and a quick release sun hood is available to protect the monitor from glare.
Items Included
- Viltrox DC-A1 7" HDMI 2.0 High-Bright On-Camera Monitor
- Sun Hood
- Tilt/Swivel Shoe Mount
- Hard-Shell Carry Case
- L-Series/NP-F550 Battery
- HDMI Type-A to Mini-HDMI Cable
- HDMI Type-A Cable
- USB-C Power Cable
- Screen Protector
- Limited 1-Year Manufacturer Warranty
Additional Resources
Viltrox DC-A1 Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 60/30/25/24 UHD 4K: 60/30/25/24 1080p: 60 |
| Battery |
1x L-Series Mount on Fixed Plate
|
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
170?
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2800 nits / cd/m2 (Peak)
|
| Contrast Ratio |
1000:1
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% sRGB
|
| LUT Support |
No
|
| Image Controls |
False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform
|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (12 VDC / 2 A) Input
1x USB-C (5 VDC / 3 A) Input |
| Other I/O |
1x USB-A (LUT Upload) Input
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 60/30/25/24 UHD 4K: 60/30/25/24 1080p: 60 |
| Input Power |
10 to 18 VDC at 2 A
9 VDC at 3 |
| Battery |
1x L-Series Mount on Fixed Plate
|
| Tripod/Accessory Mounting |
Bottom/Right
2x 1/4"-20 Female |
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Material of Construction |
Aluminum
|
| Dimensions |
7.4 x 4.4 x 1.1" / 187.8 x 110.5 x 28.5 mm
|
| Weight |
12.3 oz / 348.00 g
|
| Package Weight |
2.64 lb
|
| Box Dimensions (LxWxH) |
13.6 x 6.3 x 3.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 46025.7 |
| 3-5 | ₹ 45556.05 |
| 5-10 | ₹ 44616.75 |
| 10+ | ₹ 43677.45 |
Bulk discount will be automatically applied during checkout based on quantity.
