Description
Product Overview

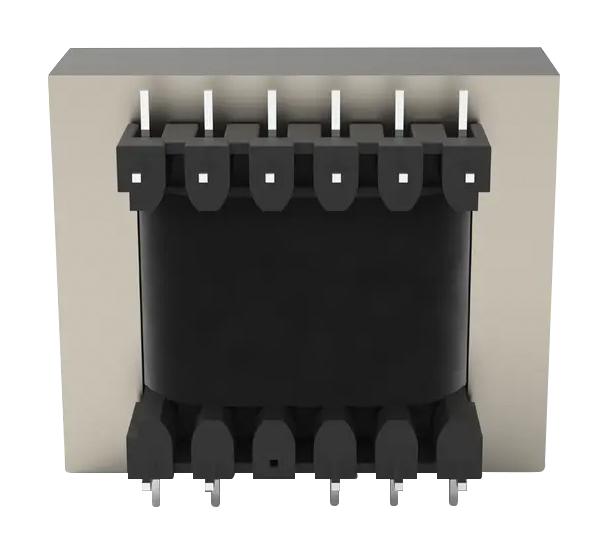

VTX-LOUT3 is a PCB mount line output audio transformer. This audio transformer used to couple the output stage of an amplifier, mixing console, or other line-level device to the input of another device, while maintaining signal integrity, providing electrical isolation, and optimizing impedance matching.
- 1 : 1 : 1 : 1 turns ratio
- Max input: +27dBu at 20Hz
- 150 ohm input impedance
- Frequency range from 10Hz to 80kHz
- Grain orientated silicon steel core for maximum level handling
- Operating temperature range from 0 to +70°C
Product details
Other details
| Brand | VIGORTRONIX |
| Part Number | VTX-LOUT3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3318.94 |
| 3-5 | ₹ 3285.07 |
| 5-10 | ₹ 3217.34 |
| 10+ | ₹ 3149.6 |
Bulk discount will be automatically applied during checkout based on quantity.
