Description
Product Overview

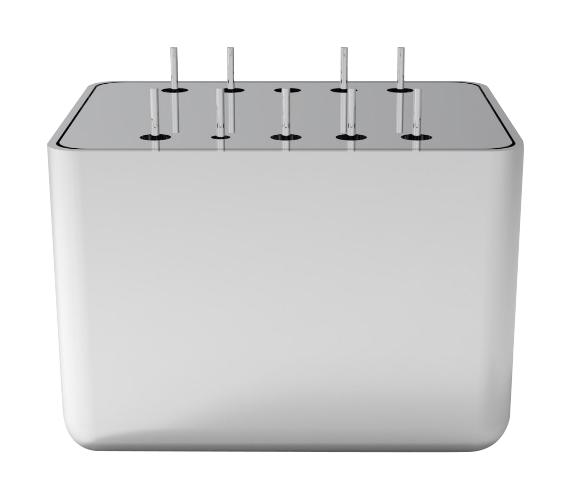

VTX-LIN11 is a line input audio transformer with through-hole PCB pins. Used in audio systems to interface line-level signals with the input stages of amplifiers, mixers, or other equipment. Its primary purpose is to optimise signal transfer, provide electrical isolation, and minimise noise and interference in audio systems.
- 1 : 1 C.T. turns ratio
- Max input: +21dBu at 20Hz
- 10kohm input impedance
- Frequency range from 16Hz to 70kHz
- Fitted with multiple electrostatic screens
- Low distortion Mu-metal core
- Mu-metal screening can reduces electrical noise by up to 30dB
- Operating temperature range from 0 to +70°C
Product details
Other details
| Brand | VIGORTRONIX |
| Part Number | VTX-LIN11 |
| Quantity | Each |
| Technical Data Sheet EN |  |
