Description

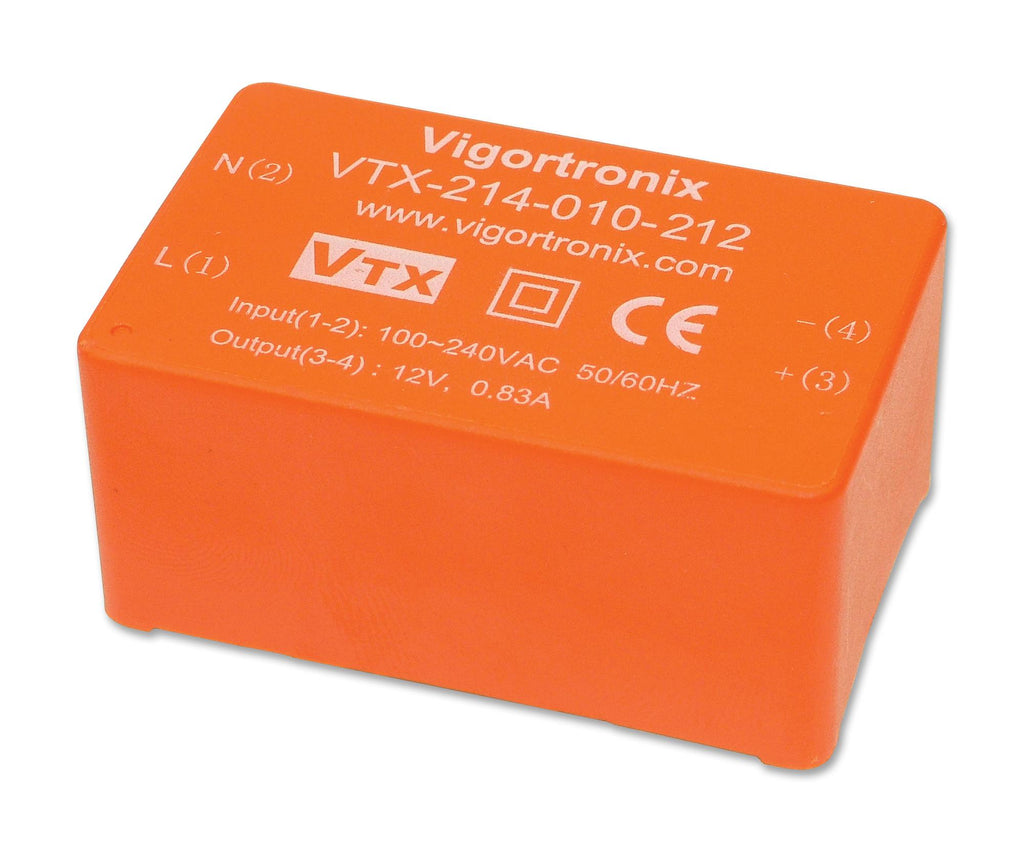

The VTX-214-010 miniature series from Vigortronix are single output, PCB mount AC to DC SMPS converters. These miniature size AC to DC converters are approved by EN61558, EN60950, CE, TUV standards.
- 10W regulated single output
- Output voltage ranges from 3.3VDC to 48VDC
- Output current ranges from 208mA to 3000mA
- Input voltage ranges from 90VAC to 265VAC at 47Hz to 63Hz
- Low standby power of 0.3W
- Low ripple and noise
- Encapsulated design
- Efficiency up to 75%
- Operating temperature range -25°C to 50°C
- Class II insulation
Applications
Power Management, Industrial
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 10W |
| Output Voltage - Output 1: 15VDC |
| Output Current - Output 1: 666mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Power Supply Output Type: Fixed |
| Input Voltage VAC: 90V AC to 265V AC |
| Width: 30mm |
| Height: 24mm |
| Depth: 45.5mm |
| Product Range: - |
Other details
| Brand | VIGORTRONIX |
| Part Number | VTX-214-010-215 |
| Quantity | Each |
| Technical Data Sheet EN |  |
