The VTX-214-003-305X from Vigortronix is a 3W, zero crossing series AC to DC converter. It features low profile (<15mm height), 1000000hours MTBF at 25°C (MIL-HDBK-217F) and less than <0.15W low standby power. Input current is 200mA maximum (100VAC) / 100mA maximum (240VAC)) and inrush current is 5A maximum (100VAC) / 10A maximum (240VAC). This AC to DC converter has hiccup mode overpower, hicc-up mode overvoltage and hicc-up mode short circuit protection. It is compliant with IEC60950-1, EN60950-1, IEC61558-1, EN61558-1, EN61558-2-6, EN61558-2-17 agency standards, EMI compliant with EN55022 Class B EN61000-3-2, 3 and EMS compliance with EN55024, EN55014-1, EN55014-2, EN61000-4-2,3,4,5,6,8,11 Class A (surge L-N: 1KV).
- Wide input range from 90VAC to 305VAC (47Hz to 63Hz)
- Output voltage is 5VDC and output current is 600mA
- Typical efficiency is greater than 72%, zero cross detection output
- Maximum no load power is 0.15W, maximum leakage current is 0.2mA
- 85°C full load high temperature, 29g weight
- No external components required
- TUV and UL approved
- Input to output dielectric isolation is 3600Vrms
- Operating temperature range from -25°C to 85°C
Applications
Industrial
Product details
| Power Supply Applications |
ITE |
| No. of Outputs |
1 Output |
| Output Power Max |
3W |
| Output Voltage - Output 1 |
5V |
| Output Current - Output 1 |
600mA |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Input Voltage VAC |
90V AC to 305V AC |
| Width |
24mm |
| Height |
15mm |
| Depth |
37mm |
| Product Range |
VTX-214-003 Series |
Other details
| Brand |
VIGORTRONIX |
| Part Number |
VTX-214-003-305X |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

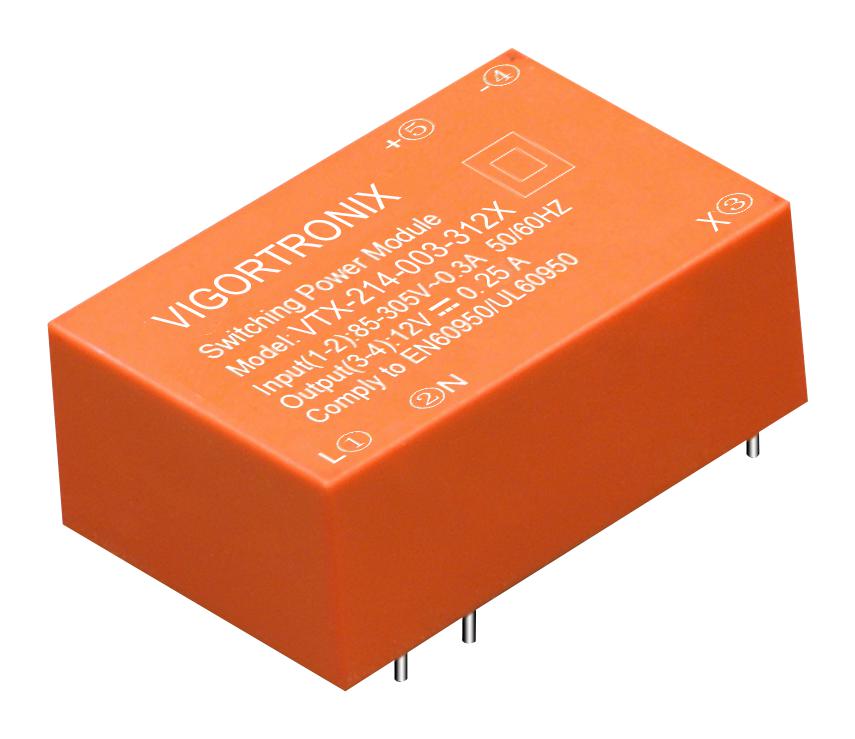

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
