Description

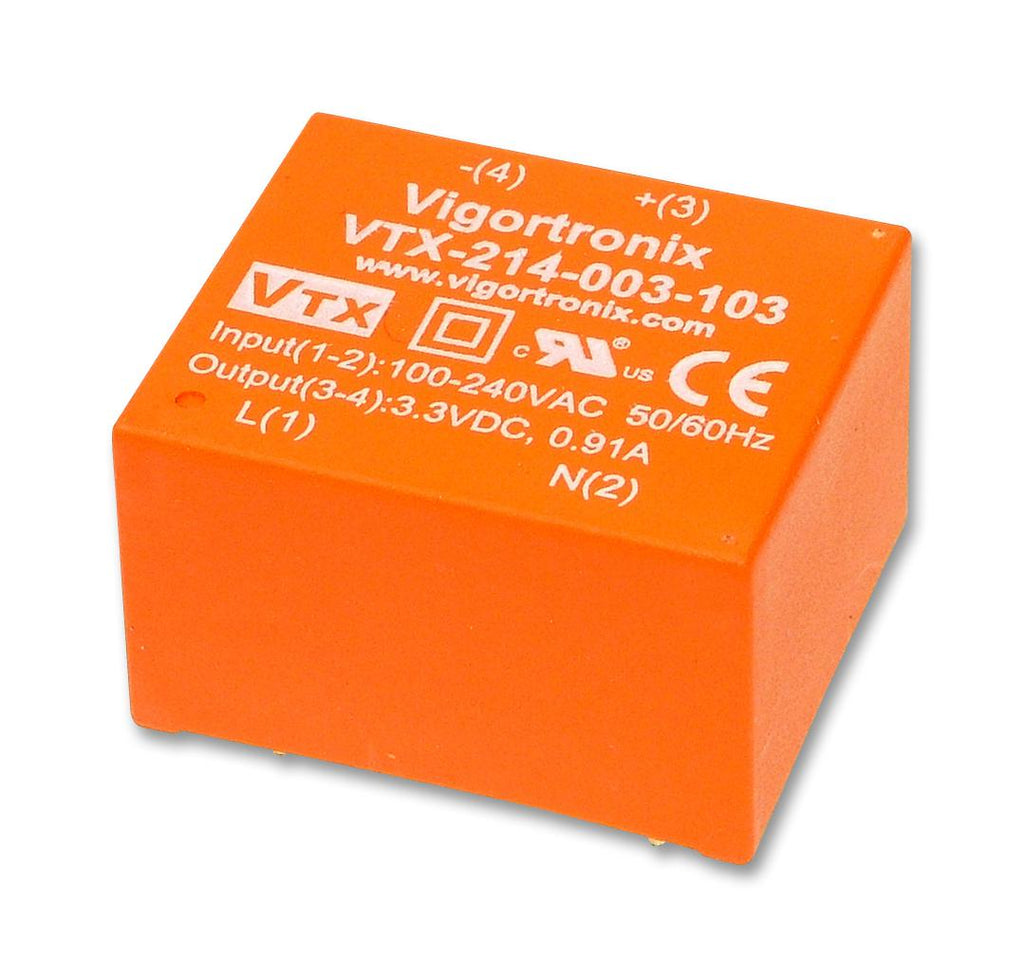

The VTX-214-003 series from Vigortronix are single output, AC to DC SMPS converters. These AC to DC converters are approved by EN61558, EN60950, CE, UL standards.
- 3W regulated single output
- Output voltage ranges from 3.3VDC to 48VDC
- Output current ranges from 63mA to 909mA
- Input voltage ranges from 90VAC to 265VAC at 47Hz to 63Hz
- Low standby power of 0.15W
- Low ripple and noise
- Encapsulated design
- Efficiency up to 70%
- Operating temperature range -25°C to 70°C
- Class II insulation
Applications
Power Management, Industrial
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 3W |
| Output Voltage - Output 1: 7.5VDC |
| Output Current - Output 1: 400mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Power Supply Output Type: Fixed |
| Input Voltage VAC: 90V AC to 265V AC |
| Width: 26.8mm |
| Height: 20mm |
| Depth: 31.8mm |
| Product Range: - |
Other details
| Brand | VIGORTRONIX |
| Part Number | VTX-214-003-107 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 800.97 |
| 3-5 | ₹ 792.8 |
| 5-10 | ₹ 776.45 |
| 10+ | ₹ 760.11 |
Bulk discount will be automatically applied during checkout based on quantity.
