Description
Vigitron VI3005 Overview

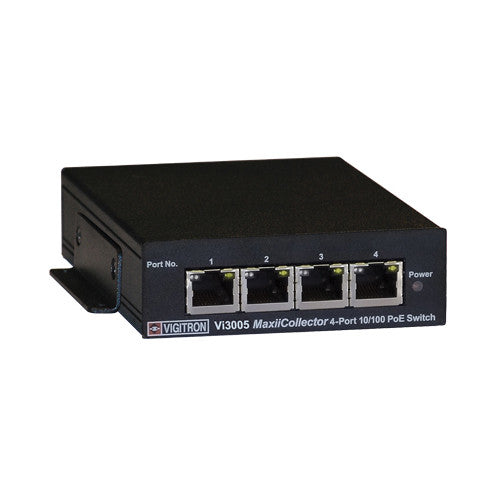

The Vi3005 MaxiiNet 5-Port PoE Powered PoE Switch from Vigitron brings optimal performance standards to the growing need for high speed transmission of high speed Ethernet. It eliminates the need for local power for the Vi3005 and cameras connected to its four ports. The Vi3005 can be powered by PoE sources up to 74W or locally by the Vi1120 power supply (sold separately) to supply 802.3at to each port, providing up to 37W (more than 802.3at) to each port or up to 74W for two combined ports. The switch can operate over UTP at standard distances up to 1000m and fiber uplink by using its built-in MSA SFP compliant port to provide transmission distances up to 80km.
With an operating temperature range of 32 to 158°F, the Vi3005 is a suitable solution for data and power transmission for warehouses, parking lots, campuses, casinos, and many other venues. The Vi3005 is MegaPixel Certified (MPC), type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error free, quality operations. Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric. 5-port network switch PoE and local powered layer 2 network switch
Can be powered from a remote PoE source to provide PoE power to all 4 ports
Up to 37W PoE per port, capable of combing each 2-ports for up to 74W
Provides MSA compliant SFP fiber output port for integration to existing fiber infrastructures and long distance up to 80km
Intelligent power sensing automatically allocates port power based on the number of connect ports and individual camera power requirements
Automatic PoE port priority allocation
Over current shut down protection if allocated PoE budget is exceeded
Certified (MPC) high data rate for virtual loss free transmission of camera data
Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
Complies with IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
Provides full Layer 2 network switch functionality
Upgrade analog CCTV installations into digital systems
Expand networks in industrial environment
Switch can be used for CCTV system for casinos, airports, school campuses, and many more
UPC: 841144100368
Vigitron VI3005 Specs
Electrical
| Ethernet Interface | Standard 10/100BaseT |
| UTP | 100 ohms +/- 20%, up to 328' (100 m) |
| Power Source | PoE: 802.3af (15.4 W), 802.3at (30 W), 60 W External Power Supply: 57 VDC at up to 120 W or 12 VDC at 0.3 A, for non-PoE operation |
| Status LEDs | Power Ethernet: Traffic, Link PoE Active |
| Connectors | Fiber: MSA compliant SFP socket Ethernet Interface: 5 x RJ-45 connectors Power: Circular power connector |
| RFC | 2544 TCP/IP packet transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| PoE Compatibility | IEEE 802.3af, IEEE 802.3at, 74 W high power PoE |
Environmental
| Operating Temperature | 32 to 158°F (0 to 70°C) |
| Storage Temperature | -40 to +185°F (-40 to +85°C) |
| Humidity | 0 to 95% (non-condensing) |
Regulatory
| FCC Compliance | Part 15, Subpart B, Class B 2010 |
| Emissions | EN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009 EN 55024:1998+A1:2001+A2:2003 |
| Safety | CE |
| Environmental Compliance | RoHS, WEEE |
Physical Characteristics
| Material of Main Chassis | Aluminum |
| Dimensions (L x W x H) | 4.9 x 3.7 x 1.2" (12.5 x 9.5 x 3.0 cm) |
| Weight | 10.2 oz (290.0 g) |
Packaging Info
| Package Weight | 0.655 lb |
| Box Dimensions (LxWxH) | 7.7 x 4.4 x 2.5" |
