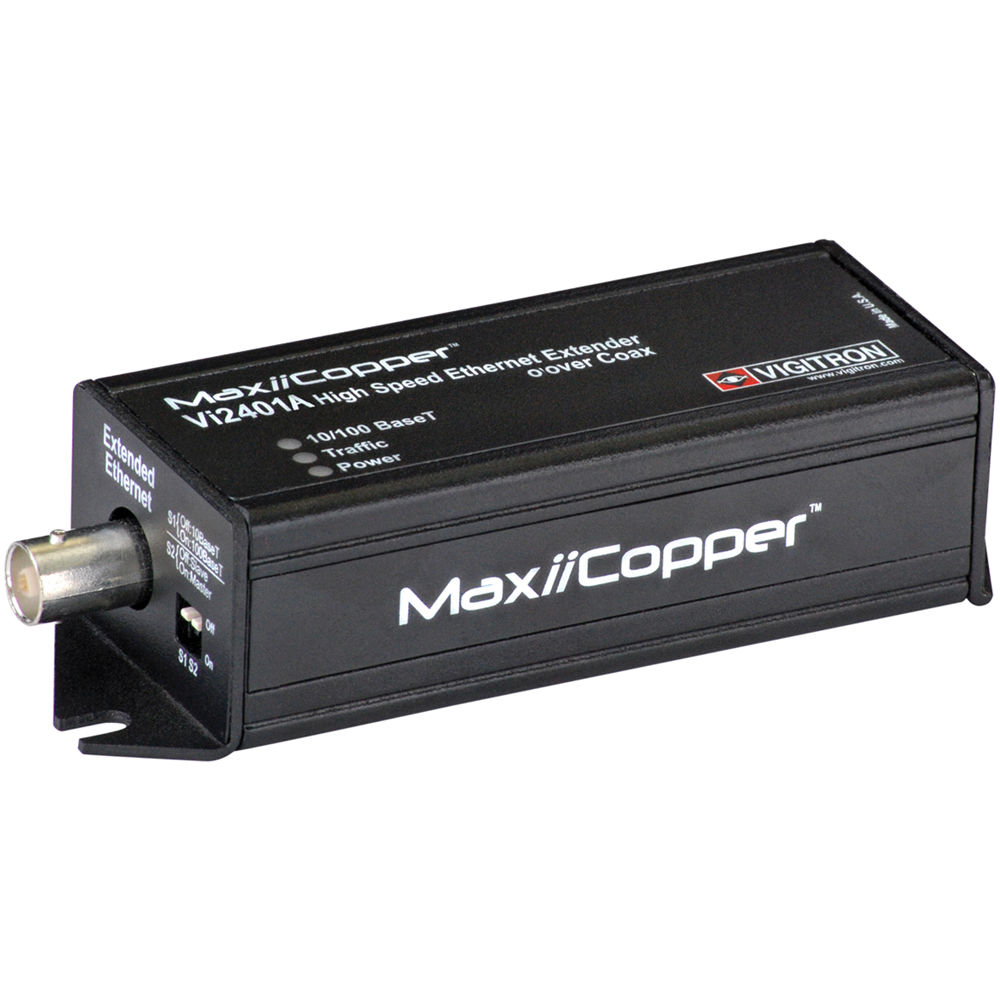

Vigitron VI2401A MaxiiCopper 1-Ch High-Speed Ethernet Extender-over-Coax

Transmit Ethernet over Coax Cables

Maximum Transmission Range of 5000'

Designed for High Bandwidth Equipment

Transceiver Cable Connectivity Tester

Vigitron 's VI2401A MaxiiCopper 1-Ch High-Speed Ethernet Extender-over-Coax allows users to transmit network data and PoE over standard coax cable, enabling IP surveillance cameras and other high-bandwidth digital devices to use existing infrastructure cabling in reduce installation time and cost while increasing Ethernet transmission range beyond the current 328' (100 m) limitation up to 5,000 feet.

Its Symmetric Bandwidth (SBW) technology ensures that full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with the ability to transmit multiple cameras on single camera runs with no information loss. Pass Through PoE (PTP) eliminates the need for additional remote power appliances while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and camera. The unit has low power requirements and is small enough to easily fit inside most cameras housing and junction boxes.

Converts Ethernet UTP to transmit network data and PoE over standard coax cable Extends Ethernet up to 5,000' over coaxial cables MegaPixel Certified (MPC) High data rate: Ideal for high bandwidth requirements of Mega-pixel cameras, multiple IP cameras systems and cameras requiring Jumbo Frame transmission 802.3af and 802.3at Pass Through PoE (PTP) reduces installation costs while maintaining camera safeguards Symmetric Bandwidth(SBW) provides consistent upload and download with Virtual Zero Packet Loss (VZPL) over total specified distance Compact 3.7x1.6x1.2", and lightweight 3.4 oz design easily fits in camera enclosures and junction boxes Designed and manufactured in the USA UPC: 841144100016

Data Rate	Auto select 10/100 Mb/s Full speed / full duplex at maximum rated distance
Network Interface	10/100 BaseT
Connectors	Ethernet Interface: RJ-45 Extended Interface: Female BNC Power: IEC380-8 inlet
RFC Standard Compliance	2544 TCP/IP Packet Transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet
Transmission Distance	75 Ohm coax cable: 10BaseT: 5,000' (1,515 m) / 100BaseT: 1,800' (546 m)
Power	Requirements: 12 VDC, 24 VAC, PoE at 150 mA (max.) Consumption: 1.8 W - external power supply or PoE PoE compatibility: IEEE 802.3af , IEEE 802.3at
Certifications	FCC: Part 15, Subpart , Class B 2010 Emissions: EN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008, EN 55024:1998+A1:2001+A2:2003 Safety: CE Environmental: RoHS
Environmental	Operating temperature: -40 to 167°F (-40 to 75°C) Storage temperature: -40 to 185°F (-40 to 85°C) Humidity: 0 to 95%, non-condensing
Dimensions	3.7 x 1.6 x 1.2" (9.5 x 4.0 x 3.0 cm)
Weight	3.4 oz (96.0 g)
