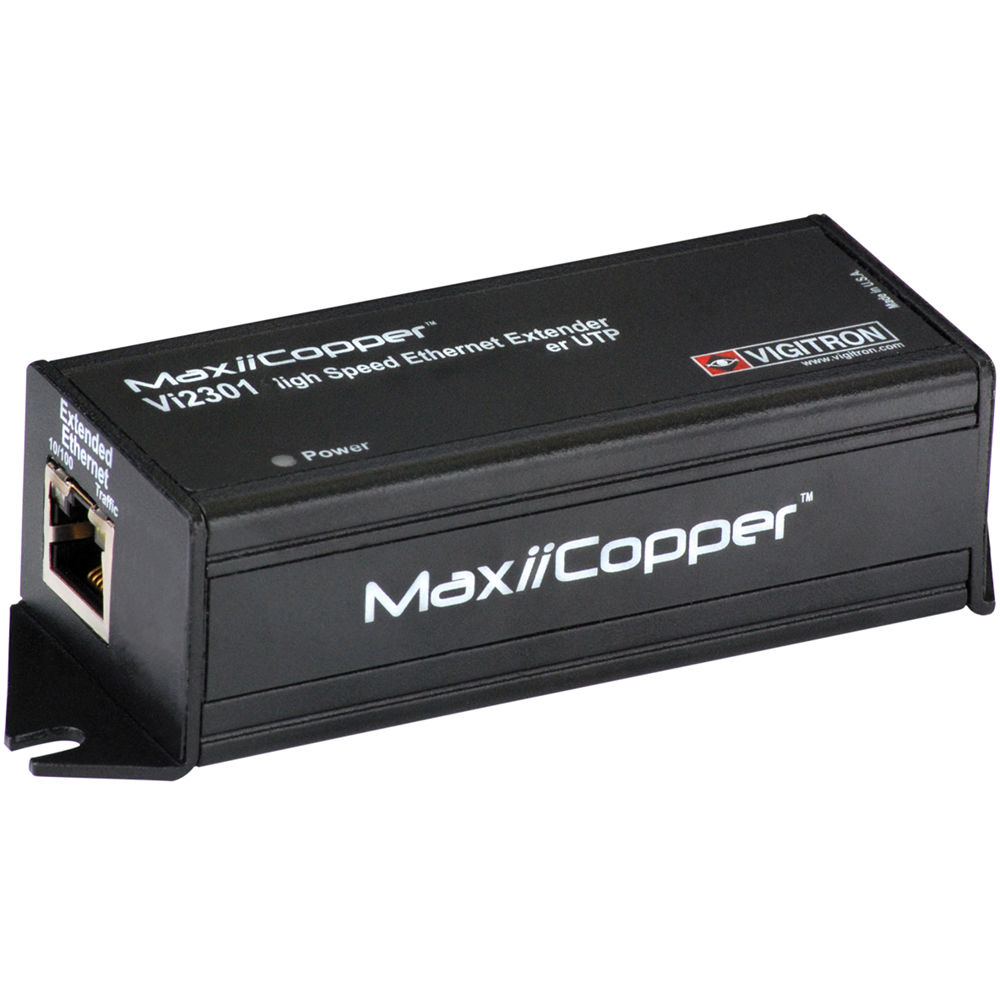

Vigitron Vi2301A MaxiiCopper 1-Port High-Speed Ethernet Extender over UTP

The Vi2301A MaxiiCopper 1-Port High-Speed Ethernet Extender over UTP from Vigitron caters to the growing need for high speed transmission of full bandwidth Ethernet and high power PoE over extended distances. Its Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss.

Extended Pass Through PoE (PTP) up to 74W eliminates the need for additional cost for remote site power. Type tested under NEMA-TS2 environmental standards for -40 to 167°F (-40 to +75°C), this extender is suitable for remote signal and power transmission for warehouses, parking lots, campuses, casinos and many more. The extender is MegaPixel Certified (MPC), type tested to network packet performance standards, and major camera brand compatibility tested to assure you error free and reliable operations.

Extends Ethernet beyond 328' (100 m) limitation up to 3000' (914m) over UTP cables No switch setting or network programming required Extended Pass Through PoE (PTP) compatible with 802.3af, 802.3at, and PoE++ (74W) MegaPixel Certified (MPC) high data rate, ideal for high bandwidth requirements of megapixel cameras, multiple IP cameras systems, and cameras requiring jumbo frame transmission Symmetric Bandwidth (SBW) provides consistent upload and download with Virtual Zero Packet Loss (VZPL) Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards Supports one-pair or four-pair UTP wires with built-in transceiver cable connectivity tester Type tested for -40 to 167°F (-40 to +75°C) temperature range under conforming to NEMA-TS2 Data rate selectable to for maximum bandwidth utilization Jumbo frame support Complies to major IEEE standards and RFC protocols for UDP, TCP/IP, HTTP/HTTPS Designed and manufactured in USA Applications Extending Ethernet distances beyond Ethernet 328' (100 m) limit Retrofit UTP analog CCTV installations into digital systems Providing high power PoE to PTZ cameras at long distances CCTV system for casinos, airports, school campuses UPC: 841144100078

Ethernet Interface	Standard 10/100BaseT
Data Rate	Auto select 10/100 Mb/s Full speed / full duplex at maximum rated distance
UTP	100 ohms +/- 20%, Cat5 or better 10BaseT: Up to 3,000' (914 m) 100BaseT: Up to 2,100' (640 m)
Power Consumption	12 VDC, 24 VAC, PoE af/at @ 150 mA (maximum) 1.5 W with external power supply 2 W using PoE
LEDs	Power on Standard Ethernet: Traffic, link Extended Ethernet: Traffic, 10/100BaseT
Connectors	Ethernet Interface: RJ-45 connector Extended Interface: RJ-45 connector Power: IEC380-8 inlet
RFC	2544 TCP/IP packet transmission
PoE	IEEE 802.3af, IEEE 802.3at, 74 W PoE
RFC Standard Compliance	768 UDP, 2068 HTTP, 793 TCP, 791 IP, 1783 TFTP, 894 IP over Ethernet

FCC Compliance	Part 15, subpart B, class B 2010
Emissions	EN 5502:2006+A1:2007 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008 EN 55024:1998+A1:2001+A2:2003
Safety	CE

RoHS	RoHS compliant
Humidity	0 to 95%, non-condensing
Temperature	Operating: -40 to 167°F (-40 to +75°C) Storage: -40 to 185°F (-40 to +85°C)

Material	Extruded aluminum
Dimensions (H x W x L)	1.2 x 1.6 x 3.7" (3.0 x 4.0 x 9.5 cm)
Weight	3.4 oz (96.0 g)

Package Weight	0.4 lb
Box Dimensions (LxWxH)	6.8 x 3.4 x 2.5"
