Description
- Standard 10/100/1000BaseT Ethernet
- Category 5 or higher UTP
- No Power Supply Required
- Integrated Status LEDs
- Male & Female RJ-45 Connectors

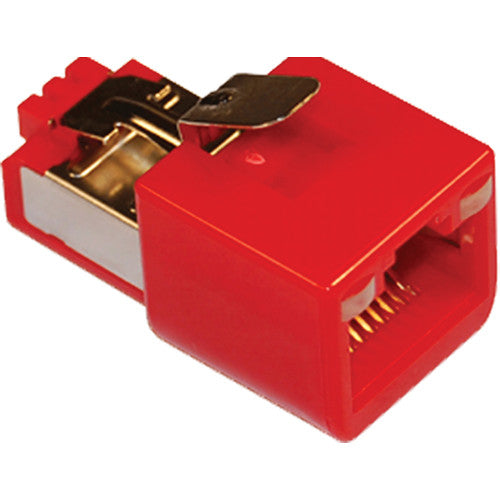

Vigitron's Vi2001 in line Ethernet surge protector is designed to provide protection where cable runs can be subject to electric spikes from outside environmental sources. These spikes can damage equipment. The Vi2001 minimizes this potential by its built in ability to self-discharge these spikes.
The Vi2001 features a small format, is easy to install, and is compatible with any RJ45 connector without the need for additional mounting or a separate ground cable. Port data transfer is provided at 10/100/1000BaseT. The Vi2001 requires the shield of RJ45 connectors to be connected to chassis ground.
Features
- Direct in line port plug in module saving valuable equipment space
- Innovative direct in line port plug in module saving valuable equipment space
- Ability to choose only those ports that require extra protection
- Enhanced protection for standard and extended UTP Ethernet runs
- Provides addition port protection for cameras, DVRs and NVRs
- Compatible with 10/100/1000 BaseT port
- Does not require extra ground cable
- Compatible with PoE 802.3af and 802.3at
- Tested and certified to EN61000-4-5 and EN55024 surge standards
Applications
- UTP Ethernet cable runs subject to exposed elements or operating close to power line and other electrically powered equipment
- Extended distance UTP cable runs
- Ethernet Networks in industrial environment
- IP cameras and other network equipment operating in uncontrolled environments such as parking lots, warehouses and perimeter applications
UPC: 841144100290
| Electrical | |
|---|---|
| Ethernet Interface | Standard 10/100/1000BaseT |
| UTP | Category 5 or higher |
| Power Supply | No power required |
| LED Indicators | Traffic, link through light-pipe |
| Connectors | Male RJ-45, female RJ-45 |
| Connection | Through metal tab |
| Compatible With | IEEE 802.3af PoE, IEEE 802.3at PoE |
| Standard Compliances | |
|---|---|
| Tested and Certified For | IEC 61000-4-2: ESD @ 15Kv (air), 8Kv (contact) IEC 6100-4-5: Lighting @ 8/20us IEC 61000-4-2: 2006 EN 55024: |
| Compliance Category | B |
| Let Through Voltage Rating | 5 Kv (air) 8 Kv (contact) |
| Environmental | |
|---|---|
| Temperature | Operating: -40 to 167°F / -40 to 75°C Storage: -40 to 185°F / -40 to 85°C |
| Humidity | 0 to 95% (non-condensing) |
| Dimensions & Weight | |
|---|---|
| Dimensions | 0.55 x 0.63 x 1.10" / 14 x 16 x 28 mm |
| Weight | 0.14 oz / 4 g |
| Packaging Info | |
|---|---|
| Package Weight | 0.04 lb |
| Box Dimensions (LxWxH) | 1.5 x 0.8 x 0.8" |
