Description

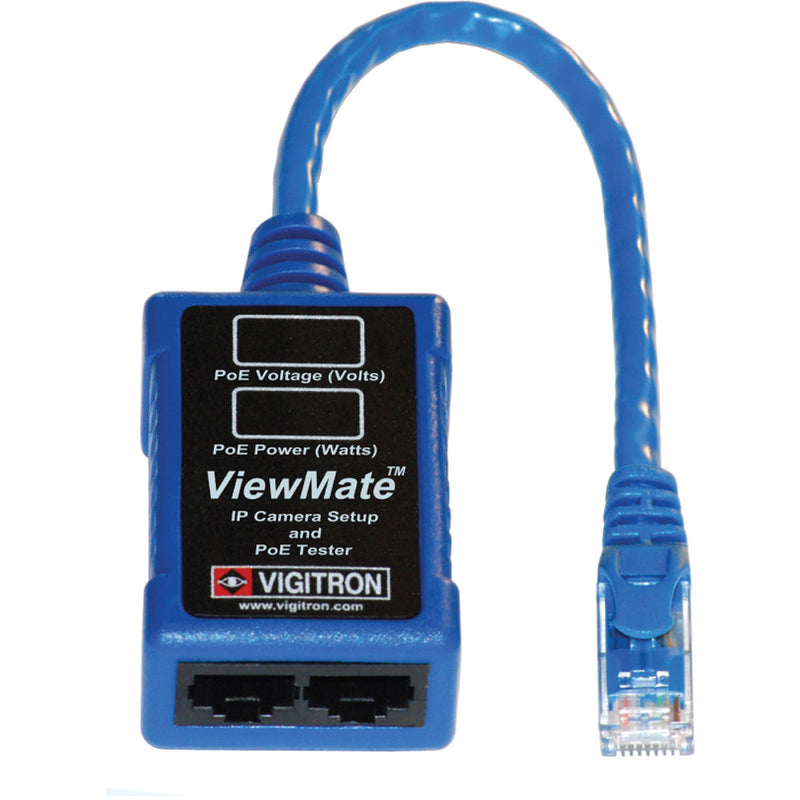

The Vi0021 ViewMate IP Camera Setup & PoE Tester Tool from Vigitron is a compact yet powerful tool for installing and troubleshooting PoE enabled devices. The tool accurately and continuously measures and displays the voltage and power level of PoE at the camera input on 2 separate displays.
When connected, ViewMate passes the PoE power from the Network Ethernet port to the remote PoE powered device such as an IP camera through the Camera port, and the Laptop port provides direct network connection from the remote IP camera to a local laptop for focusing and set up.
Powered directly from PoE sources, the Vi0021 doesn�t require any external power. It is compatible with IEEE 802.af, IEEE 802.at and most non-standard PoE systems up to 60 W for 100/10 BASE-T environments. ViewMate�s patent-pending design offers small and rugged packaging. It is a suitable diagnostic tool for all installers working with both CCTV and IT PoE systems.
- Provides a simple way to setup and focus PoE powered IP cameras
- Maintains PoE power to the IP camera while making a local Ethernet connection to a laptop to view the camera image
- Measures and displays accurately the PoE voltage and power at the camera
- 10Base-T and 100Base-T compliant with integrated network crossover
- Compatible with IEEE 802.af, IEEE 802.at and most non-standard solutions up to 60W
- Does not require an external power source, uses PoE power from the network
- Low cost and easy to use
- Speeds up IP camera installation
- Applications include:
Installing and troubleshooting PoE cameras
Installing or troubleshooting PoE enables devices
CCTV systems for casinos, airports, school campuses
Vigitron VI0021 specs
| Electrical | |
|---|---|
| Connectors | POE In: RJ-45 Connector Monitor: RJ-45 Connector Camera: Built-in 3' Cat-5 cable with RJ45 plug |
| Network Interface | 10Base-T and 100Base-T, Half or Full Duplex Includes integrated network crossover |
| Interface | Laptop Interface: 10Base-T and 100Base-T, Half or Full Duplex Integrated network crossover |
| PoE Standard | IEEE 802.3af, IEEE 802.3at and most non-standard PoEs up to 60 W |
| Display | PoE Voltage: 2-Digit Seven Segment PoE Power: 2-Digit Seven Segment |
| Power Supply | Uses PoE, no external power needed |
| Environmental | |
|---|---|
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40 to 167°F (-40 to +75°C) Storage: -40 to 176°F (-40 to +80°C) |
| Mechanical | |
|---|---|
| Material | Solid molded |
| Dimensions (H x W x L) | 1.52 x 1.09 x 2.24" (3.87 x 2.75 x 5.67 cm) |
| Weight | 0.116 lb (53 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 6.1 x 3.0 x 1.4" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
