| ₹ 7440.0 includes GST and import duties. | |
| B2B customers can avail ₹ 1134.6 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Vigitron VI00103 Overview

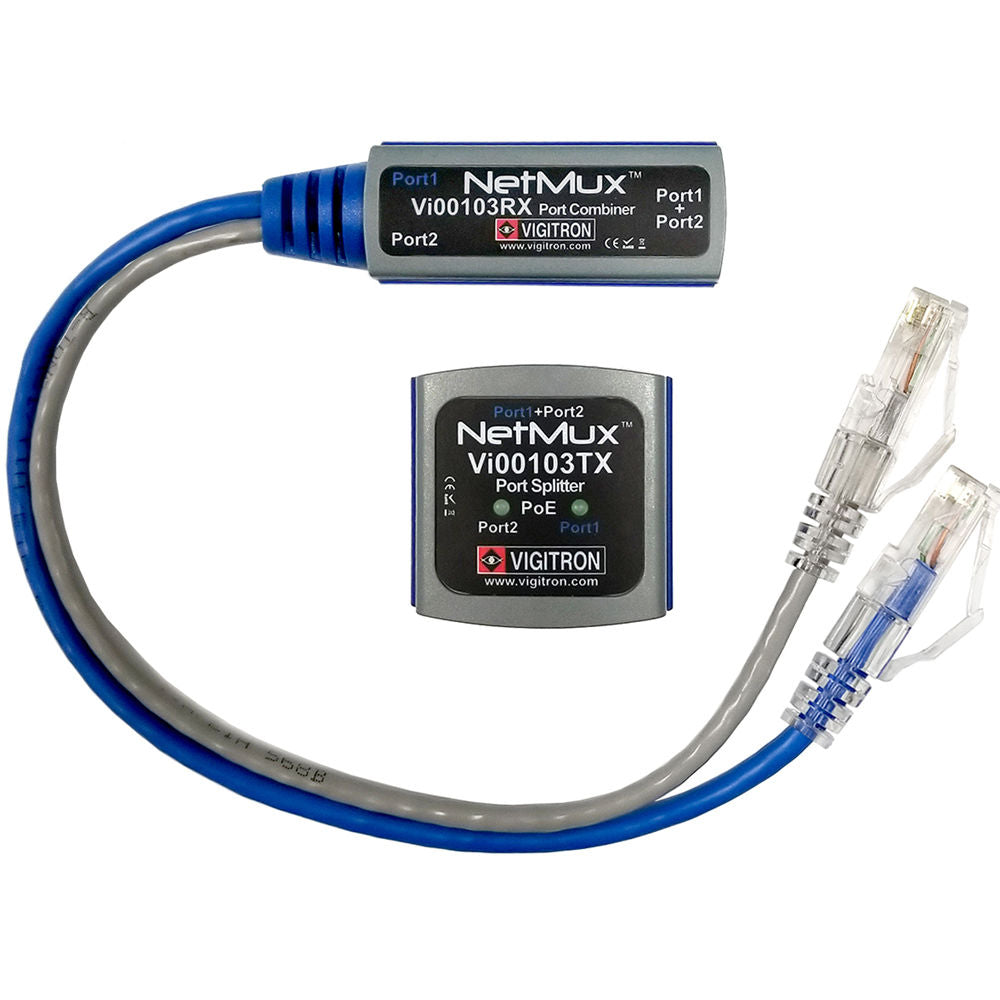

The Vi00103 NetMux Ethernet and PoE Port Multiplexer from Vigitron links two PTZ cameras or other IP/PoE devices to a PoE switch using a single Cat 5/6 cable. Consisting of a port combiner and a port splitter, this multiplexer helps to reduce installation costs and time.
The receiver connects to the PoE switch via two built-in 10" Cat 5 pigtail cables, combining two IP/PoE signals and transmitting them through one cable. The transmitter then separates the combined signals to connect to a PoE switch on each of your two devices; LEDs on the transmitter display the status for each port. This compact solution is compatible with IEEE 802.af/at and most non-standard PoE systems supporting up to 37W in 10/100 BASE-T environments.
Features
In the Box
- Vigitron Vi00103 NetMux Ethernet and PoE Port Multiplexer
- Transmitter
- Receiver
- Limited 3-Year Warranty
Vigitron VI00103 Specs
| Interface | 10BASE-T, 100BASE-T |
| Power | PoE |
| Connectors | Receiver: 2 x RJ45 (Male) 1 x RJ45 (Female) Transmitter: 3 x RJ45 (Female) |
| Status LEDs | Receiver: None Transmitter: PoE Output: Port 1, Port 2 |
| Regulatory Certifications | Safety: CE, FCC Environmental: RoHS, WEEE |
| Non-Condensing Humidity Range | 0 to 95% |
| Operating Temperature Range | -40 to 167°F / -40 to 75°C |
| Storage Temperature Range | -40 to 176°F / -40 to 80°C |
| Housing Material | ABS Plastic, 94V-0 UL Rating |
| Dimensions | Receiver: 1.90 x 0.84 x 0.8" / 4.83 x 2.13 x 2.03 cm Rx Pigtail Cables: 10" / 25 cm Transmitter: 1.44 x 1.39 x 0.83" / 3.66 x 3.53 x 2.11 cm |
| Weight | Receiver: 1.1 oz / 31 g Transmitter: 0.6 oz / 16 g |
| Package Weight | 0.17 lb |
| Box Dimensions (LxWxH) | 6.85 x 4.35 x 1" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7291.2 |
| 3-5 | ₹ 7216.8 |
| 5-10 | ₹ 7068.0 |
| 10+ | ₹ 6919.2 |
Bulk discount will be automatically applied during checkout based on quantity.
