Description

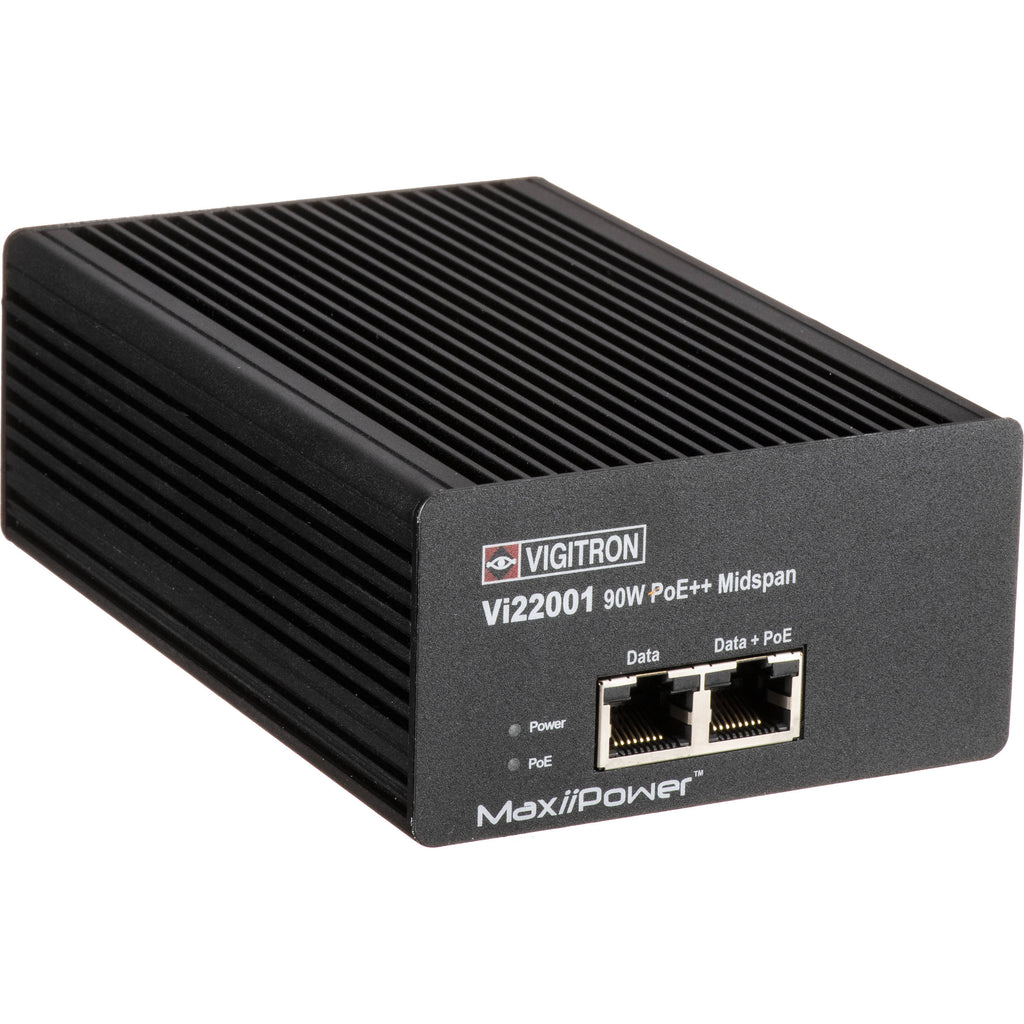

Vigitron VI22001 Overview
The MaxiiPower Vi22001 Single Port 90W PoE++ Midspan from Vigitron can support devices that require up to 90W of PoE power. It complies with 802.3af, 802.3at, and PoE++ standards. This midspan offers surge and overcurrent protection to prevent damage to powered devices.
Features
1000M Ethernet interface
Compatible with Cat 5 cables or higher
Supports single and dual PD PoE devices
Tested to RFC 2544 packet transmission standards
Provides high data rate and power for megapixel IP camera applications
For applications using a non-PoE network switch
Auto PoE detection
Surge and overcurrent protection
LED indicators for status
Compact design
Extruded aluminum enclosure
7' power cord and mounting clips included
-4° cold start
CE, RoHS, and WEEE certified
UPC: 841144101778
In the Box
- Vigitron MaxiiPower Vi22001 Single Port 90W PoE++ Midspan
- Molded IEC 7' Power Cord
- Mounting Clips
- Limited Lifetime Warranty
Vigitron VI22001 Specs
| Type | Injector |
General
| Connectors | 1 x RJ45 Gigabit Ethernet (Input) 1 x RJ45 Gigabit Ethernet (Output) |
| Shielded Connections | Yes |
| Supported IEEE Standards | 802.3af, 802.3at, 802.3bt |
Electrical
| PoE Power | 56 VDC, 90 W (Output) |
| Power Consumption | 90 W |
| Surge Protection | Yes |

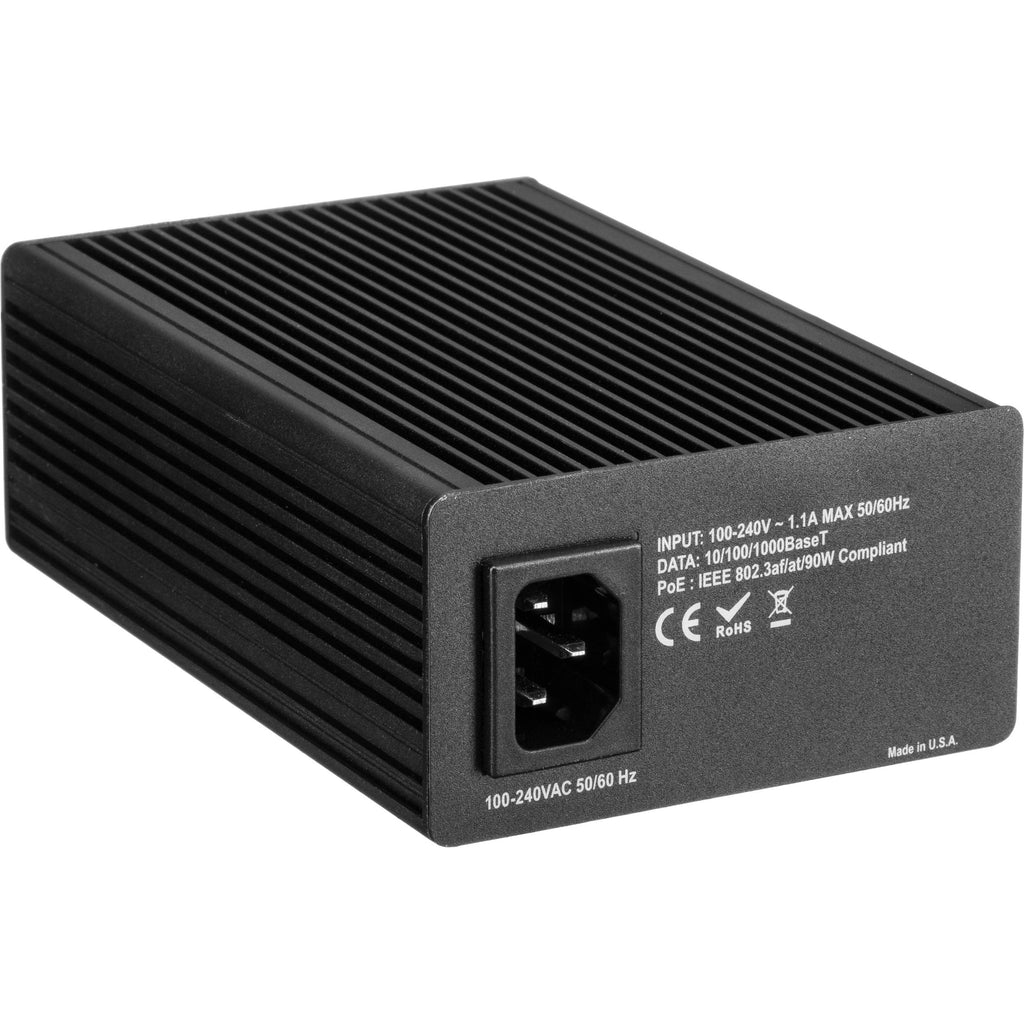

| AC Input Power | 90 to 264 VAC, 50 / 60 Hz at 1.1 A |
Environmental
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| Certifications | CE, RoHS, WEEE, as per Manufacturer |
Physical
| Maximum Operating Distance | 328' / 99.97 m |
| Environmental Use | Outdoor |
| LED Indicators | Yes |
| Material of Construction | Metal |
| Wall Mountable | Yes, with Included Hardware |
| Cable Length | 7' / 2.13 m |
| Dimensions | 6.1 x 3.7 x 2.0" / 15.5 x 9.5 x 5.1 cm |
| Weight | 1.58 lb / 720 g |
Packaging Info
| Package Weight | 2.38 lb |
| Box Dimensions (LxWxH) | 8.3 x 6.4 x 2.9" |
