Description
VigilLink VLML-SDH3X2 Overview

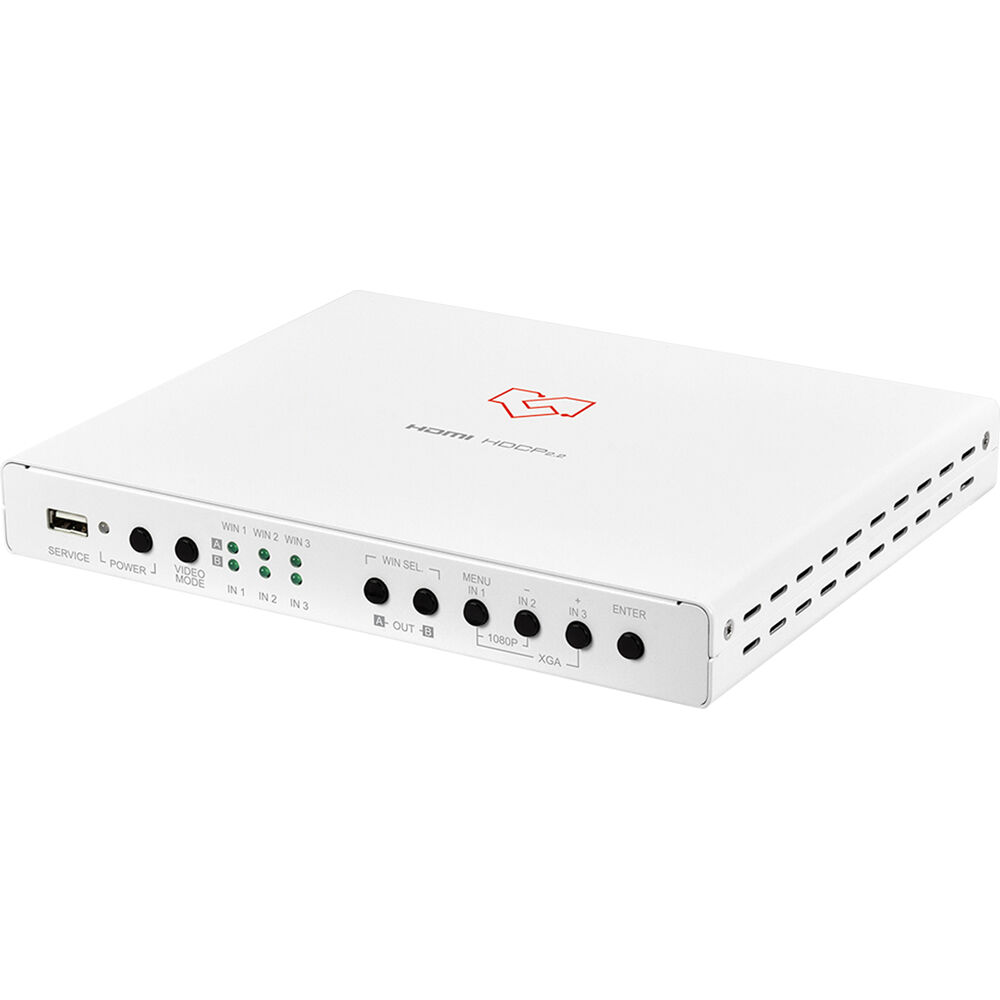

The UHD 4K 3x2 HDMI/SDI/DVI Matrix with PiP from VigilLink is designed for conference rooms, video walls, digital signage, and retail locations that require multiple switchable inputs and output to multiple video displays. The matrix features one HDMI, one DVI-I with VGA support, and one 12G-SDI input that support up to 4K60 8-bit 4:4:4 video resolutions. It can output via HDMI and USB-C to displays, medical displays, 3D glasses/goggles, set-top boxes, and more.
Features include seamless switching with no sync loss, scalable multiview windows, chroma keying, image rotation, uploadable graphic logos, embedded audio routing, EDID management, HDCP 2.2, control via IP/front-panel buttons, and more.
- HDMI 2.0 and DVI 1.0 compliant
- HDCP 1.x and 2.2 compliant
- One 12G-SDI, one HDMI, and one DVI-I (with VGA support) input
- One HDMI and one USB-C output
- Supports up to UHD 4K (18 Gb/s, 4K50/60 4:4:4, 8-bit) video input and output
- Seamless switching (no loss of sync to display) when switching sources in Matrix mode
- Supports up to three simultaneous, freely scalable, windows in multiwindowing modes
- Supports the ability to store a multi-window arrangement as a preset that can be recalled later
- Auto-window mode that will automatically change the number of visible windows based on the number of live sources
- Independent audio source selection and routing in all modes
- Inputs 1 and 2 support pass-through of many audio formats including 8 channel LPCM (Input 3, if HDMI is connected, is limited to 2 channel LPCM only)
- Chroma key mode (between input 1 and 2 only)
- 90° counterclockwise rotation support (matrix mode only)
- Each window can have a border with a selectable color
- Uploadable and freely position-able graphic logo support
- Uploadable boot screen logo support
- Intuitive and easy adjustment of window size, position, and settings in multi-window modes via the Web GUI
- Per-input EDID management with internal or external EDID options

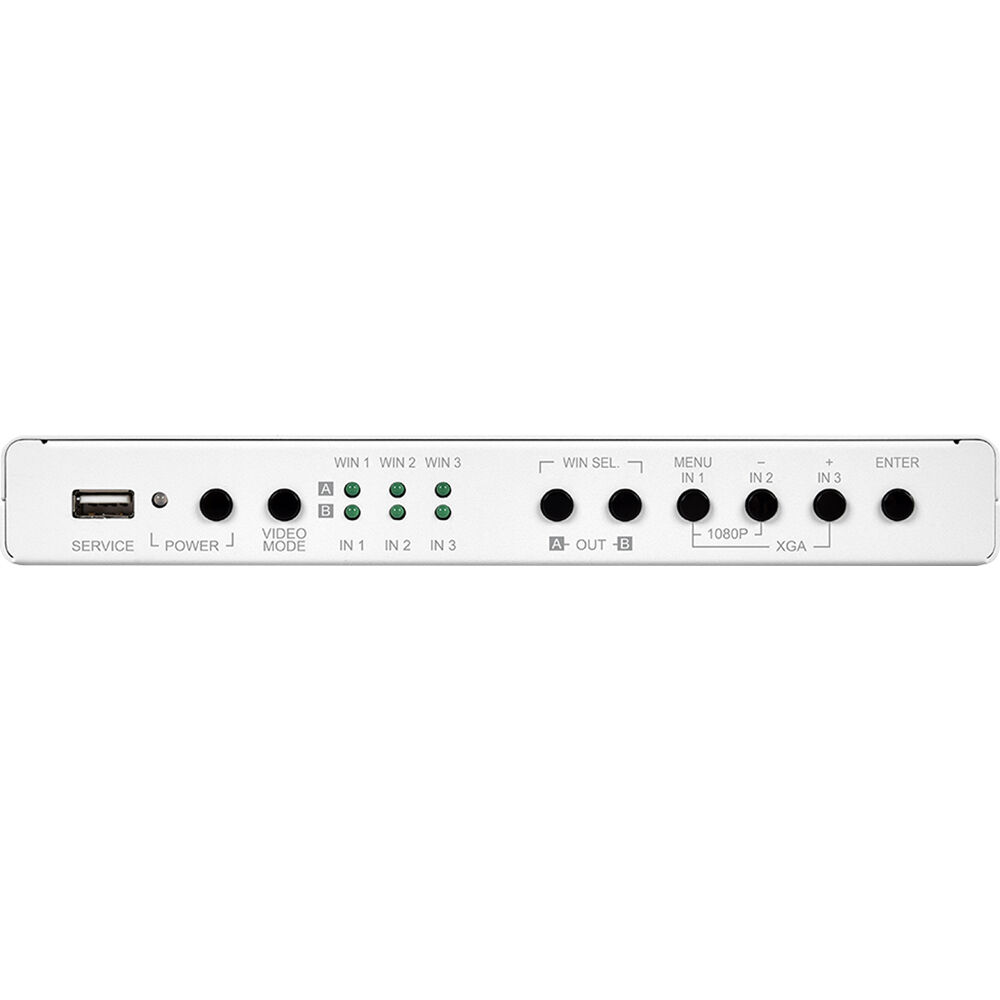

- Controllable via front-panel buttons, Web GUI, and telnet
Items Included
- VigilLink UHD 4K 3x2 HDMI/SDI/DVI Matrix with PiP
- Power Adapter
- Power Cable
- Rubber Feet Set
- Limited 6-Year Manufacturer Warranty
Additional Resources
No additional resources available
VigilLink VLML-SDH3X2 Specs
| Switching Type |
Pushbutton, Software
|
| Processing Resolution |
DCI 4K at 60
|
| Color Processing |
8-Bit 4:4:4 YUV
8-Bit 4:4:4 RGB |

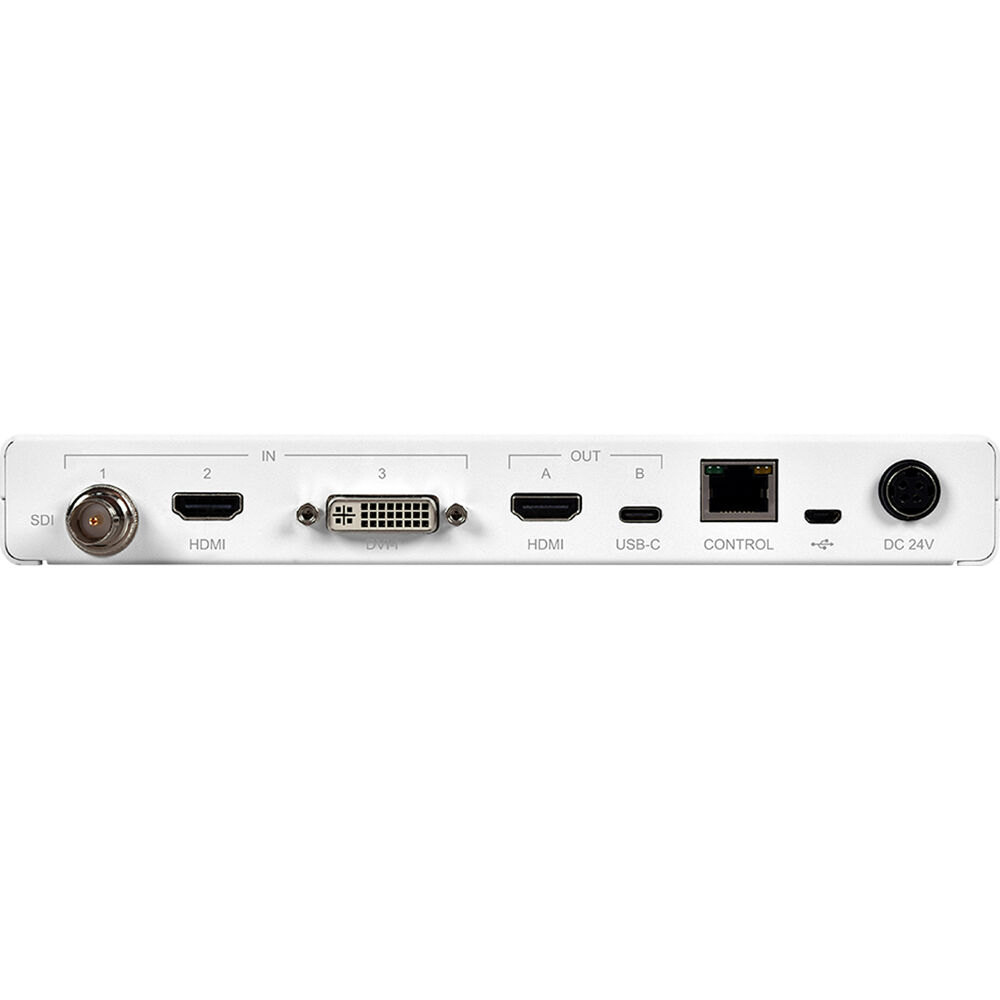

| Video Inputs |
1x HDMI (2.0) Female
1x BNC (12G-SDI) 1x DVI-I DL Female |
| Input Video Format |
BNC / HDMI (8-Bit 4:4:4 RGB, YUV)
DCI 4K up to 60 fps DVI (8-Bit 4:4:4 RGB) 1080p up to 60 fps |
| Embedded Audio Input |
HDMI: 8-Channel (per Input)
SDI: 8-Channel |
| Video Outputs |
1x HDMI (2.0) Female
1x USB-C Female |
| Output Video Format |
HDMI (8-Bit 4:4:4 RGB, YUV)
DCI 4K up to 60 fps |
| Embedded Audio Output |
HDMI
USB-C |
| Other I/O |
1x RJ45 Control Input/Output
1x Micro-USB Control Input/Output 1x 1/8" / 3.5 mm RS-232 Input 1x USB-A Firmware Input |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
No
|
| Power I/O |
1x DIN 4-Pin (24 VDC at 2.7 A) Input
|
| Power Consumption |
Device: 22 W
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 20 to 90% Humidity
|
| Certifications |
CE, FCC, UL
|
| Dimensions |
9.1 x 4.3 x 1" / 231.5 x 108 x 25 mm
|
| Weight |
1.5 lb / 671 g
|
