| ₹ 140465.0 includes GST and import duties. | |
| B2B customers can avail ₹ 21420.91 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

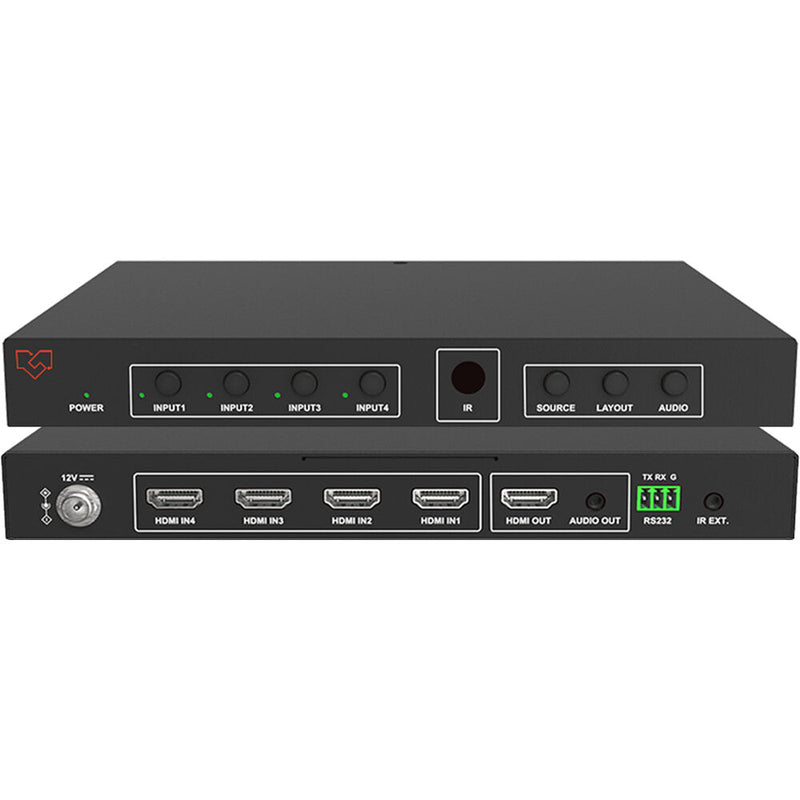

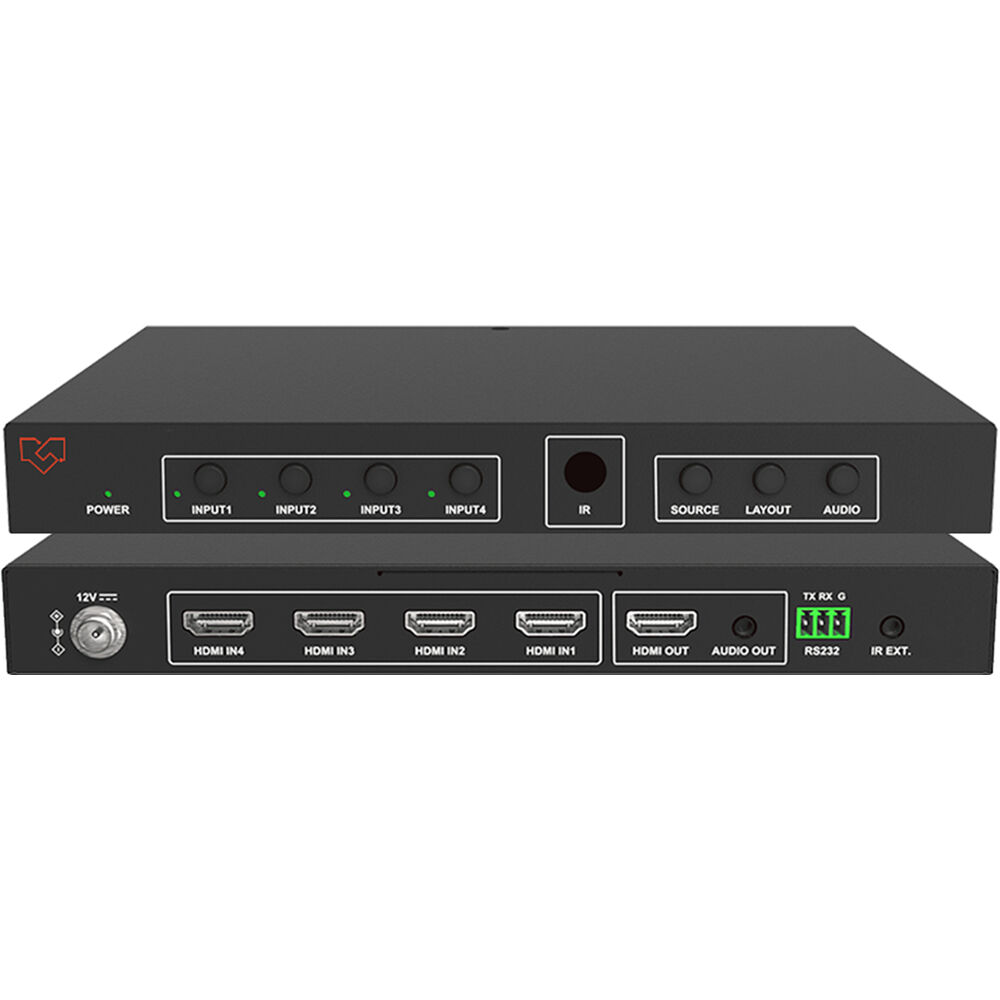

VigilLink HDMI 2.0 4K60 Multiviewer Overview
Use the 4x1 HDMI 2.0 4K60 Multiviewer with Seamless Switching from VigilLink to view up to four video sources on a single display. The unit supports up to DCI/UHD 4K60 4:4:4 resolution video via HDMI 2.0b and multiple output display modes including PIP, PBP, dual-view, Quad, and more. Features include multiple control options, seamless switching, image stretching, and a 3.5mm analog audio output for de-embedding audio to external speakers.
Quick Features
- Four HDMI 2.0b inputs and one HDMI 2.0b output
- 4K60 8-bit 4:4:4 resolution support
- Six screen layouts, including Original, Dual-View, Master, H, PIP, and Quad modes
- Seamless switching on the same layout
- More inputs are displayed on the same display with the Cascade function
- Optional support for fixed aspect ratio and image stretching modes
- Analog audio de-embedding from the HDMI output to 3.5mm stereo
- Multiple control methods, including front buttons, IR remote, and RS-232 control
Items Included
- VigilLink 4x1 HDMI 2.0 4K60 Multiviewer with Seamless Switching
- IR Remote
- Power Adapter
- Limited 6-Year Manufacturer Warranty
Additional Resources
No additional resources available
VigilLink HDMI 2.0 4K60 Multiviewer Specs
Processing
| Switching Type |
IR Remote, Pushbutton
|
| Processing Resolution |
DCI 4K at 50/60
|
| Color Processing |
8-Bit 4:4:4
|
Input
| Video Inputs |
4x HDMI (2.0b) Female
|
| Input Video Format |
HDMI (8-Bit 4:4:4)
DCI 4K up to 60 fps UHD 4K up to 60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps 720p at 50/59.94/60 fps SVGA (800 x 600) up to 60 fps XGA (1024 x 768) up to 60 fps 1280 x 768 up to 60 fps WXGA (1280 x 800) up to 60 fps SXGA- (1280 x 960) up to 60 fps SXVGA (1280 x 1024) up to 60 fps 1360 x 768 up to 60 fps FWXGA (1366 x 768) up to 60 fps 1600 x 1050 up to 60 fps WXGA+ (1440 x 900) up to 60 fps UXGA (1600 x 1200) up to 60 fps WUXGA+ (1680 x 1050) up to 60 fps WUXGA (1920 x 1200) up to 60 fps DCI 2K up to 60 fps |
| Embedded Audio Input |
HDMI (per Input)
|
Output
| Video Outputs |
1x HDMI (2.0b) Female
|
| Output Video Format |
HDMI (8-Bit 4:4:4)
DCI 4K up to 60 fps UHD 4K up to 60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps 720p at 50/59.94/60 fps SVGA (800 x 600) up to 60 fps XGA (1024 x 768) up to 60 fps 1280 x 768 up to 60 fps WXGA (1280 x 800) up to 60 fps 1280 x 960 up to 60 fps SXGA (1280 x 1024) up to 60 fps 1360 x 768 up to 60 fps FWXGA (1366 x 768) up to 60 fps WXGA+ (1440 x 900) up to 60 fps HD+ (1600 x 900) up to 60 fps UXGA (1600 x 1200) up to 60 fps WUXGA+ (1680 x 1050) up to 60 fps WUXGA (1920 x 1200) up to 60 fps DCI 2K up to 60 fps |
| Audio Outputs |
1x 1/8" / 3.5 mm TRS Stereo Analog Female
|
| Output Audio Format |
Analog
|
| Embedded Audio Output |
HDMI
|
| Multiview Output |
4-Way Multiview via HDMI
|
Connectivity
| Other I/O |
1x Block 3-Pin RS-232 Input/Output
1x 1/8" / 3.5 mm IR Input |
| HDCP Support |
Yes, Version 2.2
|
Hardware
| Wireless |
Bluetooth / Wi-Fi
|
Power
| Power I/O |
1x Barrel (12 VDC at 2.5 A) Output
|
| Power Consumption |
8 W
|
General
| Operating Conditions |
32 to 113°F / 0 to 45°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 158°F / -20 to 70°C
|
| Dimensions |
9.1 x 5.6 x 1" / 230 x 142 x 25 mm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 137655.7 |
| 3-5 | ₹ 136251.05 |
| 5-10 | ₹ 133441.75 |
| 10+ | ₹ 130632.45 |
Bulk discount will be automatically applied during checkout based on quantity.
