Description
VigilLink VLWP-UHCI150 Overview

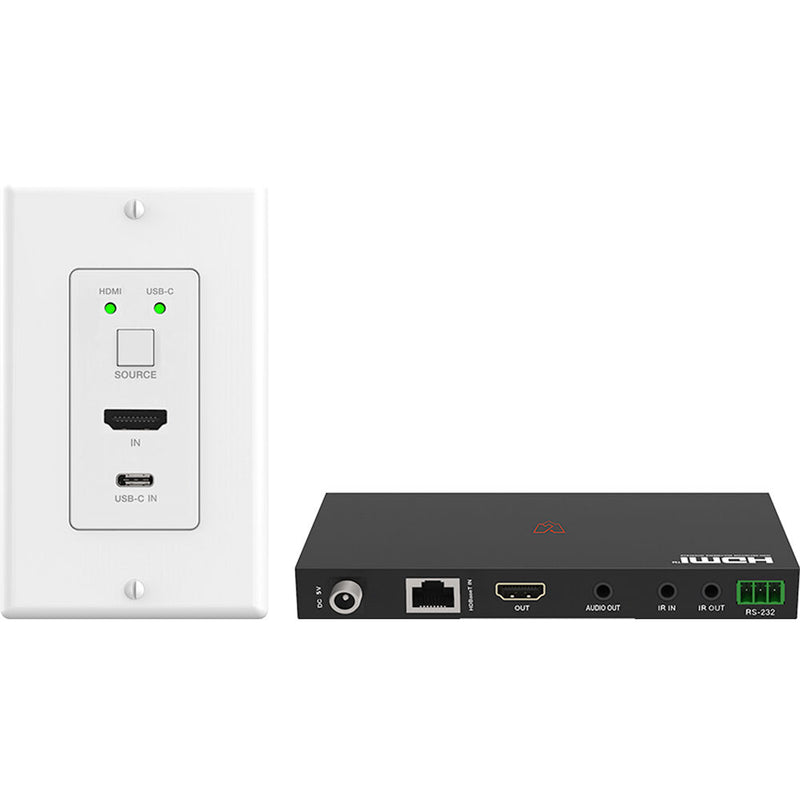

The 2x1 HDBaseT 4K60 USB-C/HDMI Wall Plate & Receiver Set with Auto-Switching from VigilLink features an HDBaseT receiver unit and a US one-gang, decora-style wall-plate transmitter unit to extend your video signals. The set is capable of transmitting up to UHD 4K up to 394' and 1080p up to 492' via a single Cat 6/6a/7 cable. It can be helpful in building out educational, corporate, and enterprise classrooms and meeting rooms.
The transmitter unit features one HDMI input and one USB-C input with an HDBaseT output. The receiver unit features one HDBaseT input with a single HDMI video output and 3-pin terminal block output to de-embed stereo audio. Bidirectional Power-over-Cable (PoC) is supplied from one end to the other, so only the transmitter or the receiver unit needs to be powered via mains. Input signal selection can be toggled to manual or automatic mode, or it can be controlled via IR or RS-232.
- HDMI 2.0, HDCP 2.2 compliant
- 1-gang US size wall plate with HDMI and USB-C inputs
- Resolution support up to 4K60 4:4:4
- 18 Gb/s bandwidth
- Supports both auto and manual switching
- The maximum transmission distance via Cat 6/6a/7 cable is up to 394' for 4K60 4:4:4 signals and 492' for 1080p60 4:4:4 signals
- Supported audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Support for HDR, HDR10, HDR10+, Dolby Vision, and HLG passthrough
- Bidirectional IR, RS-232, and CEC control signal transmission
- Support bidirectional PoC (Power-over-Cable)
Items Included
- VigilLink 2x1 HDBaseT 4K60 USB-C/HDMI Wall Plate & Receiver Set with Auto-Switching
- 1-Gang Wall Plate Transmitter
- Receiver Unit
- 24V Power Supply
- IR Blaster Cable (4.9')
- Wideband IR Receiver Cable (4.9')
- 2-Pin Terminal Connector
- 2 x 3-Pin Terminal Connector (3.5mm)
- 3-Pin Terminal Connector (3.81mm)
- 2 x Mounting Ear
- 4 x Screw
- Limited 6-Year Manufacturer Warranty
Additional Resources
VigilLink VLWP-UHCI150 Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Video Inputs |
1x USB-C Female
1x HDMI (2.0b) Female |
| Input Video Format |
HDMI / USB-C (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
DCI 4K up to 60 fps 1080p up to 60 fps |
| Embedded Audio Input |
USB-C
HDMI |
| Video Outputs |
1x RJ45 (HDBaseT) Female
|
| Output Video Format |
RJ45 (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
UHD 4K up to 60 fps 1080p up to 60 fps |
| Embedded Audio Output |
RJ45
|
| Multiview Output |
2-Way Multiview
|
| Other I/O |
1x Block 3-Pin Control, RS-232 Input/Output
1x Block 3-Pin IR Input 1x Block 2-Pin IR Output |
| Digital Audio Decoding |
DTS-HD Master Audio, Dolby Digital Plus, Dolby Digital / AC3, DTS:X, DTS-HD High Resolution, DTS-ES, Dolby TrueHD
|
| HDCP Support |
Yes, Version 2.2
|
| DTS Compatibility |
DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
| Wireless |
No
|
| Power I/O |
1x Block 2-Pin (24 VDC at 1 A) Input
|
| Power Consumption |
Power Supply: 100 to 240 VAC (4.5 W)
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
4.5 x 2.7 x 1.5" / 114 x 69.8 x 39 mm
|
| Weight |
7.2 oz / 203 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
