Description
VigilLink VLDT-XL2DT Overview

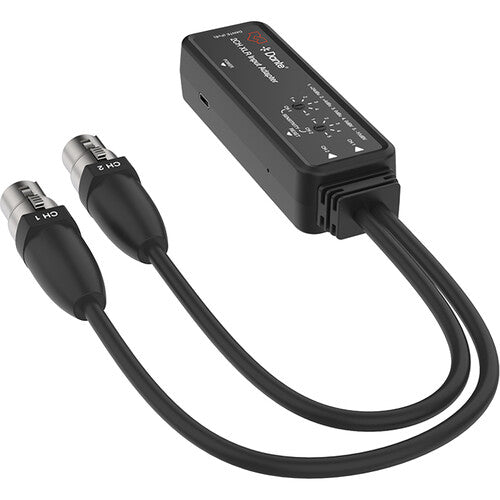

Convert a pair of XLR inputs to Dante with the VigilLink VLDT-XL2DT, an audio transmitter based on the Dante Ultimo 2x2 solution. The device converts two-channels of balanced/unbalanced XLR analog audio inputs into Dante 2CH digital audio, then transmits the audio to the receiving end through network (Dante). Analog audio input supports 5-level sensitivity adjustments. The adapter supports local USB-C port power supply as well as PoE function.
Quick Features
- Two-channel XLR analog audio to Dante 2CH digital audio
- Dante audio sampling rate supports 44.1/48/88.2/96 kHz at 24-bit
- Dante audio delay supports 1/2/5 ms (configurable)
- Analog audio input supports 5-level sensitivity adjustment (+24 dBu, +4 dBu, 0 dBu, 0 dBv, -10 dBv)
- Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
- Compact design for easy and flexible installation
Items Included
- VigilLink 2CH Dante XLR Input Adapter
- Limited 6-Year Manufacturer Warranty
Additional Resources
No additional resources available
VigilLink VLDT-XL2DT Specs
| Technical |
Audio Formats: LPCM 2.0
Frequency Response: 20 Hz to 20 kHz (±0 dB) Dynamic Range: >130 dB, 1 kHz A-Weighted Audio S/N Ratio: >130 dB, 1 kHz A-Weighted Audio THD+N: < 0.01% at +4 dBu, 1 kHz Audio Output Sync Delay: <10 ms Audio Latency: Configurable Dante Device Latency (Supports 1, 2, or 5 ms Configurable Using Dante Controller) |
| Connection |

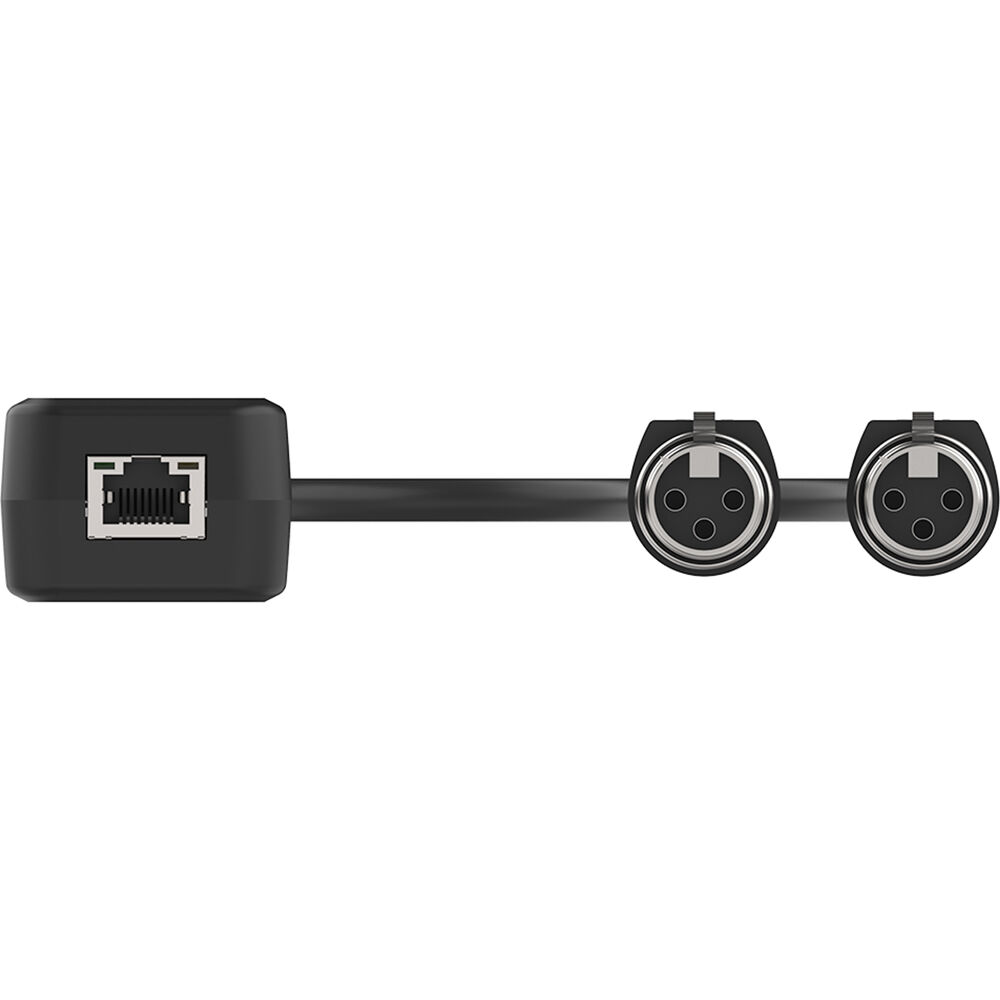

Output Port: 1 x Dante (RJ45 Connector, PoE)
Input Ports: 2 x CH1/CH2 XLR In (XLR Female Plug, with 11.8" / 30.0 cm Cable) Control Ports 1 x Power (USB-C Power and Firmware Update Port, 12-Pin Female) 1 x Reset Button (System Reboot Button) 1 x USB-C LED (Green Color, USB 5 V Indicator) |
| Enclosure |
Plastic
|
| Color |
Black
|
| Power |
Power Supply Voltage: 5 V
Power Supply Current Draw: 2 W |
| Dimensions (L x W x H) |
4.5 x 1.6 x 1.1" / 11.5 x 4.0 x 2.8 cm
|
| Weight |
0.0 oz / 0.1 g
|
