Description
ViewZ VZ-BCHS Overview
Featuring Full HD 1080p, PAL, and NTSC video, this VZ-BCHS-2 Compact 3G/HD-SDI/HDMI Full HD Box Camera from ViewZ offers numerous features for use in applications such as surveillance, security, scientific, education, or sports. The 1/3" 2.1MP CMOS sensor supports up to 1080p60 video over 3G-SDI or HDMI outputs.

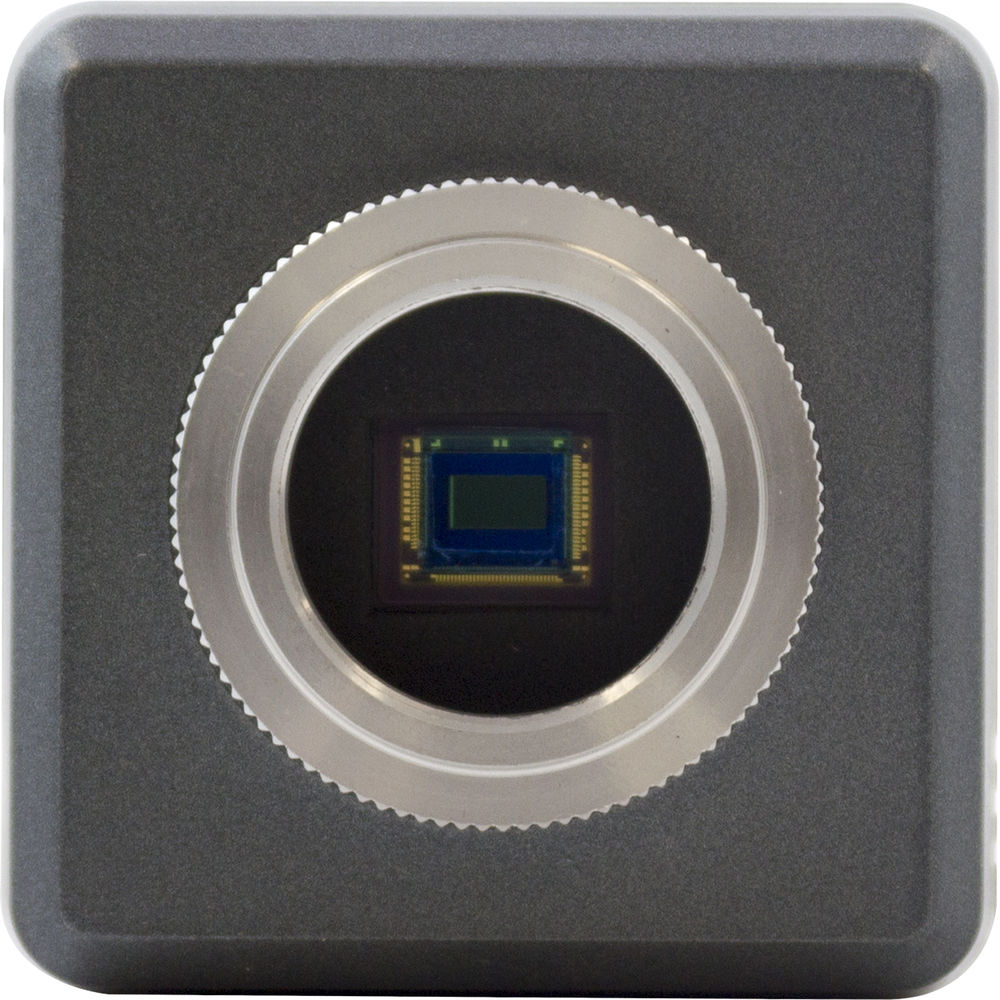

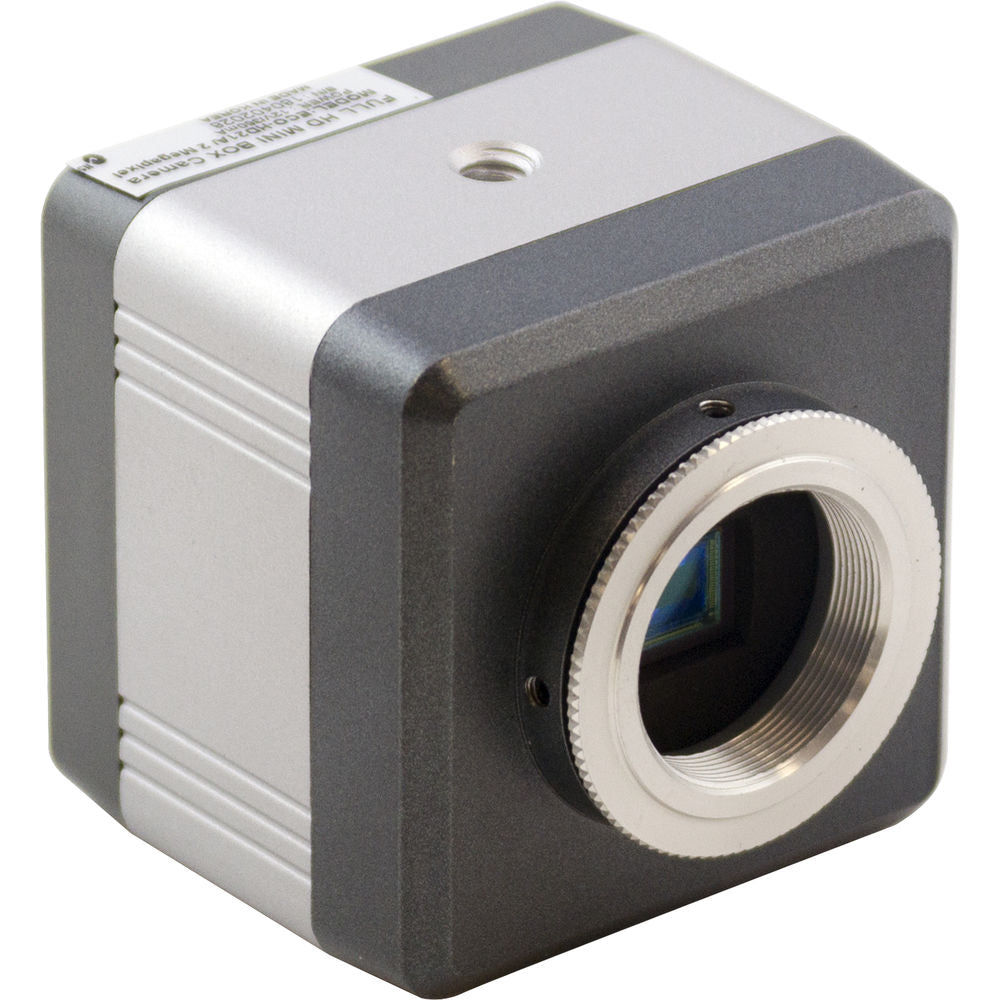

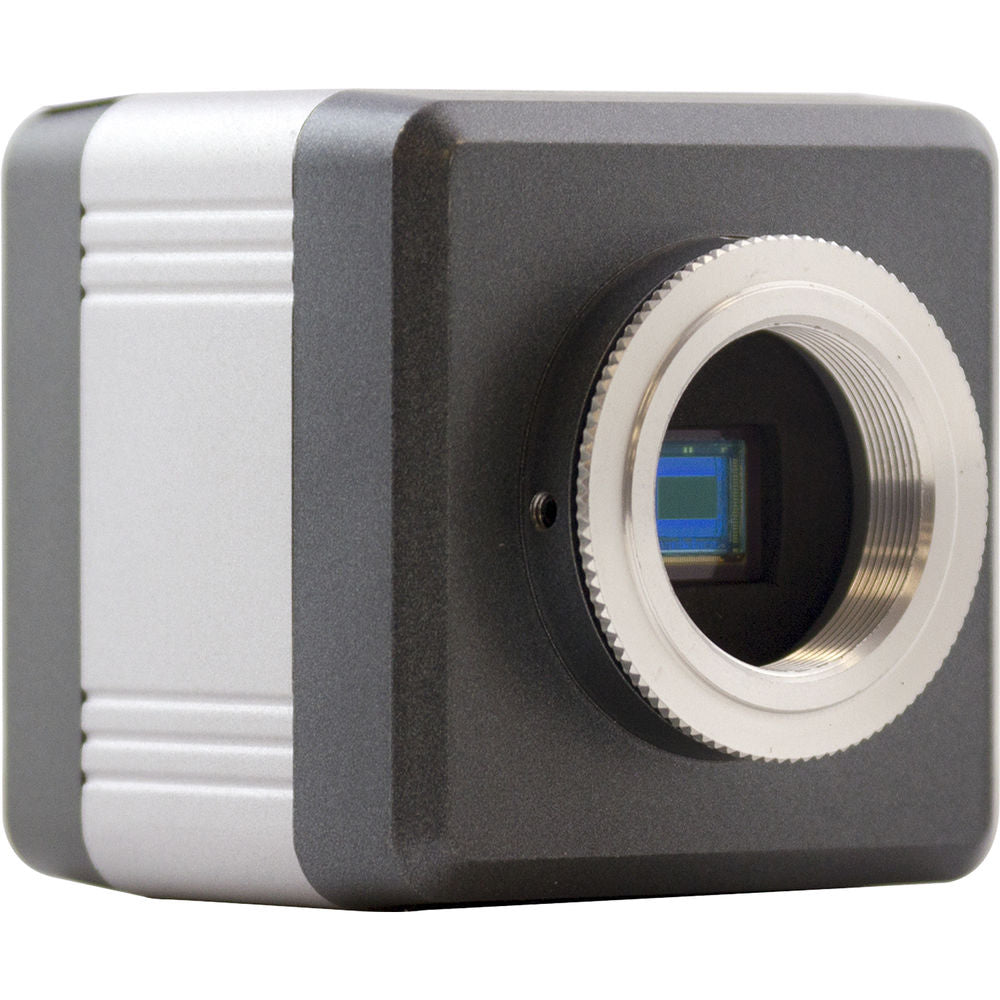

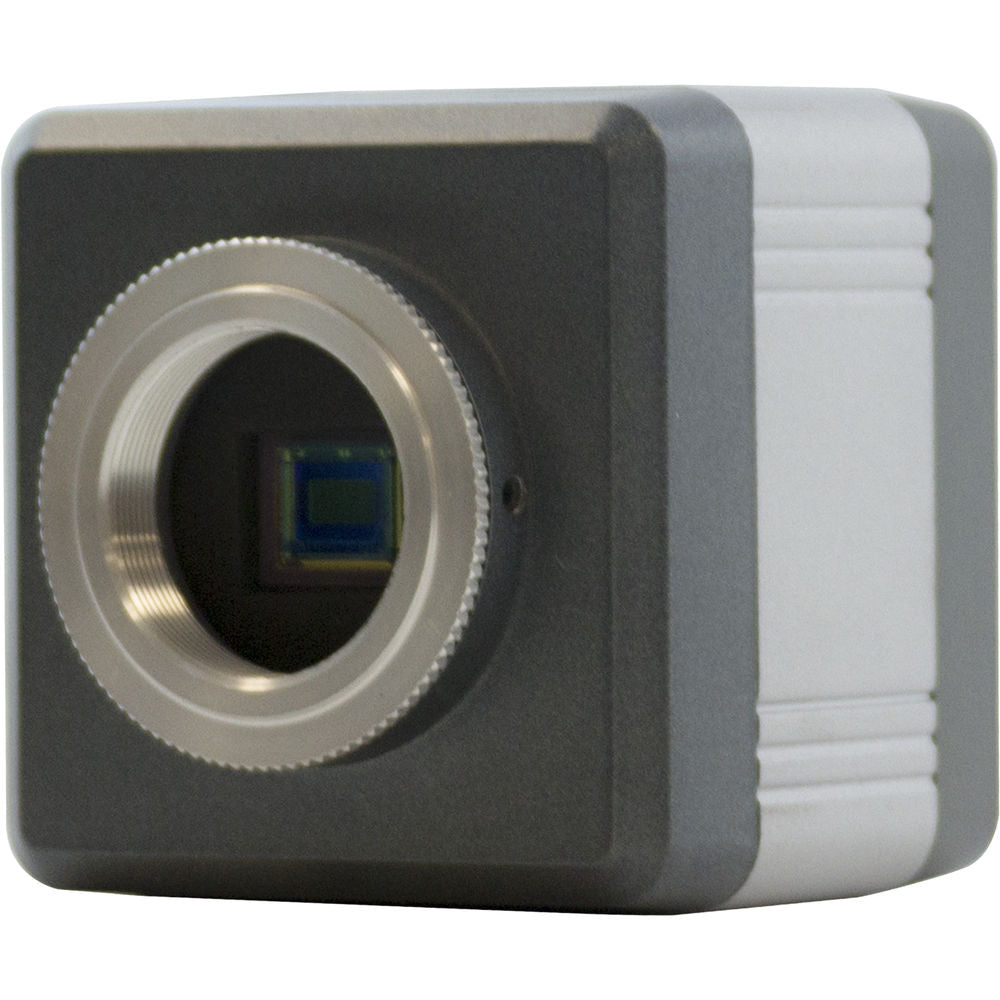

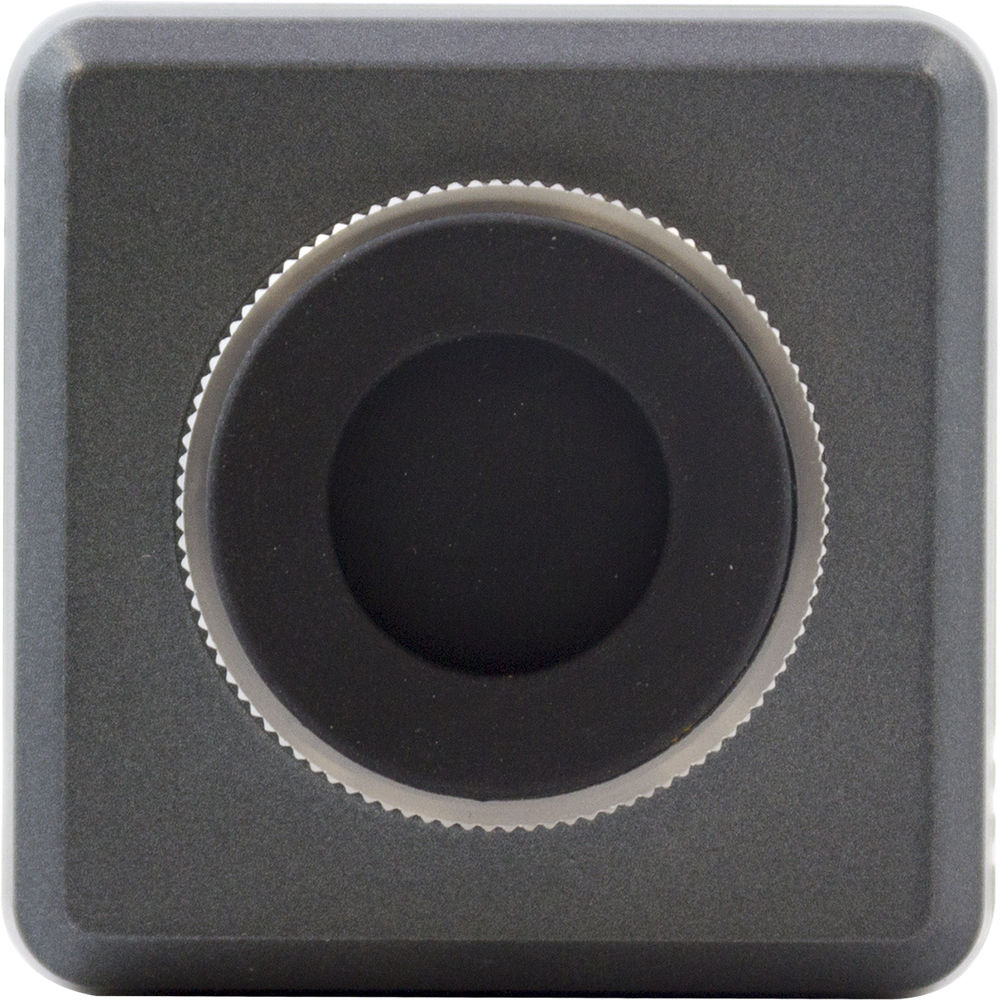

This tiny camera measures only 2.3" square and 4" long, it weighs less than a half pound, and it's made of durable aluminum. It features one 3G/HD-SDI output, one HDMI output, one power/CVBS output for CCTV operation, and it can generate a color bar signal. It accepts a C/CS mount lens and requires only 0.1 lux minimum to record clear video with its wide dynamic range.
The camera supports numerous image-enhancing features such as backlight compensation, auto white balance, digital noise reduction, automatic gain control, color temperature controls, privacy masking, digital zoom, mirror image, gamma, image flip, and defog.
- Auto white balance
- Shutter speed
- Backlight compensation
- Digital noise reduction
- Wide dynamic range
- Privacy masking
- Motion detection
- Digital zoom
- Automatic gain control
- Gamma
- Mirror image
- Image flip
- Defog
- Adjustable color temperature
In the Box
- ViewZ VZ-BCHS-2 Compact 3G/HD-SDI/HDMI Full HD Box Camera
- Power/CVBS Cable
- Limited 2-Year Warranty
ViewZ VZ-BCHS Specs
| Sensor | 1/3" 2.1 MP Progressive Scan CMOS |
| Lux | 0.1 |
| Lens Mount | C/CS Mount |
| Electronic Shutter Speed | Auto, Manual 1/30 sec to 1/30,000 sec |
| Signal to Noise Ratio | > 50 dB (AGC Off) |
| Automatic Gain Control | 0 to 10 |
| Auto White Balance | Auto, Pushing Manual: 3000K, 5000K, 8000K, R-Gain, B-Gain |
| Minimum Illumination | 0.1 lux (f/1.2, 50 IRE, AGC Max.) DSS X4: 0.01 lux |
| Backlight Compensation | On / Off |
| Digital Noise Reduction (DNR) | Off / Low / Middle / High |
| Wide Dynamic Range | Off / Low / Middle / High |
| Image Controls | Privacy Masking, Motion Detection, Noise Reduction, Digital Zoom, Color Bars, Gamma, Mirror, Flip, Defog |
| Supported Resolutions | 1920 x 1080p: 29.97/50/59.94/60 1920 x 1080i: 50/59.94/60 1280 x 720p: 50/59.94/60 NTSC PAL |

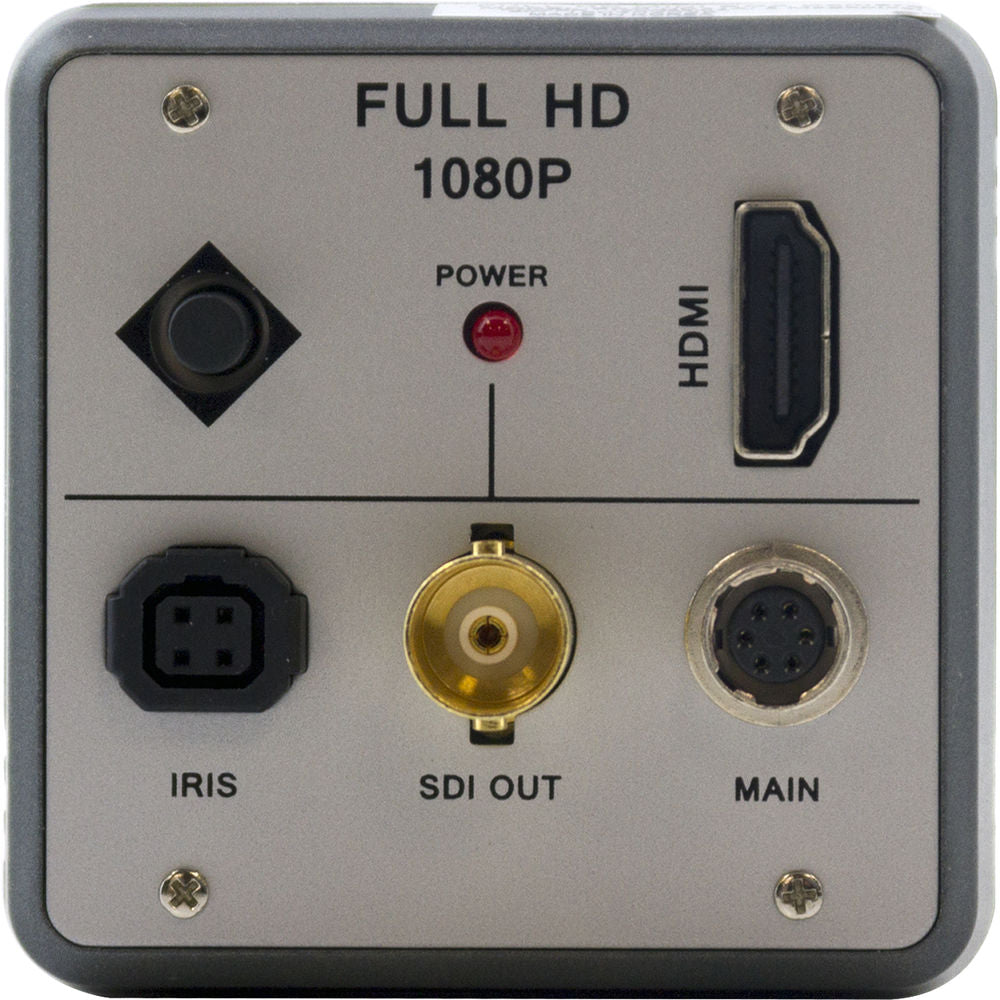

| Connectors | 1 x BNC 3G/HD-SDI 1 x HDMI 1 x 12 VDC Power/CVBS 1 x Auto Iris |
| Material of Construction | Aluminum |
| Power Input | 12 VDC, 400 mA |
| Power Consumption | 4.8 W |
| Operating Temperature | 14 to 131°F / -10°C to 55°C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 2.3 x 2.3 x 4" / 5.9 x 5.9 x 10.2 cm |
| Weight | 7 oz / 200 g |
