ViewZ VZ-27CGM Overview
Monitor the feed from your surveillance cameras with the VZ-27CGM 27" LED-Backlit Curved Surveillance Monitor from ViewZ. This unit displays video at a maximum resolution of 1920 x 1080 at 60 Hz. It features 178/178° H/V viewing angles, a 16:9 aspect ratio, and a 3000:1 contrast ratio. This curved monitor is equipped with built-in speakers and an audio output. Additionally, it has two HDMI 2.0 and two DisplayPort 1.2 inputs. VESA mount compliance offers flexible installation options.
Ultrawide 1500R curved screen designed for 24/7/365 operation
16.7 million display colors
Supports DDC/CI, MPRT, advanced DCR, adaptive sync, and blue light filter
Can be mounted on a wall or ceiling (mounts available separately)
FCC-A, CE, and RoHS certified
In the Box
- ViewZ VZ-27CGM 27" LED-Backlit Curved Surveillance Monitor
- Stand
- Power Adapter
- HDMI Cable
ViewZ VZ-27CGM Specs
Display
Screen Size (Diagonal) |
27" |
Resolution |
1920 x 1080 |
Supported Display Resolutions |
Maximum: 1920 x 1080 / 60 Hz |
Panel Type |
IPS-Type LCD |
Bit Depth / Color Support |
6-Bit+FRC (16.7 Million Colors) |
HDR Compatibility |
HDR10 |
Brightness |
350 cd/m² |
Viewing Angle (H x V) |
178 x 178° |
Aspect Ratio |
16:9 |
Contrast Ratio |
3000:1 |
Response Time |
< 1 ms |
Dot Pitch |
0.3114 x 0.3114 mm |
Backlighting Technology |
LED |
Connectivity
Primary Connectivity Location |
Display |

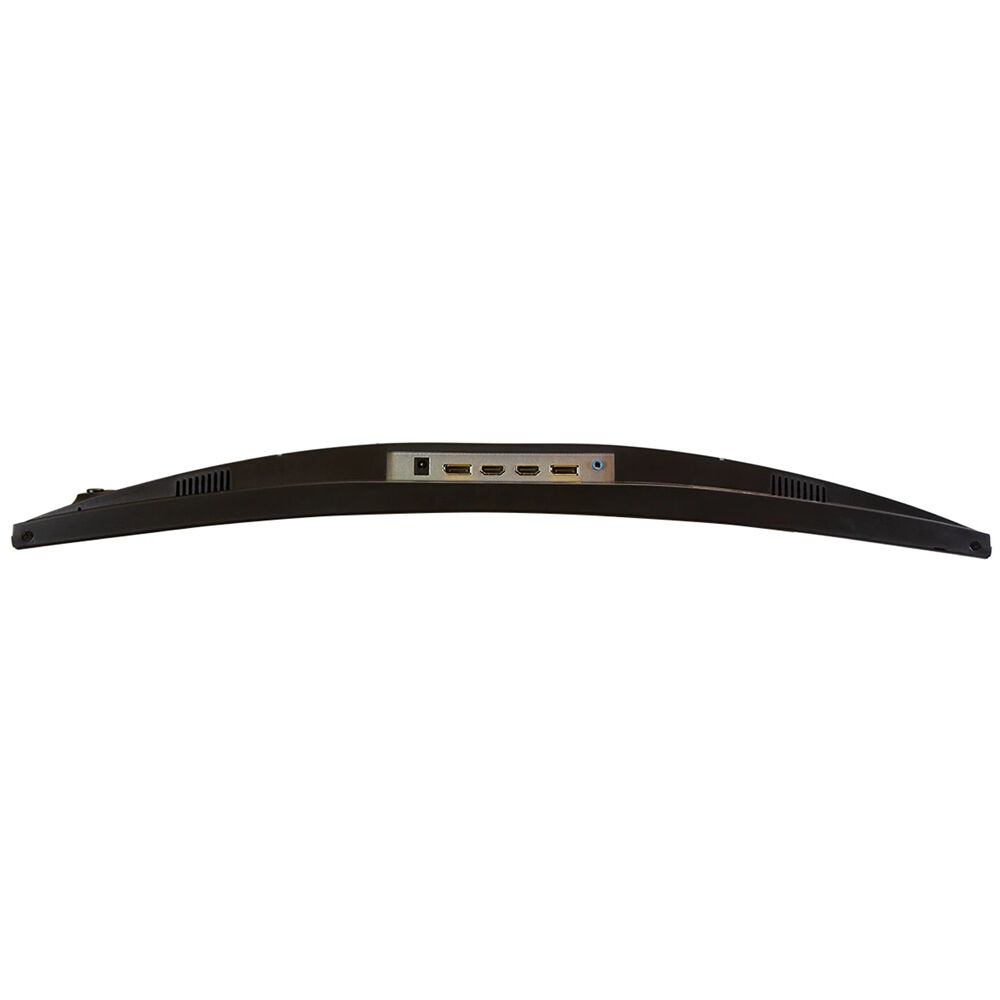

Input Ports |
2 x DisplayPort 1.2 2 x HDMI 2.0 |
Output Ports |
1 x 1/8" / 3.5 mm � Audio |
USB Ports |
None |
Ethernet Ports |
None |
Bluetooth |
None |
Audio
Built-In Speakers |
Yes, 2 x 3 W |
Speaker Configuration |
2-Channel |
Convenience
Supported Languages |
English |
Electrical
Power Consumption |
Typical: < 32.0 W |
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
DC Input Power |
12 VDC |
Environmental
Operating Temperature |
32 to 122°F / 0 to 50°C |
Operating Humidity |
5 to 90% |
Certifications |
CE, FCC-A, RoHS *as per Manufacturer |
Physical

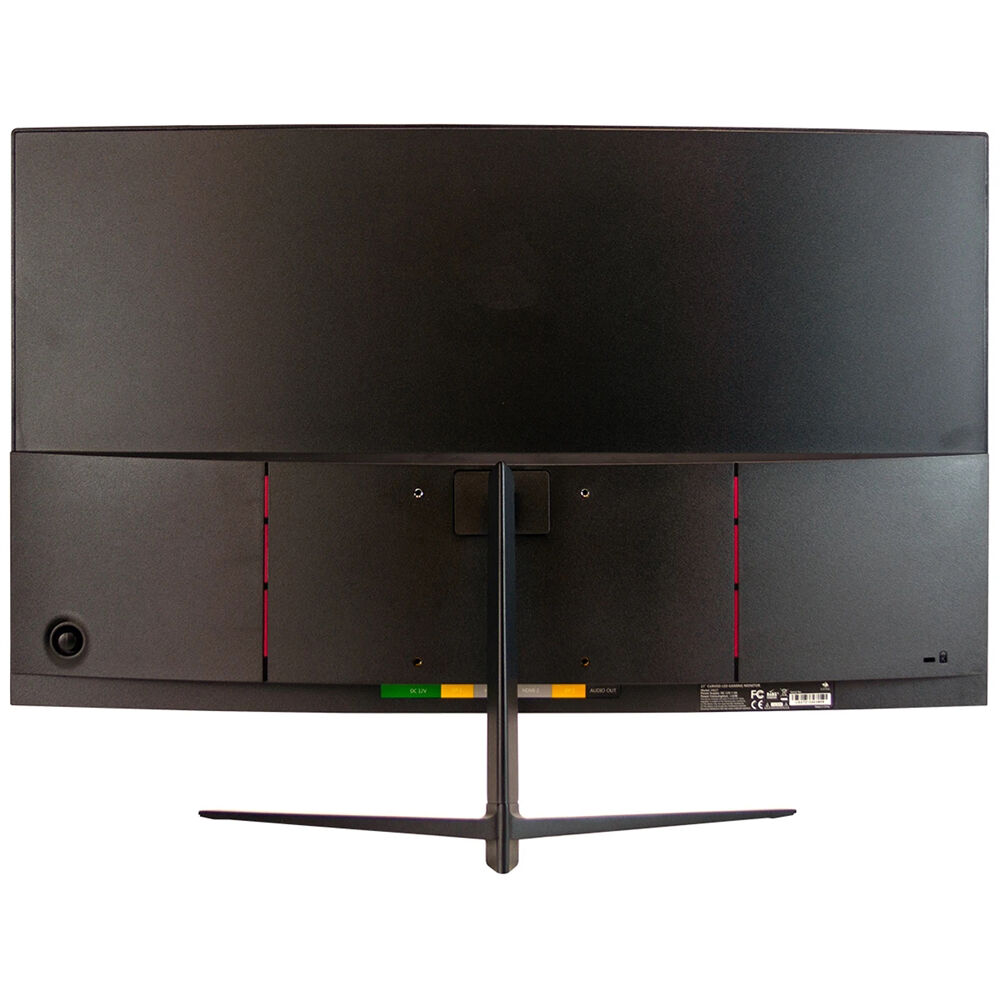

Wall Mounting |
100 x 100 mm |
Dimensions |
24.1 x 14.1 x 2.7" / 611.2 x 358.9 x 68.3 mm |
Weight |
7.7 lb / 3.5 kg |
