Description
ViewZ VZ-1TRX-4K Overview
- 1Description
- 2Up to UHD 4K60
- 3Applications
- 4ipcolor Technology

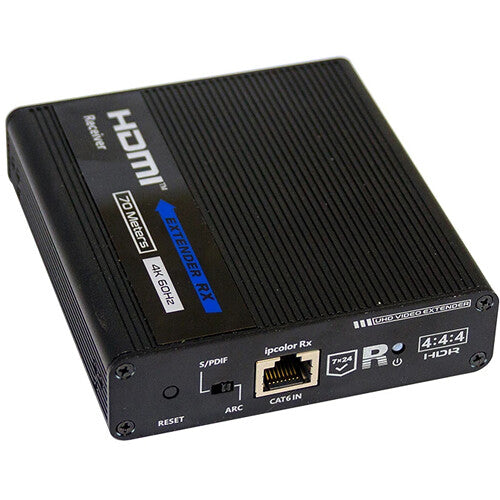

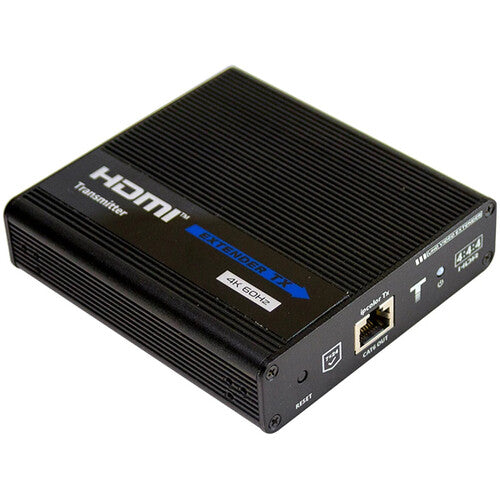

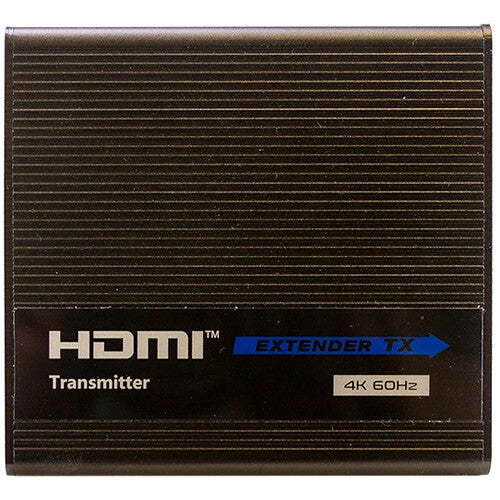

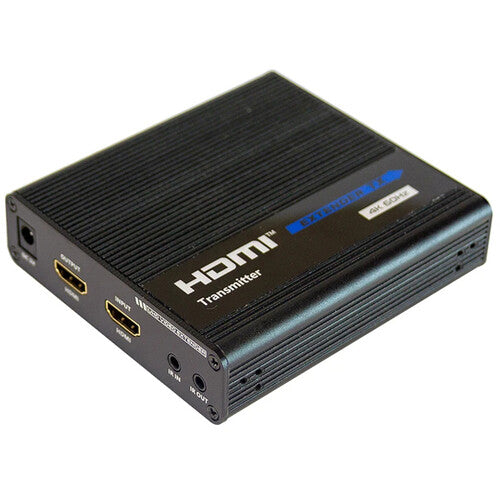

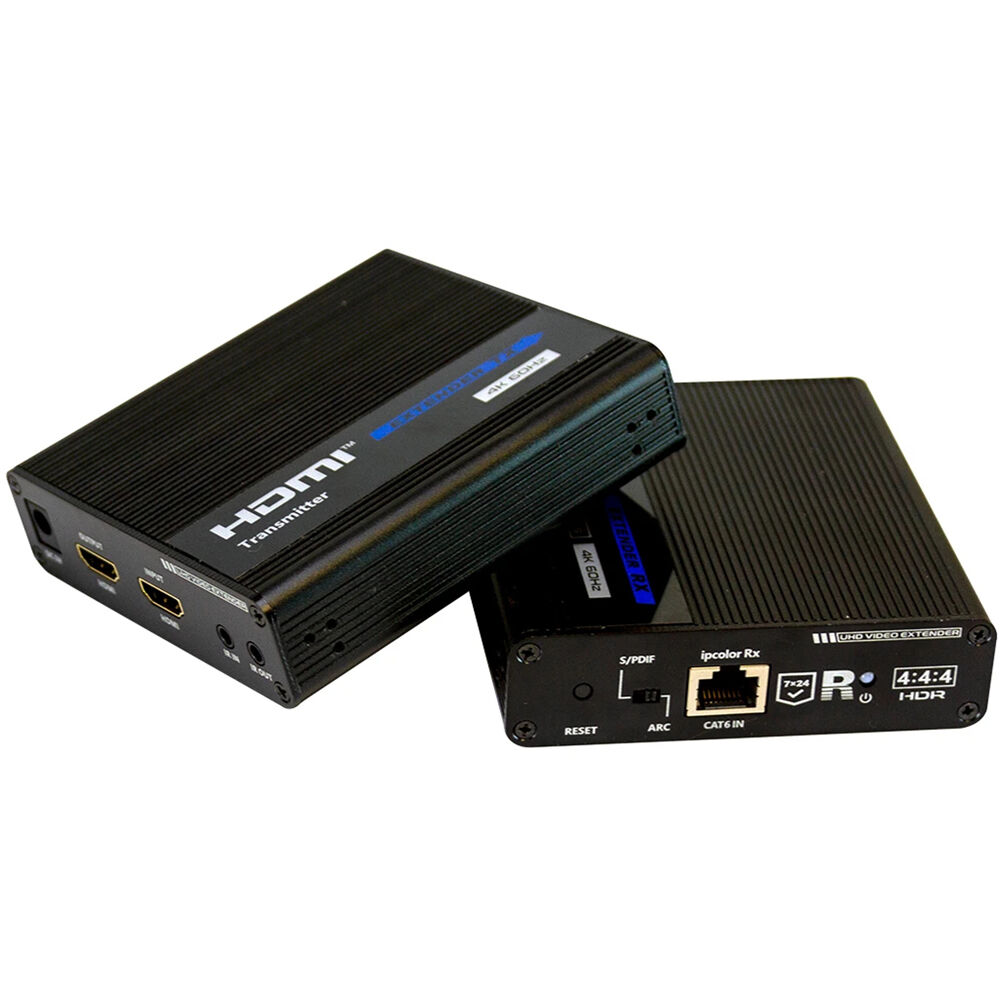

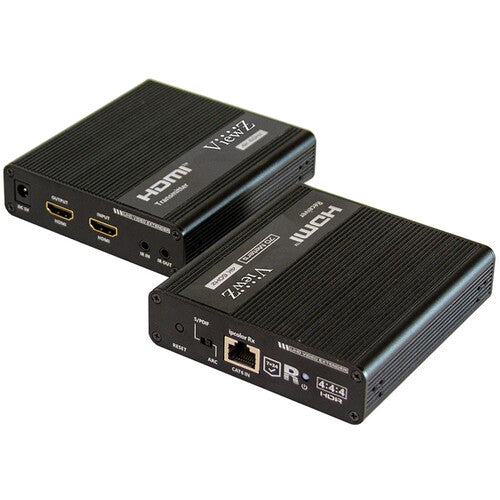

The VZ-1TRX-4K 4K HDMI over Cat 6/6A/7 Extender Set from ViewZ enables you to transmit up to UHD 4K60 HDMI signals up to 230' over a single Cat 6/6a/7 cable with no latency. This kit consists of a transmitter, a receiver, two DC power supplies, and mounting brackets. Extender features include ipcolor technology, HDCP 2.2 support, HDR10+ and Dolby support, IR input and output, and S/PDIF audio output.
Up to UHD 4K60
Supports up to UHD 4K60 video with 8/10/12-bit color at distances up to 230'
Applications
Ideal for videowalls and security installations
ipcolor Technology
Supports ipcolor, HDR 10+, and Dolby technology
UPC: 815562022441
In the Box
- ViewZ VZ-1TRX-4K 4K HDMI over Cat 6/6A/7 Extender Set with HDCP 2.2 (Up to 230')
- Transmitter
- Receiver
- 2 x DC Power Supply
- IR Blaster Cable
- IR Receiver Cable
- 8 x Mounting Bracket
- 18 x Screw
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Up to UHD 4K60
- Applications
- ipcolor Technology
ViewZ VZ-1TRX-4K Specs
Transmitter Interfaces
| Inputs | 1 x HDMI (HDMI 2.0) Female |
| Embedded Audio Input | HDMI |
| Outputs | 1 x RJ45 Female 1 x HDMI (HDMI 2.0) Female |
| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
Receiver Interfaces
| Inputs | 1 x RJ45 Female |
| Outputs | 1 x HDMI (HDMI 2.0) Female 1 x TOSLINK (S/PDIF) Female |
| Embedded Audio Output | RJ45 RJ45 |
| Receiver Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
Standards
| HDCP Support | Version 2.2 |
Transmission
| Max Transmission Distance | UHD 4K at 60 Hz: 230' / 70.1 m (via Cat 6/6a/7) |
| Video Format | HDMI Input (8/10/12-Bit) DCI 4K: 23.98/25/30 fps UHD 4K: 23.98/25/30/60 fps 1080p: 50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94/60 fps 576p: 50 fps PAL: 50 fps 480p: 59.94/60 fps NTSC: 59.94/60 fps |
| Audio Format | S/PDIF: |
| DTS Compatibility | DTS |
| Dolby Compatibility | Dolby Digital |
| Supported Cable Types | Cat 6/6a/7 |
| Latency | 0 ms |
Power
| Transmitter Power Connector | 1 x Barrel (5 VDC) Input |
| Receiver Power Connector | 1 x Barrel (5 VDC) Input |
| Transmitter Power Consumption | Device: 5 VDC (4 W) Power Supply: 100 to 240 VAC |
| Receiver Power Consumption | Device: 5 VDC (4 W) Power Supply: 100 to 240 VAC |
Environmental
| Operating Temperature | 12 to 92°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% |
General
| Transmitter Dimensions | 4.2 x 3.9 x 1" / 106 x 99 x 26.2 mm |
| Receiver Dimensions | 4.2 x 3.9 x 1" / 106 x 99 x 26.2 mm |
| Transmitter Weight | 7.4 oz / 210 g |
| Receiver Weight | 7.4 oz / 210 g |
Packaging Info
| Package Weight | 1.995 lb |
| Box Dimensions (LxWxH) | 9.8 x 7.4 x 3.3" |
