Description
- 2 x 7" Displays 1280 x 800, IPS LCD
- Supports HD/SD Video up to 1080p60
- 3G-SDI, HDMI, Component, Composite Input
- 178° x 178° Viewing Angle
- PiP, 1:1 Pixel Mode, Safety Markers
- Image Flip/Zoom, False Color, H/V Delay
- PiP, Red and Green Tally Modes
- Red/Green/Blue/Mono-Only Modes
- RJ-45 / PC-Based Remote Control
- 1 x User-Assignable Front Button

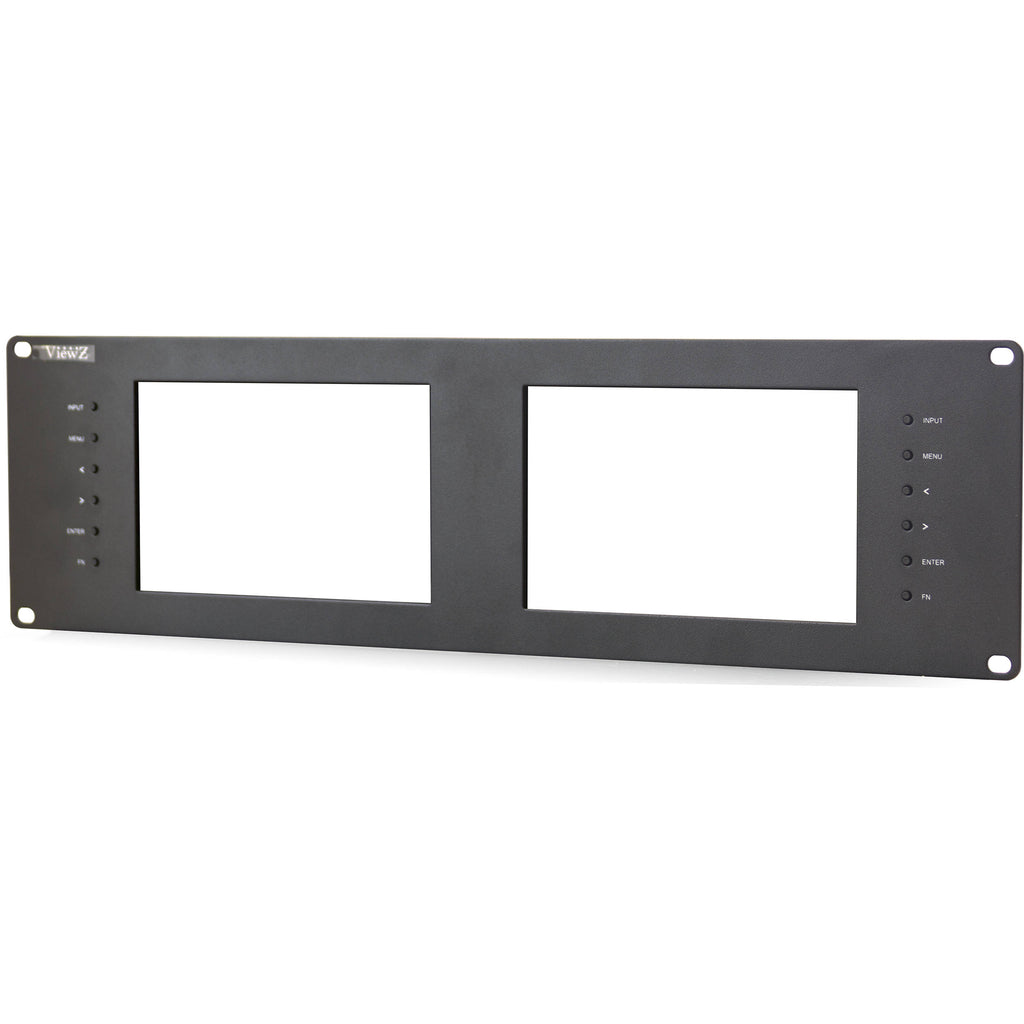

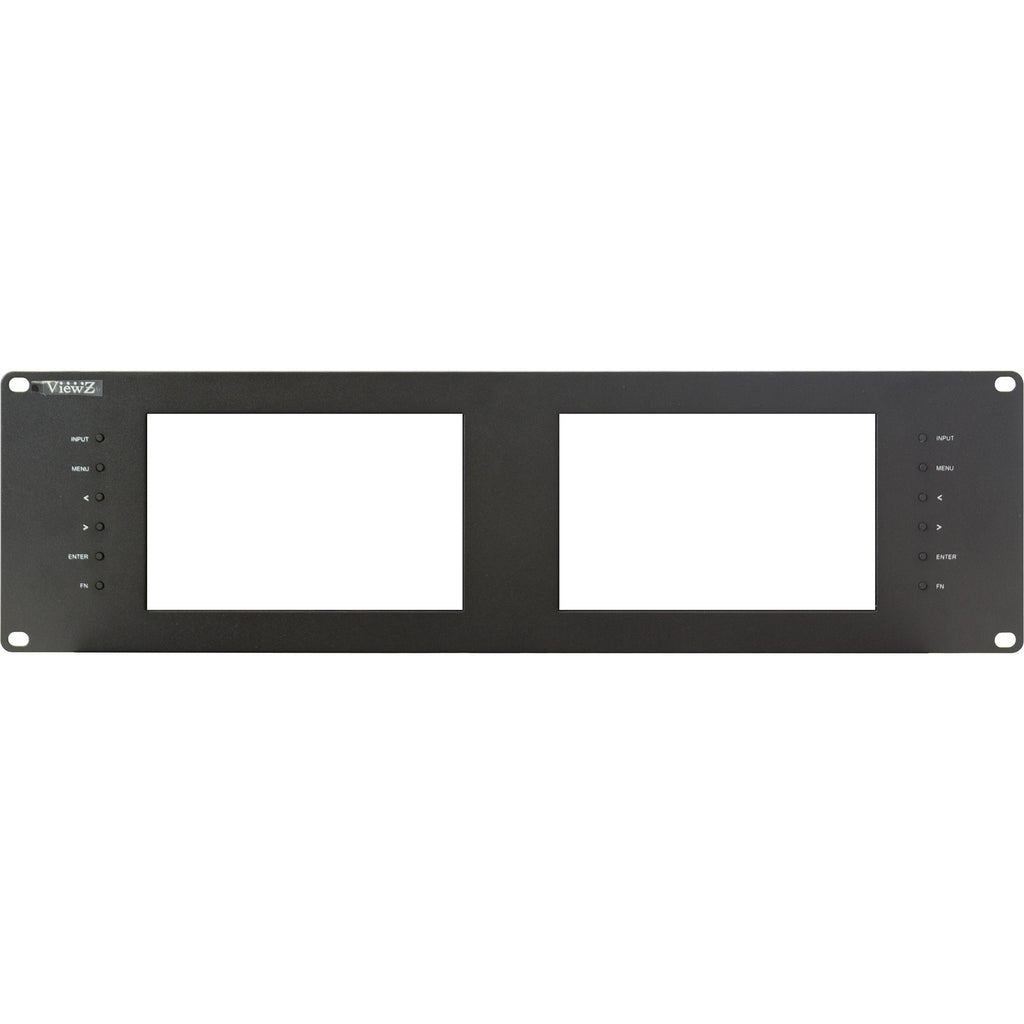

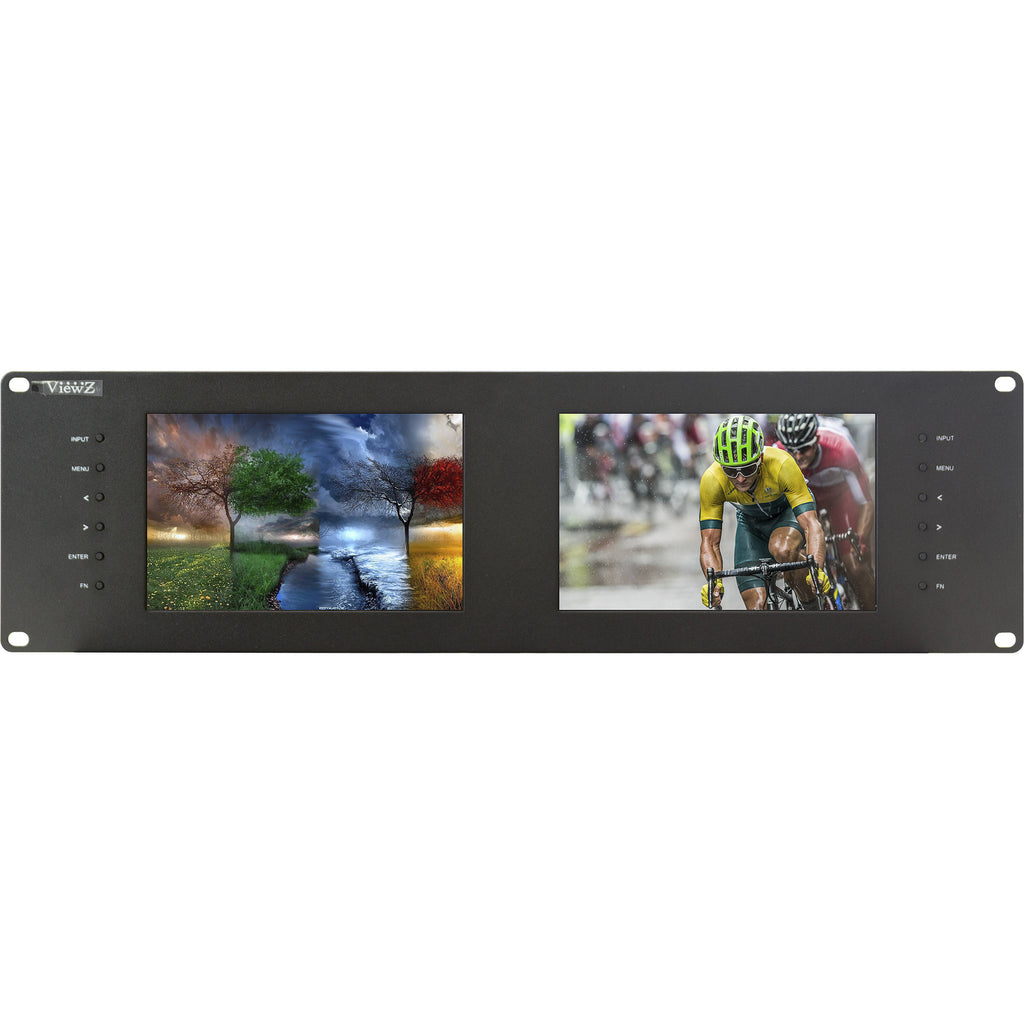

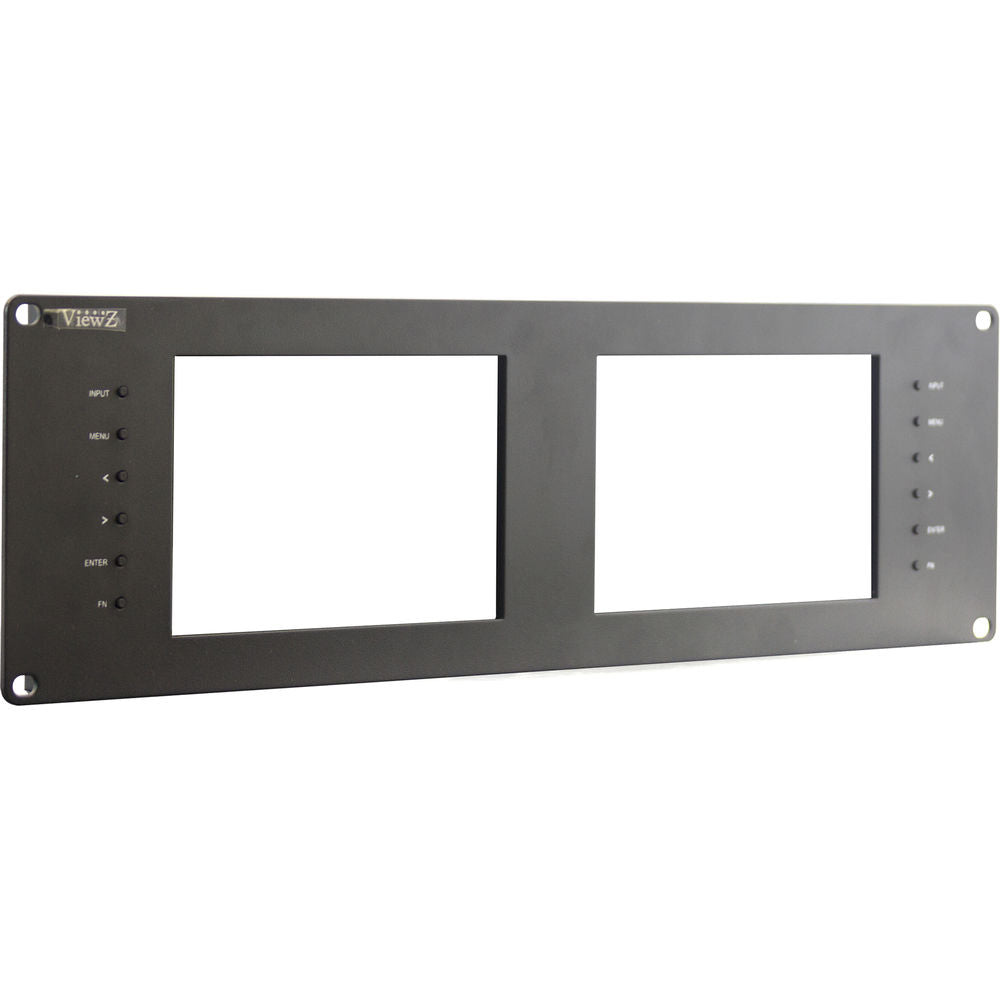

The 3 RU VZ-070RM-E Dual 7" 3G-SDI Rackmount Monitor from ViewZ is a 2-in-1 monitor that supports up to 1080p60 HD video. The monitor incorporates two 7" IPS LCD panels with 1280 x 800 resolution, 350 cd/m² brightness, 800:1 contrast, and a wide 178° viewing angle. The VZ-070RM-E features 12- to 8-bit dithering for improved color depth, gamma 2.2-base calibration, RJ45 remote control, and 2-channel audio metering.
Display features include image flip and zoom, false color, Red/Green/Blue/Mono-only modes, H/V delay, PiP, red and green tally modes, Zero/Under/Over/Pixel-to-Pixel scan modes, and safety markers. Color temperature modes include 6500K, 7500K, 9300K, and a user-configurable mode. The 3 RU rack-mountable ViewZ VZ-070RM-E monitor is suitable for both studio and field production.
-
- 2-in-1 7" monitor supports up to 1080p60 HD video
- Two 3G-SDI inputs/outputs, HDMI, component, and composite inputs/outputs
- 350 cd/m² brightness, 800:1 contrast, and a wide 178° x 178° viewing angle
- Image flip and zoom, false color, and Red/Green/Blue/Mono-only modes
- H/V delay, PiP, and red/green tally modes
- Zero/Under/Over/Pixel-to-Pixel scan modes
- 3 RU rackmount
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm x 2 |
| Screen Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 350 cd/m 2 |
| Contrast Ratio | 800:1 |
| Dot Pitch | 0.039 x 0.117 mm |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Color Gamut | Not Specified by Manufacturer |
| LUT Support | No |
| Image Controls | False Color, H/V Delay, Image Flip, Picture-in-Picture, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers |
| I/O | |
|---|---|

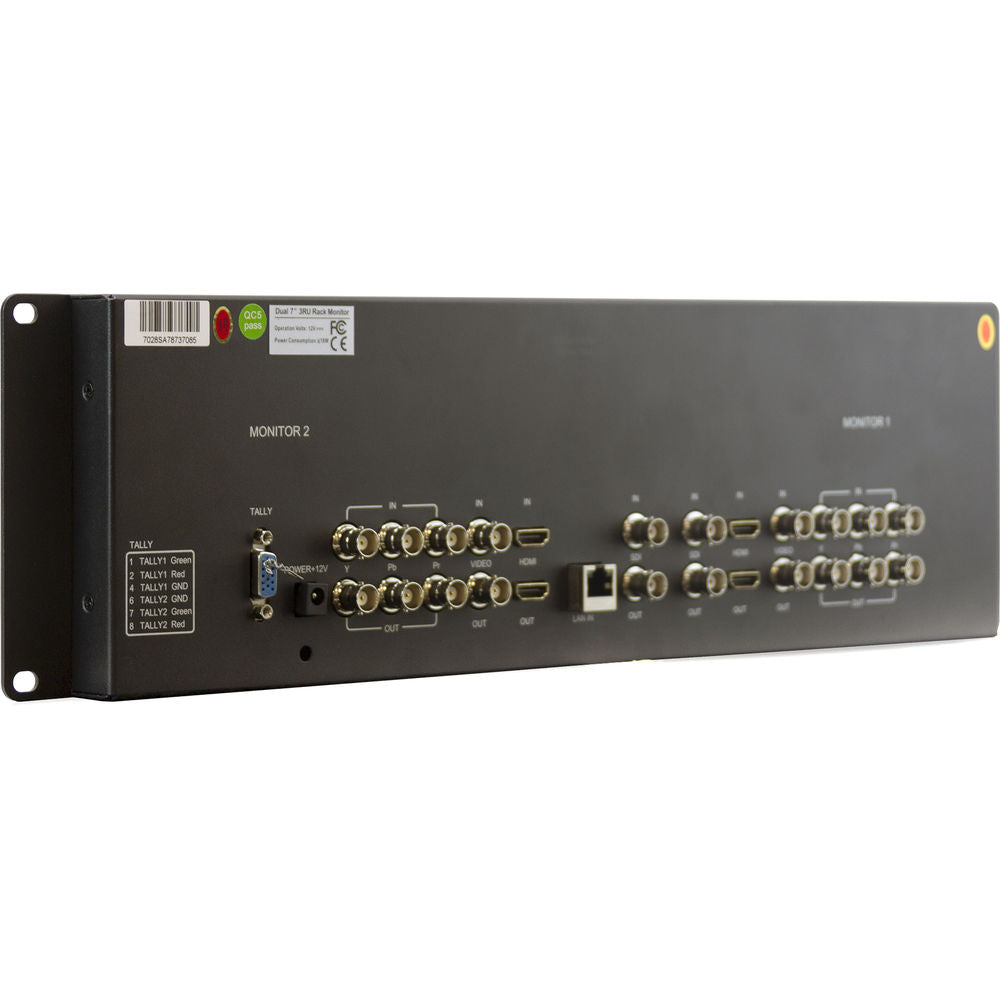

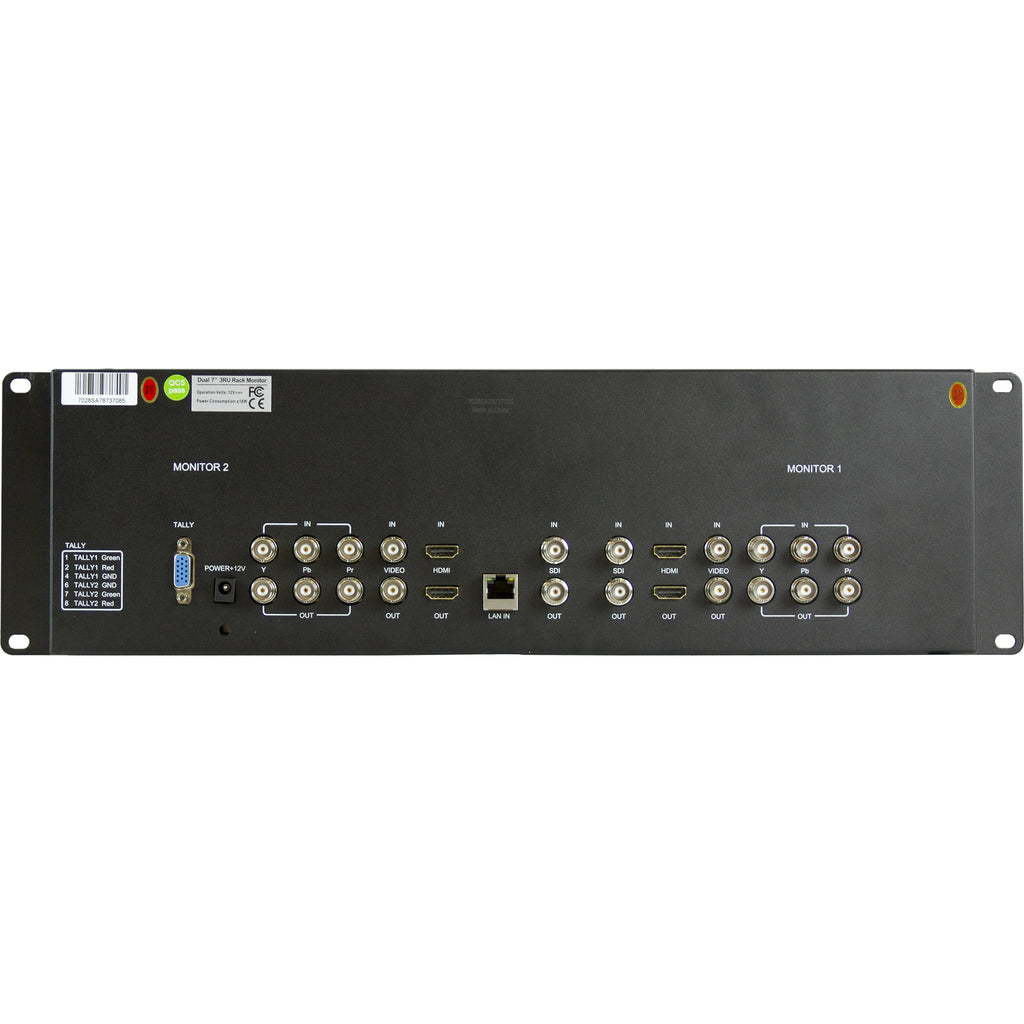

| Video | 1 x 3G-SDI (BNC) Input 1 x 3G-SDI (BNC) Output 2 x HDMI 1.4 (HDMI Type A) Input 2 x HDMI 1.4 (HDMI Type A) Output 2 x Component (3BNC) Input 2 x Component (3BNC) Output 2 x Composite (BNC) Input 2 x Composite (BNC) Output |
| HDCP Support | No |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
| Audio | None |
| Built-In Speaker | None |
| Power | 1 x Barrel Input |
| Other I/O | 1 x Tally (DE-15) 1 x LAN (RJ45) |
| Card Slot | None |
| Format Support | |
|---|---|
| Video Format | SDI (8-Bit) 1080p: 24/25/29.97/30/50/59.94 1080PsF: 23.98 1080i: 50/59.94/60 720p: 50/59.94/60 PAL: 50 NTSC: 59.94 |
| Power | |
|---|---|
| DC Input Power | 12 VDC |
| Battery Type | None |
| Operating Current | 1.5 A |
| Power Consumption | 18 W |
| Mounting | |
|---|---|
| Rack Form Factor | 3RU |
| Mounting | None |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| General | |
|---|---|
| Dimensions (W x H x D) | 19.0 x 5.3 x 1.0" / 482.5 x 133.5 x 25.3 mm, Including Bracket |
| Weight | 6.35 lb / 2.88 kg |
