ViewZ VZ-PVM-I1W4N Overview
-
1Description
-
2General Features
-
3Built-In Camera Features
-
4Media Player Features

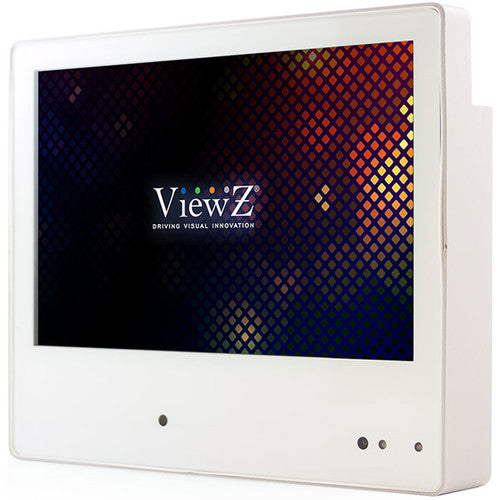

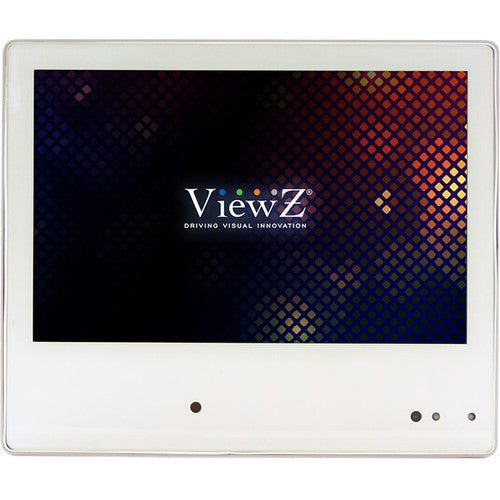

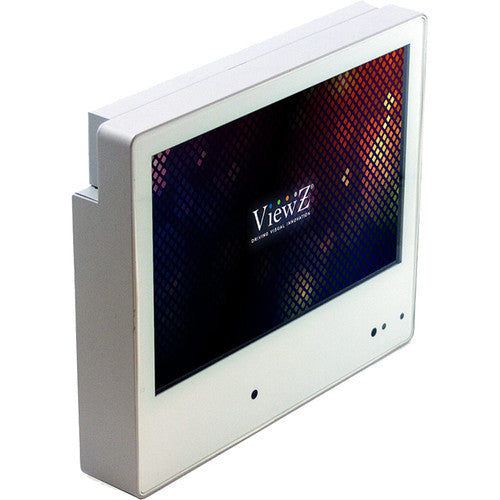

Prevent theft in your establishment with this 10.1" IP Public View LED Monitor with 2.1MP Camera from ViewZ. The monitor features a commercial-grade 'A' LED panel and supports resolutions up to 1280 x 800 at 60 Hz. The LED backlit display supports a maximum brightness of 250 cd/m2 and up to 16.7 million colors. The built-in 2.1MP camera features a 1/3" Sony image sensor and a 3.7mm fixed pinhole lens. Additional features include 10/100 Base-T Ethernet connectivity with PoE support. You can upload video, photo, and audio files via separately available USB flash drives or SD cards. The monitor is 75 x 75mm VESA mountable, and is compatible with VZ-WM05, VZ-WM11, and VZ-AM01 wall mounts. An IR remote control and eight M4 mounting screws are included.
- 10.1" IP public view monitor with 1200 x 800 resolution
- Blue, red, and purple blinking LED indicators
- Video obstruction, video loss, door open, and power loss alarms
- Compatible with VZ-WM05, VZ-WM11, and VZ-AM01 wall mounts
- 2.1 MP IP camera
- Sony IMX290/Hi3516D image sensor
- 3.7mm fixed pinhole lens
- 1920 x 1080 at 30 fp/s total pixels
- Motion sensor and time-interval-based source switching
- TCP/IP web client connection protocol
- 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, DWDR, AGC, and AWB functions
- Internet Explorer 6 to 11 and Firefox web application
- ONVIF 2.6 integration protocol
- Supports SD cards up to 64 GB and USB flash up to 2 TB (separately available)
- Supported video formats: RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, and MPEG1/2/4
- Supported audio formats: MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, and PCM
- Supported image formats: JPEG, TIF, PNG, and BMP
- Video Resolution: 1080p at 60 Hz
In the Box
- ViewZ 10.1" IP Public View LED Monitor with 2.1MP Camera
- IR Remote Control
- 8 x M4 Mounting Screws
Table of Contents
- Description
- General Features
- Built-In Camera Features
- Media Player Features
ViewZ VZ-PVM-I1W4N Specs
Display
| Screen Size (Diagonal) |
10.1" |
| Resolution |
1280 x 800 |
| Panel Type |
LCD |
| Brightness |
250 cd/m² (Typical) |
| Viewing Angle (H x V) |
140 x 130° |
| Aspect Ratio |
16:10 |
| Contrast Ratio |
700:1 |
| Response Time |
30 ms |
| Refresh Rate |
60 Hz |
| Dot Pitch |
0.1695 x 0.1695 mm |
| Backlighting Technology |
LED |
Connectivity
| USB Ports |
1 x Unspecified USB - Photo/Video |
| Ethernet Ports |
1 |
| Digital Media Slot |
SD |
Audio
| Built-In Speakers |
Yes, 2 x 2 W |
| Processing |
DTS |
| Integrated Camera |
World-Facing: 2.1 MP Photo / 1080p Video |
Convenience
| Supported Video File Types |
AVI, DivX, FLV, H.263, H.264/AVC, M2TS, M4V, MKV, MOV, MP4, MPEG, MPEG2, MPEG4, MPG, RMVB, TP, TS, VC-1, VOB, WMV |
| Supported Audio File Types |
AAC, AC3, APE, FLAC, MP3, OGG, PCM-WAV, WAV, WMA |
| Supported Photo File Types |
BMP, JPEG, PNG, TIFF |
Electrical
| Power Consumption |
Maximum: 24.0 W |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
5 to 90% |
| Certifications |
CE, FCC, RoHS
*as per Manufacturer |
Physical
| Wall Mounting |
75 x 75 mm |
| Dimensions |
9.8 x 8.3 x 1.6" / 24.9 x 21.1 x 4.1 cm |
| Weight |
4.63 lb / 2.1 kg |
