Description
Videon EdgeCaster Overview
- 1Description
- 2LiveEdge Streaming
- 3Simultaneous Streaming/Multiple Profiles
- 4Reduced Latency
- 5Cost Efficient
- 6Versatile Encoding

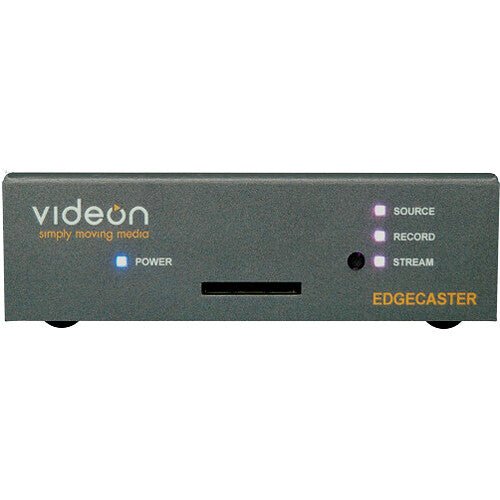

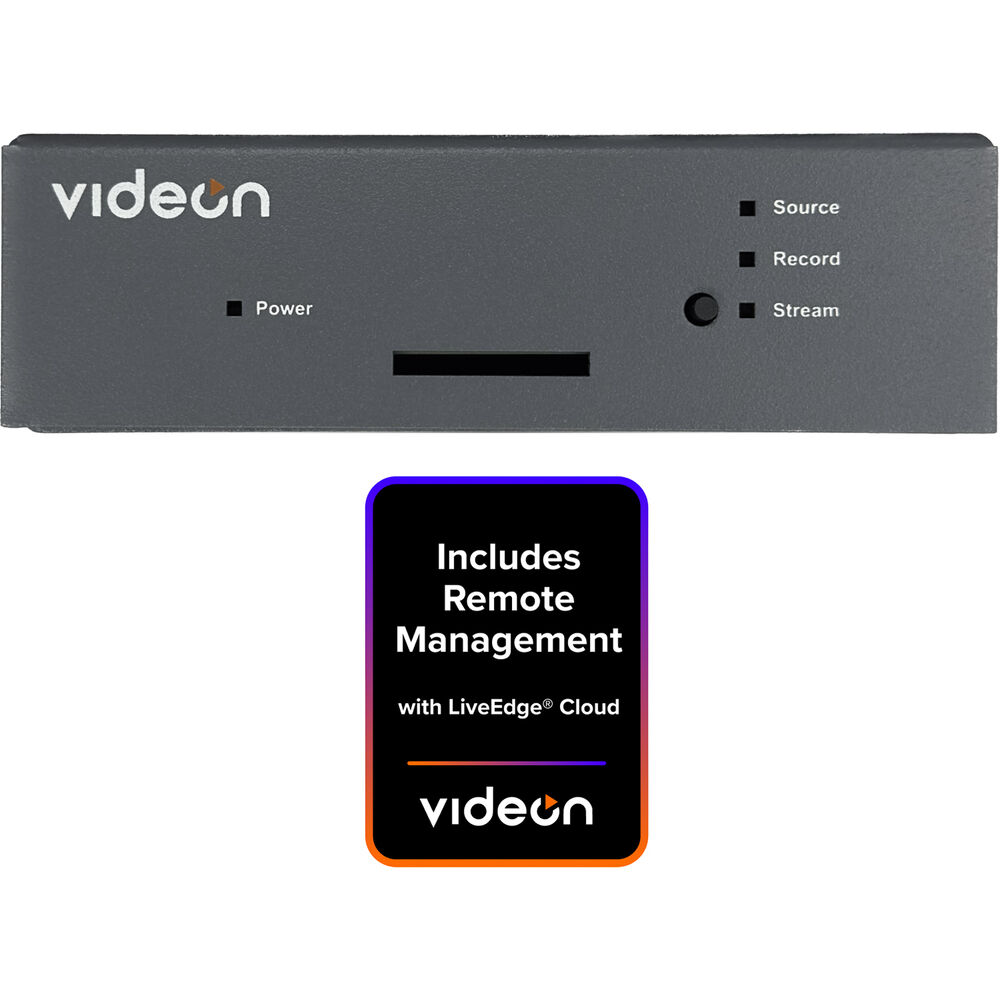

Transmit simultaneous streams with multiple profiles and up to UHD 4K30 H.265/HEVC video using the EdgeCaster EZ Encoder from Videon. This single-channel input/multiple streaming output unit has one HDMI and one 3G-SDI input supporting a maximum input resolution of 4K30/1080p60. Streaming outputs include up to three RTMP/RTMPS, two Unicast, multicast, and SRT options using multiple profiles.

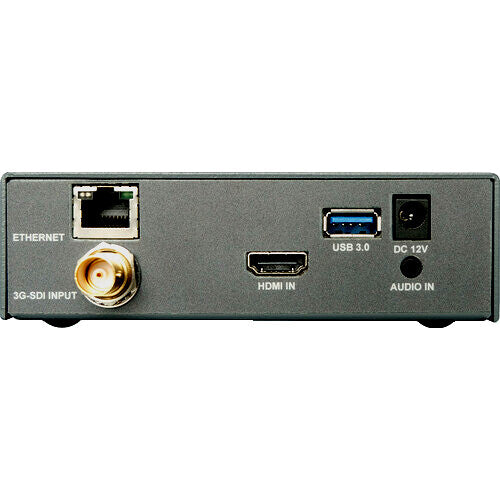

This compact encoder features ultralow latency with HLS/DASH/CMAF formatting, Qualcomm processing, a 3.5mm audio input, and supports embedded HDMI and SDI audio. It can record the stream to an SD card via its built-in card slot or to an external USB drive using its USB 3.0 port while it streams to the network via its RJ45 10/100/1000 Ethernet port.
In the Box
- Videon EdgeCaster EZ Encoder (Multiple Output + MBR)
- 12 VDC Power Supply
- Limited 1-Year Manufacturer Warranty
- Description
- LiveEdge Streaming
- Simultaneous Streaming/Multiple Profiles
- Reduced Latency
- Cost Efficient
- Versatile Encoding
Videon EdgeCaster Specs
| Video Inputs | 1 x HDMI (HDMI 1.4a) 1 x BNC (3G-SDI) |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Analog |
| Video Outputs | 1 x RJ45 (RTMP/RTSP) 1 x USB-A (USB Video) |
| Audio Outputs | None |
| Expansion Slots | None |
| Latency | 500 to 2000 ms |
| Input Video Format | HDMI / SDI UHD 4K at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 576p 50/59.94/60 fps 576i / 625 lines 50/59.94/60 fps |
| Input Audio Format | Analog |
| Output Video Format | RJ45 / USB-A UHD 4K 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 720p 50/59.94/60 fps 576p 50 fps 720 x 540 640 x 360 |
| Embedded Audio | HDMI/SDI: 8-Channel |
| Video Standard Compliance | SMPTE 344M |
| HDR Compatibility | Not Specified by Manufacturer |
| Video IP Encoding | H.264, H.265: 852 x 480 to 3840 x 2160 (500 to 30,000 Kb/s) |
| Audio IP Encoding | AAC-LC, MPEG-4: 48 kHz (64.00 to 512.00 Kb/s) |
| Media Card Reader | 1 x SDXC |
| Power I/O | 1 x Barrel (12 VDC) Input |
| PoE Support | PoE 802.3af |
| Power Consumption | 8 W |
| Dimensions | 5 x 4.23 x 1.5" / 12.7 x 10.74 x 3.8 cm |
| Package Weight | 2.135 lb |
| Box Dimensions (LxWxH) | 9.4 x 8.7 x 3.9" |
