Video Mount Products FP-XMLPAB Overview

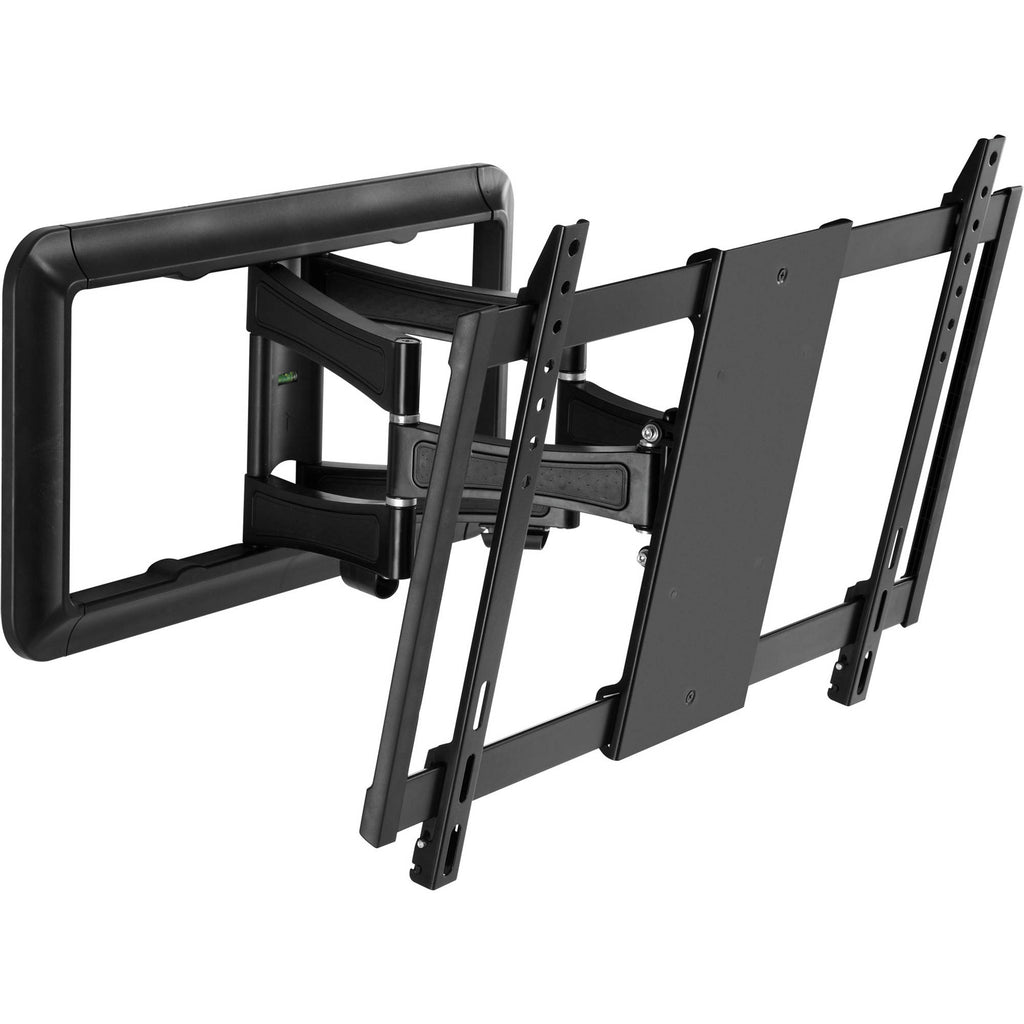

The black FP-XMLPAB Flat Panel Articulating Mount from Video Mount Products is used for mounting a single 32 to 52� flat panel display. This low profile mount features a closed depth of 1.5" and a full extension of 16.2" along with a fully adjustable 15° tilt, 3° list adjustment, and ±45° of rotation. These adjustments allow you to easily position your flat panel for optimal viewing. It accepts pad locks for security.
Holds 32 to 52" flat panels
Maximum Mounting Hole Pattern: 600 x 400mm
Low profile depth of 1.5" when collapsed and 16.2" fully extended
Mounting rails accept padlocks
Clip-based cable management system
In the Box
- Video Mount Products FP-XMLPAB Flat Panel Articulating Mount for 32 to 52" Flat Panel Displays (Black)
- 2 x Mount Arm
- Mounting Hardware
- Limited Lifetime Manufacturer Warranty
Video Mount Products FP-XMLPAB Specs
Compatibility
| Supported Screen Sizes |
32 to 52" / 81.3 to 132.1 cm |
| Weight Capacity |
100 lb / 45.3 kg |
| Mounting-Hole Pattern |
600 x 400 mm |
| Number of Displays Supported |
1 |
Adjustments
| Tilt Adjustment |
-2 to +10° |
| Rotation Adjustment |
-45 to +45° |
| Level Alignment (Micro-Adjustment) |
Yes Roll -3 to +3° |
| Orientation |
Landscape |
General
| Dimensions |
27.4 x 17.3 x 16.2" / 69.6 x 43.9 x 41.1 cm |
| Weight |
16.8 lb / 7.6 kg |
Packaging Info
| Package Weight |
24 lb |
| Box Dimensions (LxWxH) |
31 x 21 x 4" |
