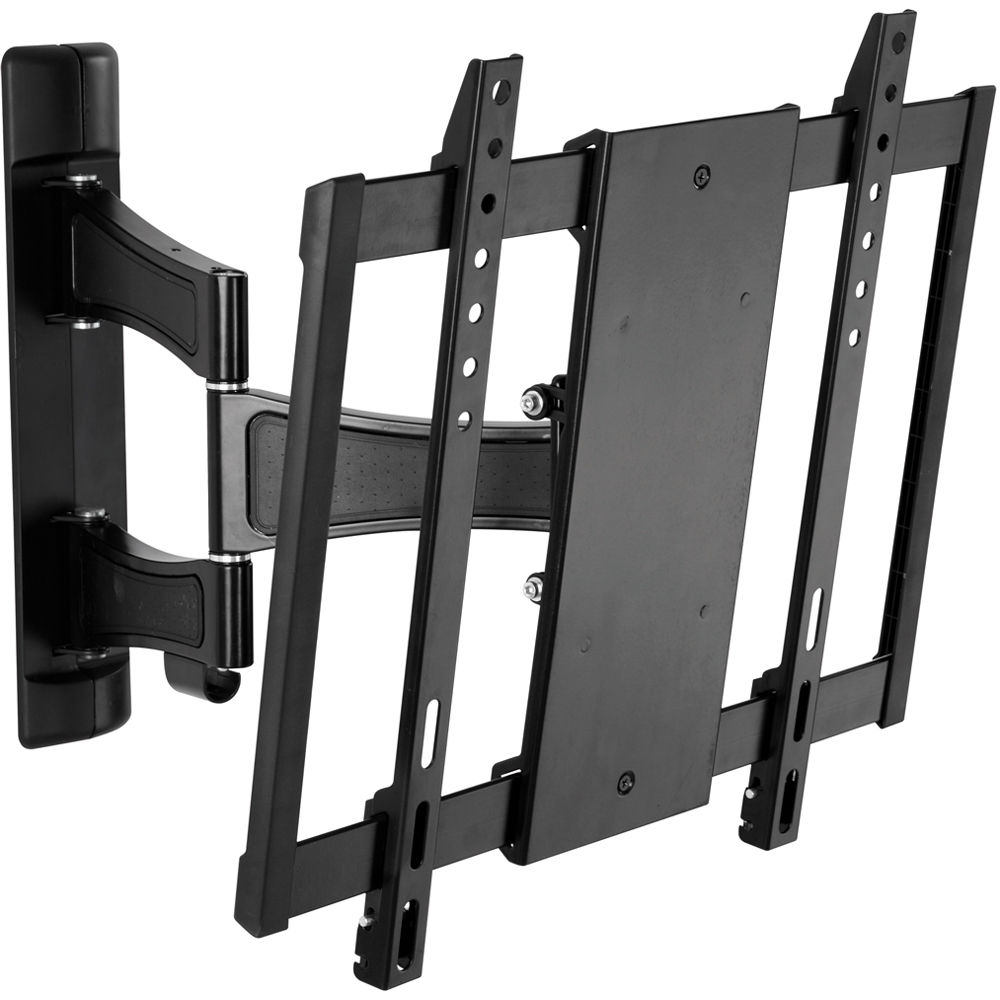

Video Mount Products FP-MLPAB Overview
The Video Mount Products FP-MLPAB Medium Low Profile Flat Panel Articulating Mount is designed to support most 27 - 42" flat panel screens. With a closed depth of 1.6" and a fully opened extension of 16.4" along with a -2 to +10° tilt, ±3° list adjustment, and ± 45° of rotation, you can get your flat panel to the viewing angle you want for nearly any room. For added safety and security, the mounting rails accept padlocks.
400 x 400 mm mounting hole pattern
Integrated cable management system
In the Box
- Video Mount Products FP-MLPAB Medium Low Profile Flat Panel Articulating Mount
- Mounting Hardware
- Limited Lifetime Manufacturer Warranty
Video Mount Products FP-MLPAB Specs
Compatibility
| Supported Screen Sizes |
Up to 42" / 106.7 cm |
| Weight Capacity |
55 lb / 25 kg |
| Mounting-Hole Pattern |
400 x 400 mm |
| Number of Displays Supported |
1 |
Adjustments
| Tilt Adjustment |
-2 to +10° |
| Rotation Adjustment |
-45 to +45° |
| Level Alignment (Micro-Adjustment) |
Yes Roll -3 to +3° |
| Orientation |
Landscape, Portrait |
General
| Construction Material |
Steel |
| Security |
Padlock Supported |
| Distance from Mounting Surface |
1.6 to 16.4" / 4.1 to 41.7 cm |
| Dimensions |
19.9 x 16.8 x 1.6" / 50.5 x 42.5 x 4.1 cm |
| Weight |
10 lb / 4.5 kg |
Packaging Info
| Package Weight |
15 lb |
| Box Dimensions (LxWxH) |
23 x 20 x 3" |
