Video Mount Products ERVWC Series Vertical Equipment Wall Cabinet (5 RU, 20")

For Rackmount Equipment in Remote Places

Low-Profile Vertical Orientation

150 lb Load Capacity

20" Usable Depth

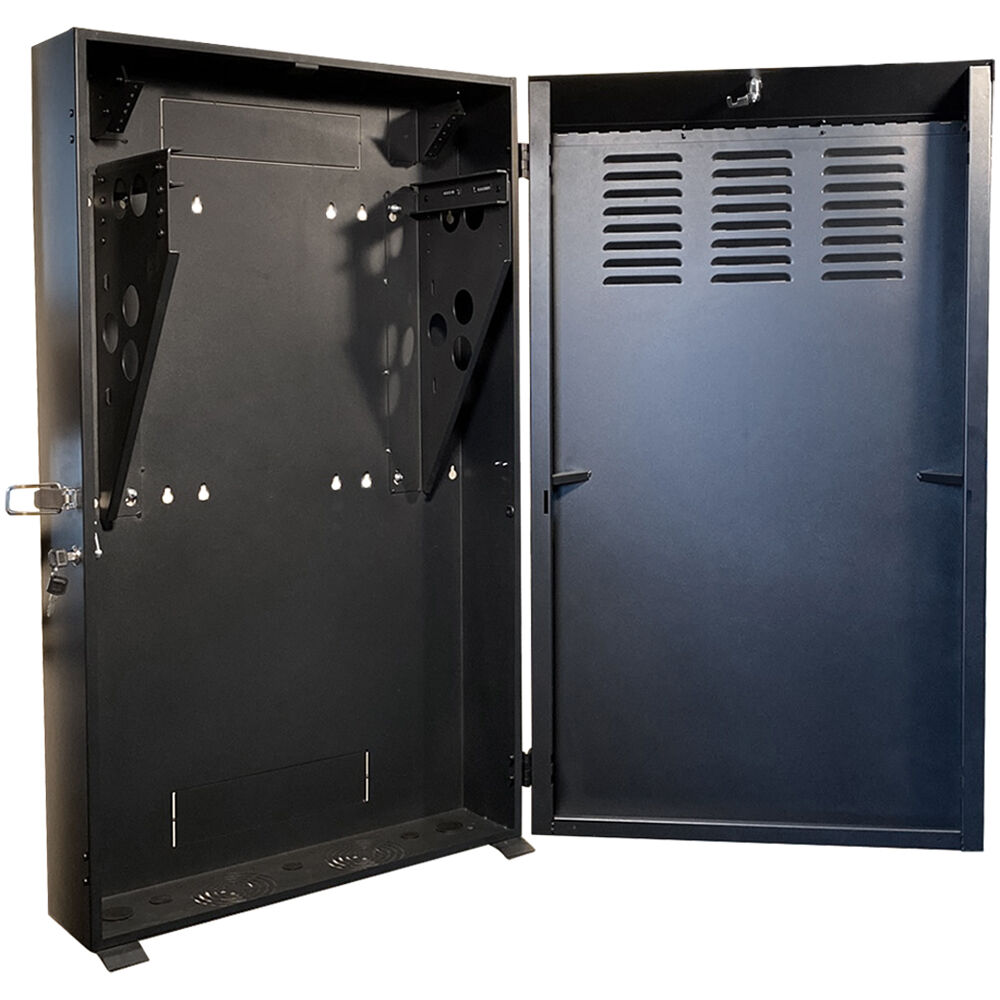

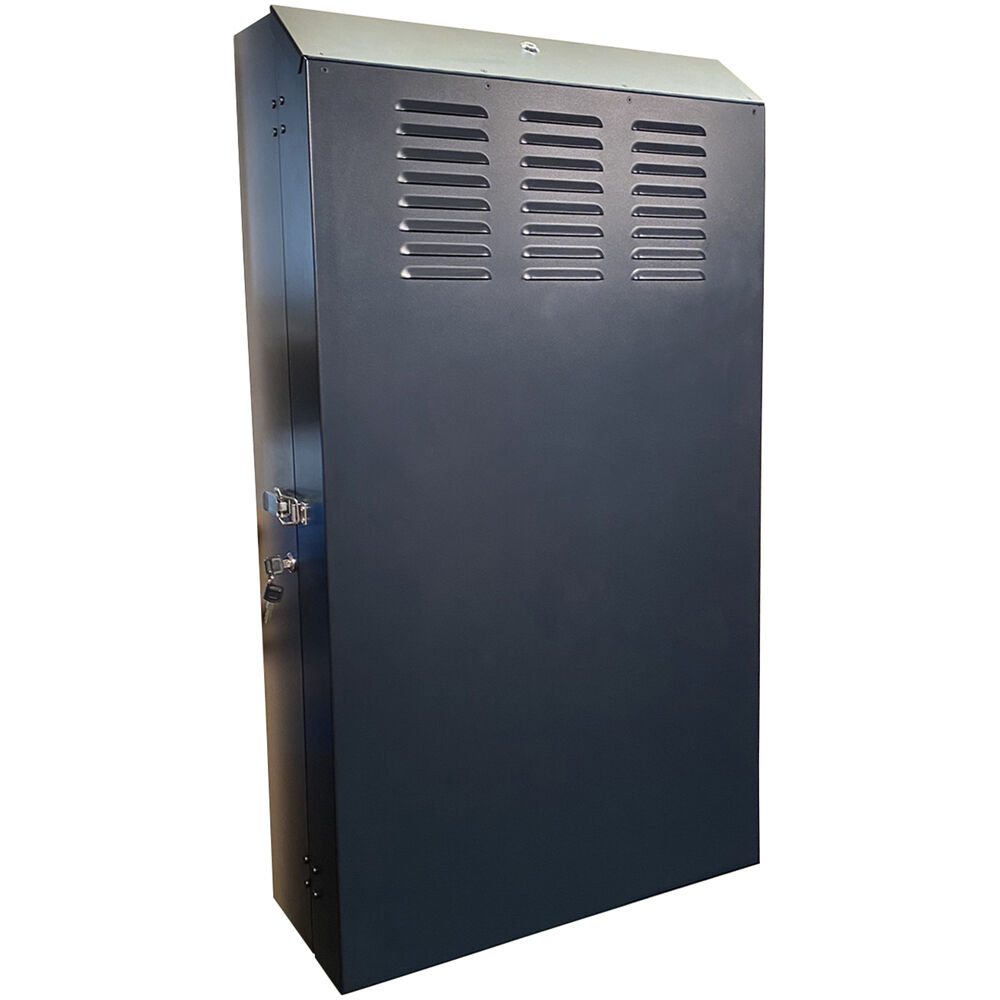

Offered here with a usable depth of 20", this black Video Mount Products ERVWC Series Vertical Equipment Wall Cabinet is designed to mount rack equipment in remote locations that aren't readily accessible�places such as back offices, closets, or anywhere that floor space is at a premium.

Thanks to its vertical orientation, the unit offers a low profile. You'll find punch-outs for cable management and ventilation as well as a dedicated location for mounting a patch panel. The mounting rails offer both M6 and 12-24 threading to support your preferred style. The unit has a load capacity of 150 lb and ships fully assembled.

Rails adjust to accommodate mounting depth Vented & reversible front door Separate locking hinged top and hinged body 1" and 1.75" top and bottom cable ports Marked rack spaces Slide out 2 RU bracket for patch panels Mounting locations for separately available fans 150 lb load capacity

Rack Form Factor	5 RU
Rack Depth	20" / 50.8 cm
Load Capacity	150 lb / 68.0 kg
Caster/Wheel	None
Fans	None
Material of Construction	Steel
Wall Mountable	Yes
Enclosure Design	Enclosed
Exterior Dimensions (W x H x D)	25.6 x 28.8 x 9.8" / 65 x 73.2 x 24.8 cm
Weight	45 lb / 20.4 kg
