| ₹ 36470.0 includes GST and import duties. | |
| B2B customers can avail ₹ 5561.68 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- Extends Ethernet Networks
- Compatible with Cat5e and Cat6 Cabling
- Increases IP Camera Range up to 3500'
- Unrestricted 10/100Mbps Connection
- LED Indicators

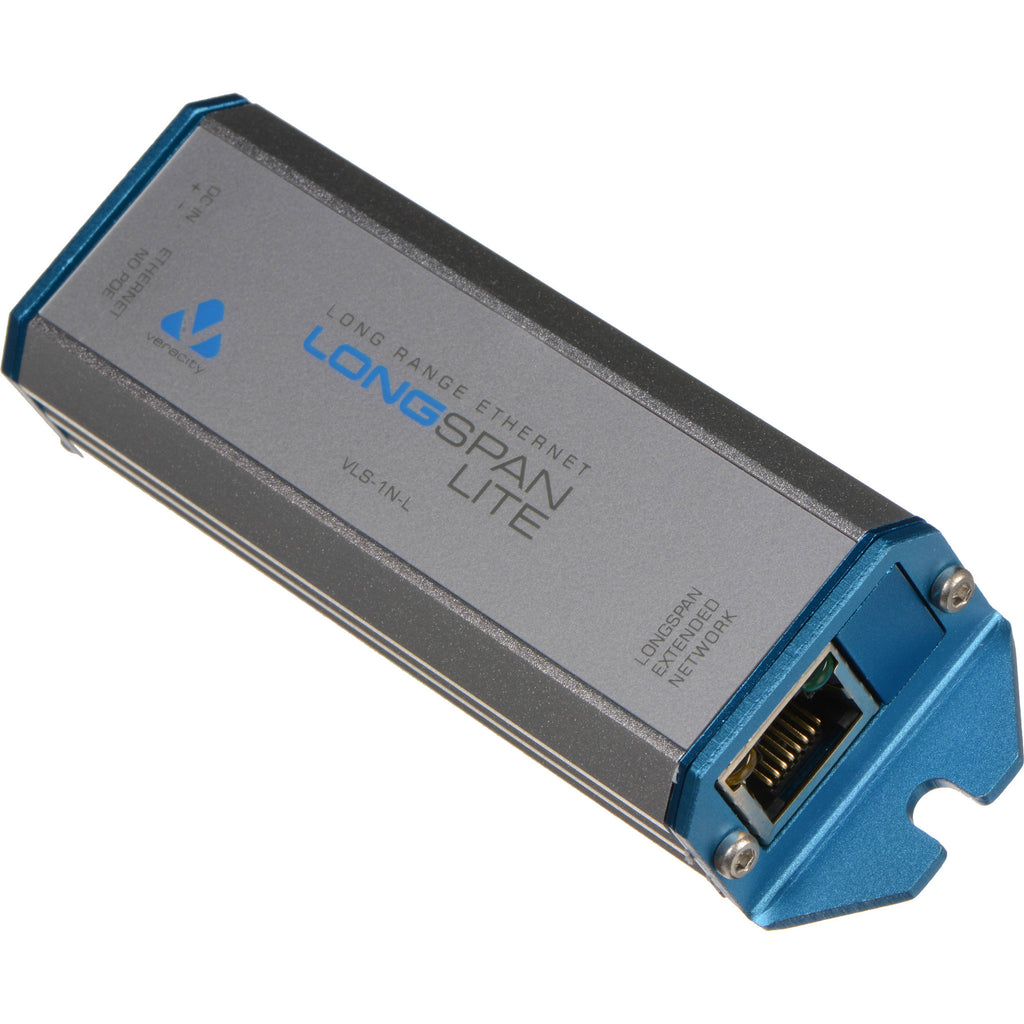

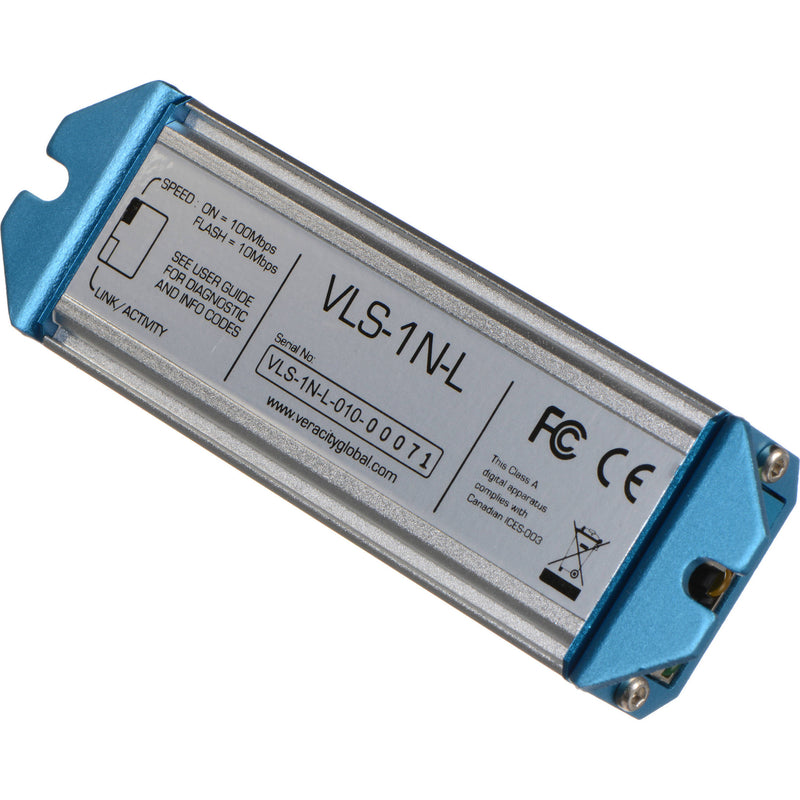

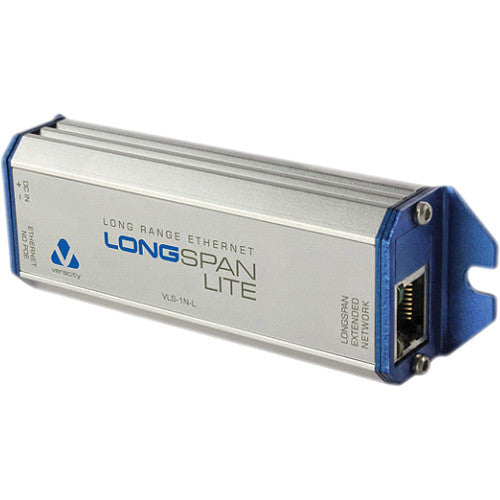

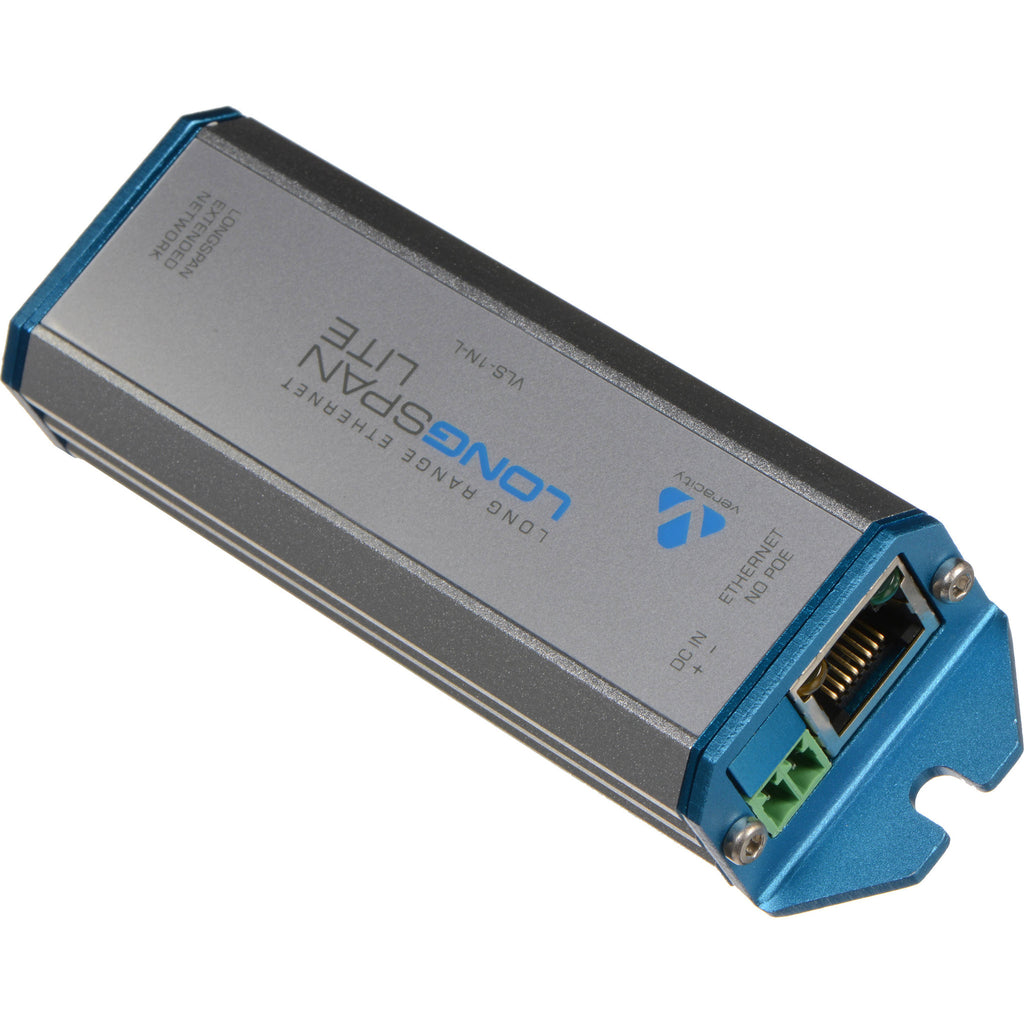

The non-PoE LONGSPAN LITE from Veracity provides high bandwidth over extended ranges up to 3500', enabling a dependable connection to IP cameras and other remote network devices. This smart point-to-point solution requires no mid-cable equipment and, with its automatic self-configuration, installation is simple and easy. The LONGSPAN LITE also supports single-pair UTP cables, providing a fast upgrade solution for legacy analog systems.
The LONGSPAN LITE is designed to allow you to run IP cameras up to 2700' using 100Base-T speeds and up to 3500' using 10/100Base-T speeds. This converter supports 1- and 2-pair cables with extended range, allowing analog cameras in UTP installations to be upgraded to IP with no need to replace cabling. The LONGSPAN LITE automatically adapts to the number of pairs available and delivers the same unrestricted 10 or 100Mbps full-duplex network connection. It self-configures for optimum performance every time it is connected and eliminates the need for user setup, DIP switch settings, and system pairings.
- Extends Ethernet up to 3500'
- Compatible with legacy UTP cables
- Full-speed, long-range, point-to-point Ethernet connection over regular Cat5e or Cat6 cable
- Fully automatic, simple to install, and maintenance-free
| Power | Unit: 1 W |
| DC Power Input | 8 to 57 VDC or 20 to 28 VAC, maximum 100 mA Detachable screw terminal for class II isolated external supply |
| Connector | RJ45 Ethernet |
| Compatible Cables | Cat6, Cat5e, Cat3, other 1-, 2-, and 4-pair UTP cable |
| Ethernet Interface | Cable: Patch or crossover, auto detected Rate: 100Base-TX or 10Base-T, full-duplex with auto-negotiation |
| Bandwidth | Cat6: 100 Base-TX: Up to 2700' (820 m) 10 Base-T: Up to 3500' (1050 m) Cat5e: 100 Base-TX: Up to 2250' (690 m) 10 Base-T: Up to 3100' (950 m) 1-Pair UTP: 100 Base-TX: Up to 1000' (300 m) 10 Base-T: Up to 3000' (900 m) |
| LED Indicators | LONGSPAN: Link/activity, rate Ethernet: Link/activity, power good |
| Operating Temperature | -40 to 158°F (-40 to 70°C) |
| Relative Humidity (non-condensing) | 85% |
| Dimensions | 4.7 x 1.4 x 0.9" (120 x 36 x 23 mm), including the length of the removable mounting brackets |
| Weight | 3.5 oz (100 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 5.5 x 2.3 x 1.2" |
- Limited 2-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 35740.6 |
| 3-5 | ₹ 35375.9 |
| 5-10 | ₹ 34646.5 |
| 10+ | ₹ 33917.1 |
Bulk discount will be automatically applied during checkout based on quantity.
