Veracity LONGSPAN Ethernet Range Extender (Camera Side) & CAMSWITCH Plus 4+1 Port PoE Network Switch Kit

Ethernet Range Extender

5-Port Unmanaged 10/100M Switch

Increases IP Camera Range up to 3500'

Switch Supports up to 4 IP Cameras

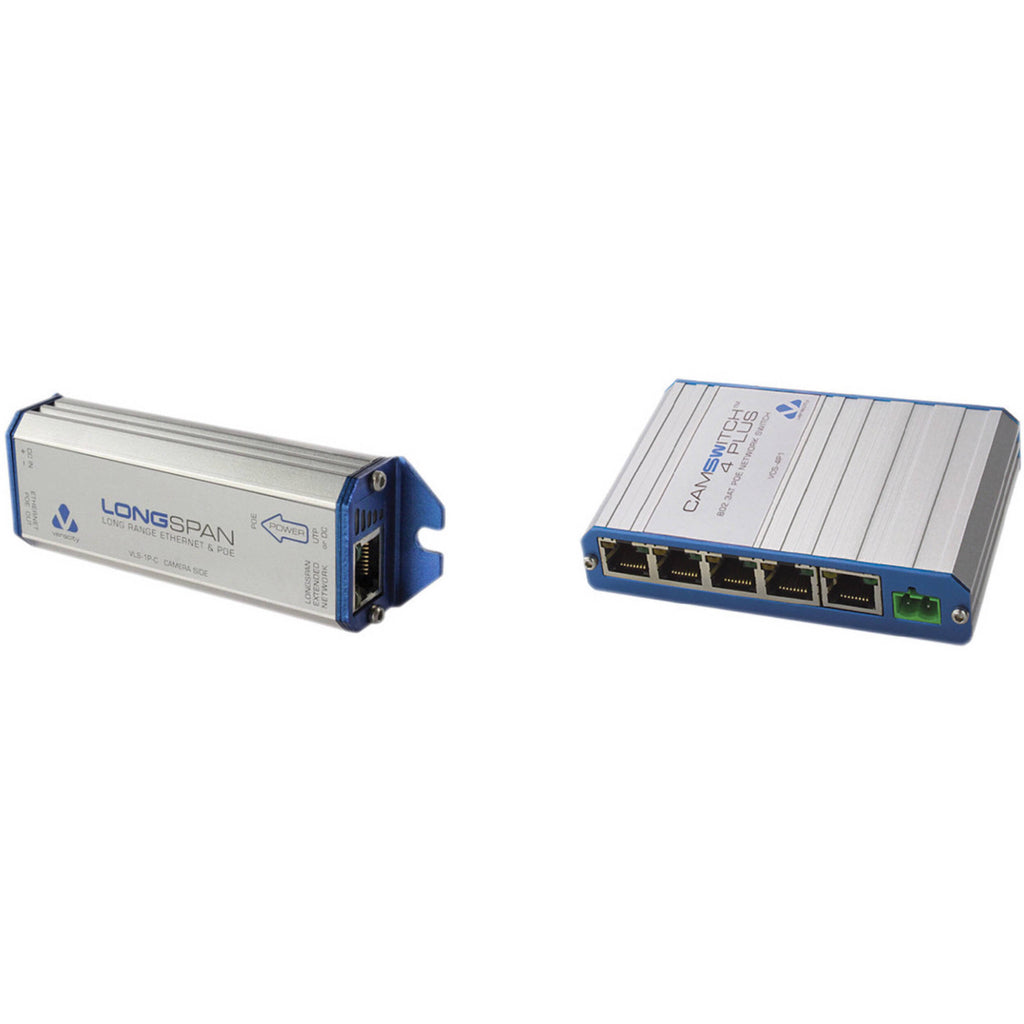

This B&H Kit couples the Veracity LONGSPAN Ethernet Range Extender (Camera Side) with the CAMSWITCH Plus 4+1 network switch. The extender provides long-range IP camera connection as far as 3500', while the switch supports up to four IP cameras.

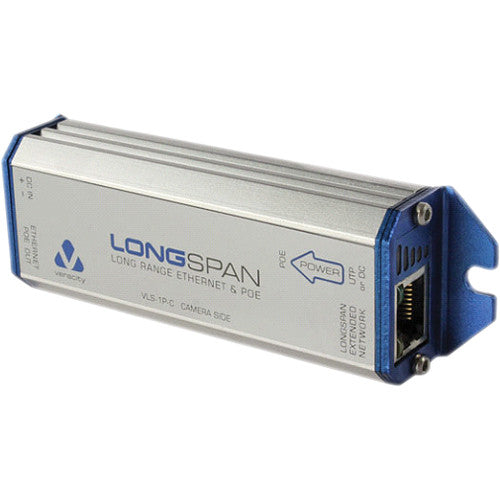

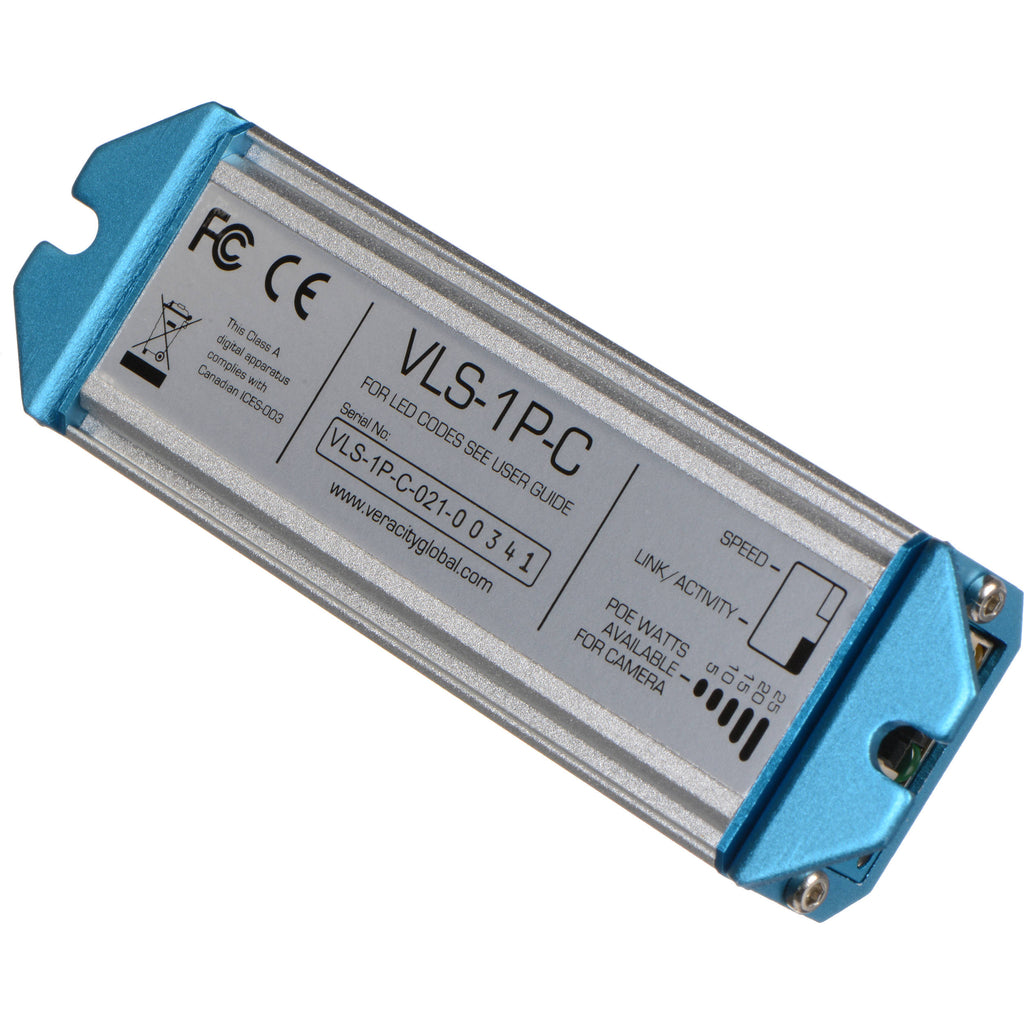

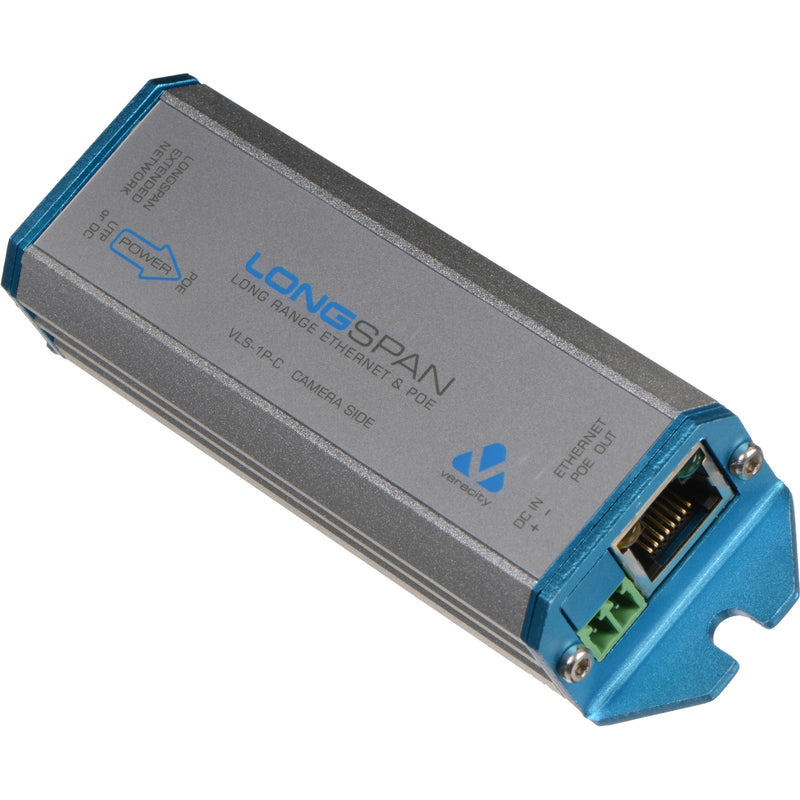

Veracity LONGSPAN Ethernet Range Extender with PoE (Camera Side)

The camera side LONGSPAN Ethernet Range Extender with PoE from Veracity provides high bandwidth over extended ranges up to 3500', enabling a connection to IP cameras and other remote network devices. This smart, point-to-point solution requires no mid-cable equipment and features automatic self-configuration. The LONGSPAN Converter also supports single-pair UTP cables, providing a fast upgrade solution for legacy analog systems.

LONGSPAN is designed to allow you to run IP cameras up to 2700' using 100Base-T speeds and up to 3500' using 10Base-T speeds. This converter supports 1- and 2-pair cables with extended range, allowing analog cameras in UTP installations to connect via IP with no need to replace cabling. LONGSPAN automatically adapts to the number of pairs available and delivers the same unrestricted 10 or 100 Mbps full-duplex network connection. It self-configures for optimum performance every time it is connected and eliminates the need for user setup, DIP switch settings, and system pairings.

This PoE-equipped extender allows all of the power for the link to be sourced from a single PoE switch or power supply for simple installation and reliable UPS-backed power delivery. LONGSPAN's power transmission technologycan deliver the full 25.5W required for PoE Plus equipment at up to 2000', or standard 15W PoE up to 2600'. A smart LED display utilizing Veracity's SafeView technology provides confirmation of link status, power availability, and diagnostic information, from either end of the cable.

Extends Ethernet up to 3500' with PoE Compatible with legacy UTP cables Full-speed, long-range, point-to-point Ethernet connection over regular Cat5e or Cat6 cable Fully automatic, simple to install, and maintenance-free UPC: 892314002258 Veracity CAMSWITCH Plus 4+1 Port 802.3at PoE Network Switch

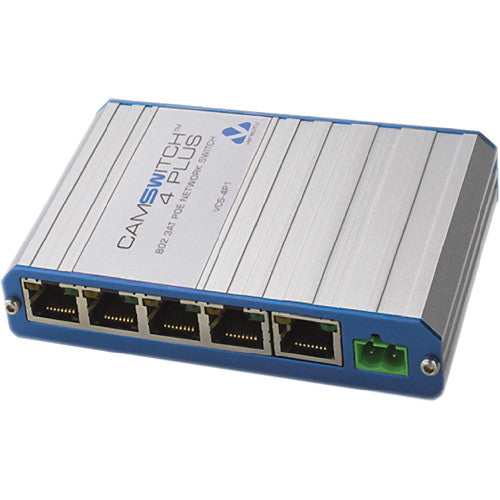

Whether mounted on the wall or in a rack, the CAMSWITCH Plus 4+1 Port 802.3at PoE Network Switch from Veracity features four PoE outputs and a single non-PoE downlink which can also act ac a PoE input. This network switch comes with a dedicated power supply making it easy to inject power into the network or simply utilize existing PoE power within the network to power the switch. Once configured, this rugged switch can power devices like IP cameras, additional switches or routers, and much more as it supports the 802.3af/at PoE networking standard and provides up to 57 V of PoE power.

General Features 4 802.3at PoE ports and a 5th port for downlink Use with CAT5, 5e, or 6 patch or crossover cables Auto-configuration for speed (10 or 100BASE-T) and duplex All ports support 10/100 Base-T with auto-negotiation and auto-crossover When DC powered with an optional power supply, CAMSWITCH 4 Plus delivers a network connection with optional 802.3af/at power to up to 4 PoE or non-PoE devices Supports PoE devices up to 25W total when PoE powered Non-PoE devices may also be connected when the device is PoE powered CAMSWITCH 4 Plus can deliver up to full 802.3at PoE plus power on all 4 ports Can be securely mounted to a flat surface with the included clips Applications IP Video
CAMSWITCH Plus delivers a compact, reliable, and scalable solution to IP video networking which can grow with the installation Wireless
Power over Ethernet means that Wi-Fi access points and routers can be located optimally and moved easily; CAMSWITCH Plus extends this benefit to more devices and greater distances IP Telephony
Provides a simple way to add IP telephones or additional network ports to existing network outlets, without requiring a mains power connection OEM / Custom
CAMSWITCH Plus platform can be customized to your needs UPC: 892314002173

Power Consumption	25 W
Supported IEEE Standards	802.3af, 802.3at

Input Connector	1 x RJ45 Female
Output Connector	1 x RJ45 Female
Ethernet Standards	Cat 5e, 6
Number of Channels	1
Indicator	LED

Dimensions	4.7 x 1.4 x 0.9" / 120 x 36 x 23 mm
Weight	3.5 oz / 100 g

Operating Humidity	85%
Operating Temperature	-40 to 158°F / -40 to 70°C

Package Weight	0.29 lb
Box Dimensions (LxWxH)	5.4 x 2.45 x 1.2"

Operating Temperature	14 to 122°F / -10 to 50°C
Operating Humidity	85%
Certifications	RoHS, as per Manufacturer

Indicator Lights	Activity, Link, PoE, Power
Dimensions	5.2 x 3 x 0.9" / 13.1 x 7.6 x 2.2 cm
Weight	0 lb / 0 kg

Package Weight	0.4 lb
Box Dimensions (LxWxH)	5.55 x 3.1 x 1.1"
