Description
- Transmits PoE to Up to 4 Network Cameras
- Supports PoE and Non-PoE IP Cameras
- Provides 10-78W of PoE, 25W Max Per Port
- SafeView Connection and Power Status
- 10Base-T/100Base-TX Ethernet Support
- Compatible with RG59, RG6, & RG11 Cable

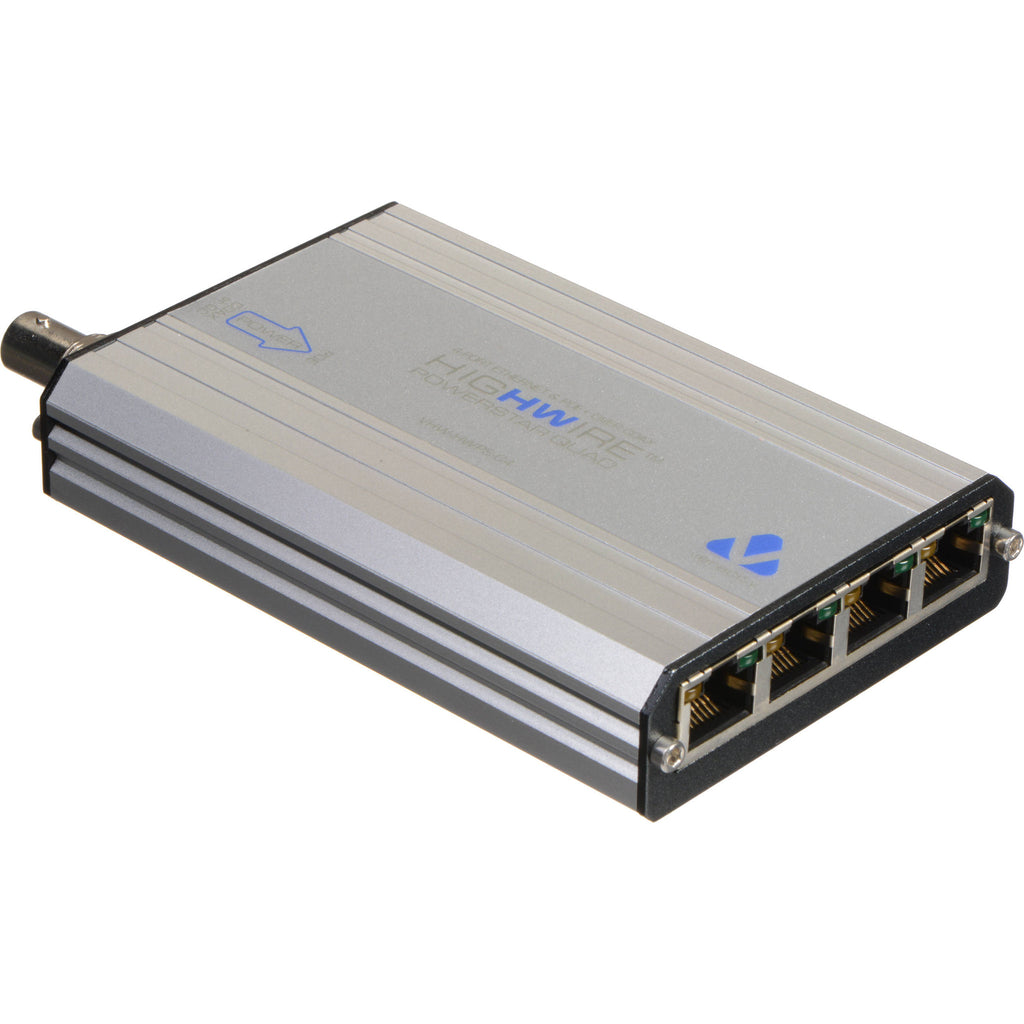

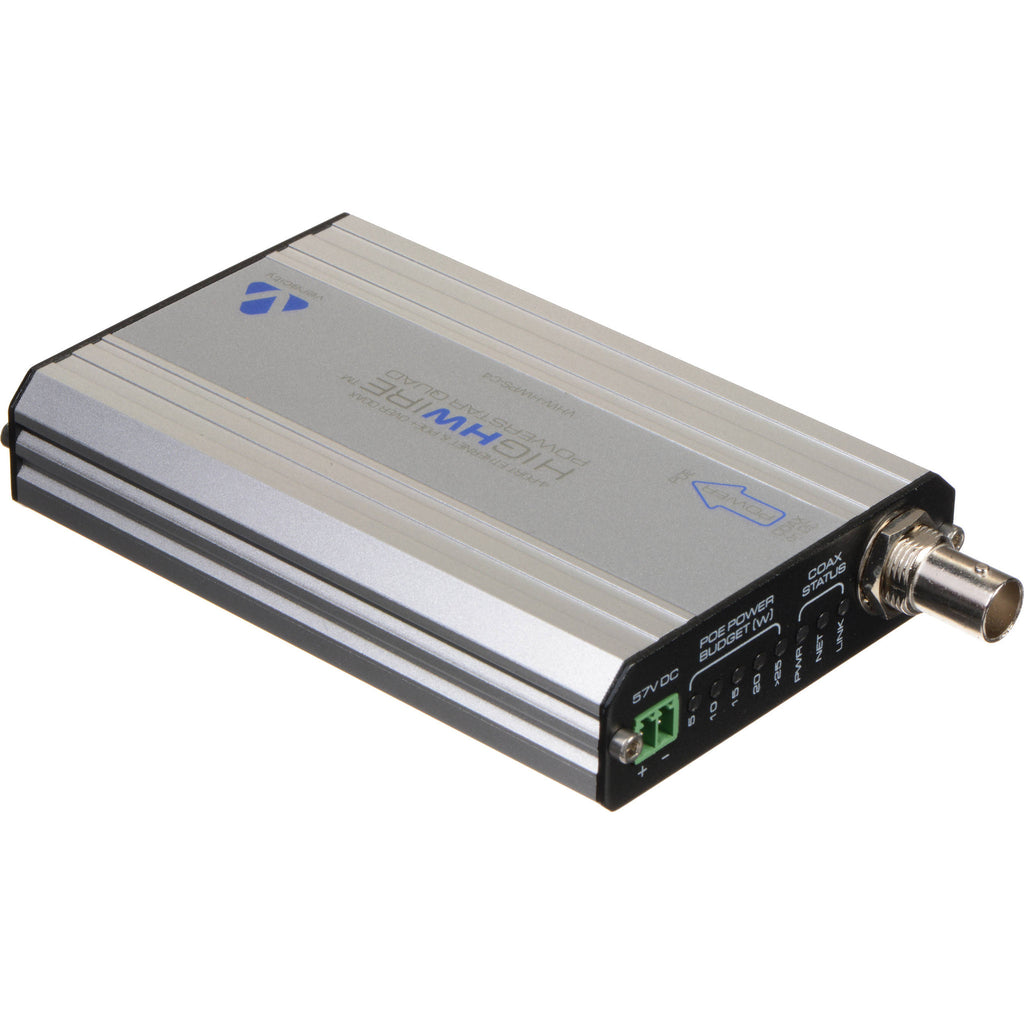

The HIGHWIRE Powerstar QUAD from Veracity works with the HIGHWIRE Powerstar base side (available separately) to deliver PoE to up to four network cameras over RG59, RG6, or RG11 cable. The camera unit receives PoE power from the base unit and transmits it to the connected cameras. No external power cabling is required, and all detection and setup occurs automatically.
This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design enables long range extension even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59, 1148' of RG6, or 1600' of RG11 coax cable.
- Delivers power to up to four network cameras
- PoE eliminates the need for additional cable runs
- Delivers up to 25W of PoE per port, between 10-78W total power
- SafeView quickly indicates connection and power status
- Works with the HIGHWIRE Powerstar base side (available separately)
| Unit | |
|---|---|
| Input Connector | Detachable screw terminal |
| Power Input | PoE, 57 VDC |
| Power Consumption | 3-8 W depending on PoE load |
| PoE | IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus) |
| Power Output | 10-78 W depending on power source managed across 4 ports, maximum 25 W per port (PoE Plus) |
| Interface | |
|---|---|
| Connector Type | BNC 75 Ohms |
| Cable Supported | 75 Ohms coaxial cables (RG59, RG6, RG11, or similar) |
| Transmission Range | Up to 1100' (300 m) on RG59, 1148' (350 m) on RG6, or 1600' (500 m) on RG11 at full rate |
| Bandwidth | Up to 200 Mbps (total up and down) |
| Ethernet | |
|---|---|
| Connector Type | 4 x RJ45 Ethernet ports |
| Cable Supported | Straight through or cross-over Cat5, Cat5e, or Cat6 patch cables |
| Transmission Rate | 10Base-T/100Base-TX full-duplex auto configuring |
| General | |
|---|---|
| Mounting | 0.16" (4 mm) mounting holes on 3.4" (86.1 mm) centers |
| Indicator LEDs | RJ45 Yellow: Network link and activity RJ45 Green: PoE status (on/off) Coax Status: Coax link, base network link, coax power (PoE) PoE Power: Power budget (in steps of 5 W) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Relative Humidity (non-condensing) | 85% |
| Dimensions | With BNC Connector: 5.2 x 2.95 x 0.87" (132 x 75 x 22 mm) With Wall-Mount Lugs: 5.2 x 3.7 x 0.87" (132 x 94.6 x 22 cm) |
| Weight | Unit: 6.3 oz (179 g) With Wall-Mount Lugs: 6.4 oz (184 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.45 lb |
| Box Dimensions (LxWxH) | 6.2 x 3.7 x 1.2" |
- Limited 2-Year Warranty
