Description
- Delivers PoE over Coax Cable
- Supports PoE and Non-PoE IP Cameras
- Provides Up to 25W of PoE
- SafeView Connection and Power Status
- 100Base-T Ethernet Support
- Compatible with RG59 and RG11 Cable

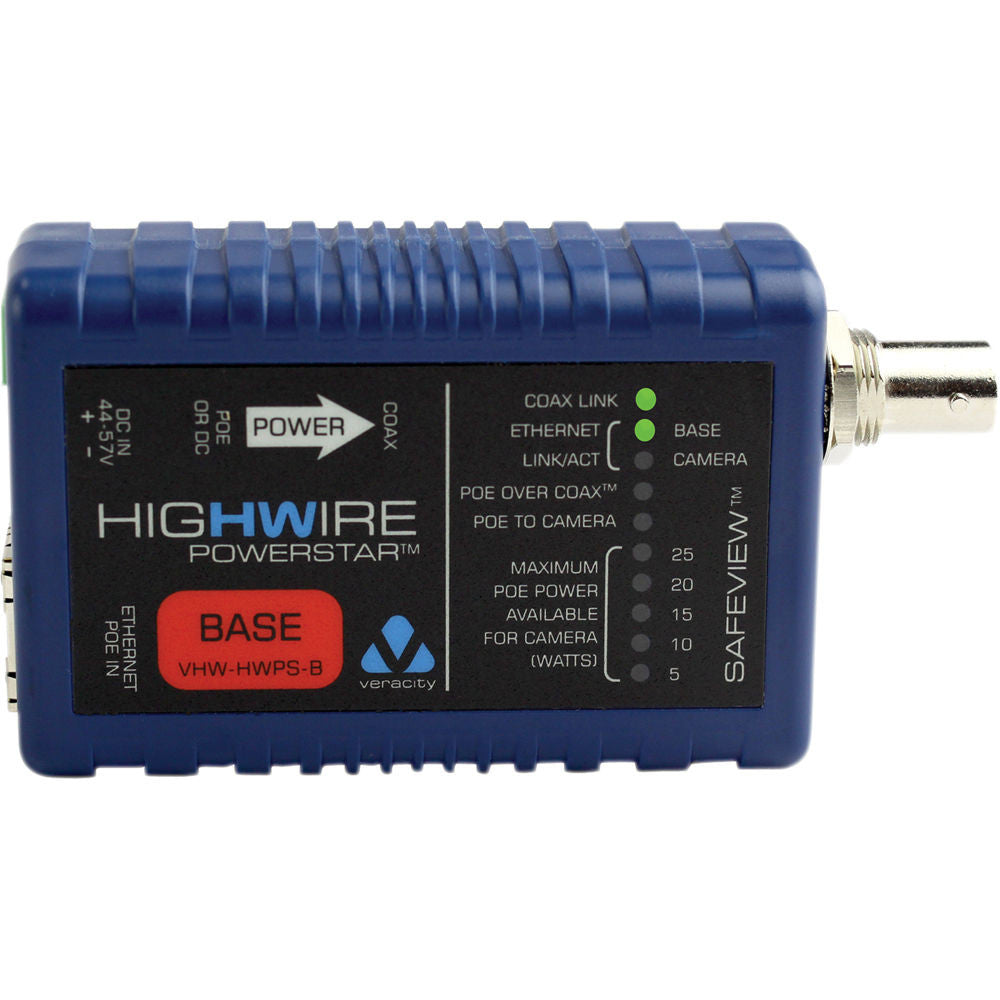

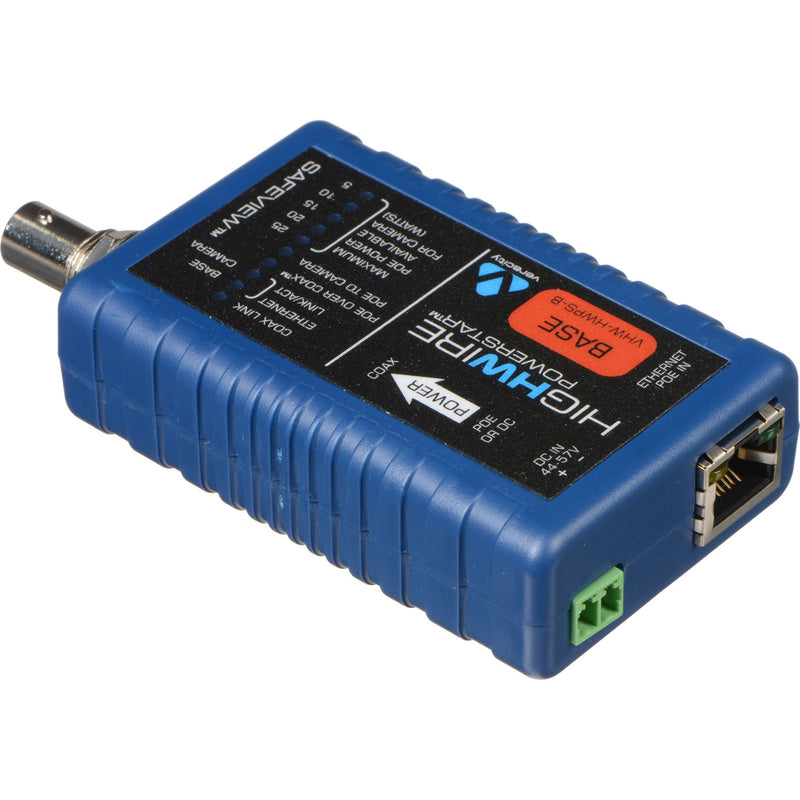

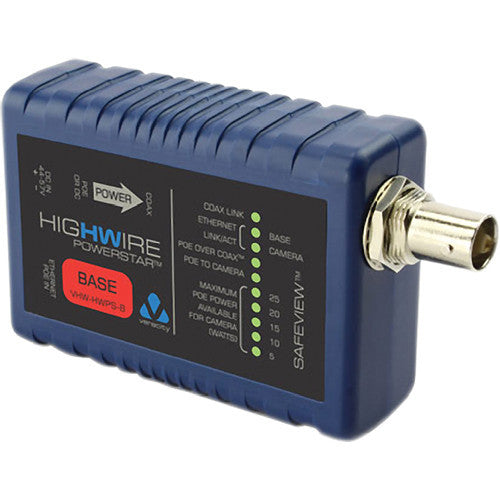

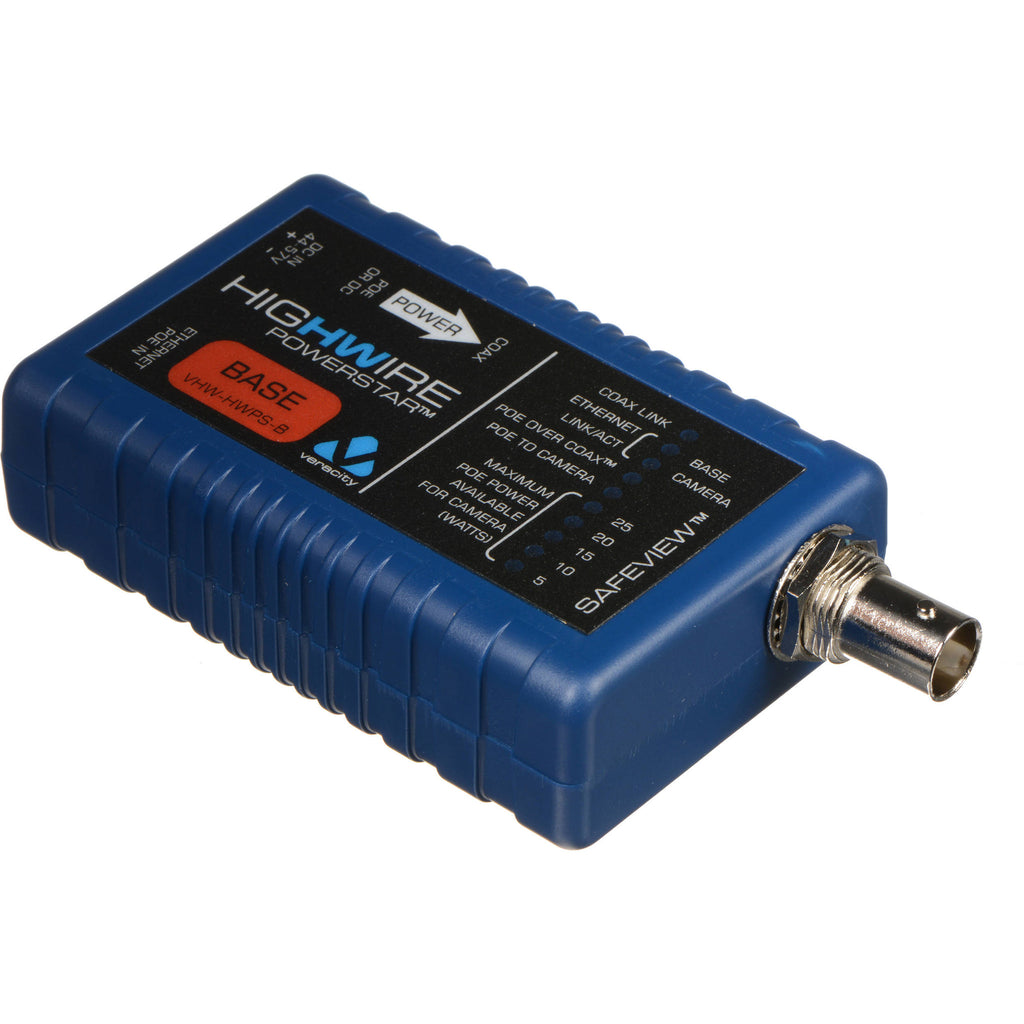

The base side HIGHWIRE Powerstar from Veracity works with the HIGHWIRE Powerstar camera side (available separately) to deliver PoE to an IP camera over RG59 or RG11 cable. The base unit receives PoE power from a standard PoE switch or injector and transmits it down the coaxial cable. No external power cabling is required, and all detection and setup occurs automatically. If PoE is not available, or for an extra power boost at either end of the cable, just connect the optional power supply.
This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design and efficient power delivery enables long range extension even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59 or 1600' of RG11 coax.
- PoE over coax eliminates the need for additional cable runs
- Delivers up to 25W of PoE power
- SafeView quickly indicates connection and power status
- Works with the HIGHWIRE Powerstar camera side (available separately)
| Unit | |
|---|---|
| Power | 1.5 W |
| PoE | In: IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus), 2-event, power class 4 |
| Interface | |
|---|---|
| Connector Type | BNC 75 Ohms |
| Cable Supported | 75 Ohms coaxial (other impedances supported) |
| Transmission Range | Up to 1100' (300 m) on RG59 or 1600' (500 m) on RG11 at full rate |
| Bandwidth | Up to 200 Mbps |
| Ethernet | |
|---|---|
| Connector Type | RJ45 Ethernet |
| Cable Supported | Patch or crossover, auto-detected |
| Transmission Rate | 100Base-T full-duplex with auto-negotiation |
| General | |
|---|---|
| Indicator LEDs | Status Indicators: HIGHWIRE coax link Ethernet link/activity PoE over coax PoE to camera Power available (5/10/15/20/25 W) Colors: Off: Disabled Green: Enabled Red: Fault |
| Operating Temperature | Delivering PoE < 15 W: 14 to 122°F (-10 to 50°C) Delivering PoE Plus > 15 W: 14 to 104°F (-10 to 40°C) |
| Relative Humidity (non-condensing) | 85% |
| Dimensions | With Connector: 4.1 x 2.1 x 0.9" (10.4 x 5.4 x 2.4 cm) Without: Connector: 3.3 x 2.1 x 0.9" (8.4 x 5.4 x 2.4 cm) |
| Weight | 5 oz (140 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 5.1 x 3.0 x 1.3" |
- Limited 2-Year Warranty
