Description
- Delivers PoE Over Coax Video Cable
- Supports PoE, PoE+, and Non-PoE Cameras
- Automatic Power Requirement Detection
- Provides up to 25W of Power
- Long-Range Signal Extension
- Displays Connection and Power Status
- Full 100Base-T Ethernet Support
- Base Unit Included
- Camera Unit Included

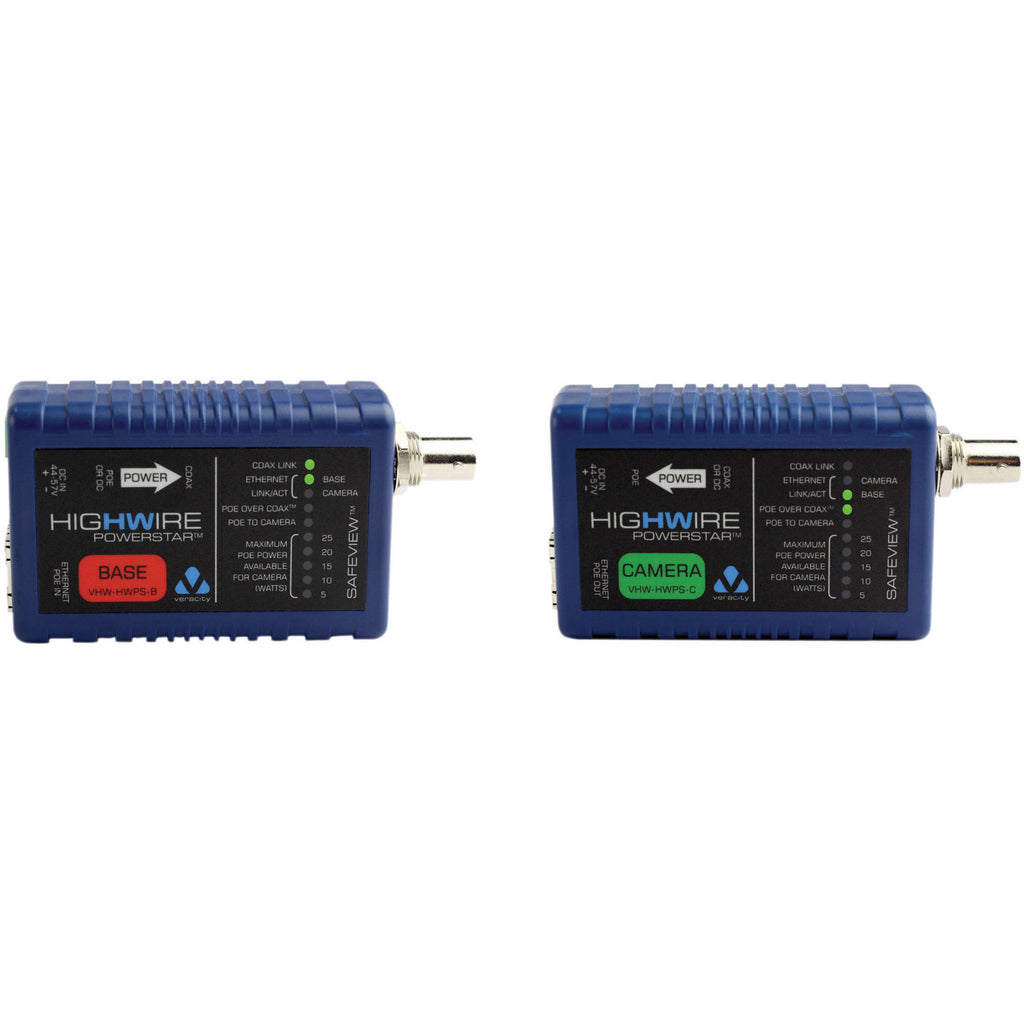

The HIGHWIRE Powerstar Base and Camera Unit Kit from Veracity is a B&H Kit that comes with both a base and camera unit to deliver PoE and Ethernet connectivity over RG59 and RG11 coaxial cables. It eliminates the need for external power cabling and prevents accidental damage to legacy equipment with PoE over coax detection and management.

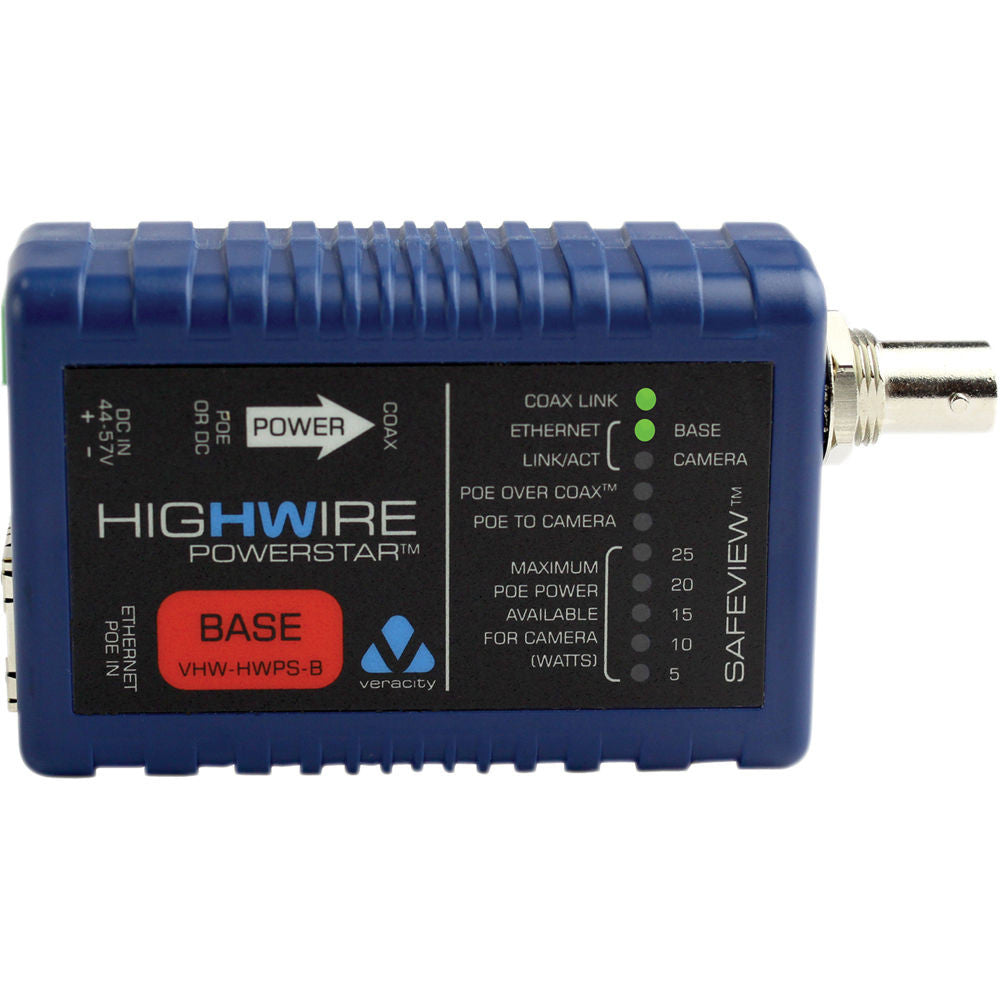

- Veracity HIGHWIRE 1-Port Ethernet over Coax PowerStar Base Unit
The base side HIGHWIRE 1-Port Ethernet over Coax Powerstar from Veracity works with the HIGHWIRE Powerstar camera side (available separately) to deliver PoE to an IP camera over RG59 or RG11 cable. The base unit receives PoE power from a standard PoE switch or injector and transmits it down coaxial cable. No external power cabling is required, and all detection and setup occurs automatically. If PoE is not available, or for an extra power boost at either end of the cable, just connect the optional power supply.
This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design and efficient power delivery enables long range extension, even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59 or 1600' of RG11 coax.- PoE over coax eliminates the need for additional cable runs
- Delivers up to 25W of PoE power
- SafeView indicates connection and power status
- Works with the HIGHWIRE Powerstar camera side (available separately)

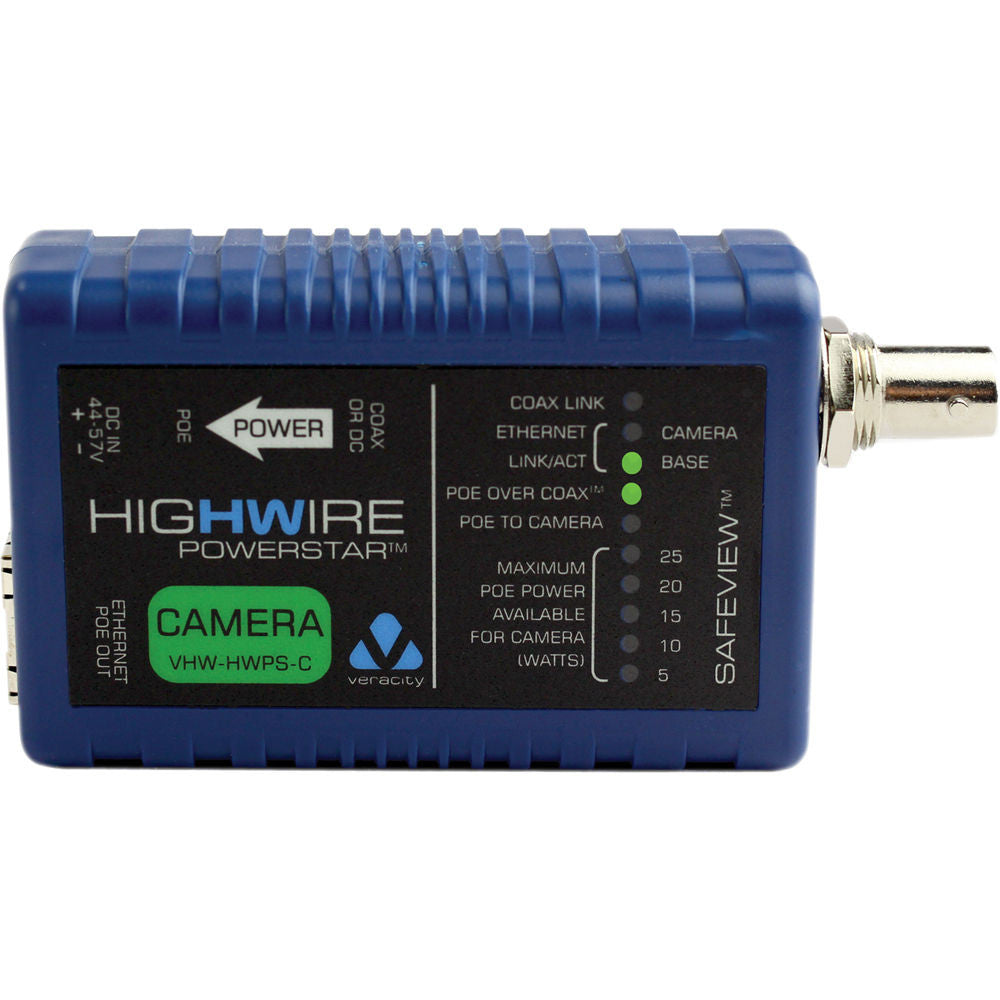

UPC: 892314002210 - Veracity HIGHWIRE Powerstar (Camera Side)
The camera side HIGHWIRE Powerstar from Veracity works with the HIGHWIRE Powerstar base side (available separately) to deliver PoE to an IP camera over RG59 or RG11 cable. The camera unit receives PoE power from the base unit and transmits it to the camera. No external power cabling is required, and all detection and setup occurs automatically.
This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design and efficient power delivery enables long range extension even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59 or 1600' of RG11 coax.- PoE eliminates the need for additional cable runs
- Delivers up to 25W of PoE power
- SafeView quickly indicates connection and power status
- Works with the HIGHWIRE Powerstar base side (available separately)
UPC: 892314002227
- HIGHWIRE 1-Port Ethernet over Coax PowerStar Base Unit
- Limited 2-Year Warranty
Veracity PowerStar specs
- Veracity HIGHWIRE 1-Port Ethernet over Coax PowerStar Base Unit
Unit Power 1.5 W PoE In: IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus), 2-event, power class 4 Interface Connector Type BNC 75 Ohms Cable Supported 75 Ohms coaxial (other impedances supported) Transmission Range Up to 1100' (300 m) on RG59 or 1600' (500 m) on RG11 at full rate Bandwidth Up to 200 Mbps Ethernet Connector Type 1 x RJ45 Ethernet Cable Supported Patch or crossover, auto-detected Transmission Rate 100Base-T full-duplex with auto-negotiation General Indicator LEDs Status Indicators:
HIGHWIRE coax link
Ethernet link/activity
PoE over coax
PoE to camera
Power available (5/10/15/20/25 W)
Colors:
Off: Disabled
Green: Enabled
Red: FaultOperating Temperature Delivering PoE < 15 W: 14 to 122°F (-10 to 50°C)
Delivering PoE Plus > 15 W: 14 to 104°F (-10 to 40°C)Relative Humidity (non-condensing) 85% Dimensions With Connector: 4.1 x 2.1 x 0.9" (10.4 x 5.4 x 2.4 cm)
Without: Connector: 3.3 x 2.1 x 0.9" (8.4 x 5.4 x 2.4 cm)Weight 5 oz (140 g) Packaging Info Box Dimensions (LxWxH) 5.1 x 3.0 x 1.3" - Veracity HIGHWIRE Powerstar (Camera Side)
Unit Power 1.5 W PoE IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus) Interface Connector Type BNC 75 Ohms Cable Supported 75 Ohms coaxial (other impedances supported) Transmission Range Up to 1100' (300 m) on RG59 or 1600' (500 m) on RG11 at full rate Bandwidth Up to 200 Mbps Ethernet Connector Type RJ45 Ethernet Cable Supported Patch or crossover, auto-detected Transmission Rate 100Base-T full-duplex with auto-negotiation General Indicator LEDs Status Indicators:
HIGHWIRE coax link
Ethernet link/activity
PoE over coax
PoE to camera
Power available (5/10/15/20/25 W)
Colors:
Off: Disabled
Green: Enabled
Red: FaultOperating Temperature Delivering PoE < 15 W: 14 to 122°F (-10 to 50°C)
Delivering PoE Plus > 15 W: 14 to 104°F (-10 to 40°C)Relative Humidity (non-condensing) 85% Dimensions With Connector: 4.1 x 2.1 x 0.9" (10.4 x 5.4 x 2.4 cm)
Without: Connector: 3.3 x 2.1 x 0.9" (8.4 x 5.4 x 2.4 cm)Weight 5 oz (140 g) Packaging Info Box Dimensions (LxWxH) 5.1 x 3.0 x 1.3"
