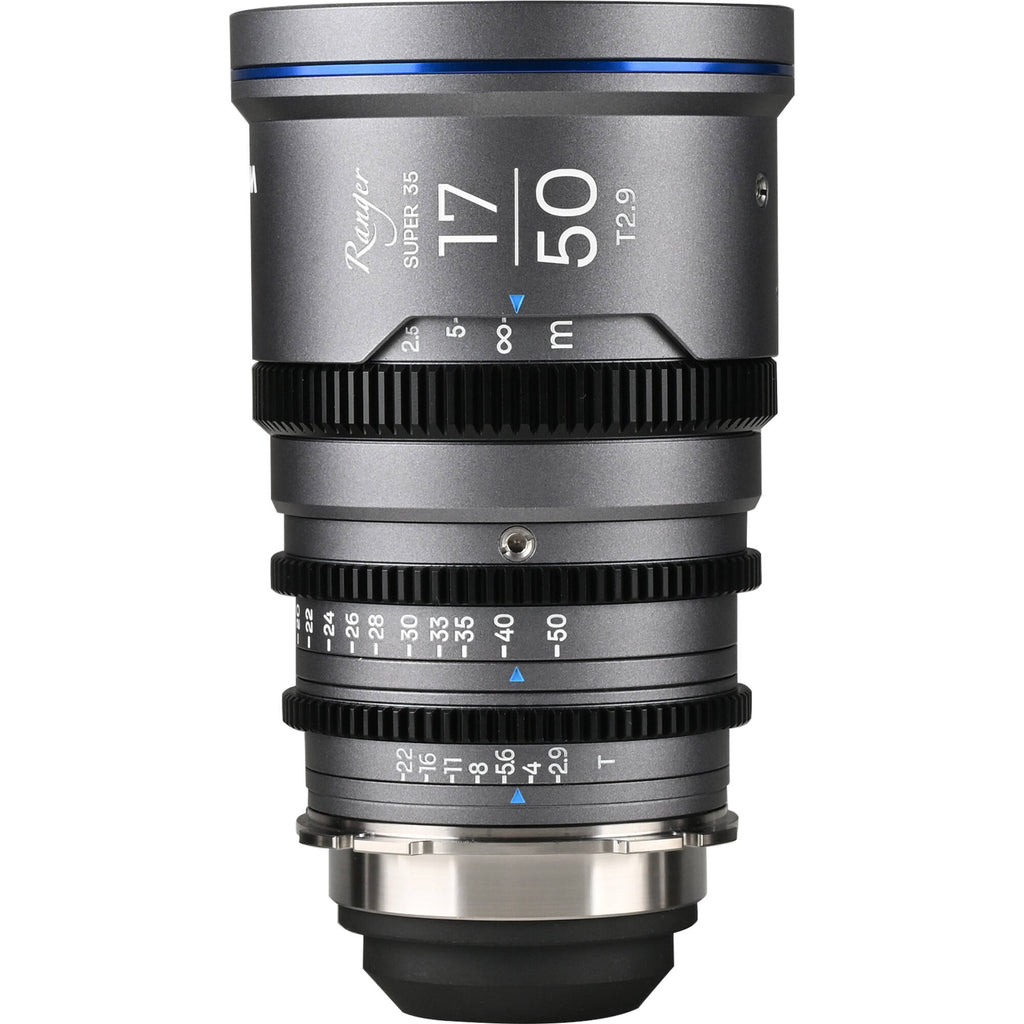

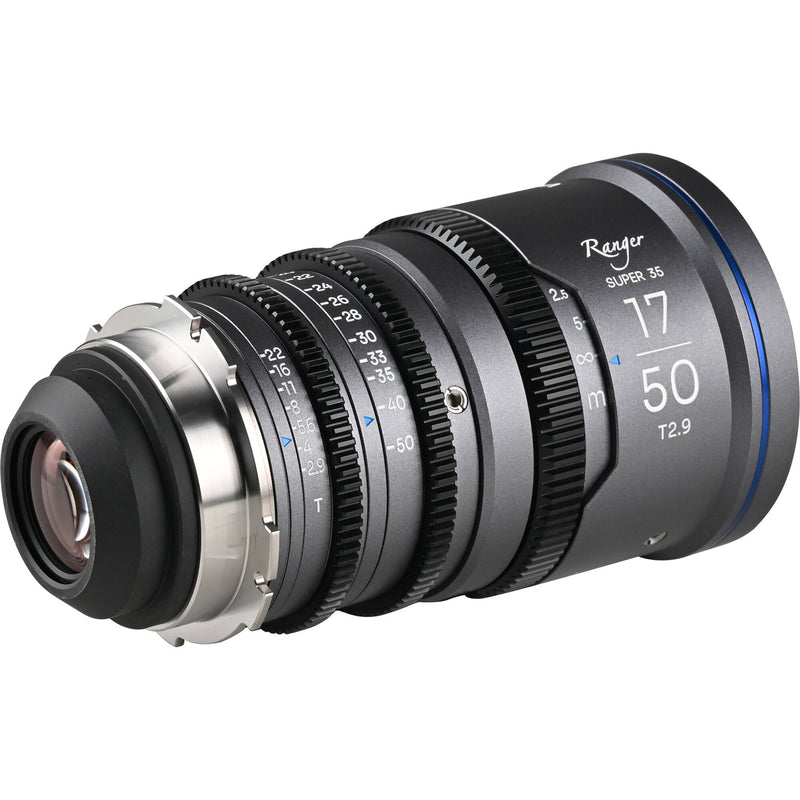

Venus Optics Laowa Ranger S35 Lite 17-50mm T2.9 Cine Lens (ARRI PL)

The Laowa Ranger 17-50mm T2.9 S35 Lite Compact Cine Zoom Lens from Venus Optics covers Super 35 sensors, measures just 4.6" in length, and weighs only 1.87 lb, making it ideal for gimbal, drone, and handheld use. When combined with the separately available 11-18mm and 50-130mm Lite zooms, the three lenses provide an extensive 11-130mm total range. Zoom features include 0.8 MOD cine gears on focus, iris, and zoom rings, focus marks in both feet and meters, and a 77mm front filter thread.

The Laowa Ranger S35 zoom series includes a native ARRI PL mount that can be swapped out with separately available interchangeable Canon RF, Fuji X, Nikon Z, Sony E, and L mounts for use with select cameras.

This 17-50mm zoom maintains a T2.9 maximum aperture across the entire zoom range, ensuring optimal exposure even in challenging lighting conditions.

Outstanding optical performance ensures consistently sharp, high-contrast images with accurate color reproduction.

This parfocal lens maintains precise focus even while zooming, ensuring that your subject stays razor-sharp and perfectly focused, whether zooming in or out.

With a relatively short 13.4" close focus distance, this zoom excels at capturing intricate details and small subjects.

Near-invisible focus breathing ensures smooth and uninterrupted storytelling with seamless focus transitions.

Use this zoom with the separately available 1.33x anamorphic front-mounted adapter to increase its versatility across different shooting formats.

A 77mm filter can be attached directly to the lens for a variety of handy setups. This smaller diameter is preferable when doing run-and-gun shots or using an aerial drone.

Focus marks are printed on the lens body in both feet and meters.

Industry-standard 0.8 MOD gears are installed on the focus, iris, and zoom rings.

Venus Optics Laowa Ranger Lite S35 17-50mm T2... Specs

Focal Length	17 to 50mm
Maximum Aperture	T2.9
Lens Mount	ARRI PL
Lens Format Coverage	Super35/APS-C
Filter Thread	77 mm
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T2.9
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Super35/APS-C
Image Circle	31.5 mm
Angle of View	Super 35 Horizontal: 80.6 to 32.2°
Focus Scales	Metric, Imperial
Optical Design	18 Elements in 22 Groups
Filter Thread	77 mm
Zoom Ratio	2.9x
Minimum Focus Distance	From Unspecified Point in Lens: 29.5" / 75 cm
Maximum Magnification Ratio	0.22:1
Diaphragm Blades	11
Image Stabilization	No
Lens Mounting	1x 1/4"-20 (via Included Support Foot)
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD Zoom: 0.8 MOD
Gear Rotation	Focus: 270° Zoom: 100° Iris: 42°
Electronic Communication	No
Diameter	Front: 3.1" / 80 mm
Length	4.6" / 117 mm
Weight	1.87 lb / 848 g

Package Weight	5.825 lb
Box Dimensions (LxWxH)	13.2 x 10.7 x 5.3"
