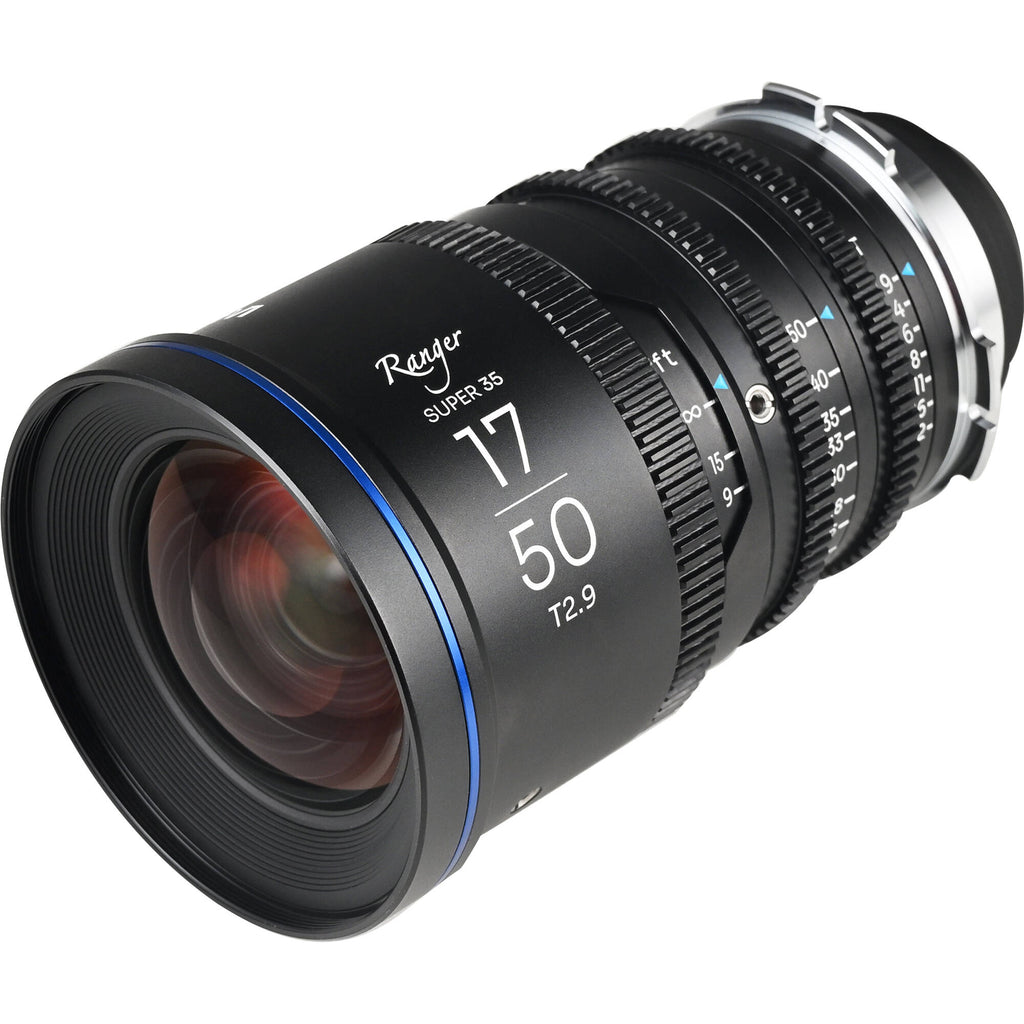

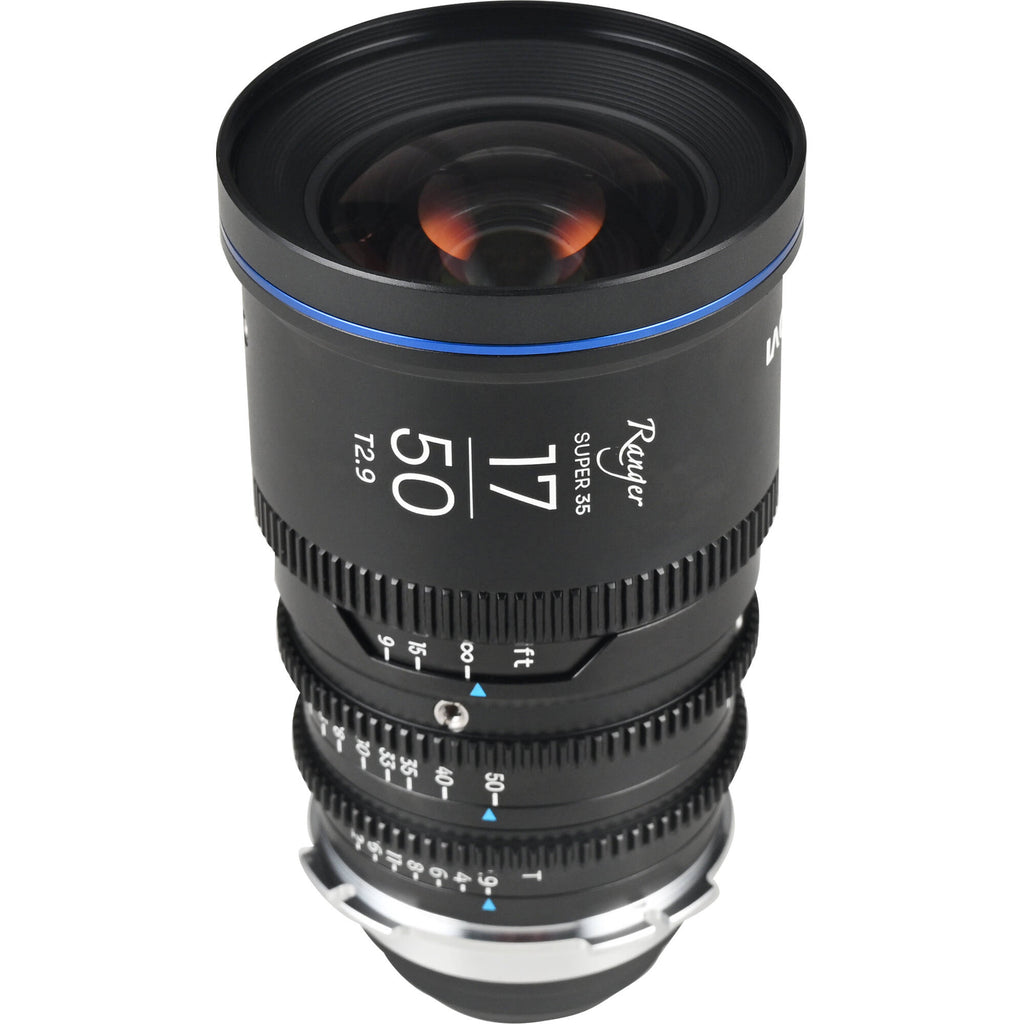

Venus Optics Laowa Ranger S35 17-50mm T2.9 Compact Cine Lens (ARRI PL)

Measuring just 4.6" in length and weighing 1.87 lb, the Laowa Ranger 17-50mm T2.9 S35 Compact Cine Zoom Lens from Venus Optics covers Super 35 sensors and is ideal for gimbal, drone, and handheld use. When combined with the separately available 11-18mm and 50-130mm zooms, the three lenses provide an extensive 11-130mm total range. Zoom features include 0.8 MOD cine gears on focus, iris, and zoom rings, focus marks in both feet and meters, and a 77mm front filter thread.

The Laowa Ranger S35 zoom series includes a native ARRI PL mount that can be swapped out with separately available interchangeable Canon RF, Fuji X, Nikon Z, Sony E, and L mounts for use with select cameras.

This 17-50mm zoom maintains a T2.9 maximum aperture across the entire zoom range, ensuring optimal exposure even in challenging lighting conditions.

Outstanding optical performance ensures consistently sharp, high-contrast images with accurate color reproduction.

This parfocal lens maintains precise focus even while zooming, ensuring that your subject stays razor-sharp and perfectly focused, whether zooming in or out.

With a relatively short 13.4" close focus distance, this zoom excels at capturing intricate details and small subjects.

Near-invisible focus breathing ensures smooth and uninterrupted storytelling with seamless focus transitions.

Use this zoom with the separately available 1.33x anamorphic front-mounted adapter to increase its versatility across different shooting formats.

A 77mm filter can be attached directly to the lens for a variety of handy setups. This smaller diameter is preferable when doing run-and-gun shots or using an aerial drone.

Focus marks are printed on the lens body in both feet and meters.

Industry-standard 0.8 MOD gears are installed on the focus, iris, and zoom rings.

Venus Optics Laowa Ranger S35 17-50mm T2.9 Specs

Focal Length	17 to 50mm
Maximum Aperture	T2.9
Lens Mount	ARRI PL
Lens Format Coverage	Super35/APS-C
Filter Thread	77 mm
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T2.9
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Super35/APS-C
Image Circle	31.5 mm
Angle of View	Super 35 Horizontal: 80.6 to 32.2°
Focus Scales	Metric, Imperial
Optical Design	18 Elements in 22 Groups
Filter Thread	77 mm
Zoom Ratio	2.9x
Minimum Focus Distance	From Unspecified Point in Lens: 29.5" / 75 cm
Maximum Magnification Ratio	0.22:1
Diaphragm Blades	11
Image Stabilization	No
Lens Mounting	1x 1/4"-20 (via Included Support Foot)
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD Zoom: 0.8 MOD
Gear Rotation	Focus: 270° Zoom: 100° Iris: 42°
Electronic Communication	No
Diameter	Front: 3.1" / 80 mm
Length	4.6" / 117 mm
Weight	1.87 lb / 848 g

Package Weight	5.88 lb
Box Dimensions (LxWxH)	13.6 x 10.7 x 5.3"
