| ₹ 480120.0 includes GST and import duties. | |
| B2B customers can avail ₹ 73218.3 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

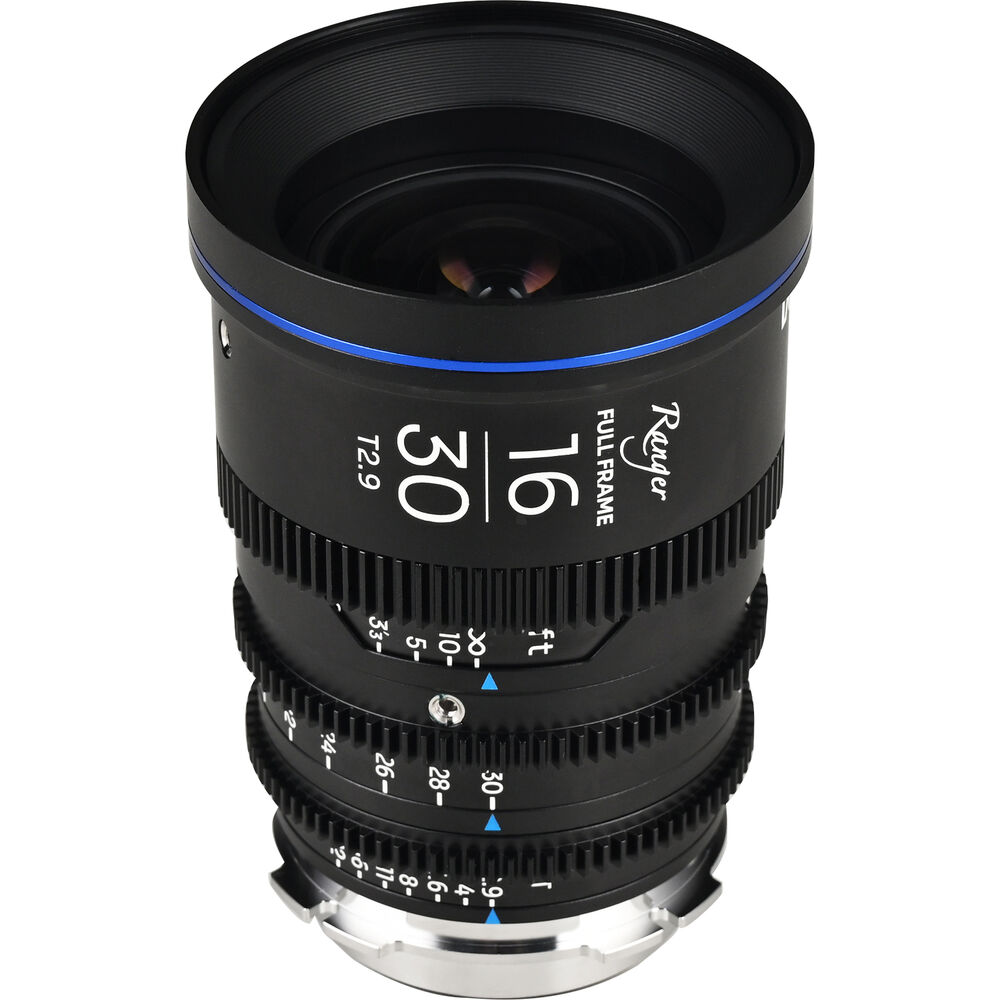

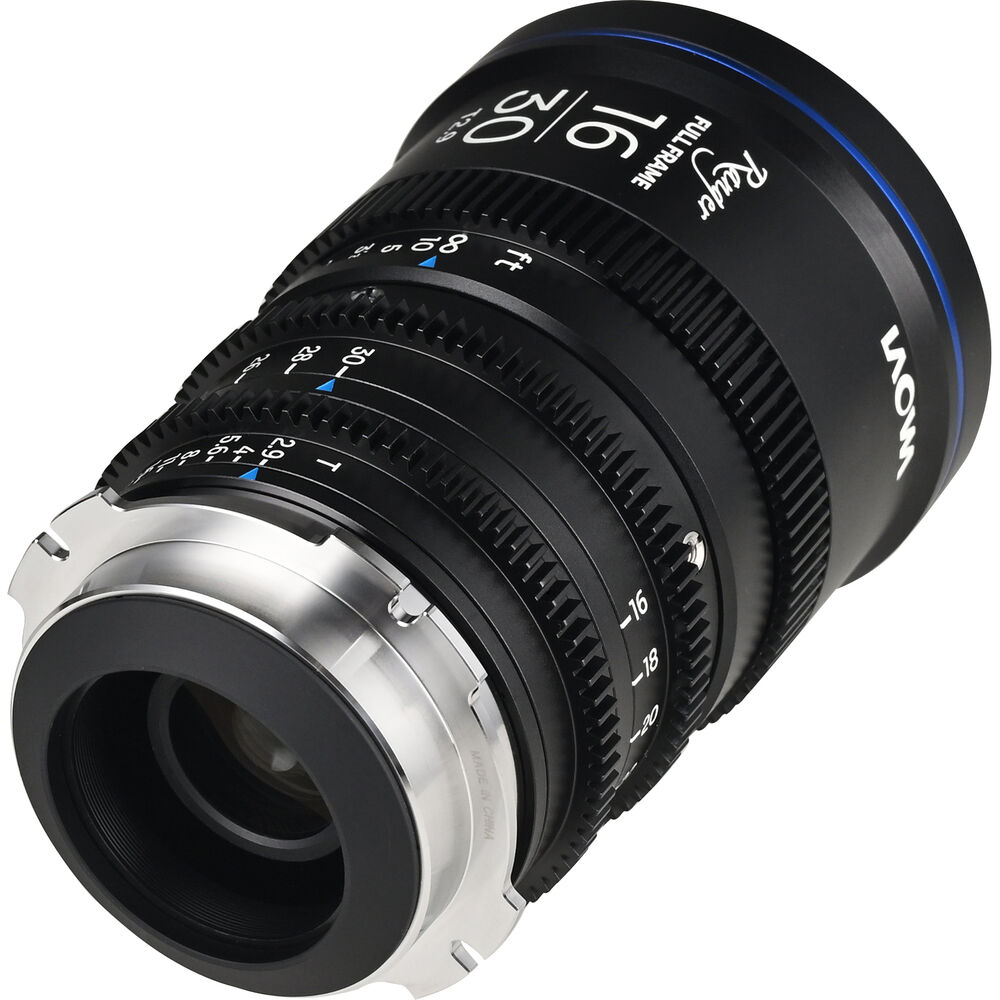

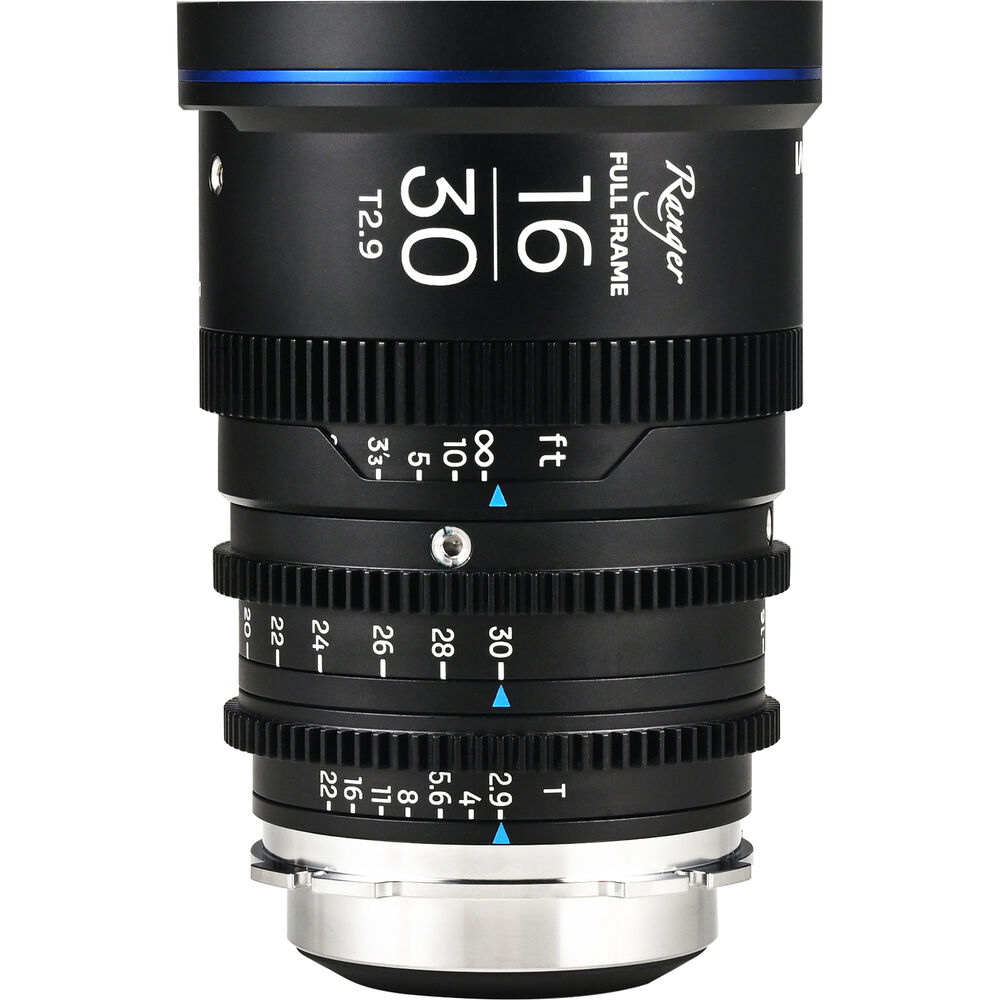

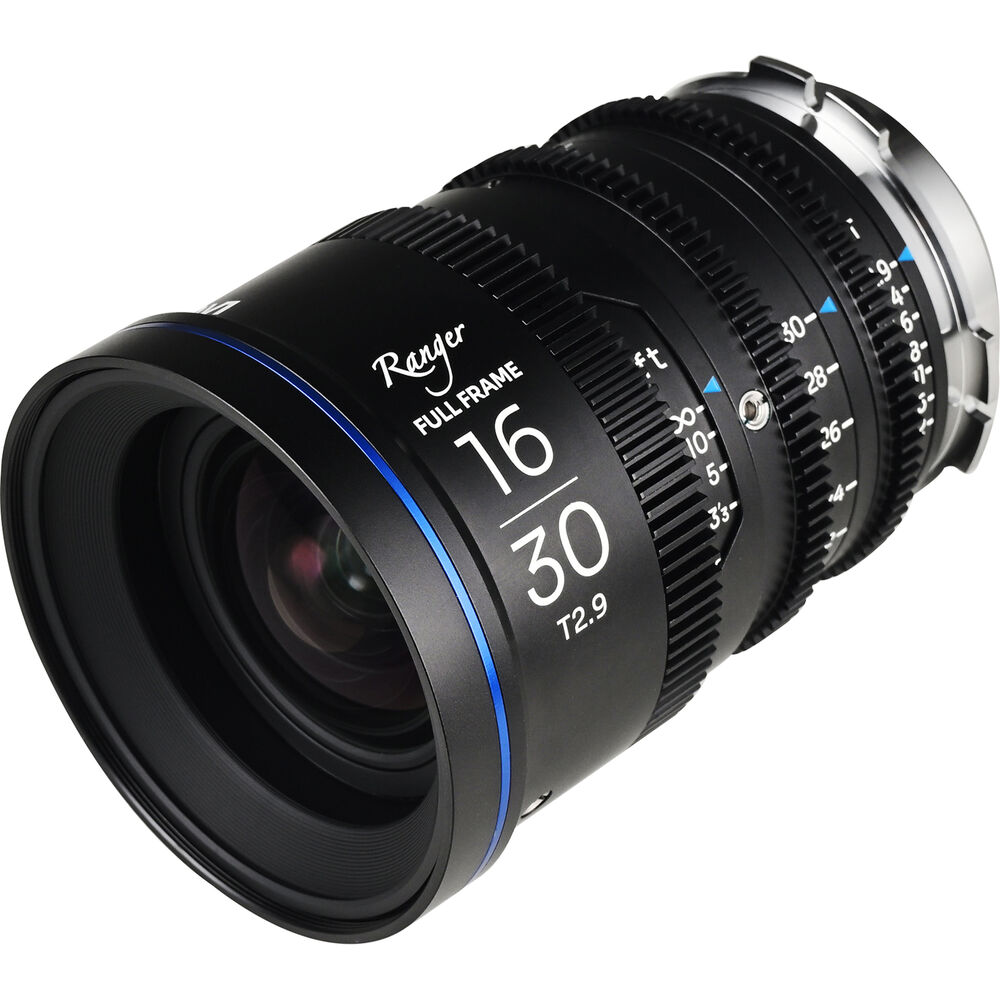

Venus Optics Laowa Ranger 16-30mm T2.9 Overview
A versatile addition to your full-frame ARRI PL or Canon EF mount camera loadout, this Laowa Ranger 16-30mm T2.9 Cine Zoom Lens from Venus Optics allows you to capture high-quality images throughout its 16 to 30mm zoom range. The parfocal design of the lens features 11 aperture blades in an 18-element and 22-group construction. It has an aperture range of T2.9 to T22 and an 80mm front outside diameter with minimal focus breathing. Capture everything from establishing wide shots to close-ups with background blur with the Laowa Ranger.
Control of focus, aperture, and zoom is intuitive thanks to the throw of each 0.8 MOD gear. Markings on the lens are available in both feet and meters. The lens has a 107° field of view at the wide end and a 71.6° field of view at the telephoto end with a 43.2mm image circle. An included EF bayonet adapts the native PL mount for compatibility with a broader range of cameras, while a 77mm front filter thread allows you to attach compatible lens filters. Additional back focus adjustment can be achieved with the provided shim set.
- Maximum T2.9 aperture for deep depth of view and increased area focus
- 11 aperture blades for smooth, circular bokeh
- Lens construction of 18 elements in 12 groups
- 100° focus and zoom rotation, 42° aperture rotation
- Lens markings in feet and meters
- 0.15x maximum magnification, 1.88x zoom ratio
- EF mount bayonet included; built-in lens support foot
- 77mm front filter thread
- 13" minimum focusing distance
- Industry-standard 0.8 MOD focus, aperture, and zoom rings for use with follow focus systems
Items Included
- Venus Optics Laowa Ranger 16-30mm T2.9 Cine Zoom Lens (PL/EF)
- EF Mount Bayonet
- Shim Set
- Hard Case
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Venus Optics Laowa Ranger 16-30mm T2.9 Specs
| Focal Length |
16 to 30mm
|
| Maximum Aperture |
T2.9
|
| Lens Mount |
ARRI PL
Canon EF |
| Lens Format Coverage |
Full Frame
|
| Filter Thread |
77 mm
|
| Image Stabilization |
No
|
| Electronic Communication |
No
|
| Maximum Aperture |
T2.9
|
| Minimum Aperture |
T22
|
| Lens Mount |
ARRI PL
Canon EF |
| Interchangeable Mount |
Yes
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
43.2 mm
|
| Angle of View |
Not Specified by Manufacturer
|
| Focus Scales |
Metric, Imperial
|
| Optical Design |
18 Elements in 12 Groups
|
| Filter Thread |
77 mm
|
| Zoom Ratio |
1.875x (Manual)
|
| Minimum Focus Distance |
From Camera Sensor: 13.0" / 33 cm
|
| Maximum Magnification Ratio |
1:0.145
|
| Diaphragm Blades |
11
|
| Image Stabilization |
No
|
| Gear Standard |
0.8 MOD
|
| Gear Rotation |
Focus: 270°
Zoom: 270° Iris: 42° |
| Electronic Communication |
No
|
| Diameter |
Front: 3.1" / 80 mm
Maximum: 3.1" / 80 mm |
| Length |
4.2" / 107.4 mm
|
| Weight |
1.8 lb / 799 g
|
| Package Weight |
7.315 lb
|
| Box Dimensions (LxWxH) |
14.4 x 12.5 x 6.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 470517.6 |
| 3-5 | ₹ 465716.4 |
| 5-10 | ₹ 456114.0 |
| 10+ | ₹ 446511.6 |
Bulk discount will be automatically applied during checkout based on quantity.
