Description
Vaxis Atom A5 Overview
- 1Description
- 2General
- 3Display
- 4Input/Output
- 5Wirelessly Transmit and Receive Video
- 6Recording
- 7Compatibility
- 8Timecode Sync
- 9Wireless Range
- 10Image Tools
- 11Antennas
- 12Battery

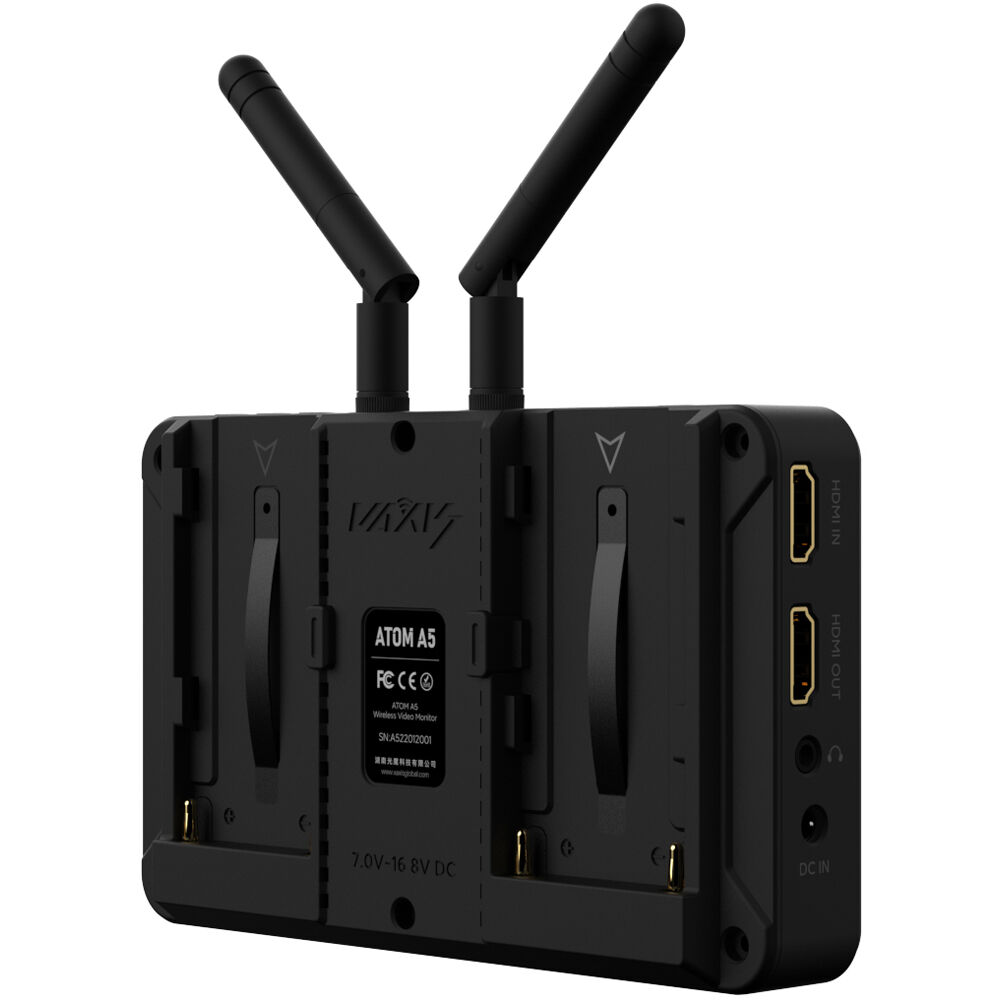

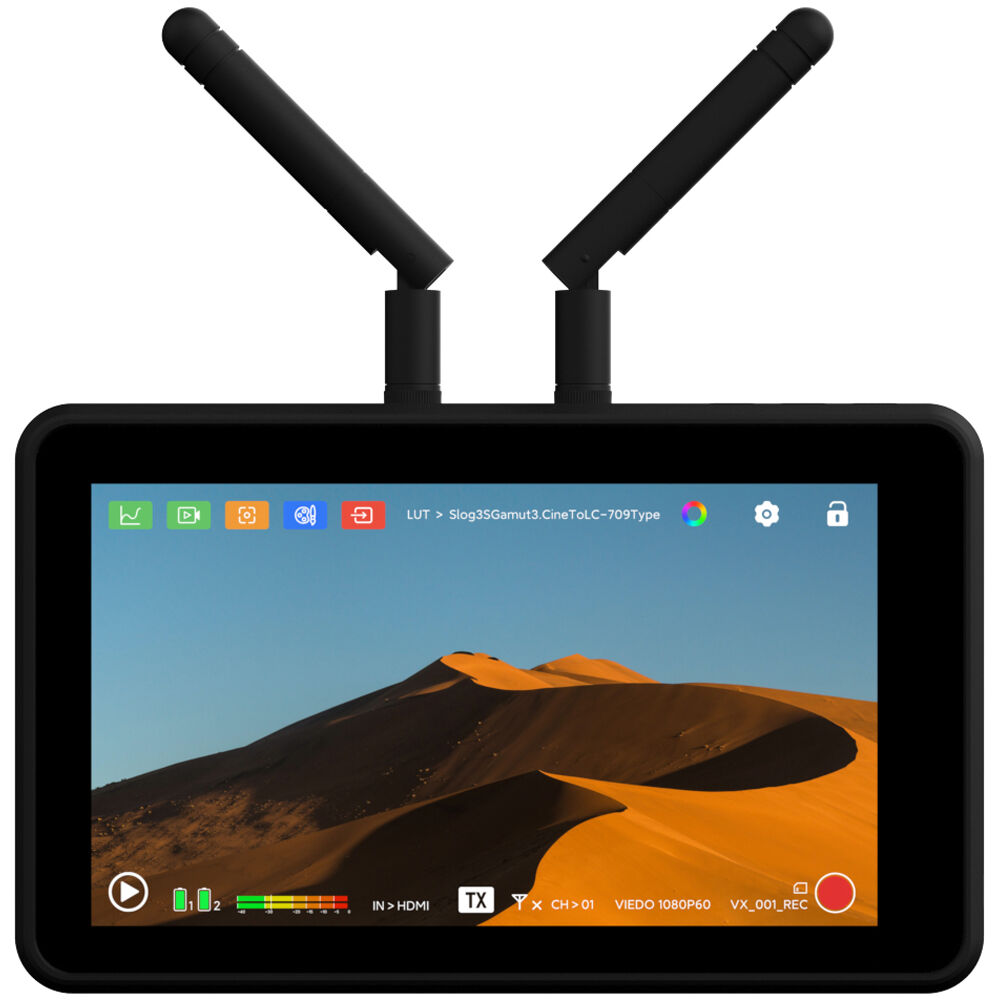

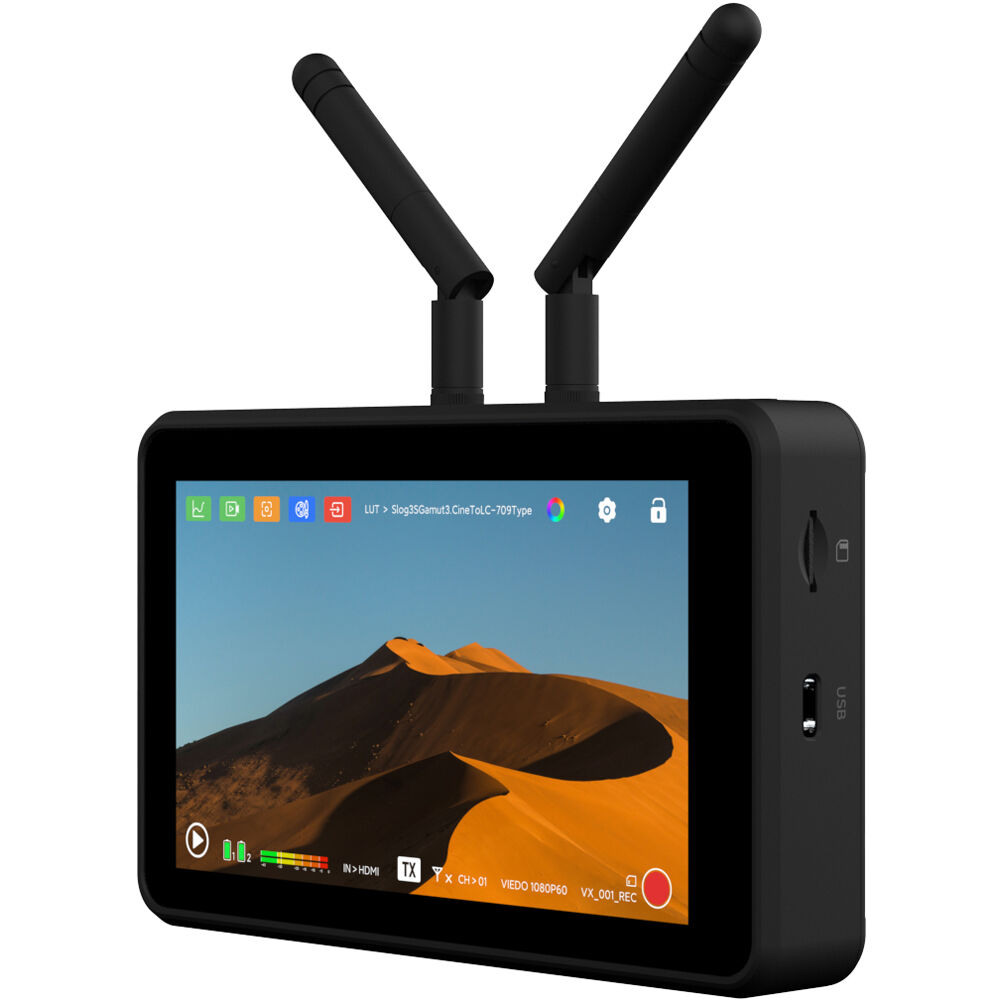

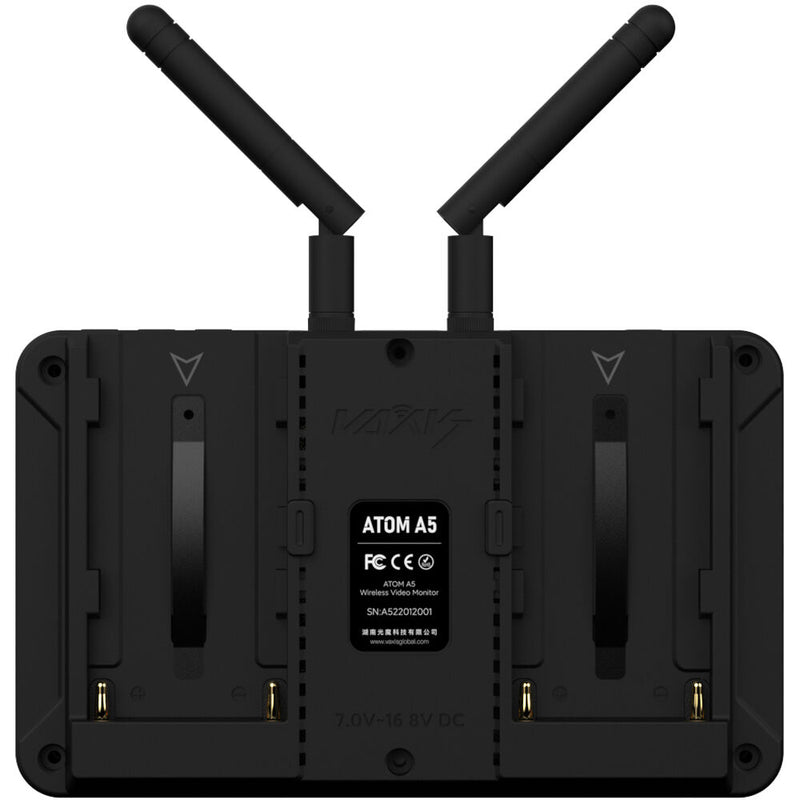

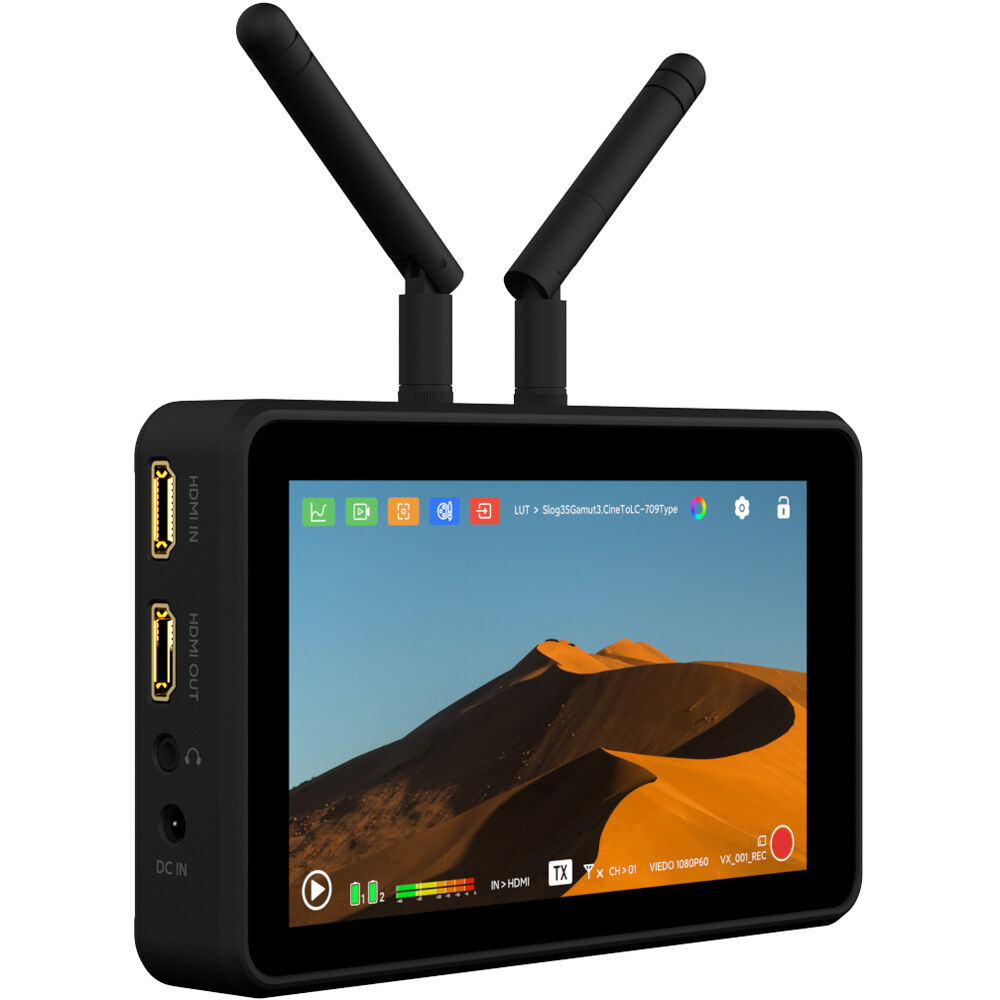

This Atom A5 Wireless Monitor Professional Package from Vaxis is a bundle of gear that features two Atom A5 monitors, antennas, screen protectors, an extendable tripod, a carrying case, and other accessories. With this bundle, you can use the two included monitors to transmit, receive, monitor, and record high-quality wireless video transmissions. The Atom A5 features a 5.5" touchscreen display that provides a sharp 1920 x 1080 resolution and 1000 cd/m² brightness.
Its built-in wireless transmitter and receiver allow you to send and receive video between the Atom wireless transmitter/receiver ecosystem up to 492' away. It has enough sharpness to be a great companion for your wireless follow focus.
General
The monitor supports up to 1080p60 video input via its HDMI input, and it features an HDMI loop output to send video to an external display. It also allows you to record your program as an MP4 proxy using the built-in microSD/TF card slot. Multiple imaging tools are available using the built-in CINE OS software, including scopes, peaking, and storage of up to 50 3D LUTs on the monitor.
Display
5.5" touchscreen LCD screen with 1080p resolution and 1000 cd/m² brightness.
Input/Output
The Atom A5 features HDMI input and HDMI loop output, as well as a 3.5mm headphone output.
Wirelessly Transmit and Receive Video
Transmitter and receiver in one; can transmit or receive to or from multiple Atom series transmitters and receivers.
Recording
Record MP4 video files onto a microSD/TF card with the built-in media slot, and the Atom A5 allows you to instantly play the footage back.
Compatibility
Compatible with the Atom ecosystem, including the Atom 500 HDMI or SDI, Atom 600 KV TX, and Atom A5H.
Timecode Sync
The Atom A5 can sync timecode with the camera so you can simultaneously trigger record on the monitor when the camera records.
Wireless Range
Transmission distance up to 492'.
Image Tools
The updated CINE OS software features multiple imaging tools such as peaking and scopes, and it supports up to 50 3D LUTs to be stored on the monitor.
Antennas
Two replaceable antennas can be swapped out for optional longer-range antennas.
Battery
Built-in dual NP-F970 L-series battery plate.
In the Box
- Vaxis Atom A5 Wireless Monitor Professional Package
- 2 x Vaxis Atom A5 5.5" Wireless RX/TX Monitor
- 5 x Antenna
- Extendable tripod
- Carry Case
- 2 x Screen Protector
- Monitor Strap
- HDMI Cable
- Monitor Mount
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- General
- Display
- Input/Output
- Wirelessly Transmit and Receive Video
- Recording
- Compatibility
- Timecode Sync
- Wireless Range
- Image Tools
- Antennas
- Battery
Vaxis Atom A5 Specs
Display
| Panel Type | LCD |
| Display Size | 5.5" / 14.0 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Image Controls | Focus Peaking, Histogram, Pixel Zoom, Vectorscope, Waveform |
Inputs / Outputs
| Antenna I/O | 2 x RP-SMA |
| Video I/O | 1 x HDMI Input 1 x HDMI Loop Output |
| Embedded Audio | HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Power I/O | 1 x Barrel Input |
| Other I/O | 1 x USB-C Input |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC |
Wireless
| Wireless Range | 492.1' / 150 m |
| Frequency Range | 5.1 to 5.8 GHz |
| Latency | < 80 ms |
| RF Power | 17 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | Yes |
| Bluetooth | None |
| Mobile App Compatible | Yes: Android & iOS App Name: Vaxis Vision *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | 2-Channel 48 kHz |
| Timecode Support | No |
Power
| Battery Type | 2 x L-Series |
Mounting
| Mounting | 1 x 1/4"-20 Female |
Environmental
| Environmental Protection | None |
General
| Dimensions | 5.9 x 3.6 x 1.2" / 151 x 92 x 30.5 mm |
| Weight | 12.3 oz / 348 g |
Packaging Info
| Package Weight | 3.86 lb |
| Box Dimensions (LxWxH) | 10.7 x 8 x 4" |
