Description

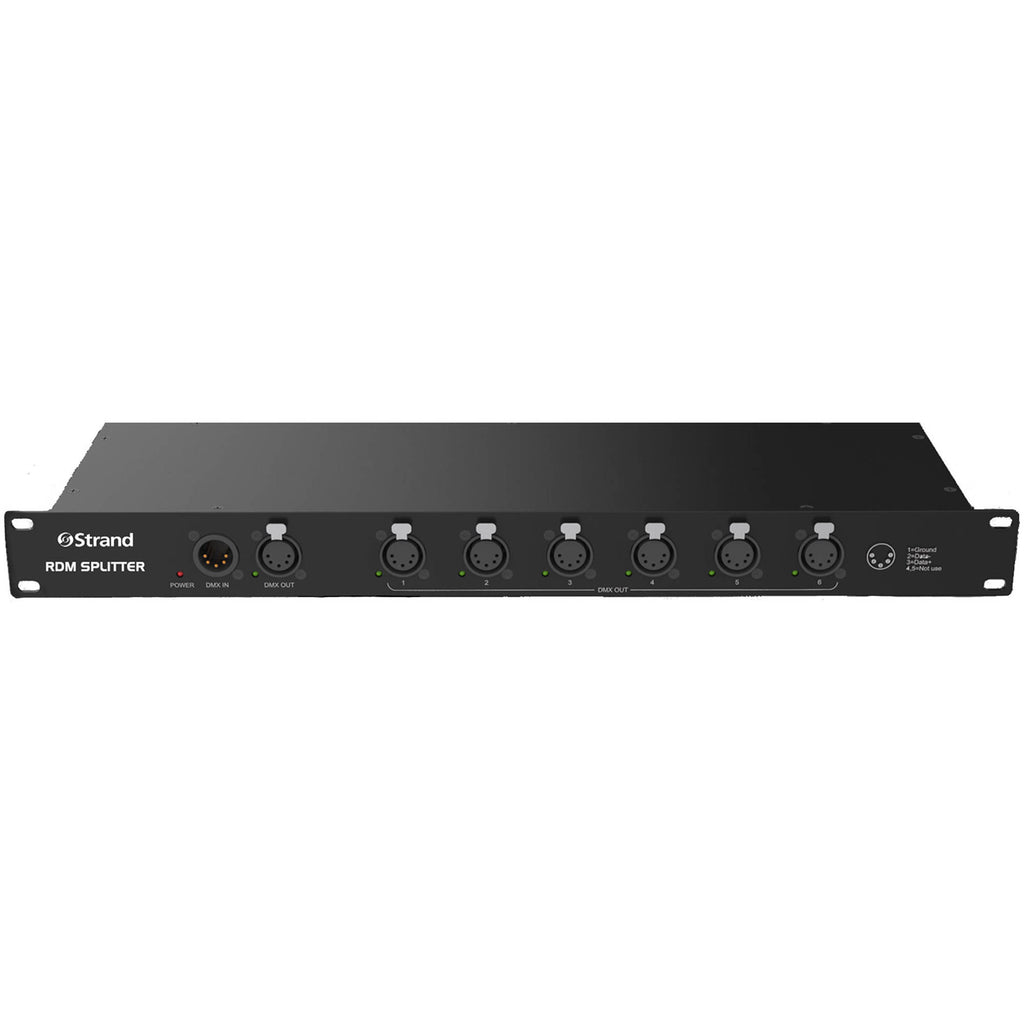

VARI-LITE 6-Port RDM Splitter Overview
The 6-Port RDM Splitter from Strand Lighting is a passive RDM splitter with six ports, designed for transparent networking of DMX-512A(RDM) and DMX-512(1990) signals in a lighting network. Easy to use with high-quality XLR 5-pin signal connectors, this unit provides robust plug-and-play capabilities for the distribution of DMX commands within typical entertainment environments. The splitter features 5-Pin XLR signal input and throughput connectors on both the front and the rear of the chassis.
The buffered and optically-isolated outputs connect and control DMX/RDM capable devices, and allow the splitter to become a key part of your lighting installation. Power to the unit is provided via a locking PowerCon connector, ensuring power cannot accidentally be disconnected, safeguarding your data distribution network while in use.
Items Included
- VARI-LITE 6-Port RDM Splitter with 1U Rack Mount and PowerCON Connector
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
VARI-LITE 6-Port RDM Splitter Specs
| Inputs/Outputs |
2x XLR 5-Pin (DMX) Input
2x XLR 5-Pin (DMX) Throughput 6x XLR 5-Pin (DMX) Output 1x (Power) powerCON Input |
| Channels |
512 (DMX)
|
| Power Source |
AC Power
|
| Protocol |
DMX512, RDM
|
| Inputs/Outputs |
2x XLR 5-Pin (DMX) Input
2x XLR 5-Pin (DMX) Throughput 6x XLR 5-Pin (DMX) Output 1x (Power) powerCON Input |
| Channels |
512 (DMX)
|
| Dimming |
Optional
|
| Power Source |
AC Power
|
| Power Consumption |
5.3 W
|
| Input Power |
100 to 230 VAC, 50 / 60 Hz
|
| Protocol |
DMX512, RDM
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 5 to 95% Humidity
|
| Certifications |
CE, ETL, FCC, cETL
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Material of Construction |
Aluminum
|
| Rack Mount |
1 U
|
| Dimensions |
18.9 x 6.1 x 1.7" / 48.2 x 15.5 x 4.4 cm
|
| Weight |
4.85 lb / 2.5 kg
|
| Package Weight |
5.105 lb
|
| Box Dimensions (LxWxH) |
20.8 x 9.4 x 4.2"
|
