Description

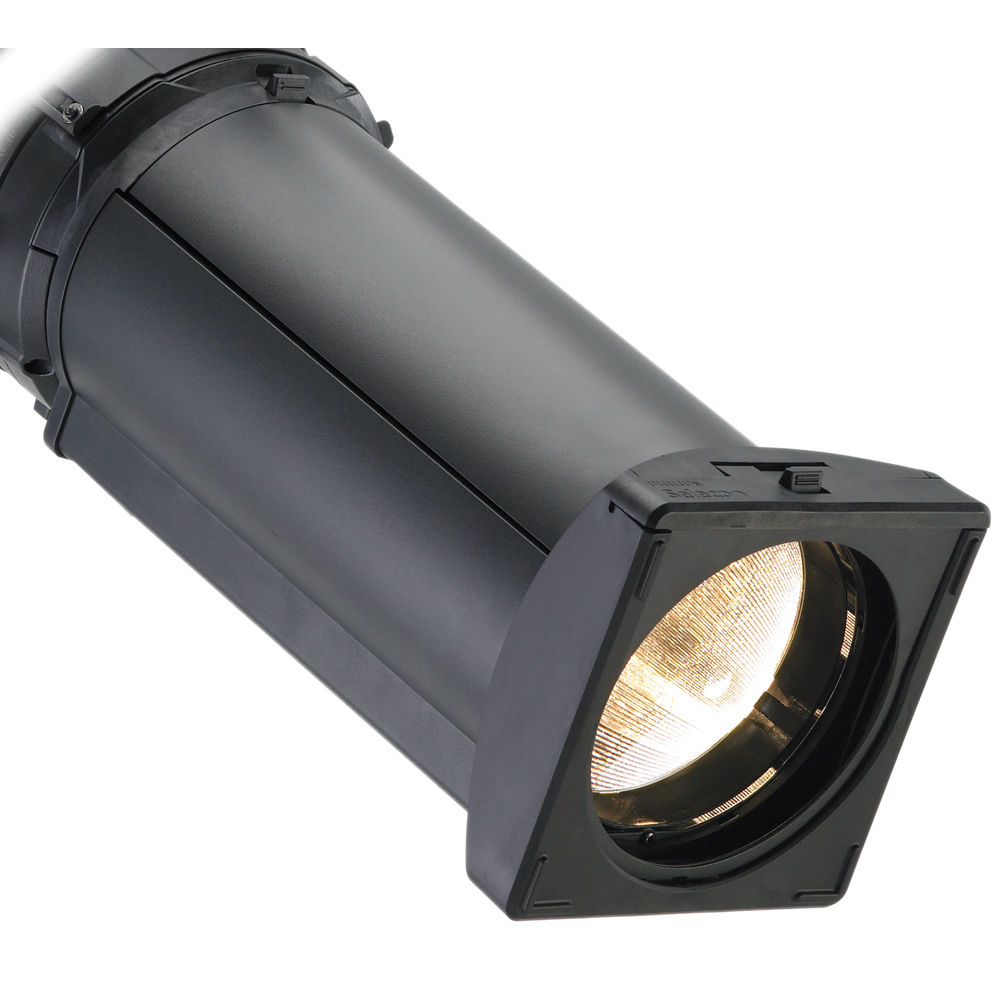

VARI-LITE Lens Tube for SPX Ellipsoidal Overview
One of the great features of the Strand SPX Ellipsoidal series is the interchangeability of fixed beam and zoom lens tubes to the body of the fixture as needed for specific venues and changing productions. This Strand 15-35? Zoomspot Lens Tube for SPX Ellipsoidal by Philips Selecon is a great way to span distances from 15 - 60' with beam angles that can easily render a tight spot or wide wash. Outfitted with this lens the SPX can output a beam diameter of 5.3 - 28.4'.
15-35? Optical system
All lens tubes are interchangeable and can be ordered separately.
Ease of maintenance - full access to all lens surfaces for cleaning.
Items Included
- VARI-LITE 15-35? Zoomspot Lens Tube for SPX Ellipsoidal
- Strand Lighting 6.25 x 6.25" Color Frame for SPX
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
VARI-LITE Lens Tube for SPX Ellipsoidal Specs
| Lens |
Borosilicate glass
|
| Beam Angle |
15-35?
|
| Throw Distance |
15 - 60' (4.6 - 18.3 m)
|
| Photometrics |
15 Degrees
889 peak / 628 flat fc at 20' (6.0 m) with 5.3' (1.6 m) beam diameter 395 peak / 279 flat fc at 30' (9.1 m) with 7.9' (2.4 m) beam diameter 176 peak / 124 flat fc at 45' (13.7 m) with 11.8' (3.6 m) beam diameter 99 peak / 70 flat fc at 60' (18.3 m) with 15.8' (4.8 m) beam diameter 35 Degrees 511 peak / 361 flat fc at 15' (4.6 m) with 9.5' (3.0 m) beam diameter 184 peak / 130 flat fc at 25' (7.6 m) with 15.8' (4.8 m) beam diameter 94 peak / 66 flat fc at 35' (10.7 m) with 22.1' (6.7 m) beam diameter 57 peak / 40 flat fc at 45' (13.7 m) with 28.4' (8.6 m) beam diameter |
| Dimensions |
Length: 14.6" (37 cm)
|
| Weight |
Not specified by manufacturer
|
