Vanguard VEO 3+ 234CB Tripod Overview
-
1Description
-
2Vanguard VEO3T+234CT 4-Section Carbon Fiber Travel Tripod with Lateral Center Column
-
3Vanguard VEO BH-110S Dual Axis Ball Head
-
4Vanguard VEO+MA1 Multi-Mount Adapter

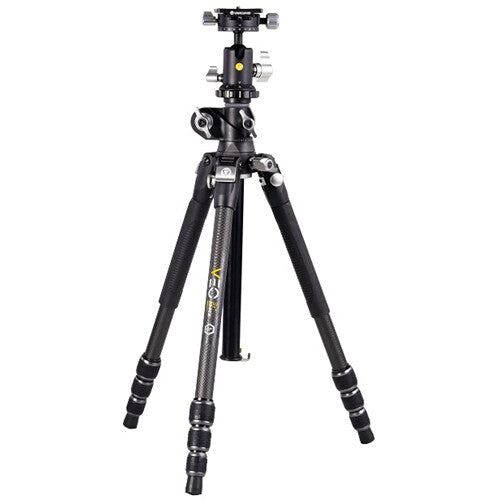

This VEO 3T+ 234CB 4-Section Travel Tripod with VEO BH-110S Dual Axis Ball Head from Vanguard pairs a carbon-fiber travel tripod with a dual-axis panoramic ball head, creating a dynamic combination for scenic and landscape photographers looking for a lightweight and versatile camera support.
Vanguard VEO3T+234CT 4-Section Carbon Fiber Travel Tripod with Lateral Center Column

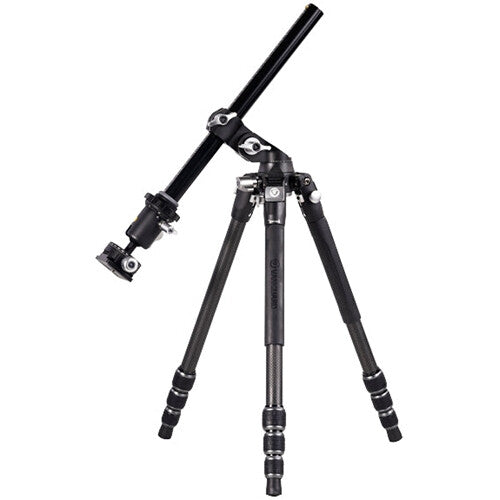

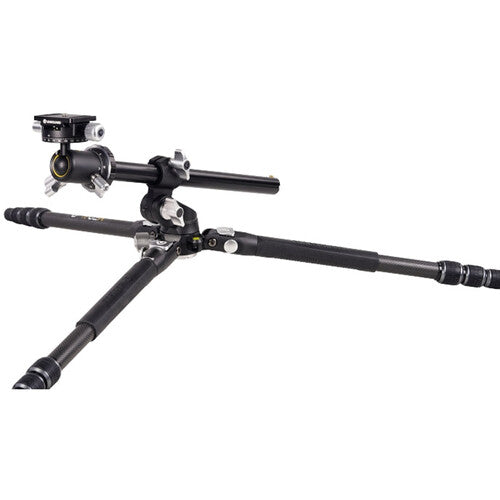

The VEO3T+234CT 4-Section Carbon Fiber Travel Tripod from Vanguard is an is an all-in-one travel tripod leg set that raises the bar for portability and versatility and provides options for multiple accessories, even when traveling lightly. The multi-angle center column (MACC) provides lateral extension at adjustable angles and 360° rotation, making it easy to extend over a subject and position a camera for macro photography, copy work, and more. The legs have easy twist-lock joints to extend and collapse quickly, independent leg spread, and three easy-set leg angles that make it possible to move from full height to low angles in seconds and to easily level a camera when working on uneven terrain.

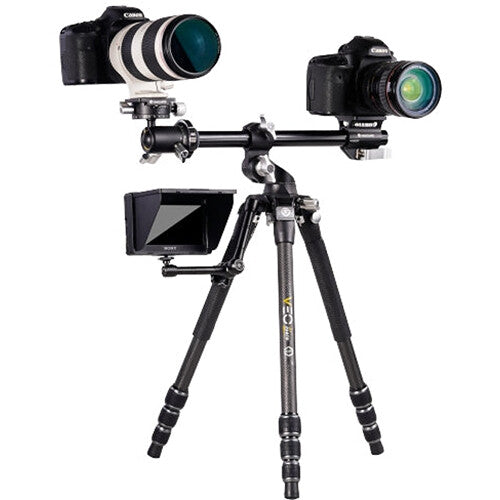

The VEO3T+234CT includes the VEO+MA1 Multi-Mount Adapter, which makes it possible to position more than one head on the leg set when the center column is laterally positioned.

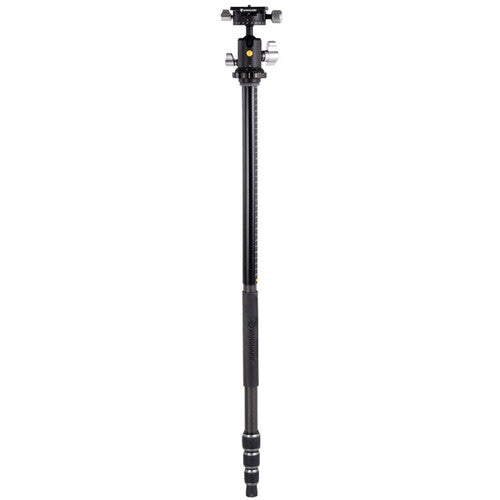

In addition to its lateral capabilities, the center column can be removed and combined with one leg to create a full-featured 59.7" monopod for when a full tripod may be too bulky or slow, like when shooting sports, action, or wildlife.
- Lateral center column for extension and macro imaging
- Independent leg spread
- Three easy-set leg angles
- Center column ballast hook for added stability

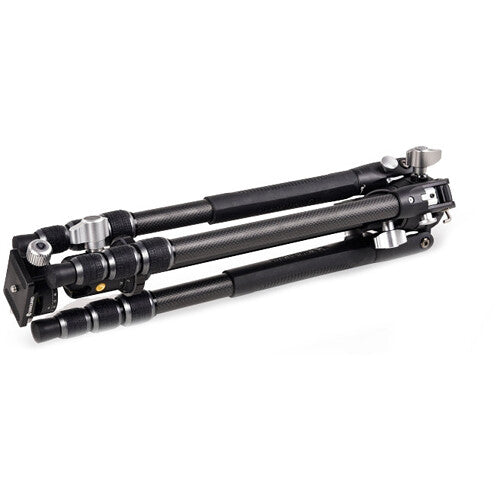

- Reverse-folding legs for compact transport and storage
- Canopy precision CNC-machined constructed from a solid block of aircraft grade aluminum
- Dual 3/8"-16 threaded mounts to add accessories like an LED light, monitor, microphone, or more
- Included spiked feet for traction on icy or soft terrain
- Includes premium tripod bag
Vanguard VEO BH-110S Dual Axis Ball Head
The Vanguard VEO BH-110S Dual Axis Ball Head features an Arca-type clamp and includes an Arca quick release plate. It supports up to 22 lb and offers 360° rotation, 90° tilt adjustment, and independent pan axis adjustment. Two knobs on the bottom separately tighten the ball joint and pan axis. The head has a 3/8"-16 female thread on the bottom and comes with a 3/8"-16 to 1/4"-20 reducer, allowing you to mount it on virtually any camera support, including monopods, sliders, and skate dollies.
Vanguard VEO+MA1 Multi-Mount Adapter
The VEO+MA1 Multi-Mount Adapter from Velbon is an accessory mount mechanism that allows an additional tripod head or other accessory to be added to a Velbon tripod lateral center column or tripod boom arm. the Multi-Mount can be quickly positioned and locked in place with a robust flip-lock release lever. The 1/4"-20 threaded camera mount has a large, knurled thumbwheel for easy attachment.
In the Box
- Vanguard VEO3T+234CT 4-Section Carbon Fiber Travel Tripod with Lateral Center Column
- Vanguard VEO+MA1 Multi-Mount Adapter
- 3 x Spiked Foot
- 2 x Allen Key
- Tripod Bag
- Vanguard VEO BH-110S Dual Axis Ball Head
- 3/8"-16 to 1/4"-20 Reducer
- Vanguard VEO+MA1 Multi-Mount Adapter
Table of Contents
- Description
- Vanguard VEO3T+234CT 4-Section Carbon Fiber Travel Tripod with Lateral Center Column
- Vanguard VEO BH-110S Dual Axis Ball Head
- Vanguard VEO+MA1 Multi-Mount Adapter
Vanguard VEO3T+234CT 4-Section Carbon Fiber Travel Tripod with Lateral Center Column Specs
General
| Load Capacity |
22 lb / 10 kg |
| Head Mount Type |
3/8"-16 Male |
| Maximum Working Height |
53.5" / 135.9 cm |
| Closed Length |
18.1" / 46.0 cm |
| Materials |
Carbon Fiber |
| Weight |
3.42 lb / 1.55 kg |
Legs
| Leg Lock Type |
Twist Lock |
| Leg Positions |
3 Positions |
| Independent Leg Spread |
Yes |
| Leg Sections |
4 |
| Leg Diameter |
0.9" / 23 mm (Maximum) |
| Bubble Level |
No |
| Feet Features |
Rubber, Removable, Spiked |
Detachable Monopod
| Maximum Working Height |
59.7" / 151.6 cm |
| Leg Sections |
4 |
| Monopod Foot Features |
Removable, Rubber, Spiked |
Center Column
| Center Column Features |
Ballast Hook |
| Center Column Shape |
Round |
| Center Column Sections |
1 |
| Center Column Extension Type |
Rapid |
| Lateral / 90-Degree Center Column |
Yes |
| Center Column Rotation |
360° |
Packaging Info
| Package Weight |
6 lb |
| Box Dimensions (LxWxH) |
22 x 6 x 6" |
Vanguard VEO BH-110S Dual Axis Ball Head Specs
Packaging Info
| Package Weight |
1.3 lb |
| Box Dimensions (LxWxH) |
6.4 x 5.3 x 3.6" |
Vanguard VEO+MA1 Multi-Mount Adapter Specs
General
| Compatibility |
Velbon Tripods |
Physical
| Mounting |
Top: 1 x 1/4"-20 |
| Color |
Black |
| Material of Construction |
Metal |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
0.565 lb |
| Box Dimensions (LxWxH) |
4 x 3.5 x 3.3" |
