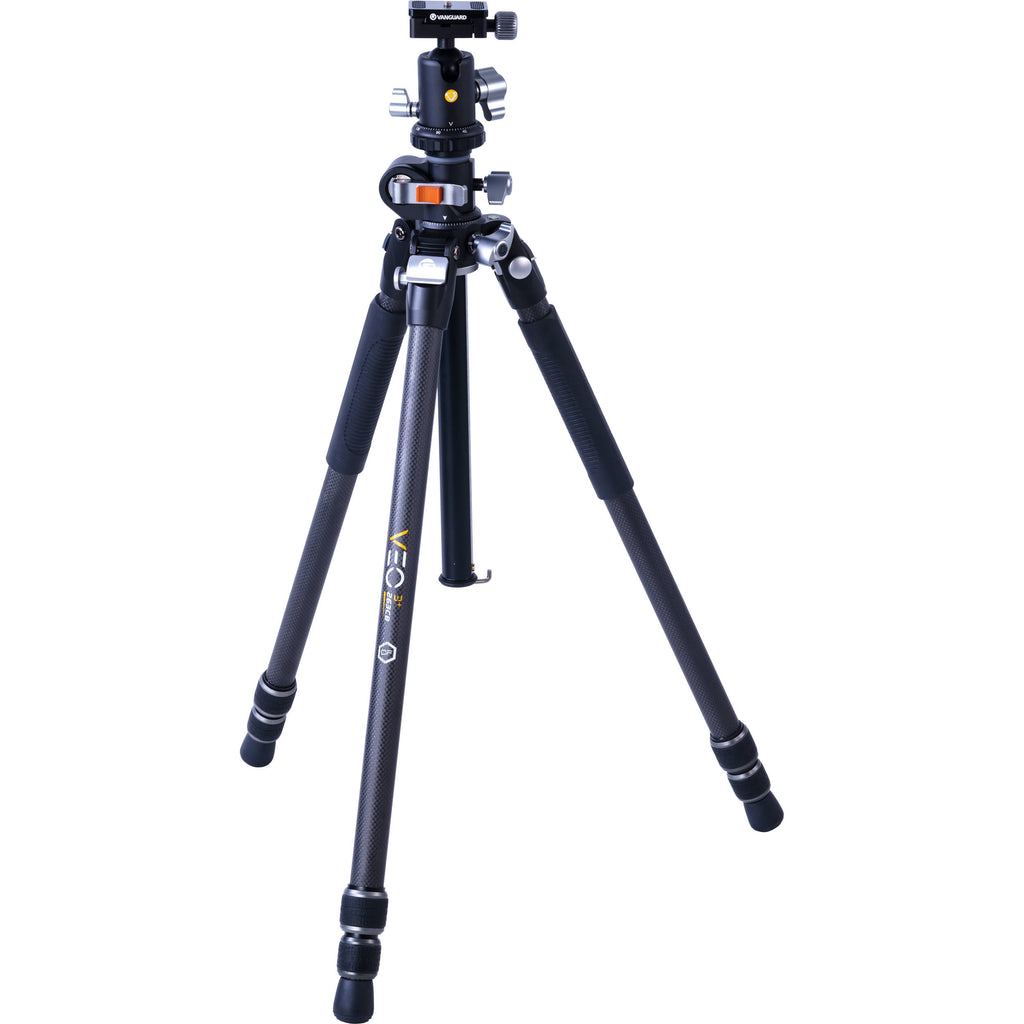

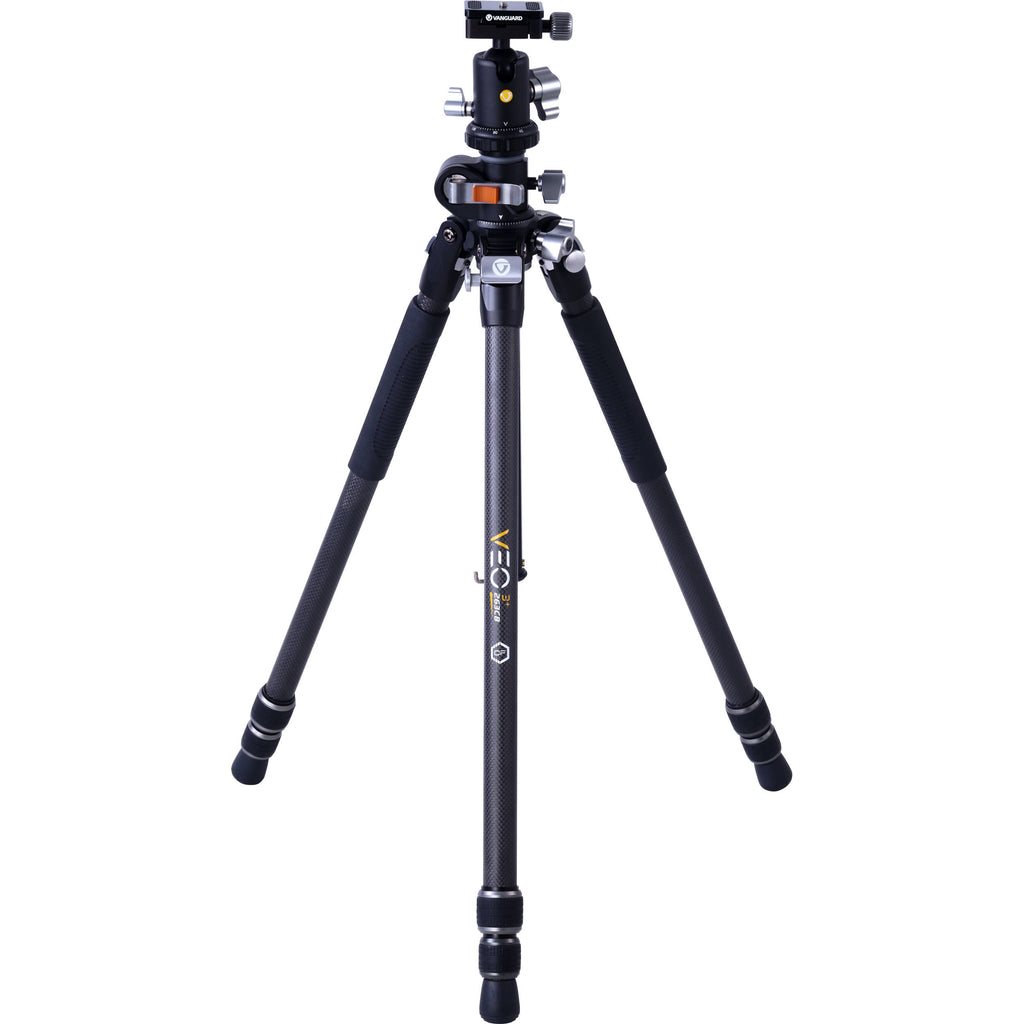

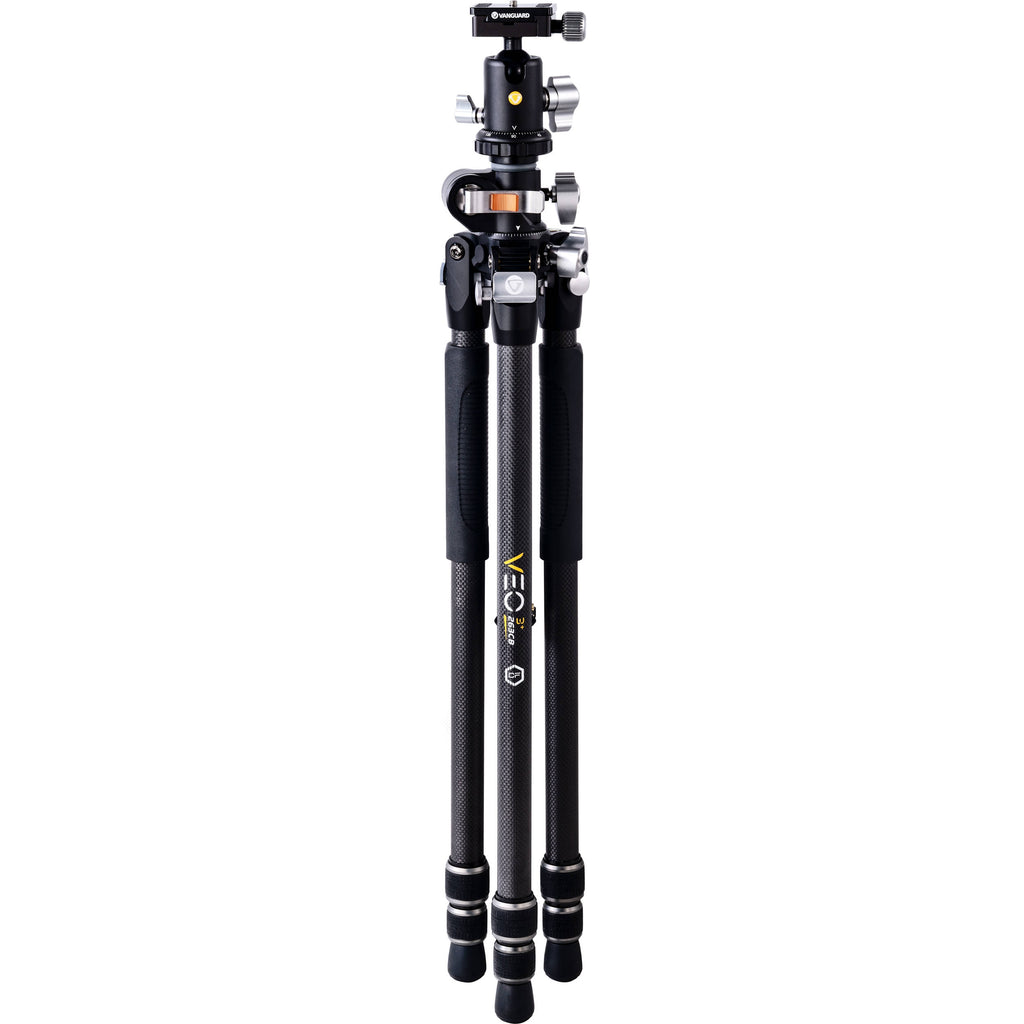

Vanguard VEO 3+ 263CB Tripod Overview
The versatile 3+ 263CB Carbon Fiber Tripod with VEO BH-160 Ball Head from Vanguard is a 67.9-inch tall, feature-laden tripod. The VEO 3+ tripod's innovative Multi-Angle Central Column (MACC) system allows the center column to move at angles from from 0- to 180-degrees in variable vertical and horizontal positions, beyond the range of conventional lateral center columns. The included column ballast hook helps keep the tripod stable even at full extension, and the VEO+MA1 multi-mount adapter provides an additional 1/4" mount for an additional camera, a monitor, microphone, light, or other accessory. The center column may also be removed and combined with one leg to form a full-featured monopod for situations where a tripod is inconvenient.
With the press of an ergonomically positioned thumb-release button, the carbon fiber legs independently open to three positions to level the tripod on uneven terrain, and to spread fully for floor-level positioning. The legs feature removable rubber feet, and a set of steel spike feet is included for use in icy conditions.

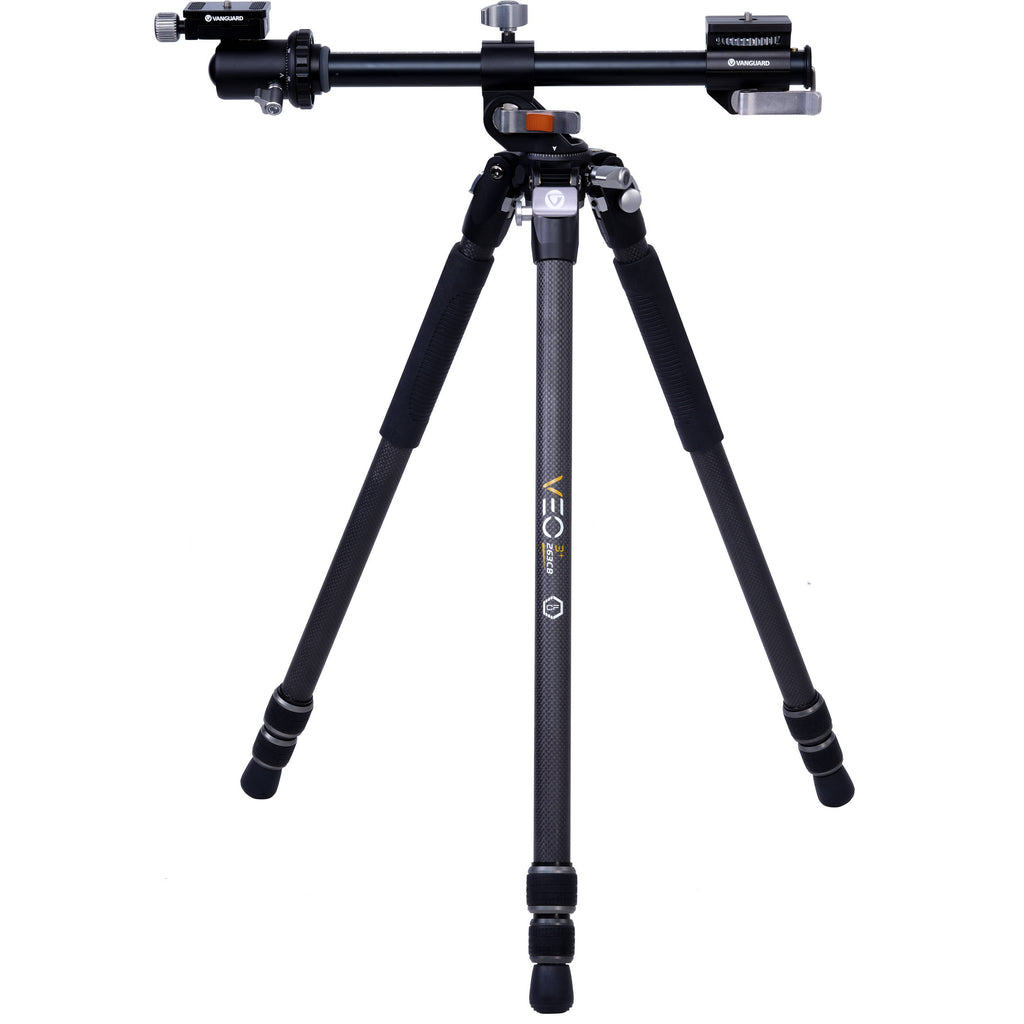

- MACC multi-angle lateral center column
- Included VEO+ MA1 adaptor

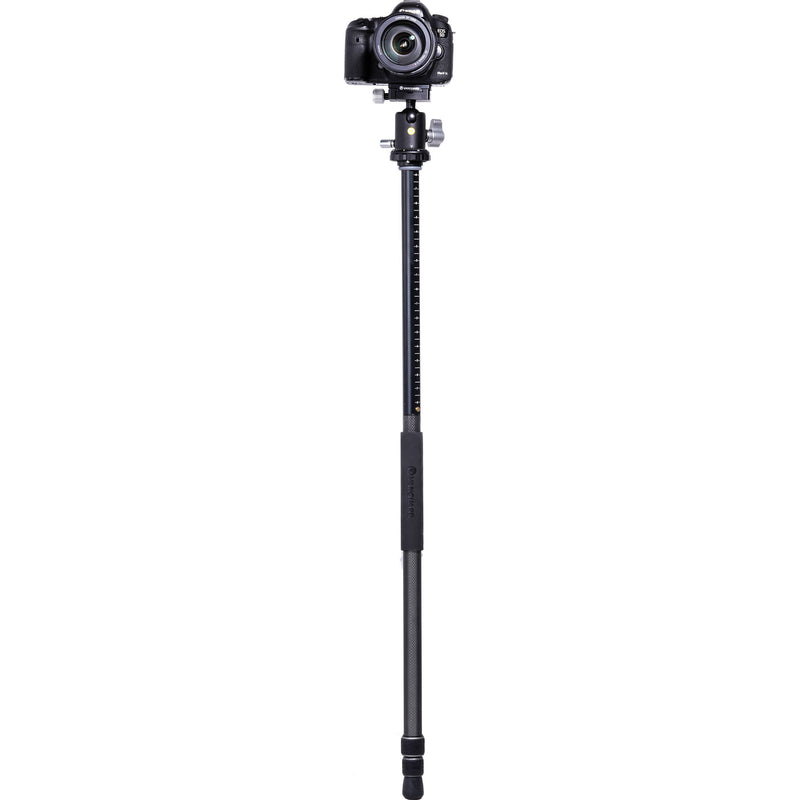

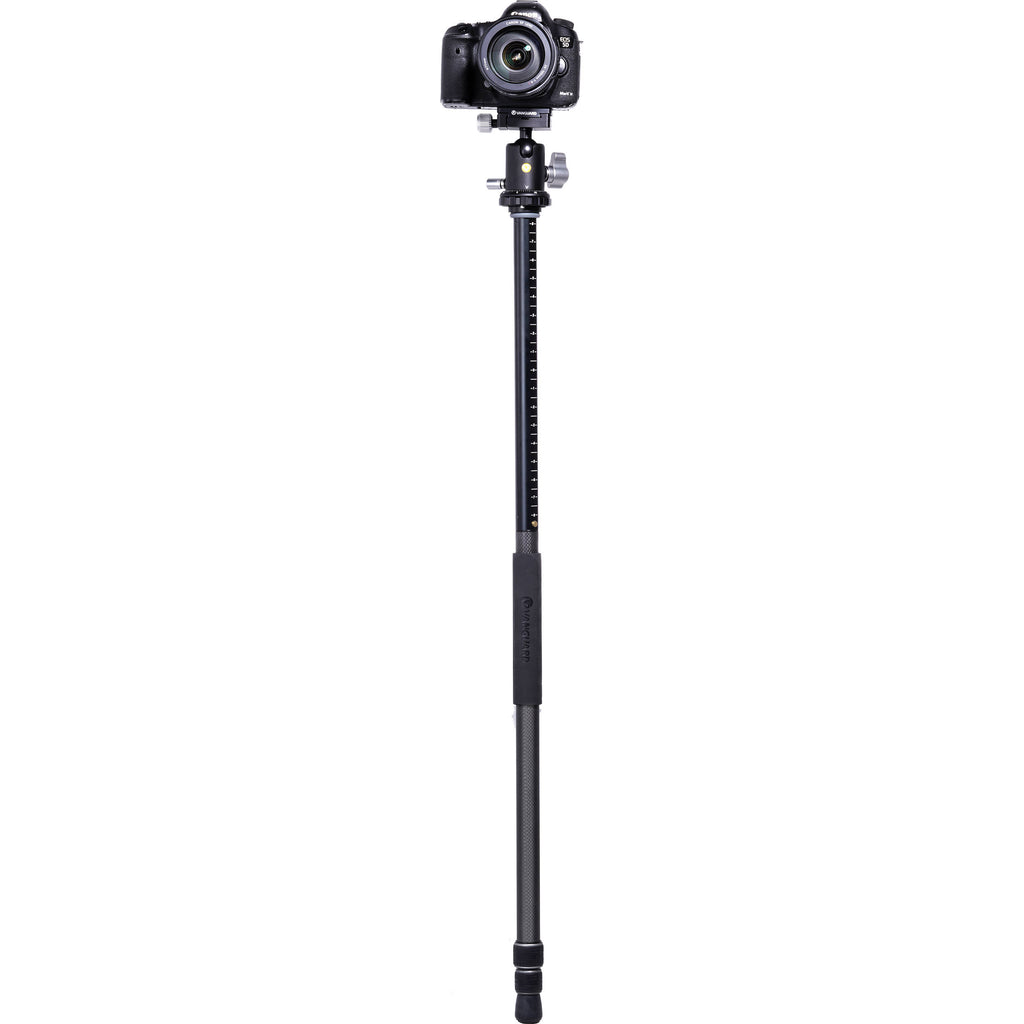

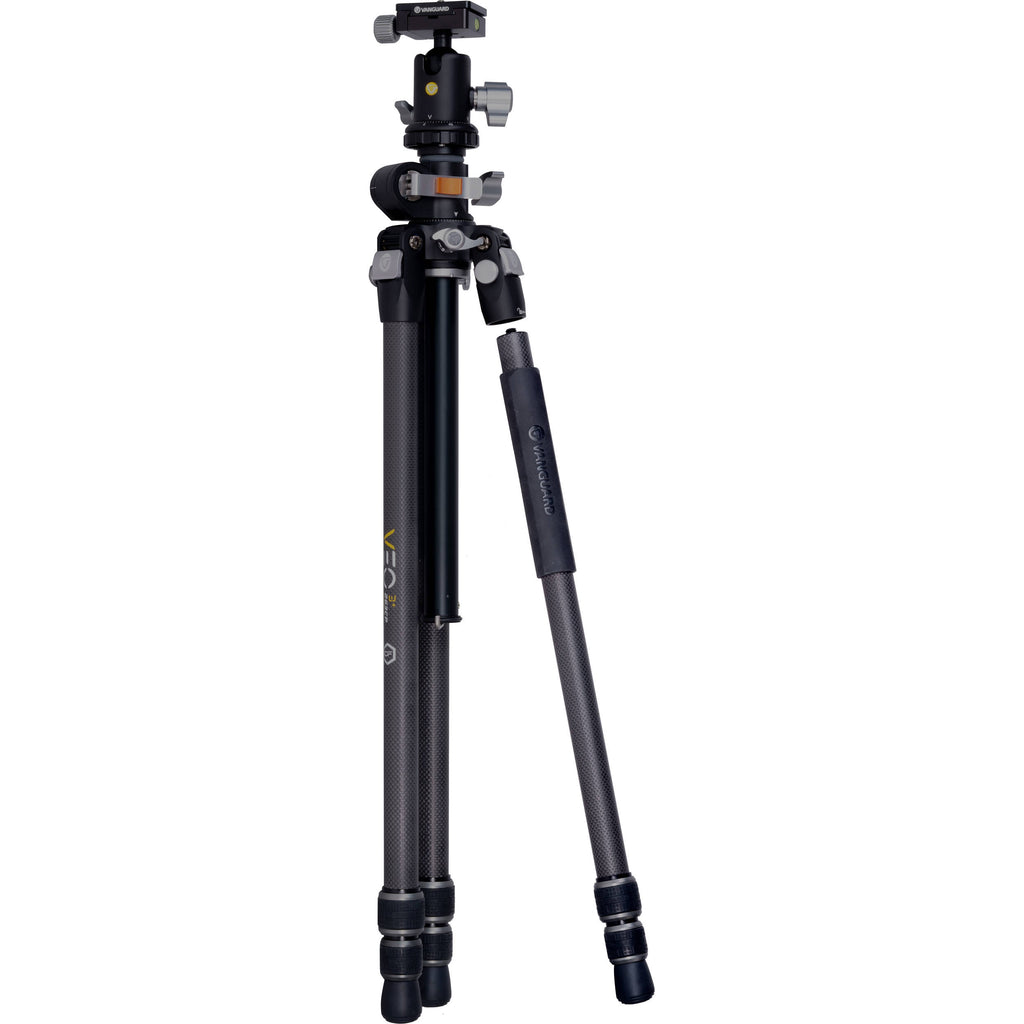

- Center column converts to monopod
- Removable ballast hook
- Three adjustable leg angles: 23, 50, 80° with innovative thumb button lock
- Grip and go with non-slip, all-weather grips on two legs
- Arca-type quick release plate compatibility
![]()
UPC: 026196354345
In the Box
- Vanguard VEO 3+ 263CB Carbon Fiber Tripod with VEO BH-160 Ball Head
- Vanguard QS-60 V2 Quick Shoe Release Plate
- Vanguard Multi-Mount Adapter
- VEO BH-160 Ball Head
- Spike Feet Set
- Hex Wrench
- Padded Tripod bag with Shoulder Strap
- Limited -Year Warranty
Vanguard VEO 3+ 263CB Tripod Specs
Head
| Head Type |
Ball Head |
| Base Mount |
3/8"-16 Female |
| Camera Mounting Screw |
1/4"-20 Male |
| Quick Release Plate Type |
Arca-Type |
| Number of Bubble Levels |
3 |
| Friction Control |
No |
| Independent Pan Lock |
Yes |
Pan & Tilt Range
| Lateral Tilt |
-91° to +35° |
| Panning Range |
360° |
General
| Load Capacity |
33 lb / 15 kg |
| Maximum Working Height |
67.9" / 172.5 cm |
| Max Height without Center Column |
57" / 144.8 cm |
| Minimum Working Height |
4.9" / 12.4 cm |
| Closed Length |
29.9" / 75.9 cm |
| Materials |
Carbon Fiber |
| Weight |
4.6 lb / 2.1 kg |
Legs
| Leg Lock Type |
Twist Lock |
| Leg Positions |
3 Positions |
| Independent Leg Spread |
Yes |
| Leg Sections |
3 |
| Leg Diameter |
1.0" / 26 mm (Maximum) |
| Bubble Level |
Yes |
| Feet Features |
Rubber, Removable |
Detachable Monopod
| Maximum Working Height |
71.9" / 182.5 cm |
| Leg Sections |
3 |
| Monopod Foot Features |
Removable, Rubber |
Center Column
| Center Column Features |
Ballast Hook, Removable |
| Center Column Shape |
Round |
| Center Column Extension Type |
Rapid |
| Lateral / 90-Degree Center Column |
Yes |
| Center Column Rotation |
360° |
Packaging Info
| Package Weight |
7.9 lb |
| Box Dimensions (LxWxH) |
31.1 x 6.4 x 5.2" |
