Vanguard VEO 3+ 263AP Tripod Overview

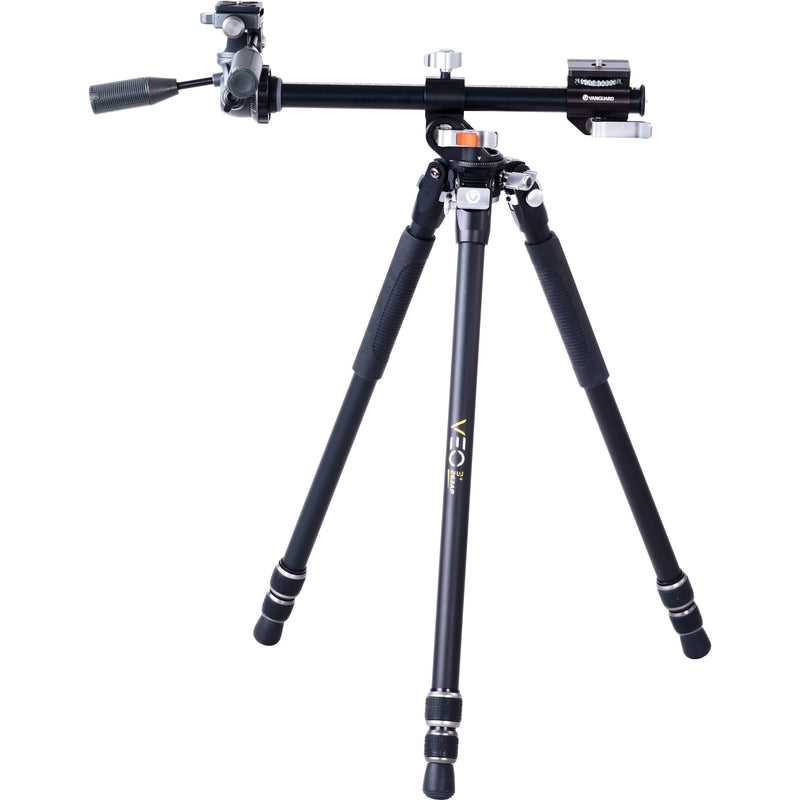

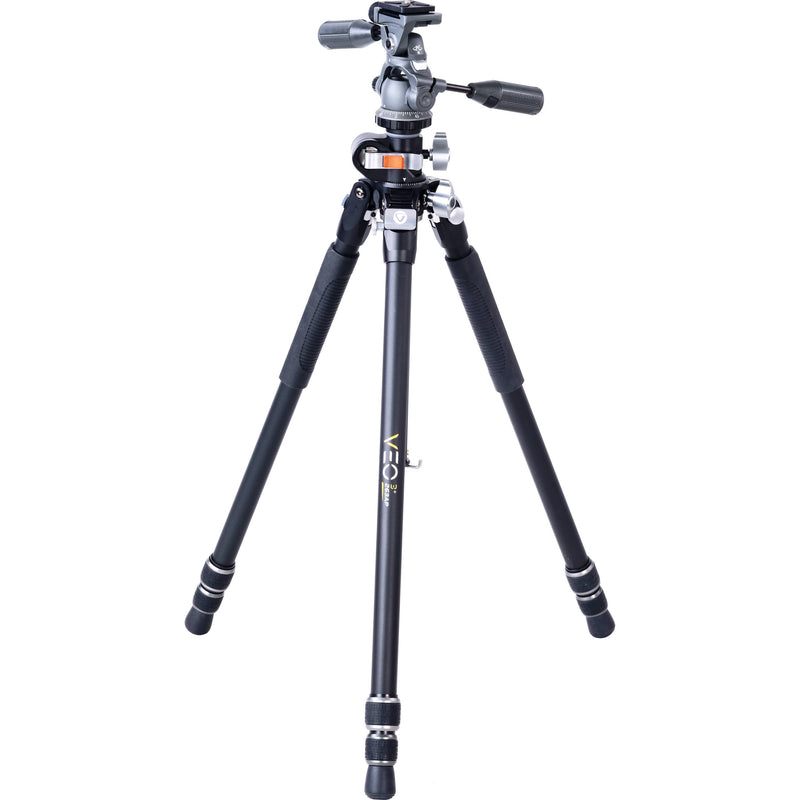

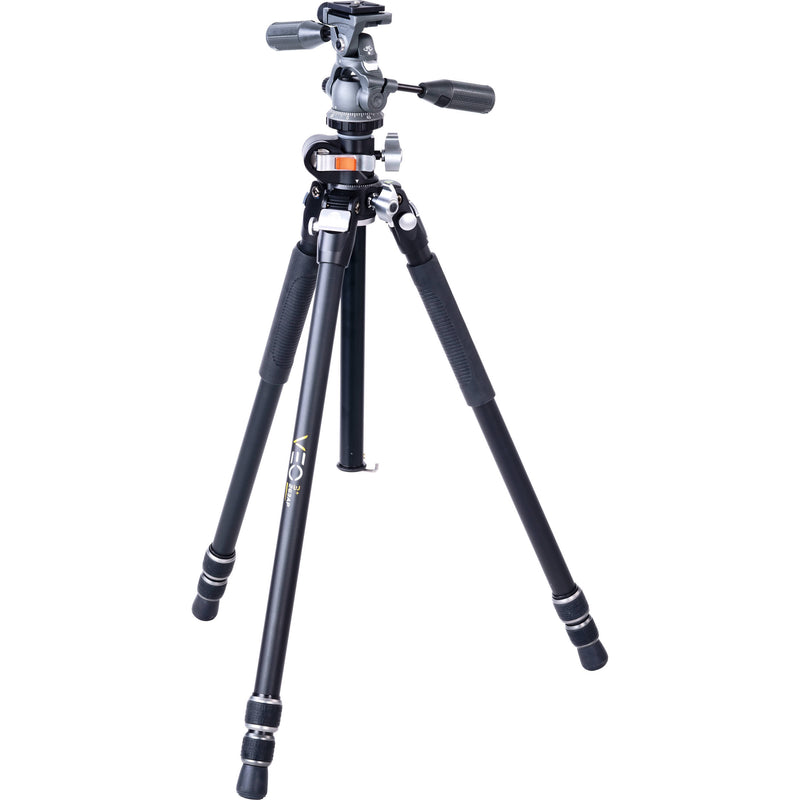

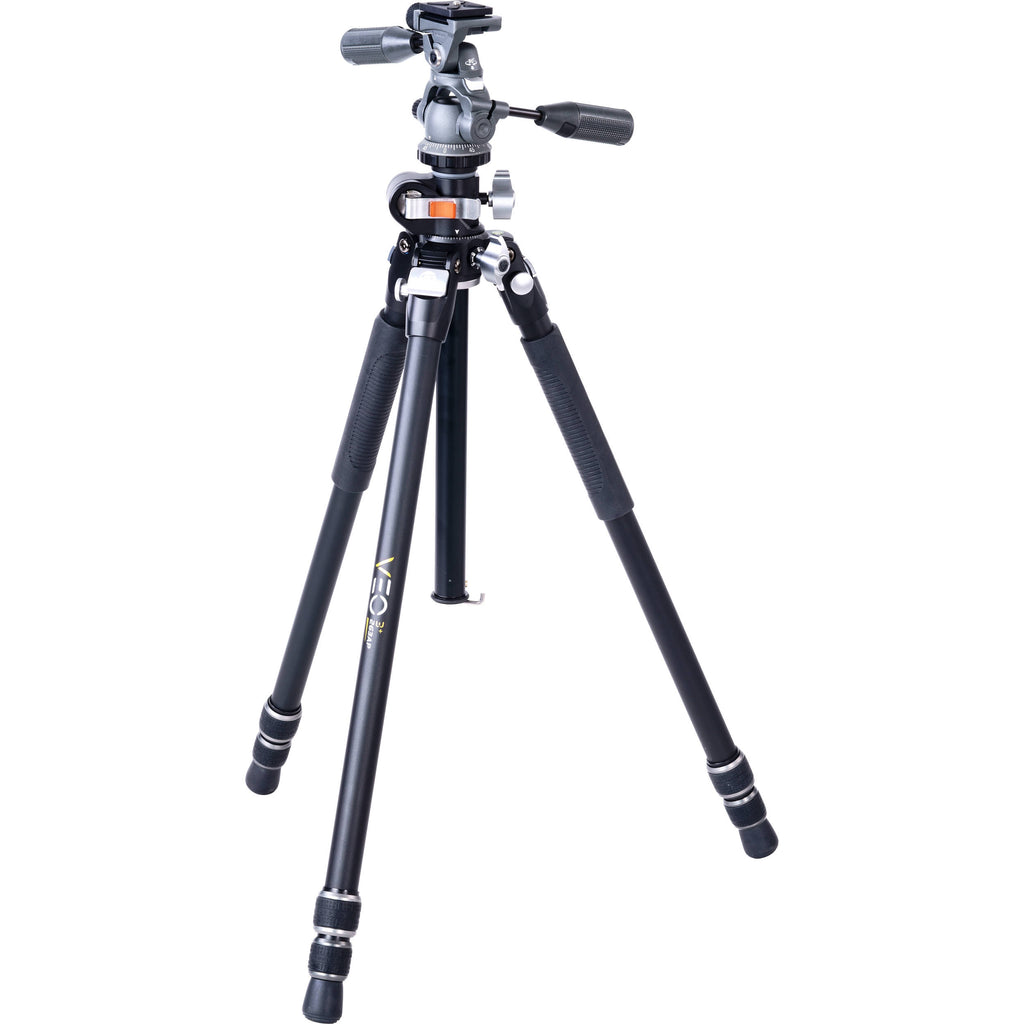

The versatile 3+ 263AP Aluminum Tripod with VEO 2 PH-38 Pan Head from Vanguard is a 68-inch tall, feature-laden tripod. The VEO 3+ tripod's innovative Multi-Angle Central Column (MACC) system allows the center column to move at angles from from 0- to 180-degrees in variable vertical and horizontal positions, beyond the range of conventional lateral center columns. The included column ballast hook helps keep the tripod stable even at full extension, and the VEO+MA1 multi-mount adapter provides an additional 1/4" mount for an additional camera, a monitor, microphone, light, or other accessory. The center column may also be removed and combined with one leg to form a full-featured monopod for situations where a tripod is inconvenient.
With the press of an ergonomically positioned thumb-release button, the aluminum legs independently open to three positions to level the tripod on uneven terrain, and to spread fully for floor-level positioning. The legs feature removable rubber feet, and a set of steel spike feet is included for use in icy conditions.

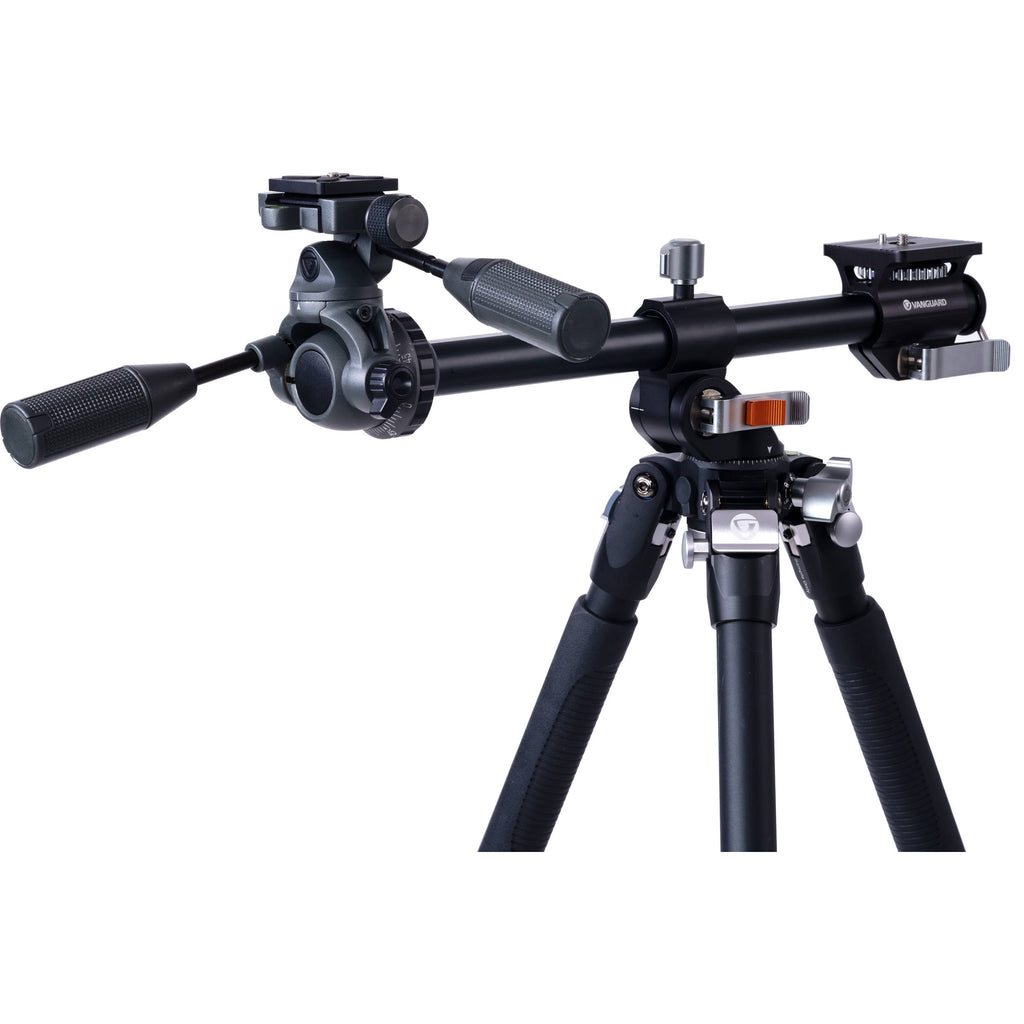

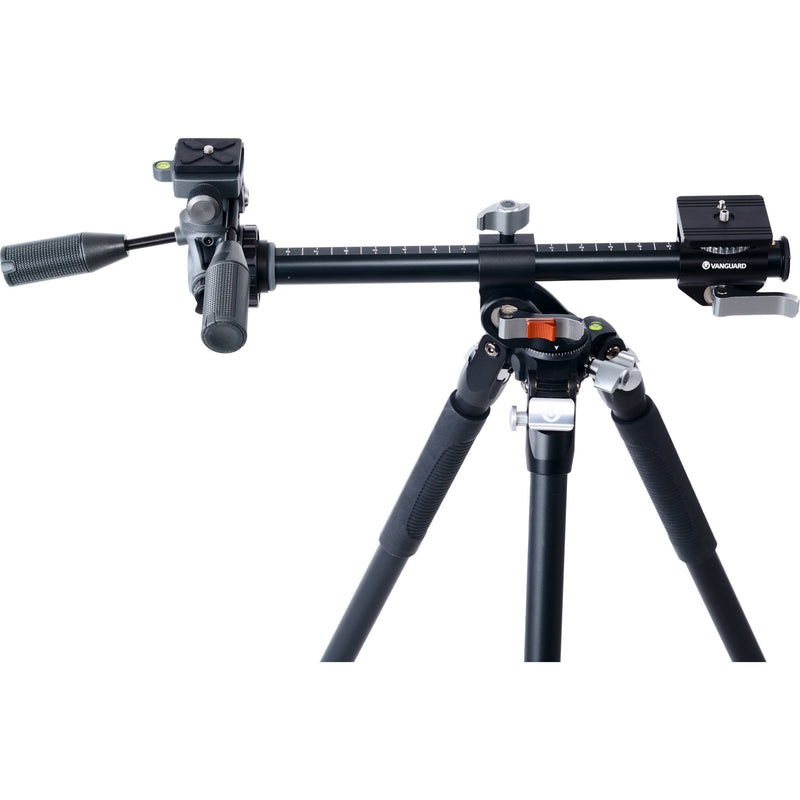

- MACC multi-angle lateral center column
- Included VEO+ MA1 adaptor

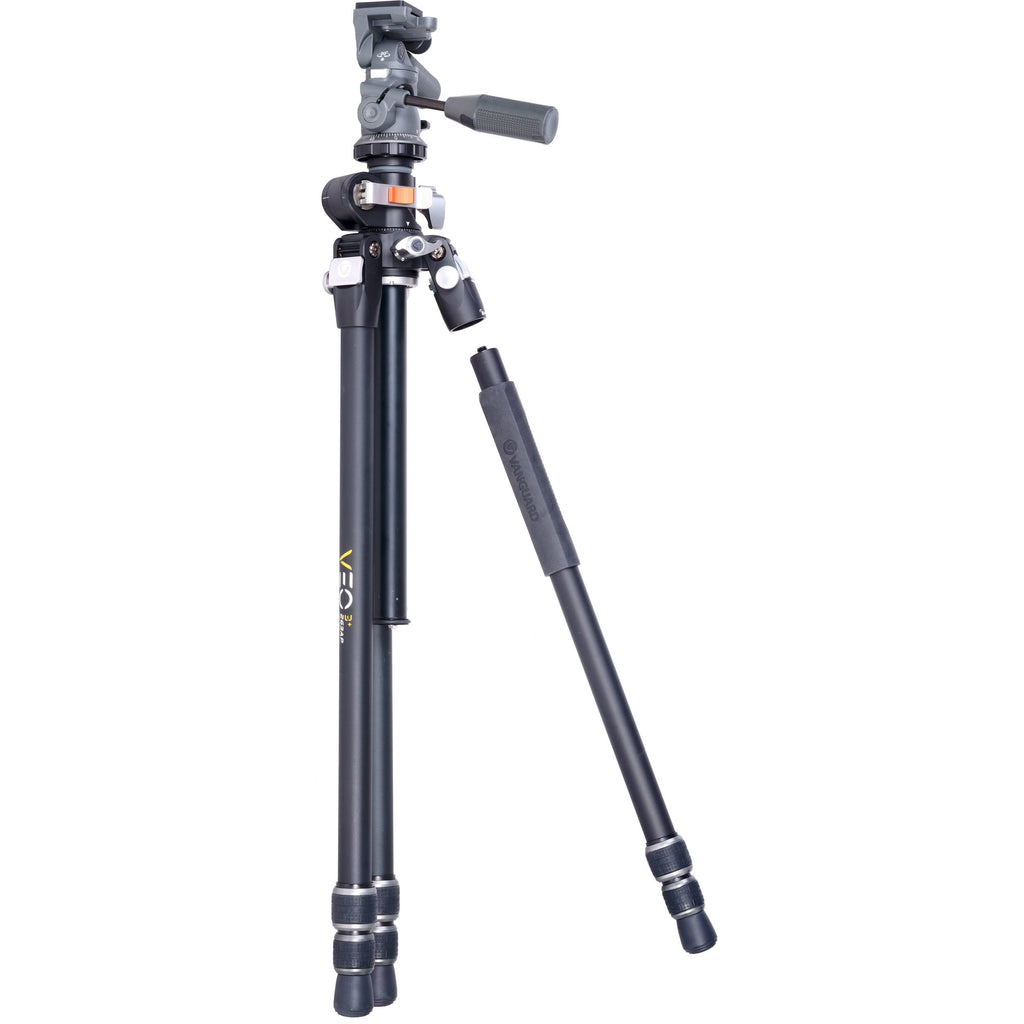

- Center column converts to monopod
- Removable ballast hook
- Three adjustable leg angles: 23, 50, 80° with innovative thumb button lock
- Grip and go with non-slip, all-weather grips on two legs
- Arca-type quick release plate compatibility
![]()
UPC: 026196354352
In the Box
- Vanguard VEO 3+ 263AP Aluminum Tripod with VEO 2 PH-38 Pan Head
- Vanguard VEO 2 PH-38 3-Way Pan-and-Tilt Head
- Vanguard Multi-Mount Adapter
- Spike Feet Set
- Hex Wrench
- Padded Tripod bag with Shoulder Strap
- Limited -Year Warranty
Vanguard VEO 3+ 263AP Tripod Specs
Head
| Head Type |
Pan & Tilt Head |
| Base Mount |
3/8"-16 Female |
| Camera Mounting Screw |
1/4"-20 Male |
| Quick Release Plate Type |
Arca-Type |
| Number of Bubble Levels |
2 |
| Independent Pan Lock |
Yes |
Pan & Tilt Range
| Lateral Tilt |
-30° to +90° |
| Vertical Tilt |
-60° to +90° |
| Panning Range |
360° |
General
| Load Capacity |
13 lb / 5.9 kg |
| Maximum Working Height |
68" / 172.7 cm |
| Max Height without Center Column |
58" / 147.3 cm |
| Minimum Working Height |
5" / 12.7 cm |

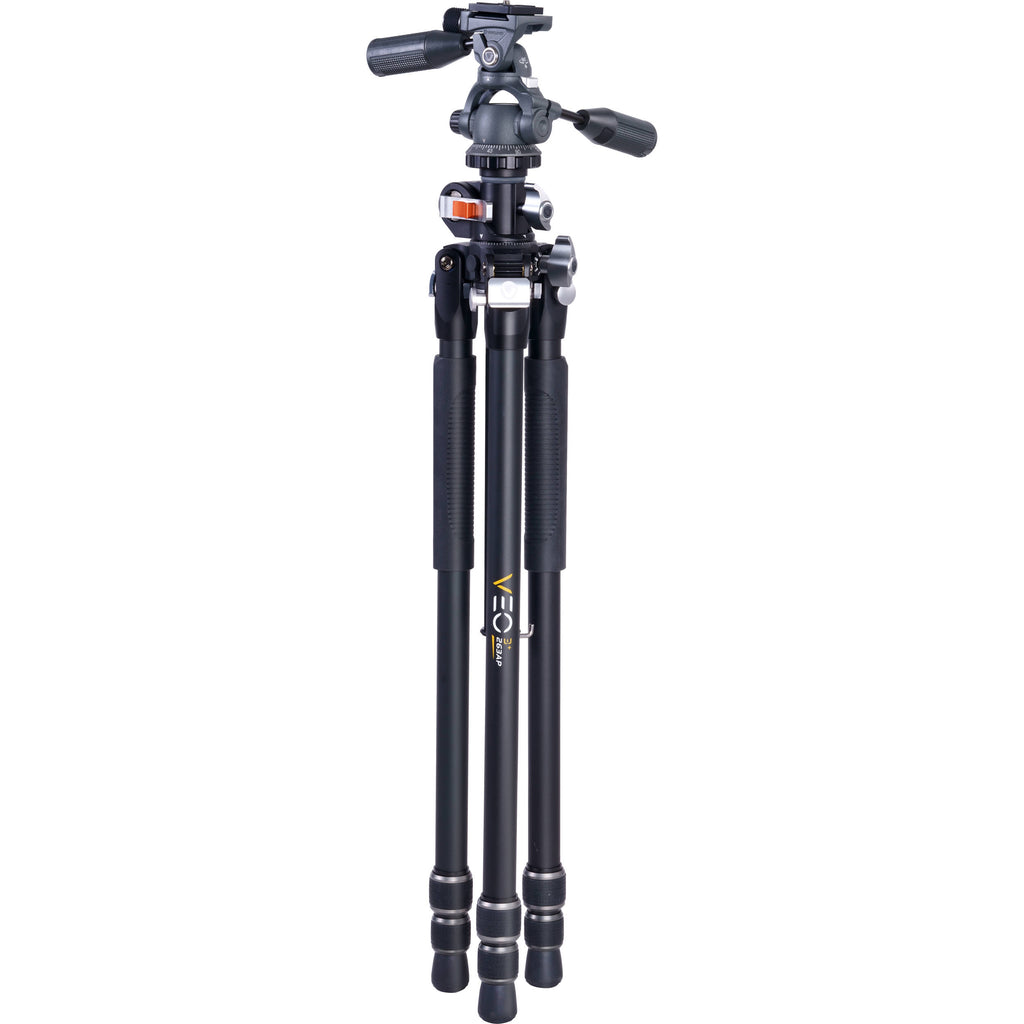

| Folded Length |
30.5" / 77.5 cm |
| Materials |
Aluminum Alloy |
| Weight |
5.7 lb / 2.6 kg |
Legs
| Leg Lock Type |
Twist Lock |
| Leg Positions |
3 Positions |
| Independent Leg Spread |
Yes |
| Leg Sections |
3 |
| Leg Diameter |
1.0" / 26 mm (Maximum) |
| Bubble Level |
Yes |
| Feet Features |
Rubber, Removable |
Detachable Monopod
| Maximum Working Height |
72.2" / 183.5 cm |
| Leg Sections |
3 |
| Monopod Foot Features |
Removable, Rubber |
Center Column
| Center Column Features |
Ballast Hook, Removable |
| Center Column Shape |
Round |
| Center Column Extension Type |
Rapid |
| Lateral / 90-Degree Center Column |
Yes |
| Center Column Rotation |
360° |
Packaging Info
| Package Weight |
8.67 lb |
| Box Dimensions (LxWxH) |
31.3 x 6.3 x 5.2" |
