- Load Capacity: 66.1 lb
- Maximum Height: 4.6"
- Weight: 1.3 lb
- Arca-Type Compatible with Safety Pin
- 360° Pan with Independent Pan Lock
- 90° Vertical Tilt
- Friction Control
- Two Bubble Levels
- Includes QS-60 V2 Quick Shoe
- 3/8"-16 Mount with 1/4"-20 Adapter

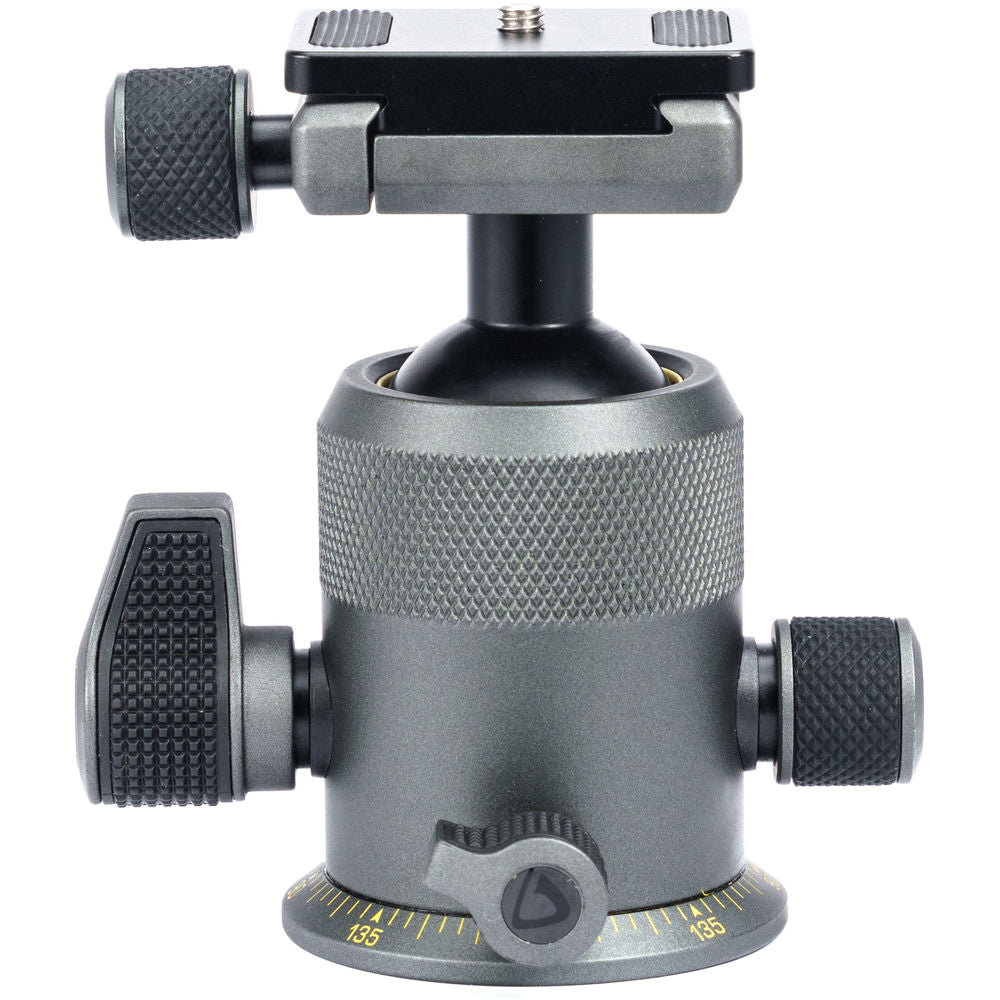

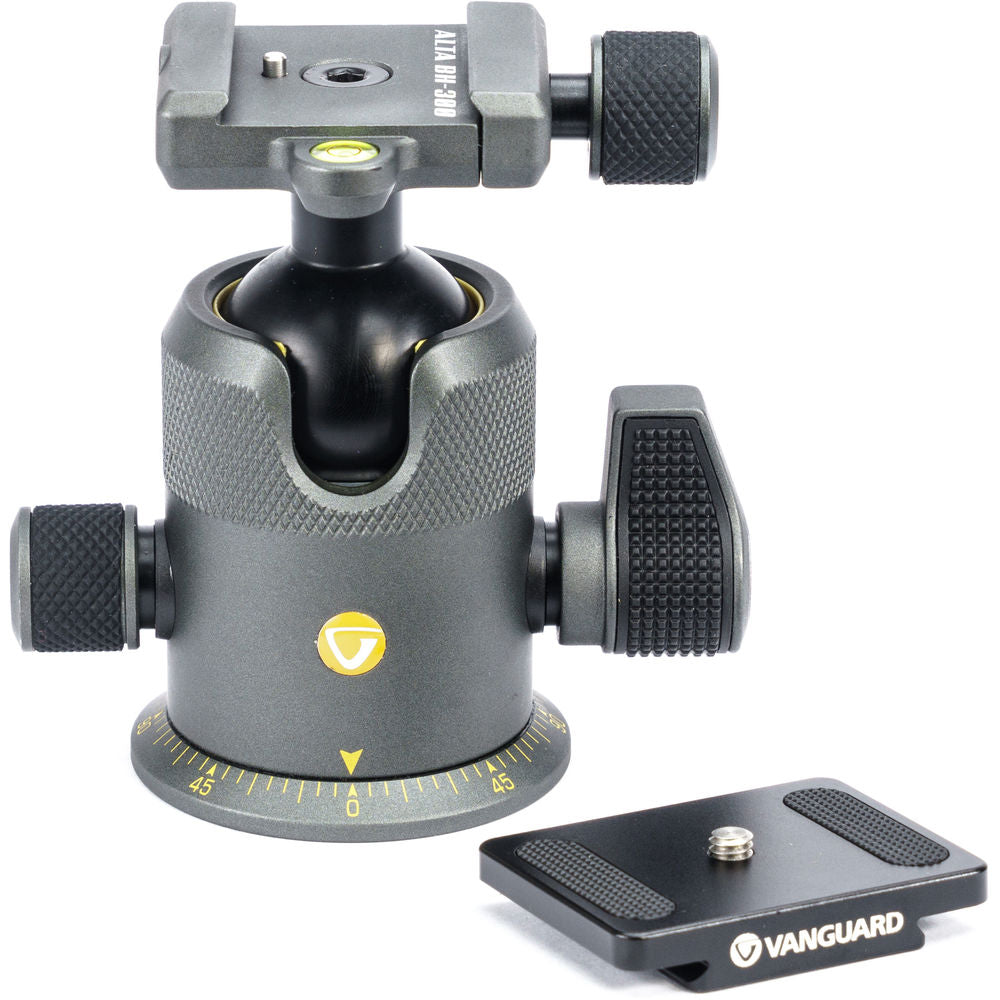

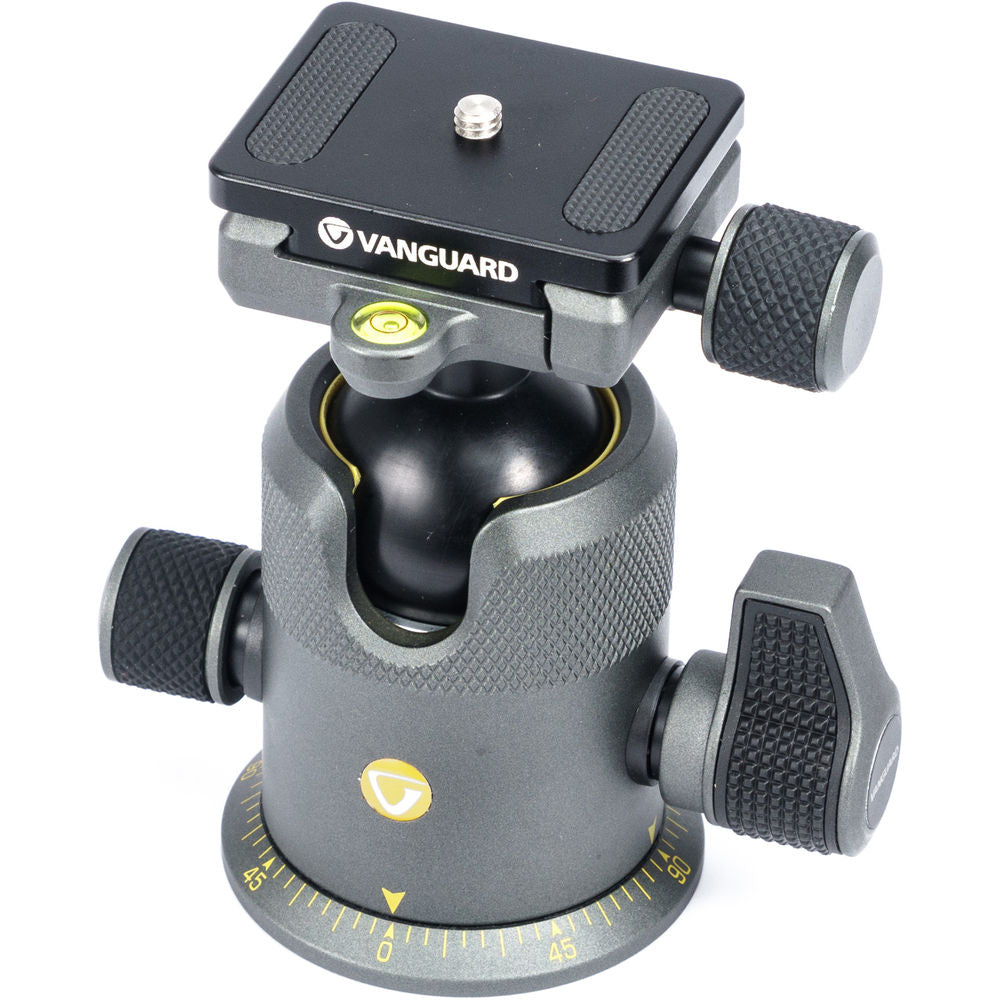

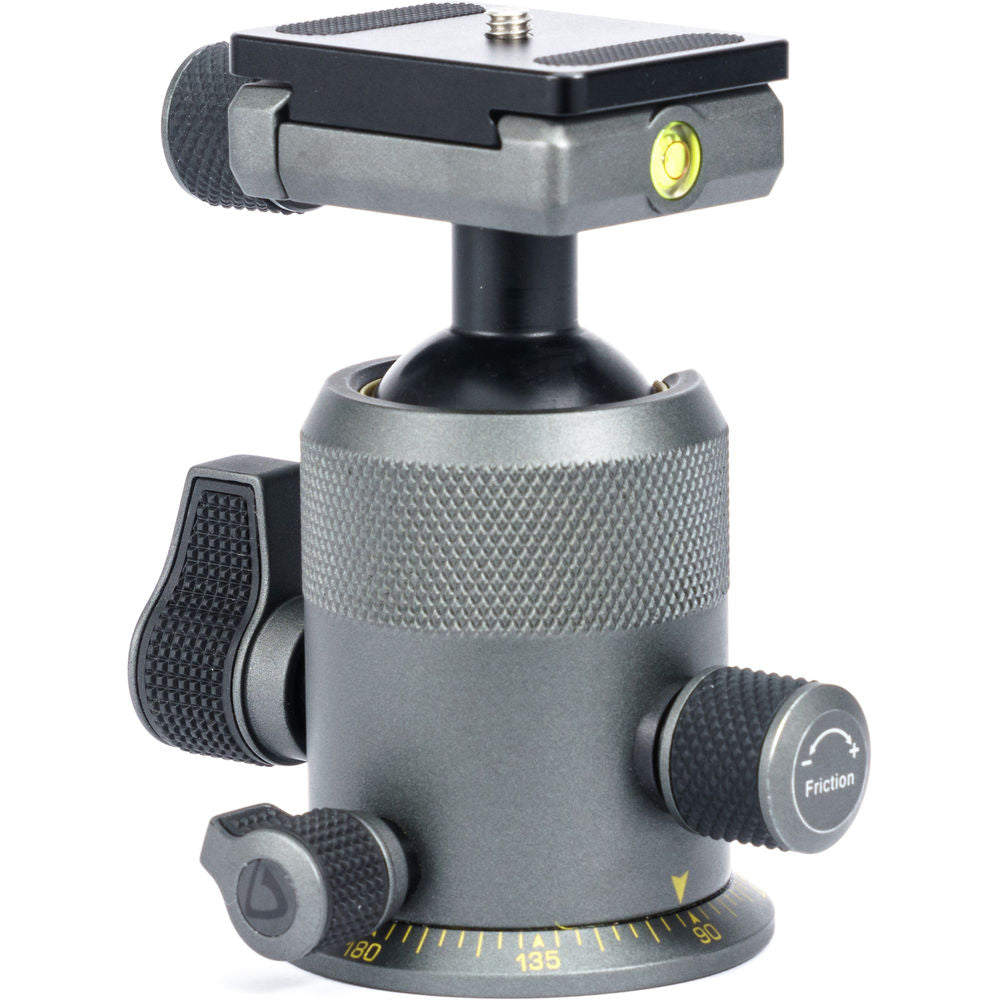

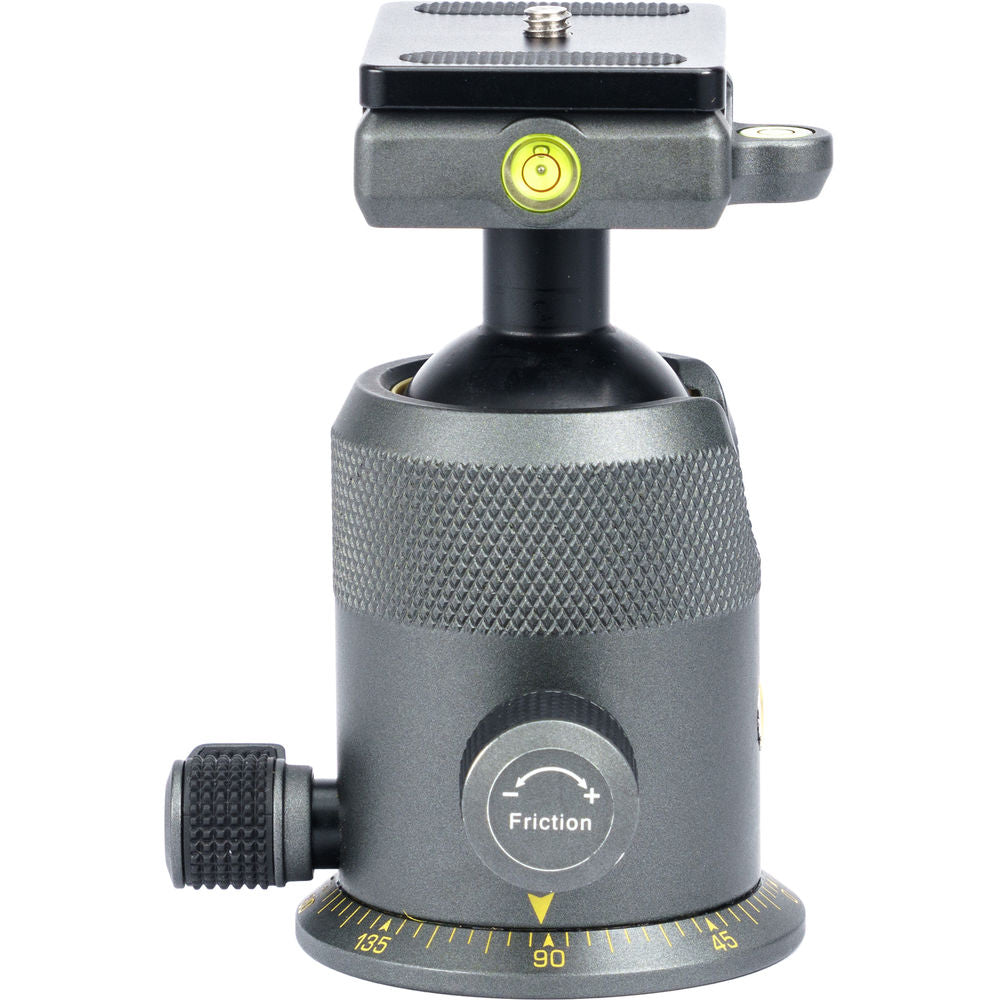

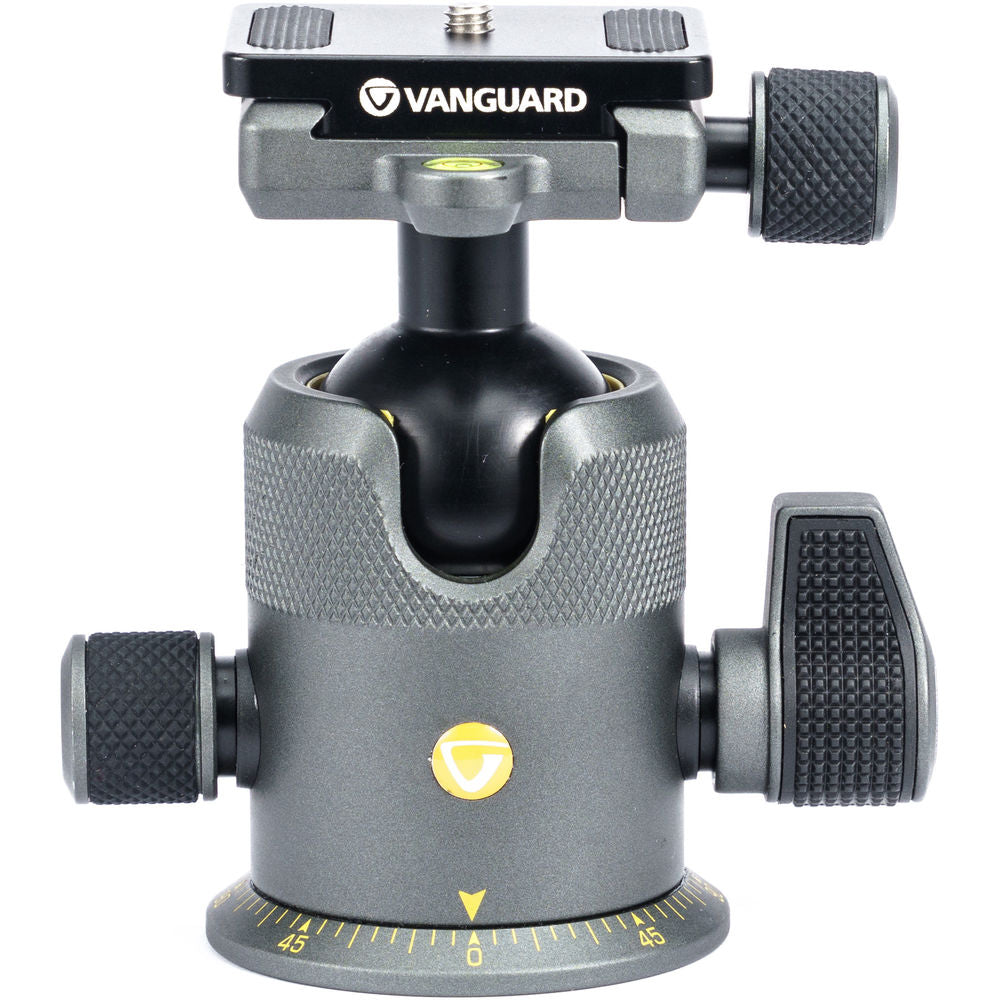

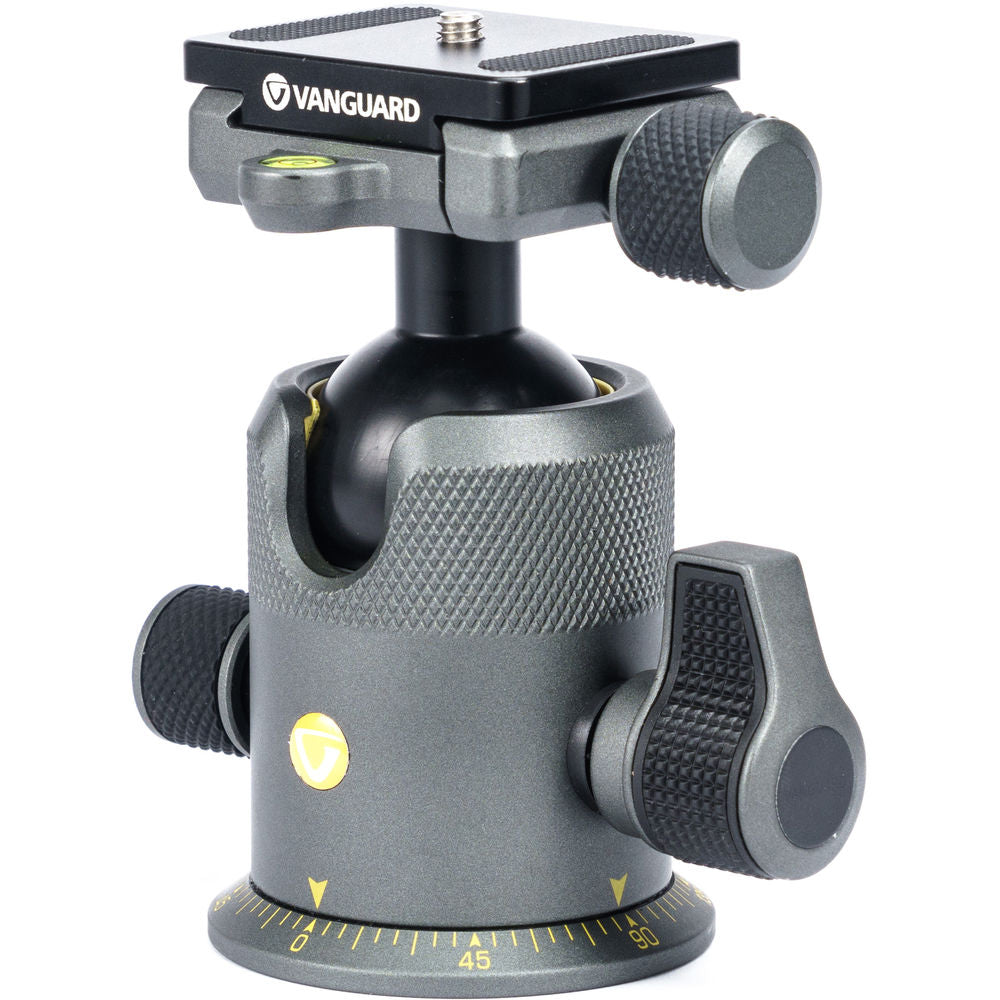

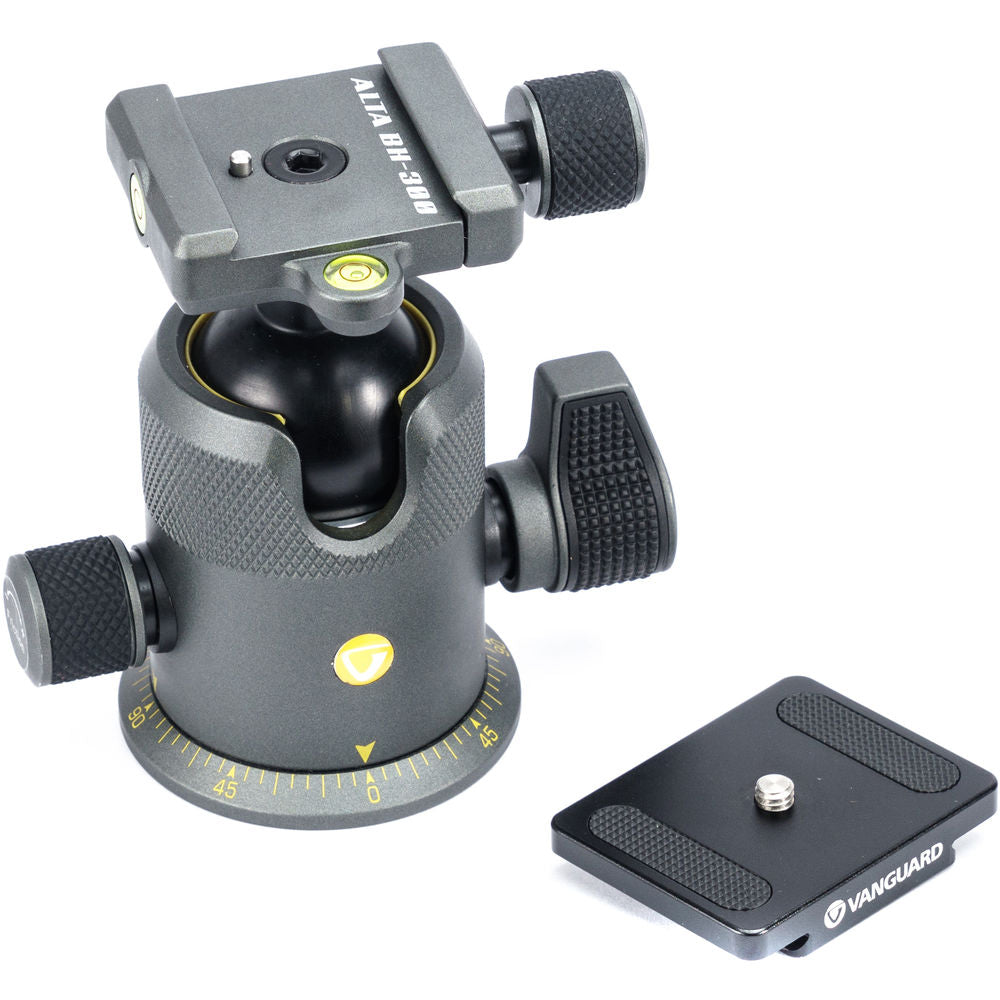

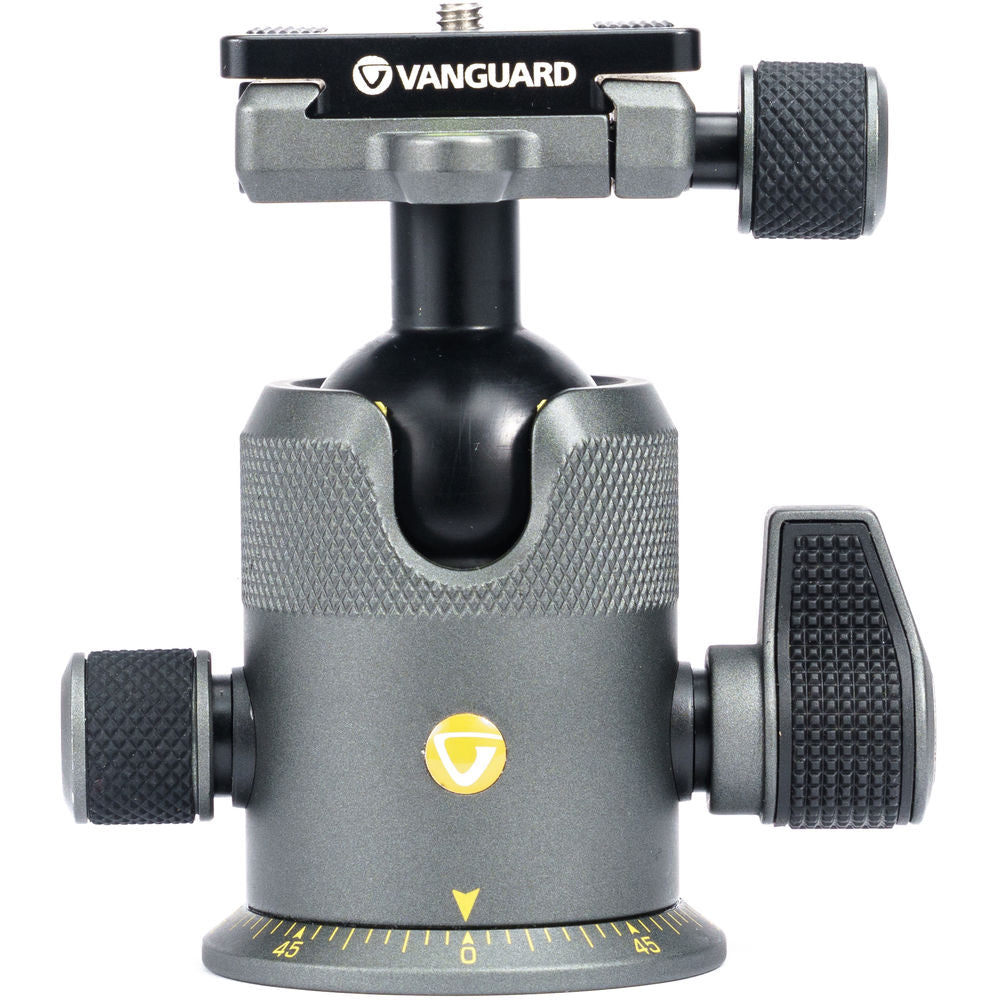

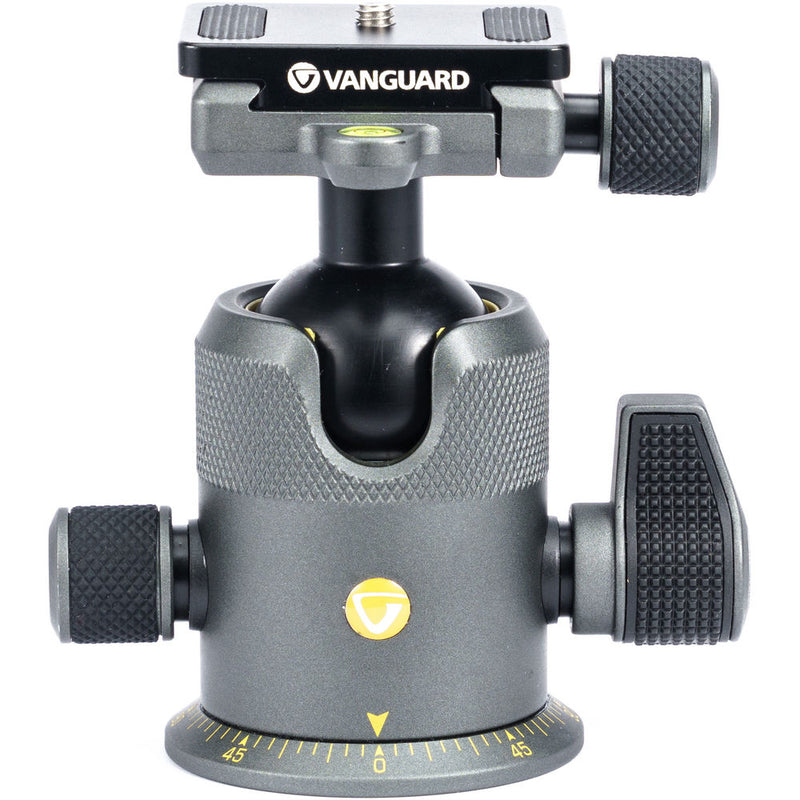

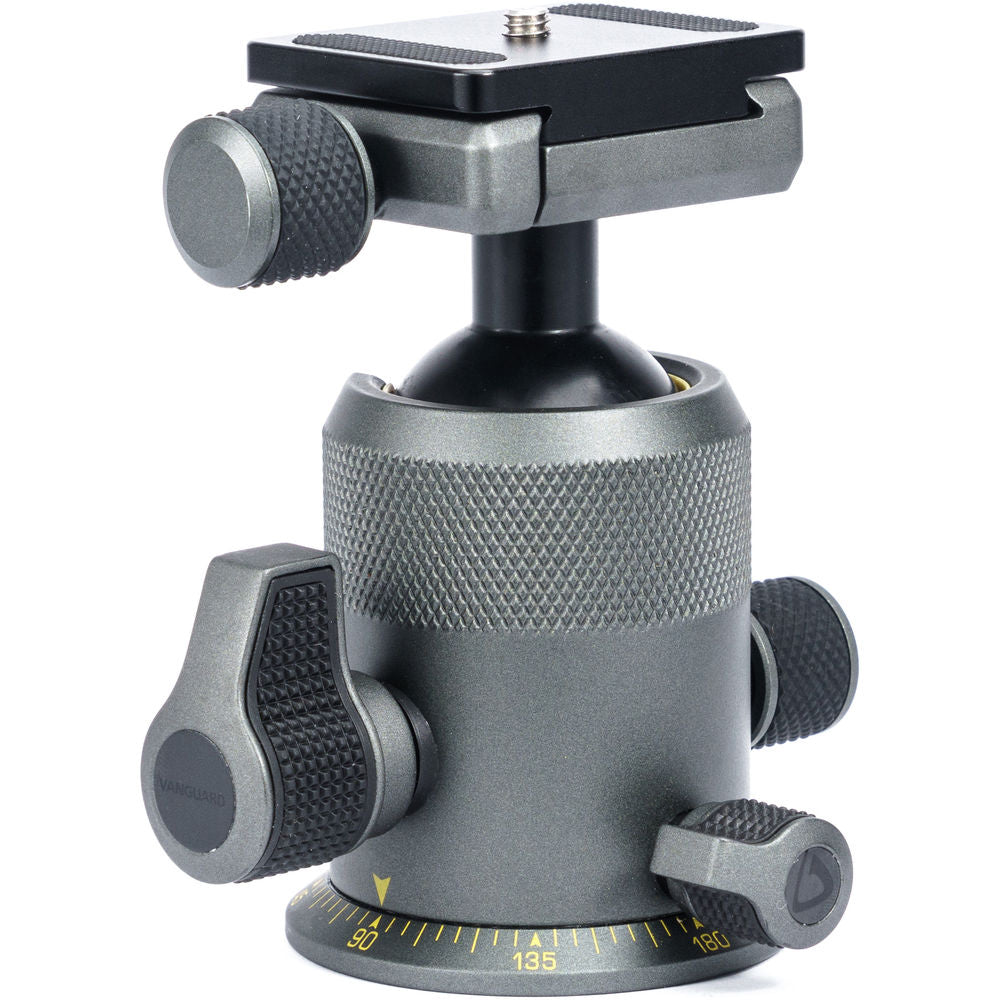

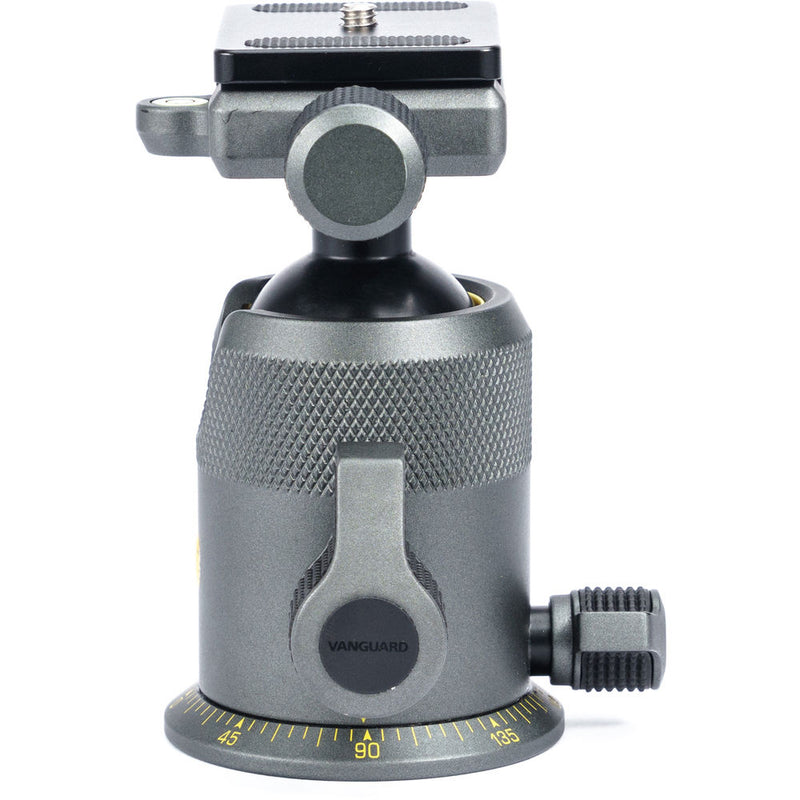

The Alta BH-300 Ball Head from Vanguard is a 1.3 lb Arca-type head that can support cameras that weigh up to 66.1 lb. Located inside the clamp is a safety pin that prevents the plate from sliding out if the clamp is partially opened. Moreover, the 4.6" tall head has three separate knobs to control it; the main locking knob governs the movement of the ball, the friction control knob adds or decreases drag on the ball per your comfort level, and the third knob enables the ball head to pan a full 360°.

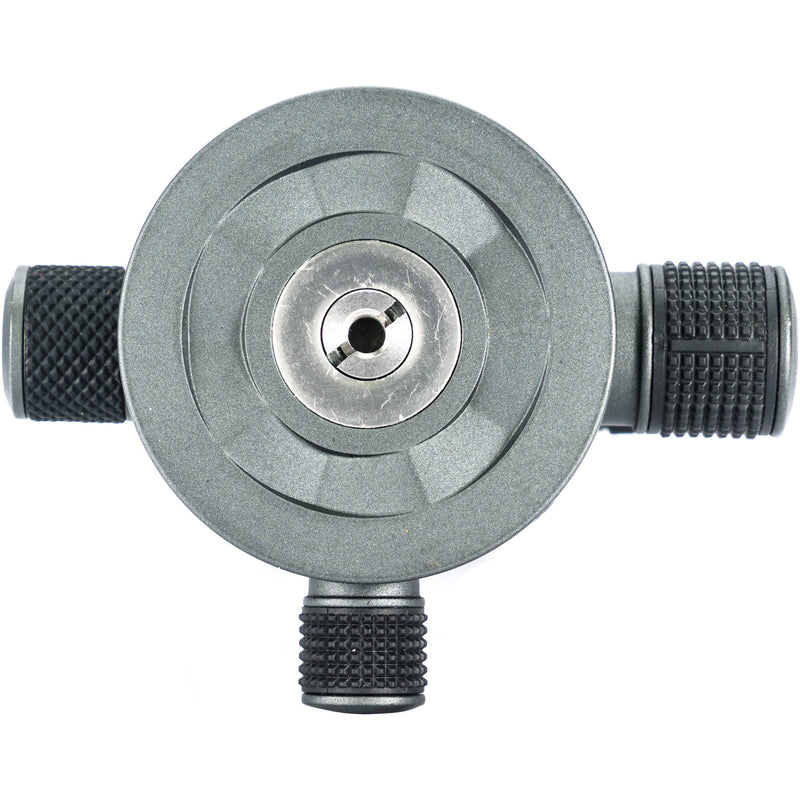

A single-cut notch on the side allows a mounted camera to move in a 90° vertical angle. Mounting the ball head to a tripod is easily done via the 3/8"-16 thread, but a 1/4"-20 bushing adapter is included for those tripods with a smaller thread. Additionally, a QS-60 V2 Quick Shoe is also included with the ball head.
UPC: 026196349631
Vanguard BH 300 specs
| General |
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing |
| Camera Mounting Thread | 1/4"-20 Male |
| Quick Release Plate Type | Arca-Type |
| Load Capacity | 66.1 lb / 29.98 kg |
| Number of Bubble Level(s) | 2 |
| Friction Control | Yes |
| Independent Pan Lock | Yes |
| Material | Aluminum |
| Physical |
| Dimensions | H: 4.6" / H: 11.7 cm |
| Weight | 1.3 lb / 590 g |
| Packaging Info |
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 5.0 x 4.65 x 4.0" |
In the Box
Vanguard Alta BH-300 Ball Head
- QS-60 V2 Quick Shoe
- 3/8" to 1/4" Reducing Bushing
- Limited 2-Year Warranty (Extended 8-Year Warranty with Online Registration)
