Description
- Transmits and Receives HDMI Signals
- Audio/Video Support over Single Cat 6/5e
- Supports up to 1080p Full HD up to 196'
- Works with HDMI & HDCP Compliant Devices
- Auto-EQ with Single Button
- Includes IR Blaster Transmitter/Receiver

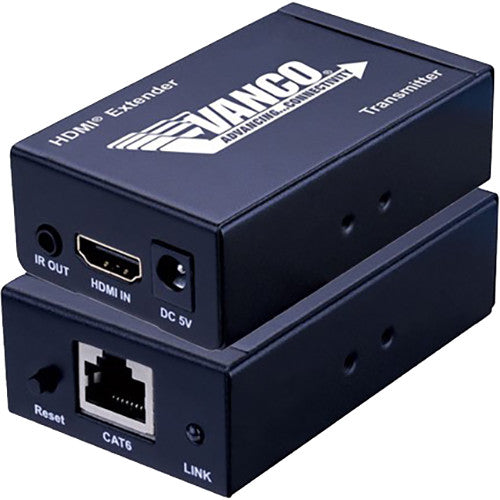

The HDMI Extender over Single Cat 6/5e Cable with IR from Vanco enables you to transmit and receive HDMI signals over distances further than those of standard HDMI cables, extending video and audio over a single Cat 6/5e cable (not included) up to 196'. The HDMI Extender enables you to transmit a robust signal from an HDMI source, such as a Blu-ray device, cable box, or laptop, to a remote display.
The included IR-blaster extension cables help to maintain remote control over distant devices. The signal can be auto-adjusted with the touch of a button for optimal resolutions up to HD 1080p60. The HDMI Extender set is suitable for small office, house of worship, and home theater Cat 6/5e setups where the HDMI source device is located at a remote distance from the display. This HDCP compliant extender features audio support up to 7.1 surround via HDMI, and full IR control over Cat 6/5e. Both transmitter and receiver are compact in form.
- Carries HDMI signals beyond the range of a standard HDMI cable
- Extends video and audio over a single 196' Cat 6/5e cable; maintains full IR control
- Auto-adjustment for optimal resolutions up to Full HD 1080p60
- HDCP (content protection) compliant
- Suitable for Cat 6/5e setups where the HDMI source is remotely connected to the display
- Compact units are easy to install and feature LED signal link indicators
Vanco 280501 Specs
| Interface | Transmitter Input: 1 x HDMI type A Output: 1 x Cat 6/5e 1 x IR Receiver Input: 1 x Cat 6/5e 1 x IR Output: 1 x HDMI type A |
| Resolutions | 1080p: 60 1080i: 60 720p: 60 480p: 60 480i: 60 |
| Supported Color Depth | Up to 30-Bit, 3D |
| HDCP Compliant | Yes |
| Video Bandwidth | 165 MHz, 4.95 Gb/s |
| Audio Support | Surround Sound up to 7.1 or Stereo |
| Transmission Distance | Up to 196' / 60 m at 1080p60 |
| Power Supply | 5 VDC |
| Operation Temperature | 32 to 158°F / 0 to 70°C |
| Operating Humidity | 10 to 85% RH (No Condensation) |
| Storage Temperature | 12 to 176°F / -11 to 80°C |
| Storage Humidity | 5 to 90% RH (No Condensation) |
| Power Consumption | Transmitter: 5 W Receiver: 5 W |
| Material of Construction | Metal |
| Dimensions (LxWxH) | Each Unit: 1.9 x 1 x 3.3" / 4.8 x 2.5 x 8.4 cm |
| Weight | Not Supplied by Manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 1.225 lb |
| Box Dimensions (LxWxH) | 8.2 x 7.8 x 2.3" |
