Vanco HD4KTEST Overview

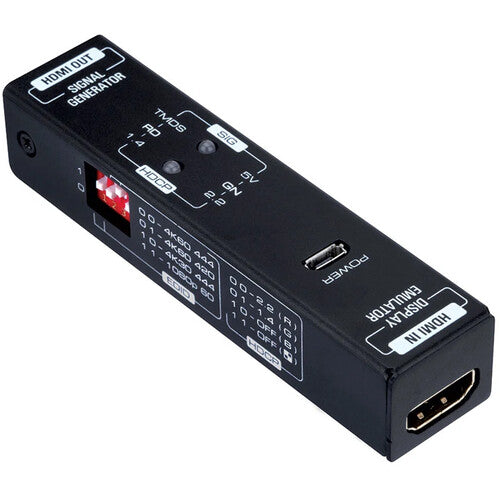

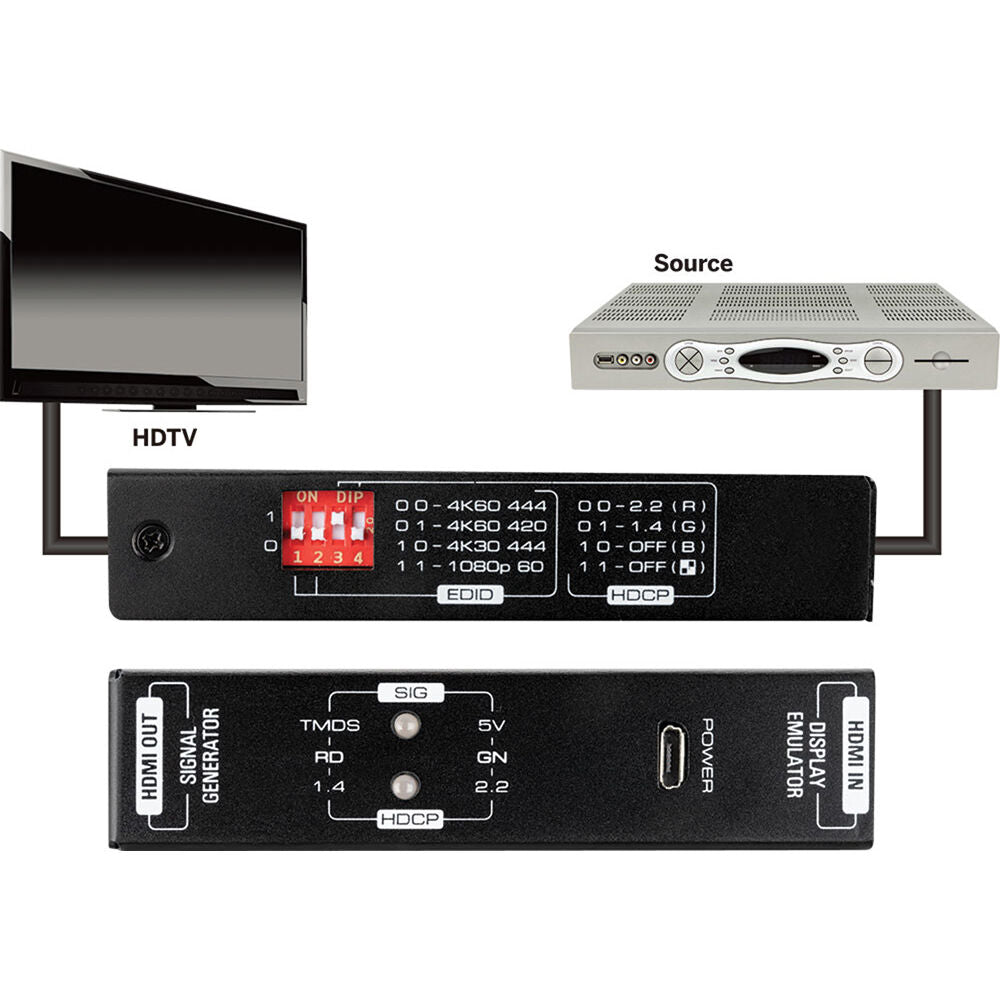

The Vanco Handheld 4K HDMI Tester is a handheld HDMI tester to help troubleshoot issues with passive and active HDMI installations in the field. Connect the HDMI output to a display to act as a signal generator to ensure video signals and HDCP are passed, or connect a source to the HDMI input to emulate the signal coming out to the sink using the LED lights. A convenient way of testing all components and cabling within an HDMI distribution system. The HD4KTEST is capable of 4K and 1080p resolutions, with 16 combinations to help replicate and resolve common issues in the field.

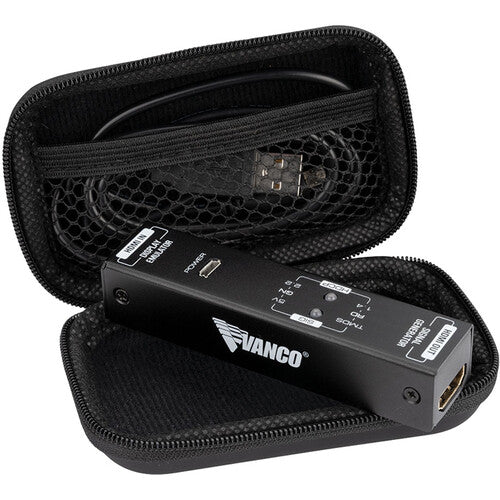

In the Box
- Vanco Handheld 4K HDMI Tester
- Micro USB to USB A Cable (Power)
- Carrying Case
Vanco HD4KTEST Specs
General
Compatibility |
Not Specified by Manufacturer |
Inputs / Outputs
Video I/O |
1 x HDMI Input 1 x HDMI Output |
Power
Power Source |
USB |
DC Input Power |
5 VDC |
Physical
Cable Length |
Not Specified by Manufacturer |
Dimensions |
3.4 x 0.87 x 0.75" / 8.6 x 2.21 x 1.91 cm |
Weight |
7.1 oz / 200 g |
Packaging Info
Package Weight |
0.335 lb |
Box Dimensions (LxWxH) |
7.2 x 5.2 x 1.9" |
