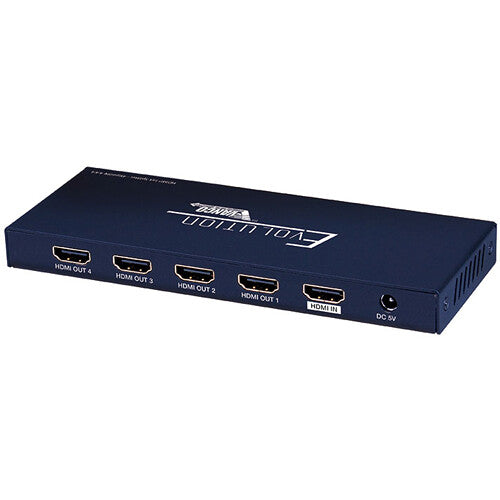

Vanco Evolution Overview

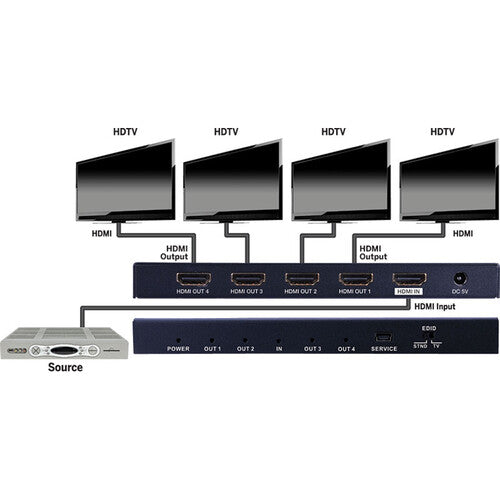

The Vanco Evolution Premium 4K HDMI 1 x 4 Splitter transmits audio and video from a single source to four HDMI outputs at up to 4K2K UHD resolution without any loss of quality or resolution. It supports video formats up to 4K2K, 60 Hz with 12-bit YCbCr 4:4:4 and HDR, 3D frame sequential video up to 1080p60, and high-resolution video up to QSXGA 2560 x 2048, 60 Hz.

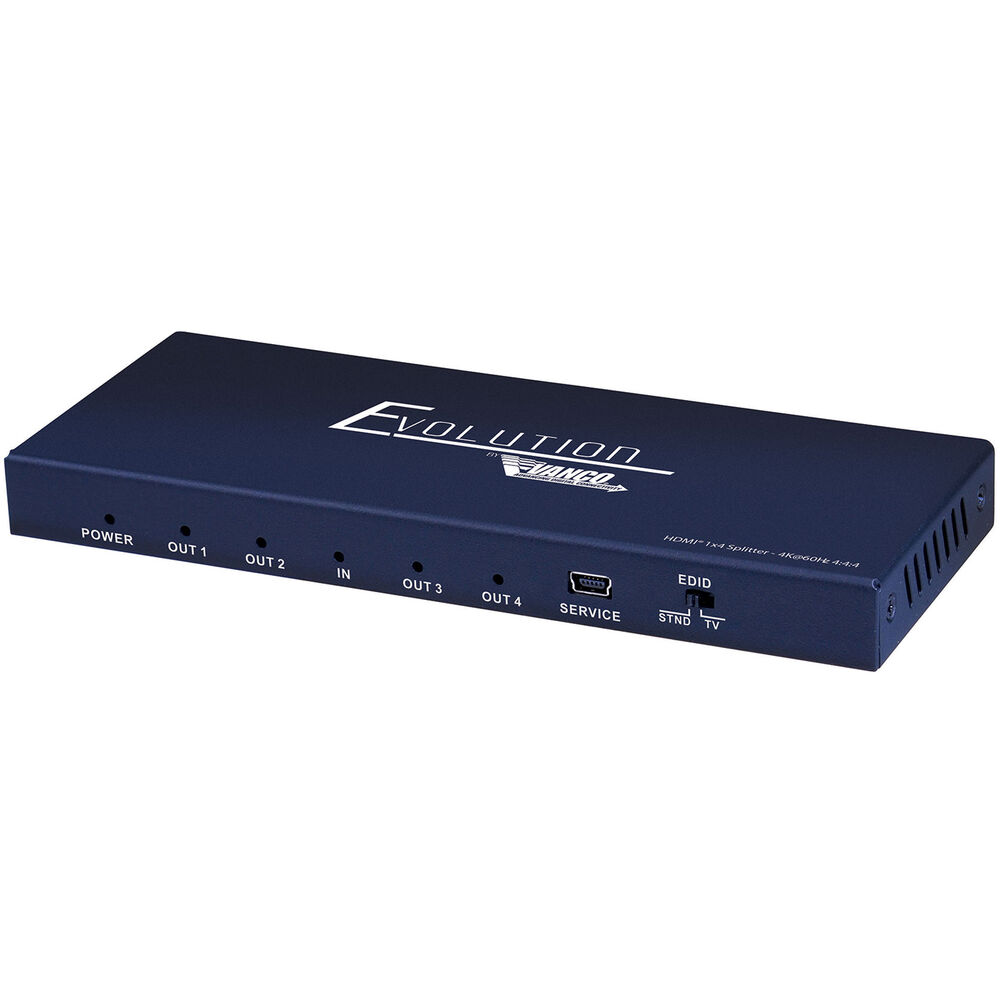

The splitter is compliant with HDCP 2.2 sources and is backward compatible with older versions of HDCP. Dynamic and manual EDID management modes ensure compatibility during installation. Featuring a status indicator for connection and input HDCP compliance, the splitter can be cascaded with other Evolution products to create additional output options or create an expanded distribution system.
In the Box
- Vanco Evolution Premium 4K HDMI 1 x 4 Splitter
- Power Supply
- Limited 10-Year Manufacturer Warranty
Vanco Evolution Specs
Interfaces
| Input |
1 x HDMI |
| Output |
4 x HDMI |
Standards
| HDR Compatibility |
None |
| HDCP Support |
, Version 2.2 |
| EDID Support |
Manual Control |
Power
| Power Connector |
1 x Barrel Input |
| ESD Protection |
None |
General
| Dimensions |
6.4 x 6.0 x 2.5" / 162.6 x 152.4 x 63.5 mm |
