Description
Vaddio WideSHOT SE Overview

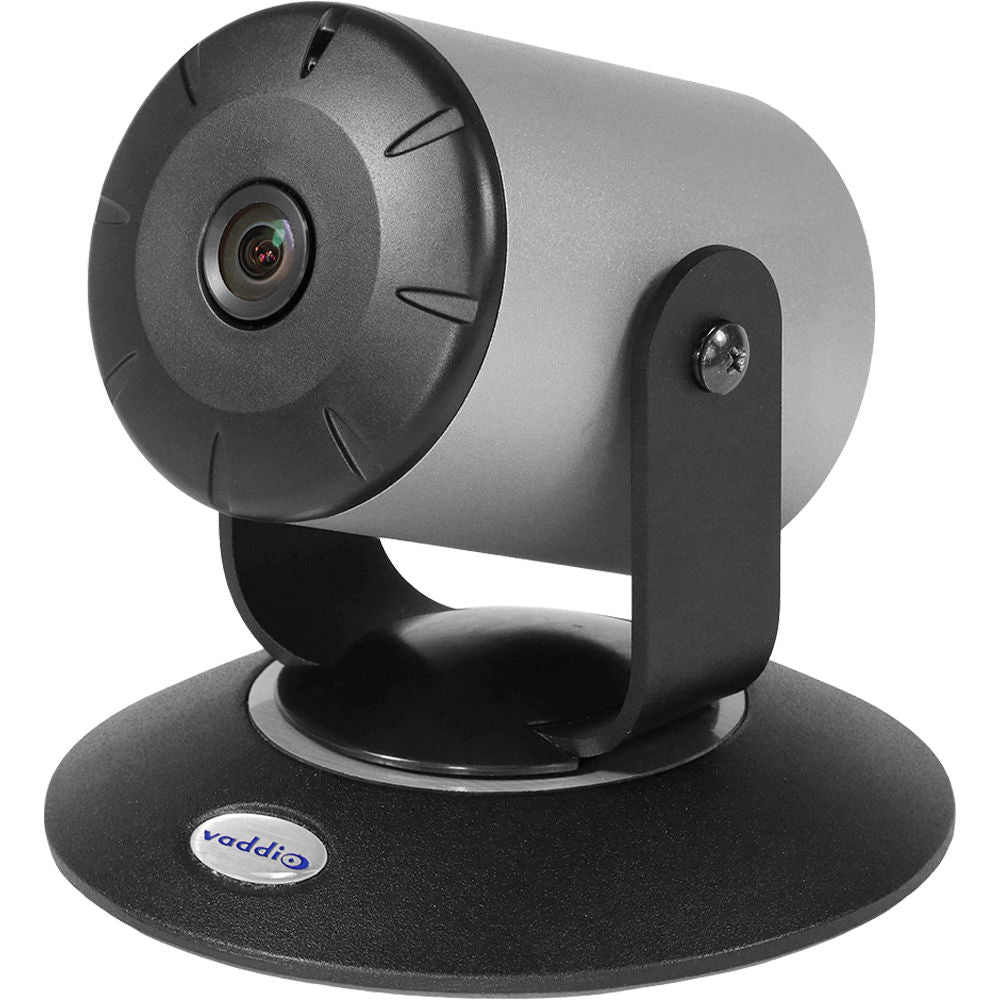

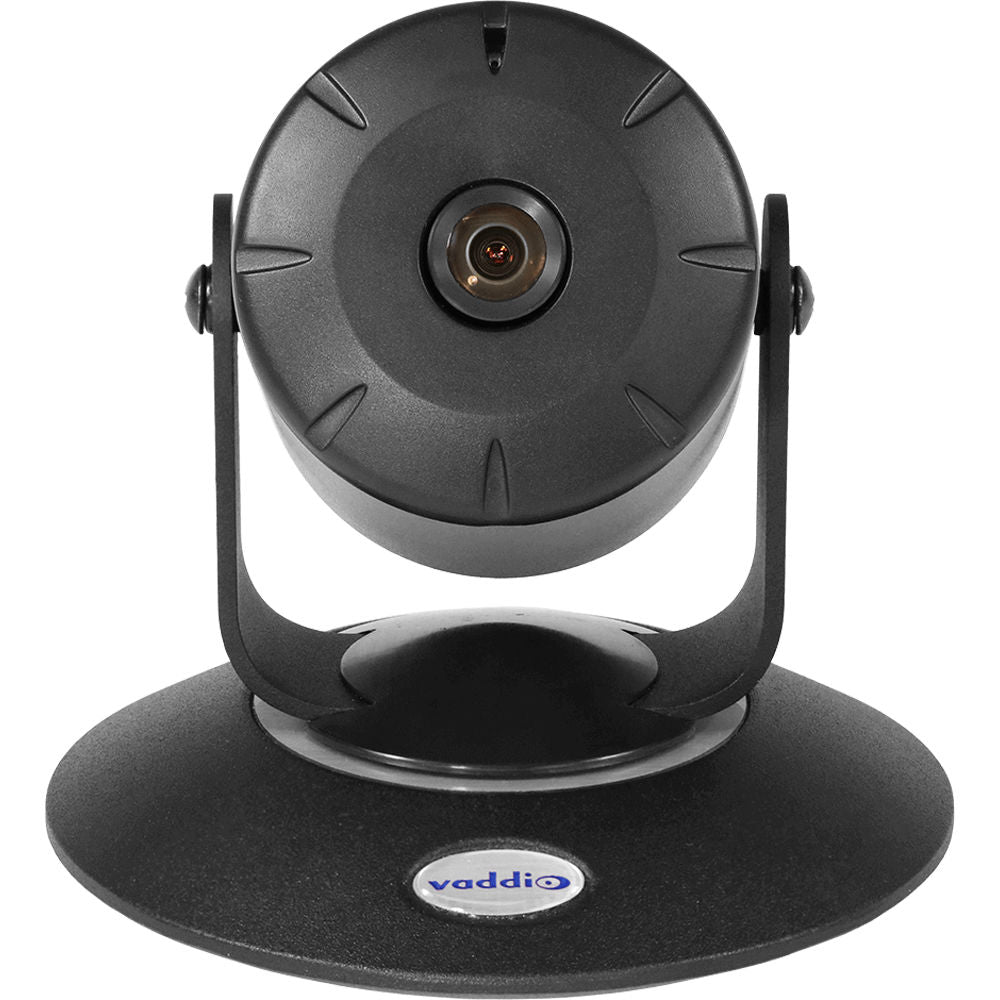

Capture full motion video in a small UC conference room or executive office with the WideSHOT SE QMini IP Camera System from Vaddio. The fixed camera has a wide horizontal field of view of 111° in a 16:9 HD format, a fixed lens with 3x digital zoom, and offers manual pan/tilt positioning. The 1/2" CMOS image sensor allows you to shoot a wide scene in dimly lit auditoriums.

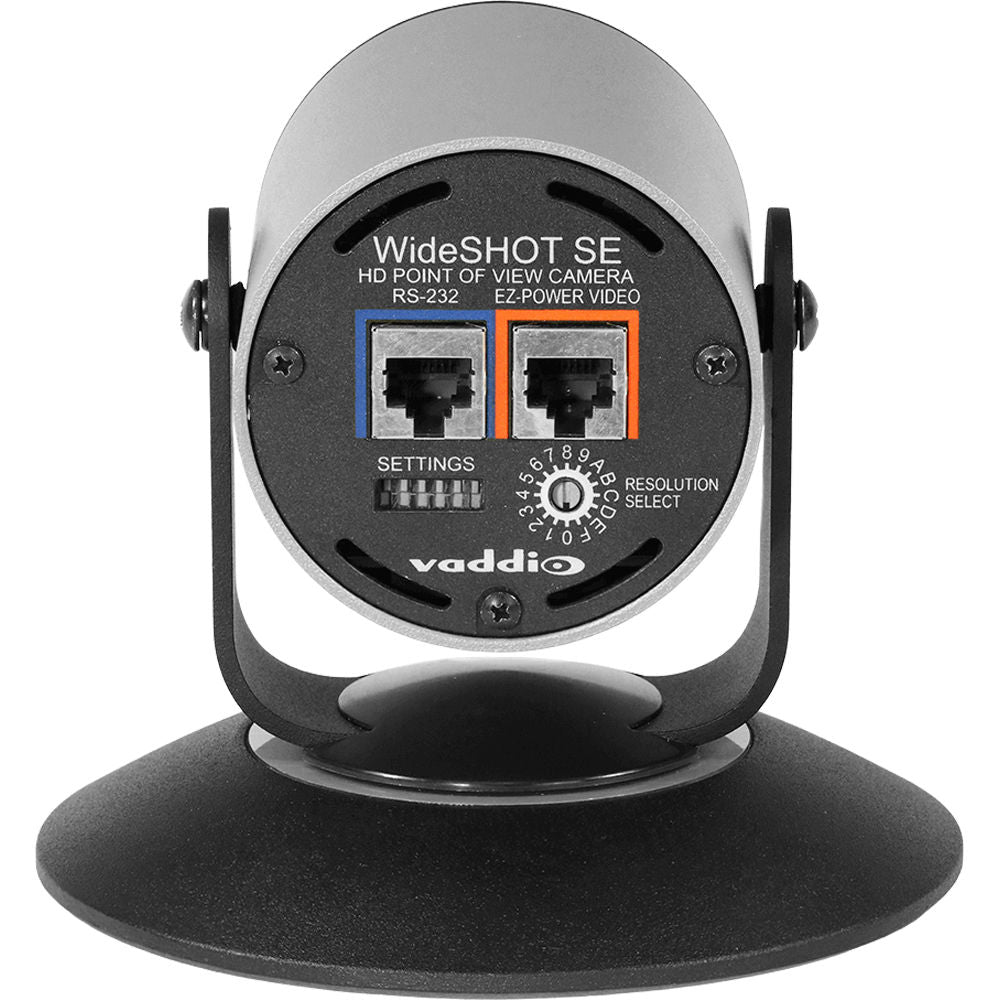

The camera uses the Vaddio EZCamera Cat 5 wiring standard for video, power, and control. Using the Vaddio HSDS video outputs over Cat 5 cable, the WideSHOT SE supplies video at resolutions up to 1080p/60 that are selectable from the rear panel. Choose between three IR frequencies for the IR Remote Commander to allow multiple cameras to be locally controlled with a single remote control. The camera also provides an OSD for easy setup and basic image control accessible with an IR remote.

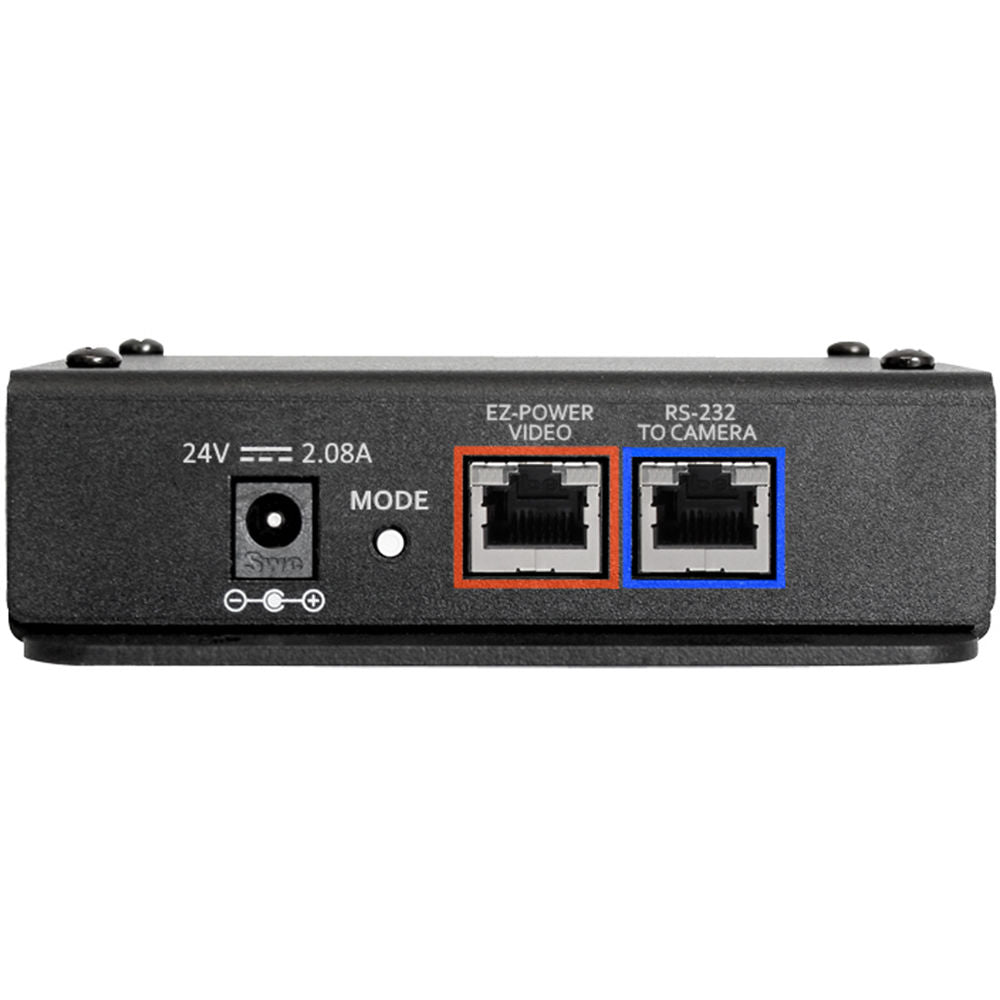

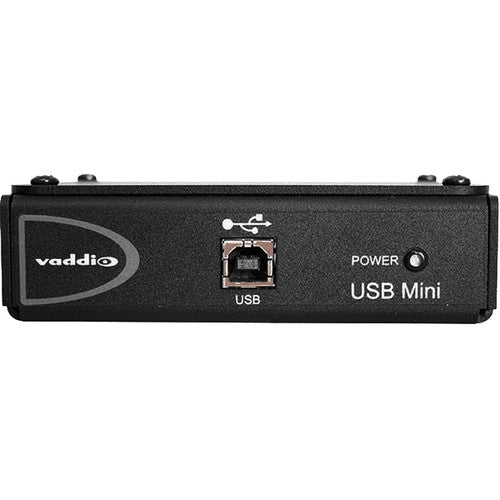

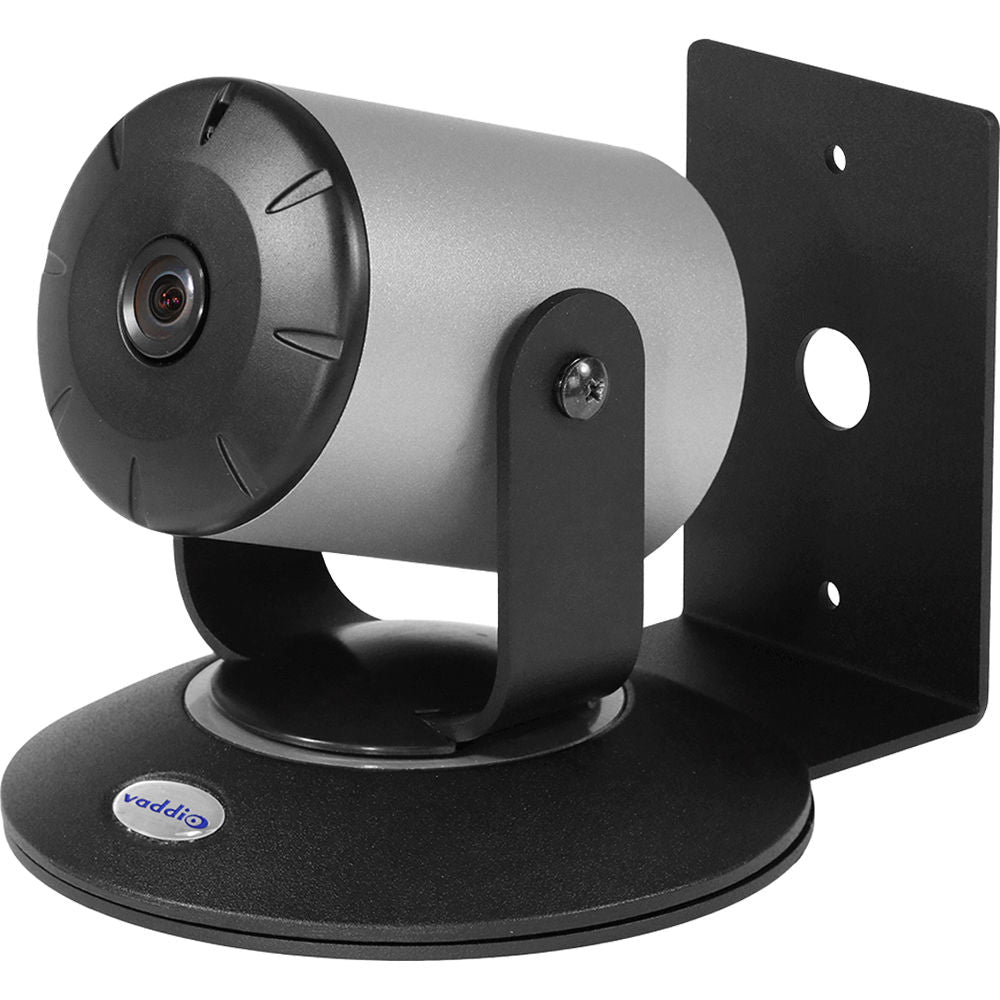

The included Quick-Connect USB Mini interface provides web-based camera control. Simply connect a PC with a USB 2.0 port to the USB Type-B connector on the front panel of the USB Mini, connect the camera Cat 5 and connect the power supply, and the UVC drivers will automatically negotiate the highest possible resolution that the PC, UC application, and USB Mini can provide; up to 720p at 30 fps. An integrated mounting flange is built in for easy under-table or wall mounting.
In the Box

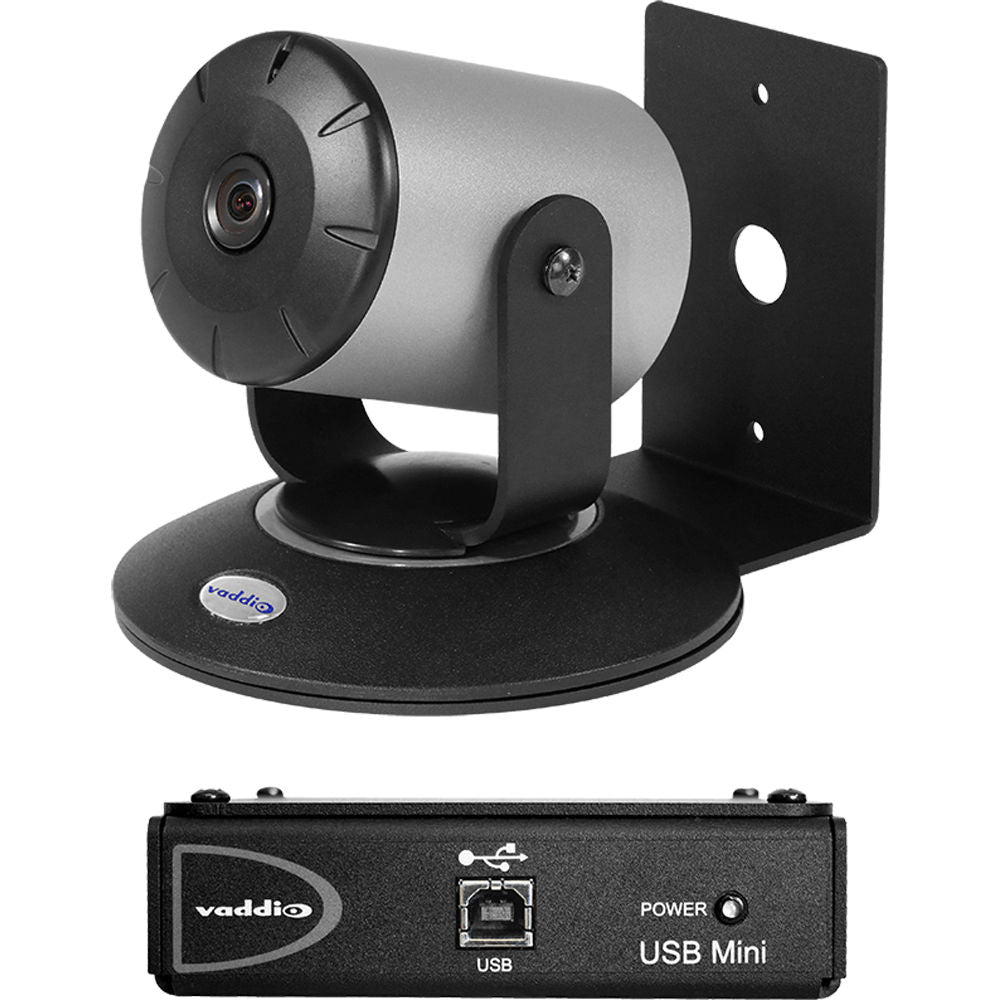

- Vaddio WideSHOT SE QMini IP Camera System
- Thin-Profile Wall Mount
- Vaddio IR Shot Commander Remote
- Limited 2-Year Warranty
- 2 x AAA Batteries
- 2 x 1-5/8" Nylon Self-Drilling Drywall Anchors
- 2 x #8 x 1.25" Sheet Metal Screws
- 2 x Black Oxide 1/4-20 x 1/2" Pan Head Screws
- Quick-Connect USB Mini Interface
- 24 VDC 2.08A Power Supply and Power Cable
- 6' USB 2.0 Type-A to Type-B Cable
Vaddio WideSHOT SE Specs
| Image Sensor | 1/2" CMOS |
| Resolution | 2.4 MP Total 2.1 MP Active |
| Video Output Resolution (HD) | 1080 at 59.94, 50, 30, and 25 fps 1080i at 59.94 and 50 fps 720p at 59.94 and 50 fps |
| Video Output Resolution (Standard) | 480p at 59.94 fps 576p at 50 fps |
| Lens | 3x Digital Zoom, Fixed Focus |
| Horizontal Viewing Angle | 111° Wide 95° Tele |
| Video S/N Ratio | >50 dB |
| Minimum Illumination | 0.2 Lux |
| Serial Control | RS-232, 9600 Baud |
| Pan/Tilt | Pan - Limited to Service Loop of Cabling, Yoke, and Base are Mechanical Tilt -30 to 30° Invertible for Ceiling Mount |
| Tally Light | Red LED through RS-232 Control |
| Connectors | 1 x RJ45, EZ-Power VIDEO on Shielded RJ45F 1 x RJ45, RS-232 on Shielded RJ45F 1 x USB 2.0 on Type-B Female 1 x 5.5 mm OD x 2.5 mm ID Coaxial Connector at 24 VDC, 2.0 A |
| Controls | IR SHOT Commander and RS-232 OSD |
| Material of Construction | Aluminum and Steel |
| Weight | Camera: 2.25 lb / 1.02 kg Quick-Connect USB Mini Interface: 1.12 lb / 0.51 kg |
| Dimension L x W x H | Camera: 4 x 5.5 x 5.5" / 101.6 x 139.7 x 139.7 mm Quick-Connect USB Mini Interface: 3.125 x 1.125 x 4.5" / 79.38 x 28.6 x 114.3 mm, Not Including Flange |
| Warranty | Limited 2-Year Warranty |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
