Description
Vaddio EasyUSB Overview
- 1Description
- 2EasyUSB Mixer/Amp
- 3Two CeilingMICs 360° Overhead Microphones
- 4Two 40W Speakers for Clear Sound Anywhere in the Room

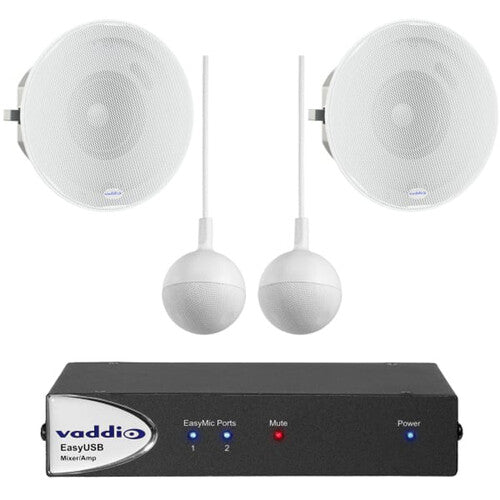

The Vaddio USB Audio Bundle video-conferencing system delivers crystal-clear audio that enhances the productivity of distance meetings in medium-size rooms and executive offices. The system comes with all the equipment and accessories needed for cloud-based audio collaboration using your preferred platform, such as Microsoft Teams, YouTube, Facebook Live, Webex, Zoom, and more�just connect your Mac or Windows computer via USB and you're ready to work.
The USB Audio Bundle includes two white CeilingMIC overhead microphones with full 360° coverage, automatic echo cancellation, and automatic gain control (AGC) for natural-sounding conversations with high speech intelligibility from anywhere in the room. The two white Vaddio 4" ceiling speakers connect to the EasyUSB Mixer/Amp's two 20W built-in amplifiers to provide clear sound distribution to all participants. The overhead microphones and recessed speakers cleanly and discreetly blend in with most of today's drop ceilings, conferring a professional look to your meeting room.

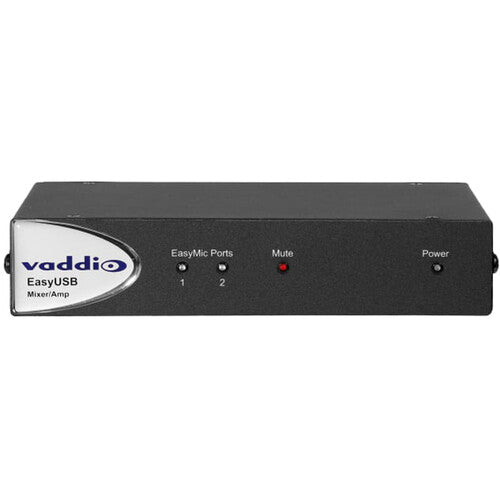

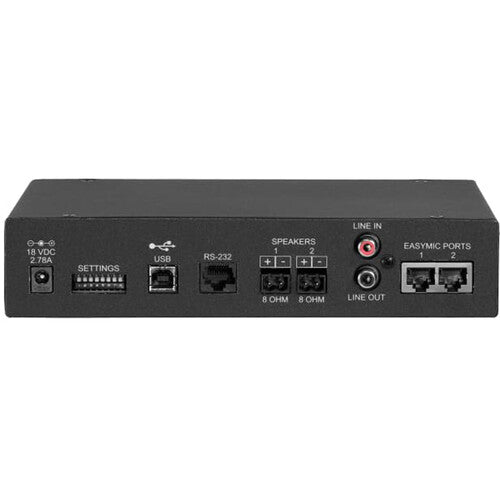

EasyUSB Mixer/Amp
- This is an integrated audio mixer that includes a 2 X 20W amplifier and line-level audio input/output for connection to other AV equipment within the room.
- The two CeilingMICs microphones interface directly to the EasyUSB Mixer/Amp using standard Cat 5 cables

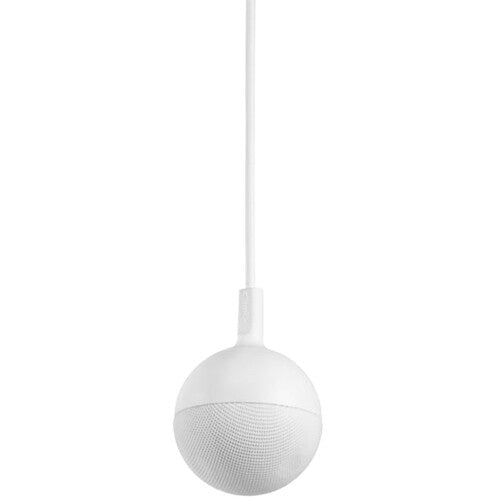

Two CeilingMICs 360° Overhead Microphones
- CeilingMIC microphones deliver professional audio quality for a superior conferencing experience. These overhead microphones offer a clutter-free alternative to tabletop microphones.
- Each mic is equipped with integrated echo cancellation and Digital Signal Processing (DSP), including equalization, filtering, and automatic gain control (AGC) for clear and natural sound.

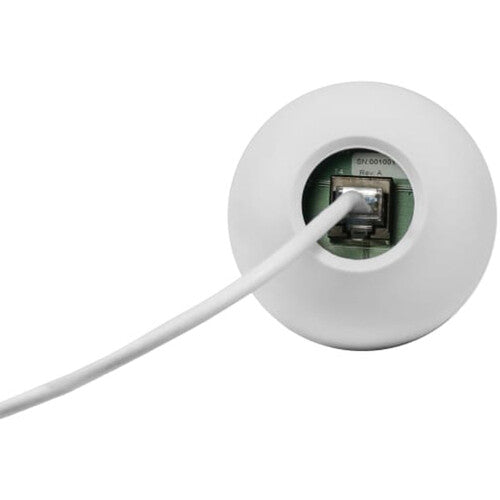

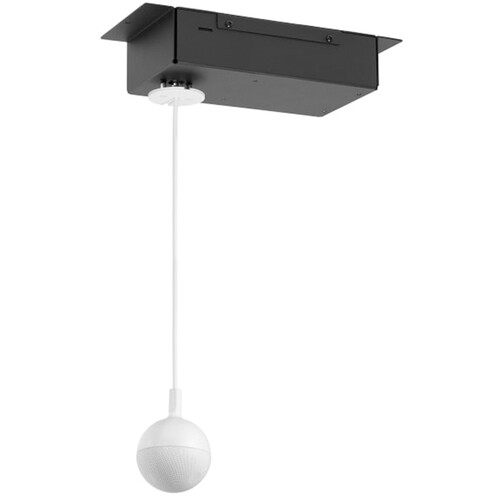

- With its plug-and-play design, installation is as simple as connecting a Cat 5 cable between the host device's EasyMIC port and the CeilingMIC microphone interface box (up to 100').
- Power, control, and audio are all carried over a single cable.

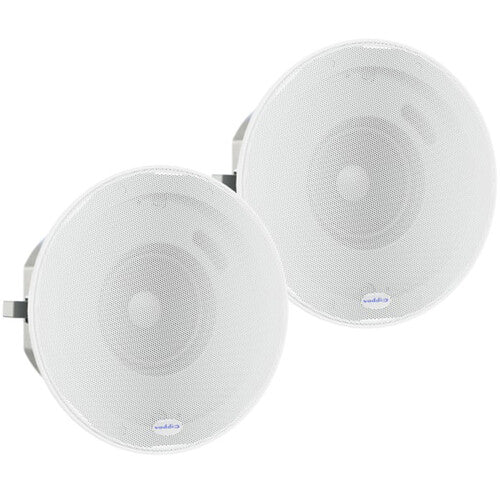

Two 40W Speakers for Clear Sound Anywhere in the Room
- The Vaddio Ceiling Speakers accurately reproduce audio from presentations and conference calls, and are optimized so voices sound clear and natural.
- The 2-way speakers are built with a specially designed, coaxially mounted cone tweeter and a high-performance 4" metalized cone woofer with a rubber driver surround for long-lasting use.
- The flush-mounting speakers can be installed in the ceiling or wall and come with a lightweight ceiling tile brace.
- The air-sealed steel enclosure features a recessed cable cavity and a removable Euro-style plug. Removing the magnetic, neutral white metal grill reveals convenient baffle-located screws to secure the swivel-out mounting tabs.
UPC: 840077506995
In the Box
- Vaddio USB Audio Bundle Audio-Conferencing System (White)
- Vaddio EasyUSB Mixer/Amp
- 2 x CeilingMIC Microphones (White)
- 2 x Vaddio Ceiling Speakers (White)
- 2 x Silicone Split Strain Relief Boots (White)
- 2 x CeilingMIC Interface Boxes
- 4 x Ceiling Trim Ring Plates with Mounting Screws (White)
- 2 x Ceiling Tile Braces for CeilingMIC Interface Box
- 2 x Ceiling Tile Braces for Speakers
- 2 x Euro-Style 4-Pin Audio Connectors
- 2 x 3' Cat 5 Cables (White)
- 2 x Cable Clamp Grommets
- 2 x Stainless-Steel Safety Cables with Steel Carabiner Clips
- 4 x Rubber Feet for Bottom of EasyUSB Mixer/Amp
- 6' USB Type-A to USB Type-B
- EZ Camera RS-232 Control Adapter
- Power Supply with AC Cord
- Limited 3-Year Warranty
Table of Contents
- Description
- EasyUSB Mixer/Amp
- Two CeilingMICs 360° Overhead Microphones
- Two 40W Speakers for Clear Sound Anywhere in the Room
Vaddio EasyUSB Specs
| Audio Specifications | Frequency Response: 20 Hz to 20 kHz Dynamic Range: >90 dB THD + Noise: <0.02% |
| Amplifier | Amplifier Output: 2 X 20 W Impendence: 8 Ohms THD + Noise: <0.2% at 1/3 Power |
| Microphone Inputs | 2 x RJ45 EasyMic Ports |
| Analog Audio Inputs | 1 x RCA Line-Level Input (Unbalanced) Impedance: 10 Kilohms (Unbalanced) Nominal Level: -10 dBu (Unbalanced) |
| Analog Audio Outputs | 1 x RCA Line-Level Output (Unbalanced) Impedance: 10 Kilohms (Unbalanced) Nominal Level: -10 dBu (Unbalanced) |
| Speaker Output | 2 x 2-Pin Molex Euro-Style 5.0mm Terminal Connectors (8 Ohms) |
| USB Port | USB Type-B, Female Type: USB 2.0 Compliant Audio Controls: Mute & Volume HID Controls: On/Off Hook (Application-Dependent) |
| Dip Switches | 8-Position Dip Switch Audio Processing: Mixing Modes, Compressor, Filter, Delay, Updates |
| Serial Control | RS-232, 38.4K Baud |
| LED Indicators | Communications Status, Mute, Power |
| Power | AC Adapter (Included) 18 VDC 275 A |
| Microphone | Frequency Response: 100 Hz to 16 kHz THD + Noise: <0.02% Dynamic Range: >90 dB 360° Coverage Integrated Echo Cancellation Digital Signal Processing (DSP): Equalization, Filtering, Automatic Gain Control (AGC) Maximum Cabling Distance Drop Cable: 15' / 4.6 m Interface Box to Host Device: 100 ft (30 m) Interface Box Dimensions (L x W x H): 10.25 x 4.6 x 2" / 26 x 11.7 x 5.1 cm Microphone Body Dimensions: 2.5" / 6.3 cm (Diameter) Installed Weight: 2 lb / 0.9 kg Cloth-Wrapped Design Color: White |
| Speaker | Power Source: Passive Type" 2-Way Woofer: 4" / 101 mm Max Wattage: 40 W Impedance: 8 Ohms Weight: 5.1 lb / 2.31 kg Height: 6" / 152 mm Grille Diameter: 8.2" / 208 mm Cutout Size: 7.09" / 180 mm Color: White |
| Certifications | CE, FCC, TAA |
