Description

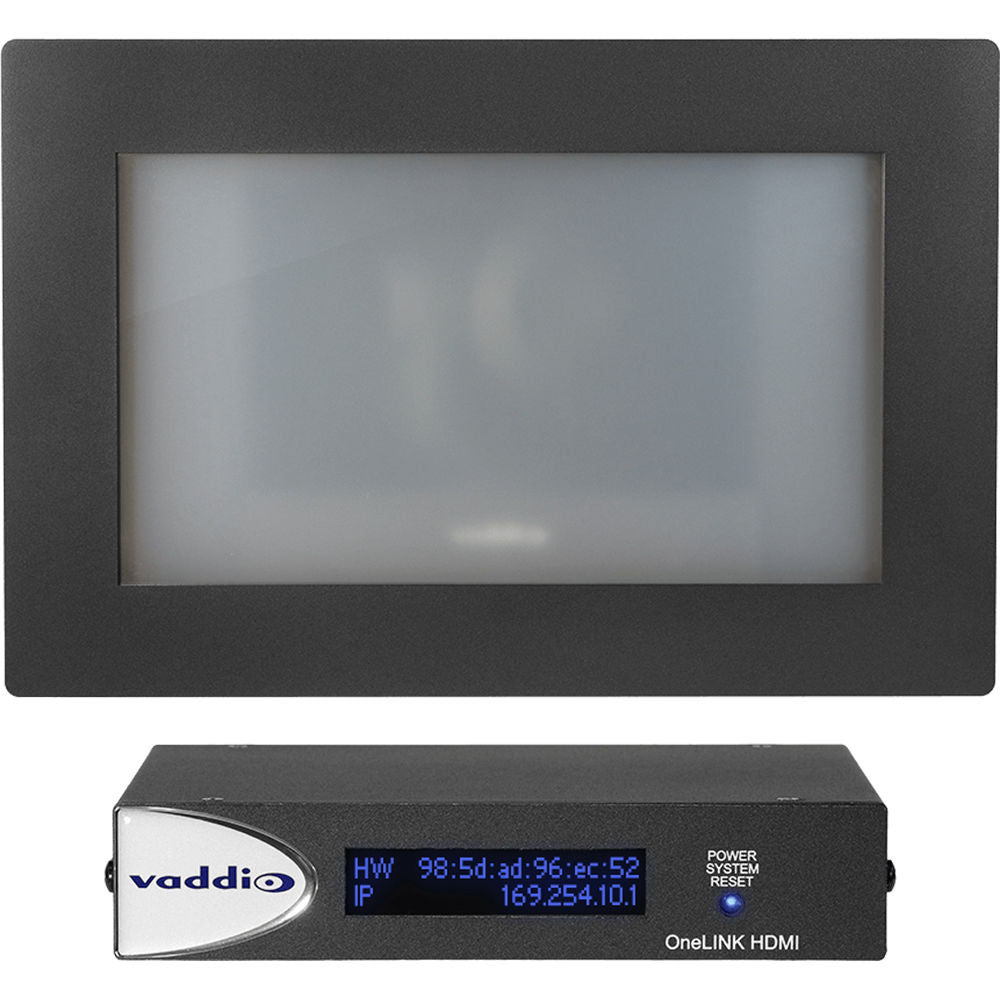

Vaddio RoboSHOT IW Overview
Capture conversations or video conferencing in corporate boardrooms, law offices, or any room setting where interior design is a consideration with the black RoboSHOT In-Wall Smart Glass OneLINK HDMI System from Vaddio. The semi-flush-mounted camera supports up to 1080p at 60 fps resolution and the glass cover changes from a frosted opaque when the camera is off to a transparent, clear glass when the camera is powered on so you know the camera's active status. Paired with the OneLINK HDMI Extension System, you can power, receive HDMI video from, and control your compatible HDBT camera using a single Ethernet cable up to 328' long.

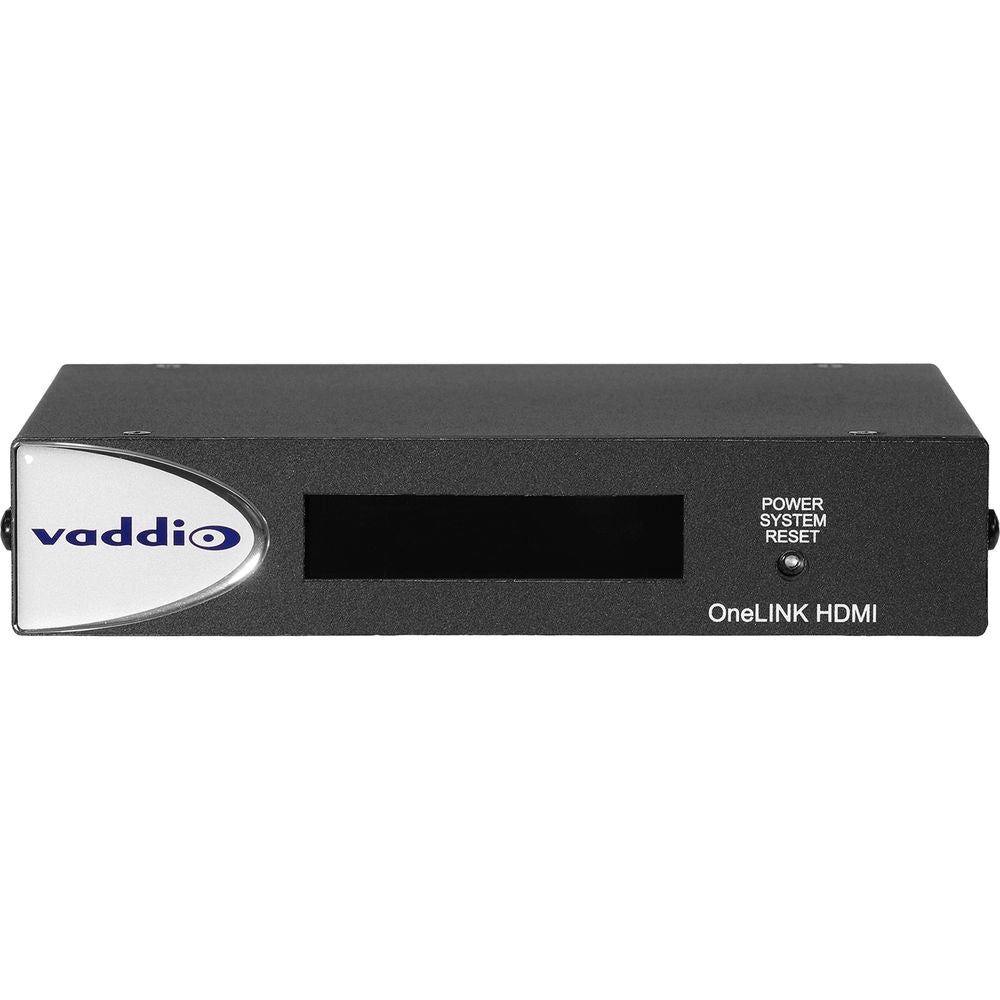

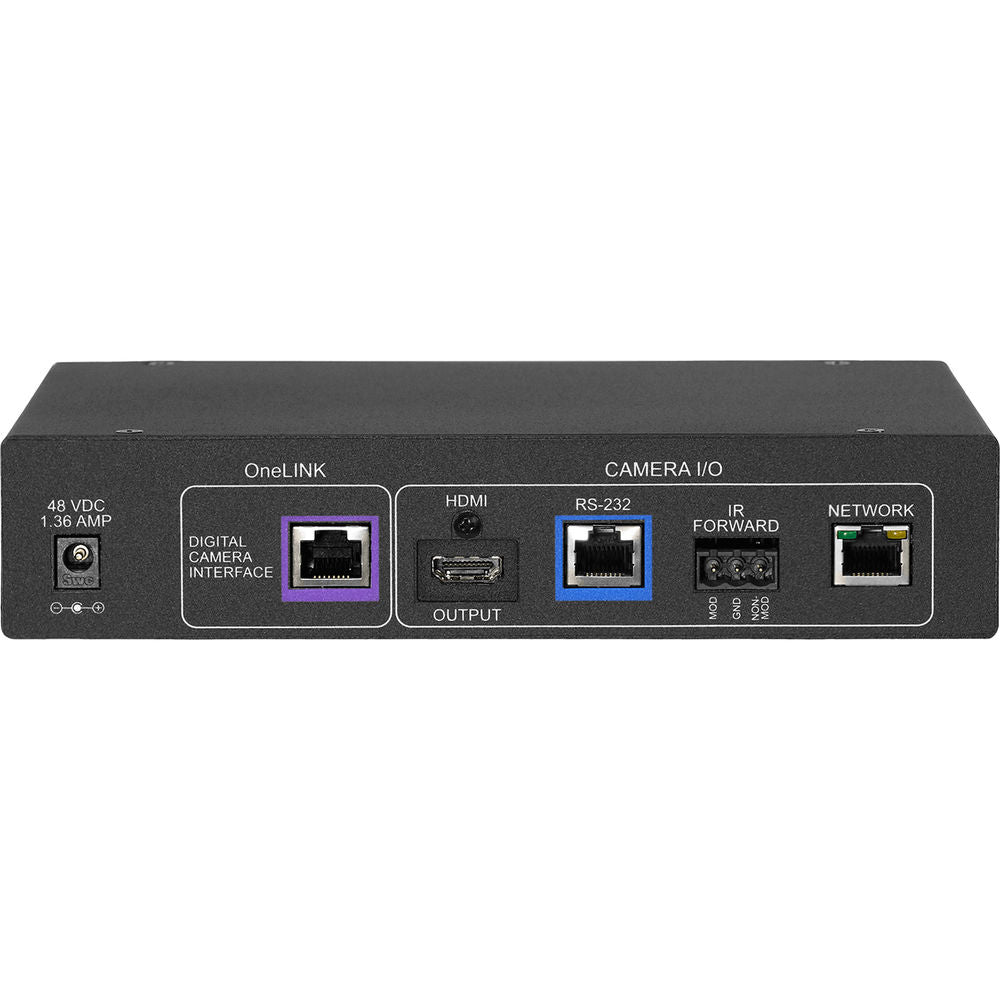

Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
The Vaddio OneLINK HDMI Extension System for HDBaseT Cameras is an interface that allows you to power, receive HDMI video from, and control your compatible HDBT camera using a single Ethernet cable up to 328' long. The interface connects to your network for control, or you can use an RS-232 controller (not included) instead. HDMI video, up to 1080p60, is transmitted from your HDBT compatible camera to the OneLINK interface, from where it is available over a standard HDMI port.
- Video, power, network, and control on a single Cat5e (or better) cable
- Supports cable runs up to 328'
- Works with RoboSHOT UHD HDBaseT cameras
- Bidirectional control via Ethernet and RS-232
- Transmits and receives HDMI video up to 1080p60

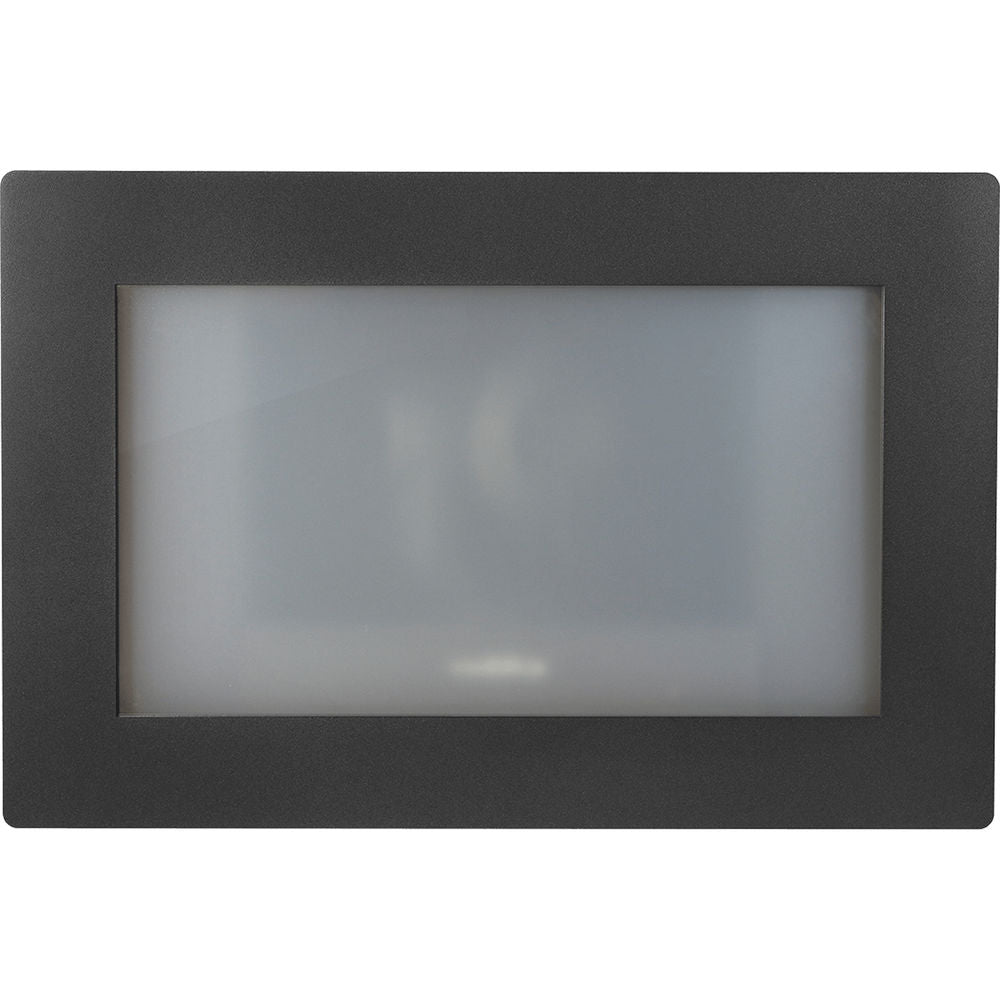

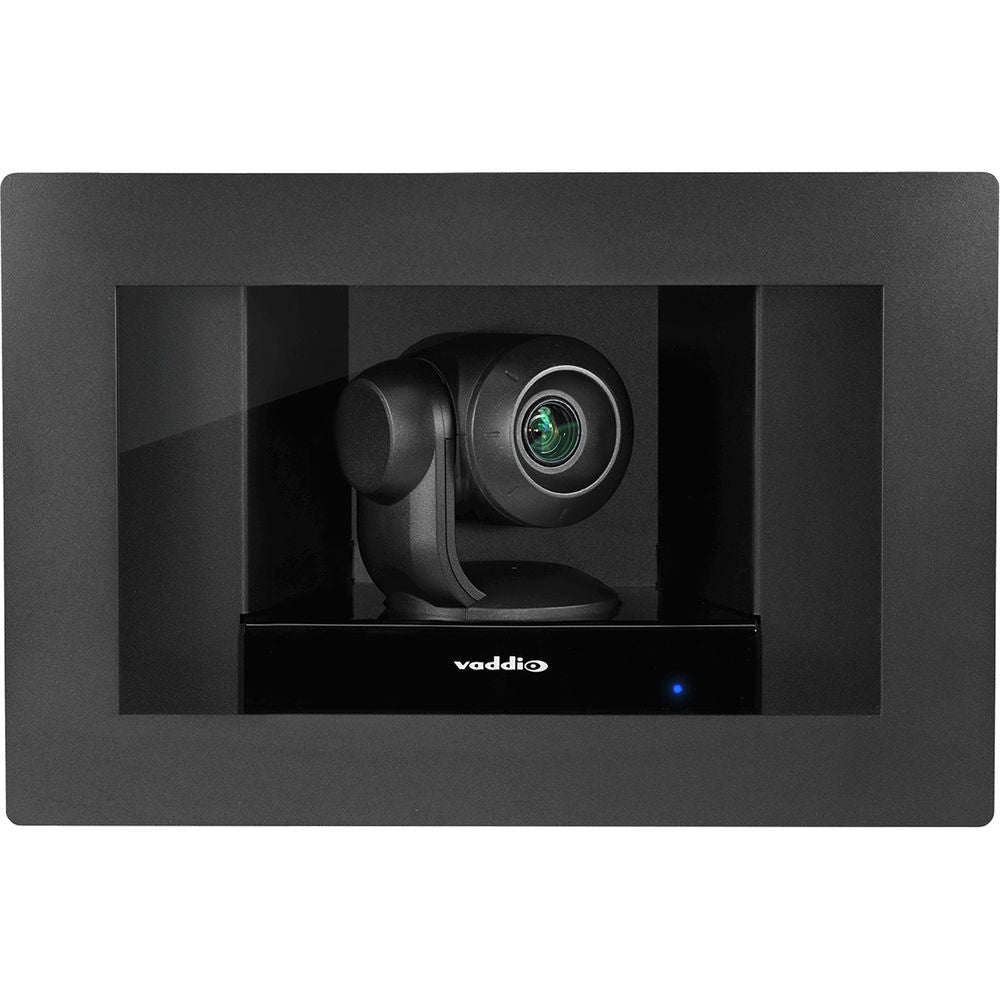

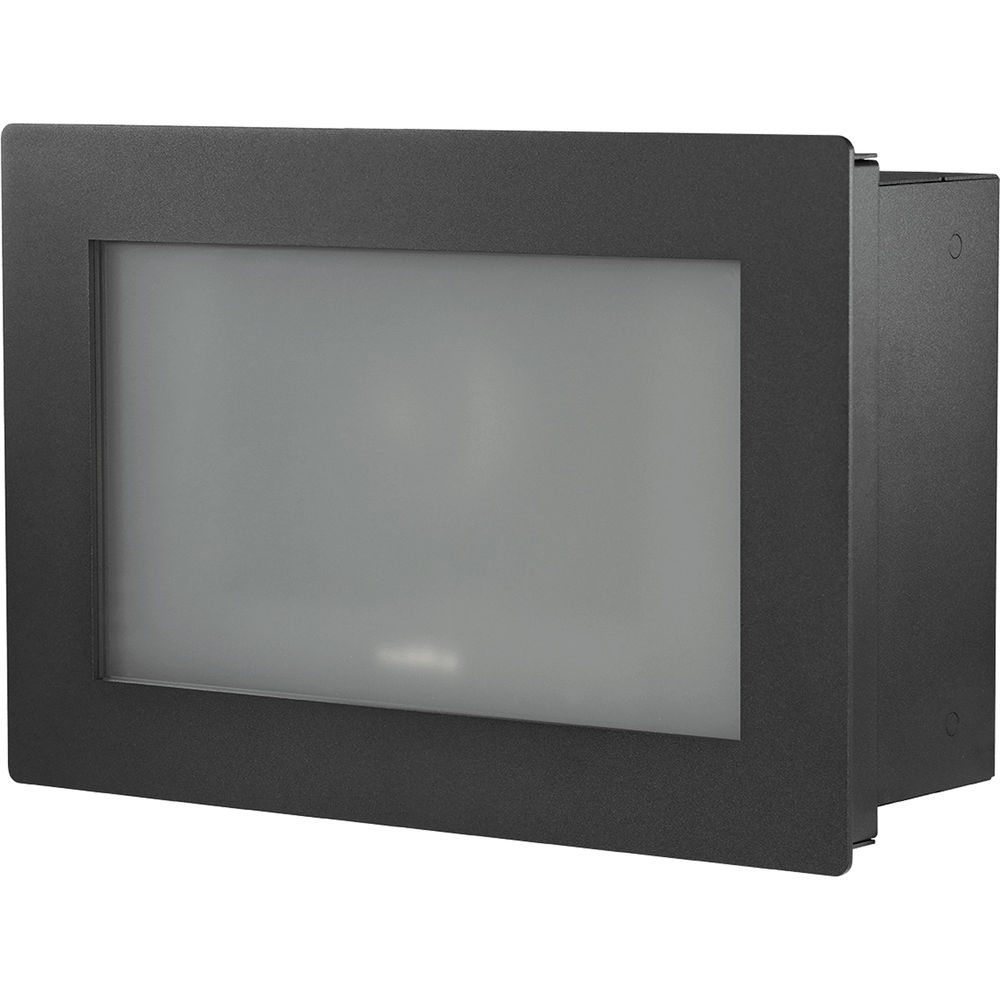

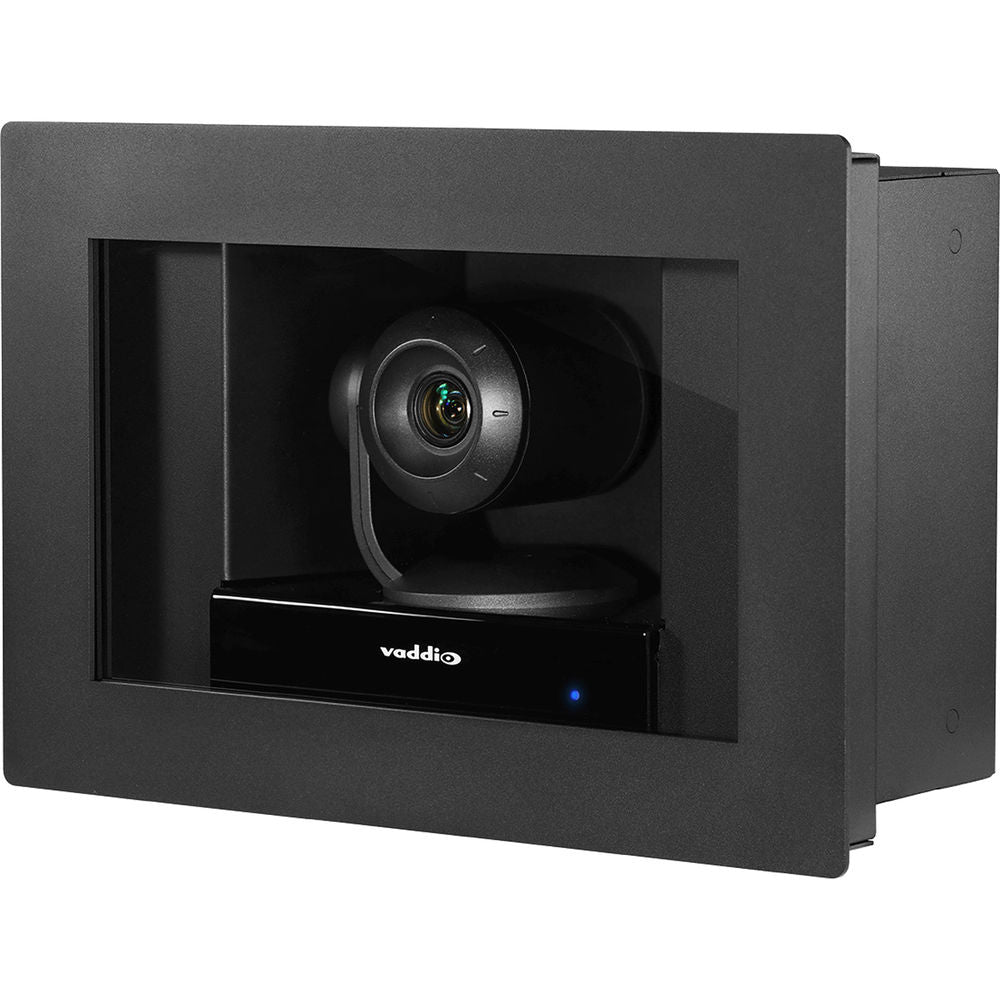

Vaddio RoboSHOT In-Wall Smart Glass PTZ Camera System (Black)
Capture conversations or video conferencing in corporate board rooms, law offices, or any room setting where interior design is a consideration with the black RoboSHOT IW In-Wall HDBT Recessed HD PTZ Camera System from Vaddio. This semi-flush-mounted camera supports up to 1080p at 60 fps resolution and is enclosed behind a tempered safety glass providing protection for high-traffic areas, classrooms, or multipurpose rooms where cameras might be subject to tampering. The glass cover changes from a frosted opaque when the camera is off to a transparent clear glass when the camera is powered on so you know the camera's active status.
The camera features a wide dynamic range with color adjustment and a web-based user interface for camera control. The camera can be powered by a PoE+ network switch, a Midspan power Injector for an IP streaming configuration, or connected to an HDBaseT video switch. The OneLINK system extension provides a variety of video output options such as HD-SDI, HDMI, USB 3.0, and IP streaming.
Compatible Joystick and Video Control Consoles
In the Box
- Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
- 48 VDC, 1.36A Switching Power Supply
- AC Cord Set
- EZCamera RS-232 Control Adapter
- Limited 2-Year Warranty
- Vaddio RoboSHOT In-Wall Smart Glass PTZ Camera System (Black)
- Black Front Frame with Smart Glass
- Interior Side Plate, Right Side
- Interior Side Plate, Left Side
- Fastening and Mounting Hardware for Drywall Installation
- Vaddio IR Remote Commander
- Limited 2-Year Warranty
Vaddio OneLINK HDMI Extension System for HDBaseT Cameras Specs
| Cable Run | Max: 328' / 100 m |
| Power | Input: 48 VDC, 1.36 A To Camera: 12 VDC, 3 A |
| Environmental | Operating/Storage Temperature: 32 to 104°F / 0 to 40°C Humidity: 20 to 80% RH (non-condensing) |
| Dimensions | 1.73 x 8.39 x 5.98" / 44 x 213 x 152 mm |
| Weight | 1.55 lb / 0.7 kg |
| Package Weight | 3.35 lb |
| Box Dimensions (LxWxH) | 12.5 x 9 x 3.3" |
Vaddio RoboSHOT In-Wall Smart Glass PTZ Camera System (Black) Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | 1920 x 1080 (2.1 MP) |
| Signal-to-Noise Ratio | 50 dB |
| Sensitivity | f/1.6 at 0.1 lux (High) |
| Minimum Illumination | 0.4 Lux at 1/30 Shutter Speed |
| Optical Zoom Ratio | 10x |
| Field of View |
Horizontal: 73° Horizontal: 6.6° |
| Minimum Focus Distance | Wide: 0.4" / 1.0 cm Telephoto: 31.5" / 80.0 cm |
| Focus Control | Autofocus Manual Focus |
| Output Formats | RJ45: 1920 x 1080p at 25, 30 fps 1280 x 720p at 25, 30, 60 fps |
| IP Streaming | H.264, RTSP: 1080p, 720p, 480p at 25p, 30p |
| Presets | 16 |
| Movement Range | Pan: 62° (-31 to 31°) Tilt: 48° (-30 to 18°) |
| Supported Control Protocols | IP IR RS-232 VISCA |
| Video Output Connectors | 1 x RJ45 (HDBaseT) |
| PoE Support | Yes |
| Power Connectors | 1 x Proprietary |
| Power Consumption | PoE: 25 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 95% |
| Dimensions | 15 x 10 x 5" / 38.1 x 25.4 x 12.7 cm |
| Weight | 15 lb / 6.8 kg |
