| ₹ 1101790.0 includes GST and import duties. | |
| B2B customers can avail ₹ 168022.98 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Vaddio RoboSHOT 40 Overview

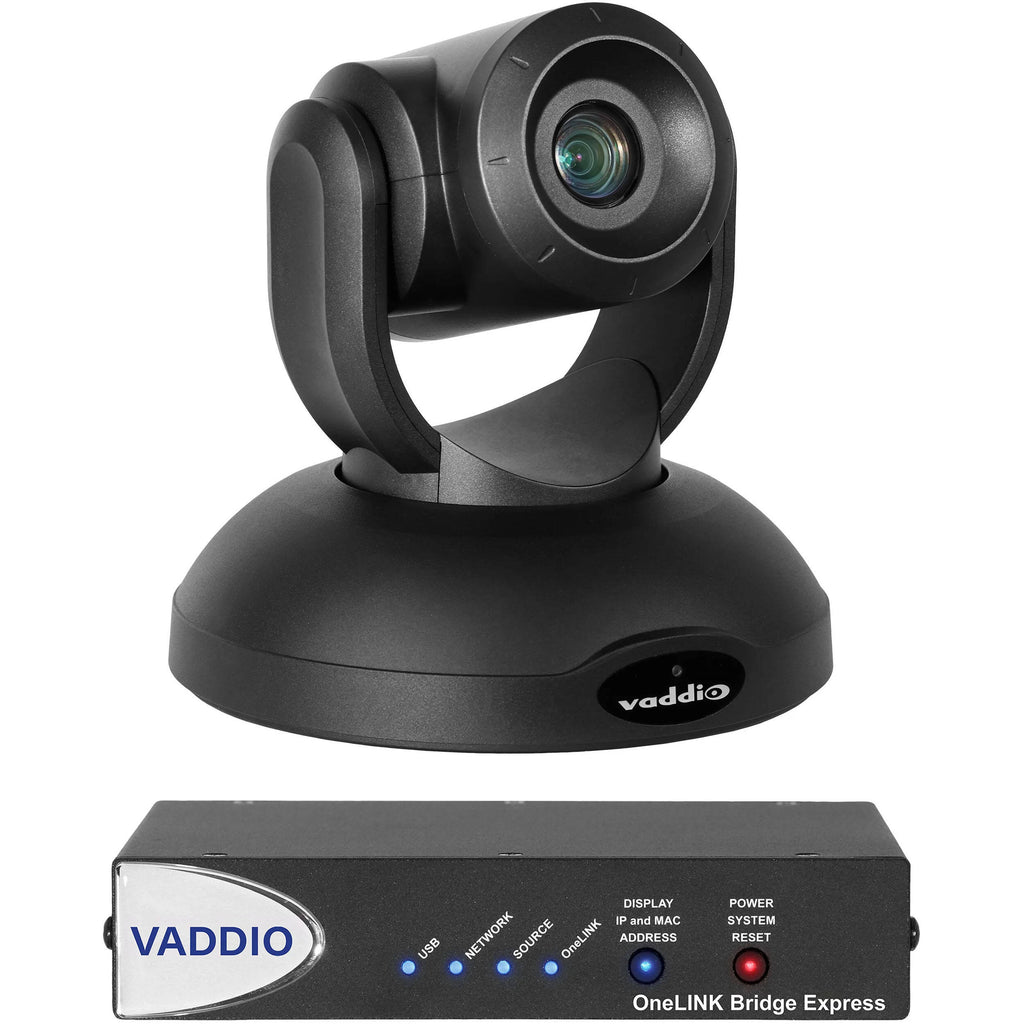

This RoboSHOT 40 UHD 4K OneLINK Bridge Express System from Vaddio combines the black RoboSHOT 40 UHD camera with the OneLINK Bridge Express to extend power, video, and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 40 UHD provides brilliant 4K video footage for broadcasting or live streaming applications as well as 40x zoom, genlock capabilities, ultrasmooth motor movement, and broadcast image quality. The system's OneLINK Bridge Express extends HD video, Ethernet, RS-232, and power up to 328' on a single Cat 6 cable and it can output up to 1080p60 uncompressed video over USB Type-B.

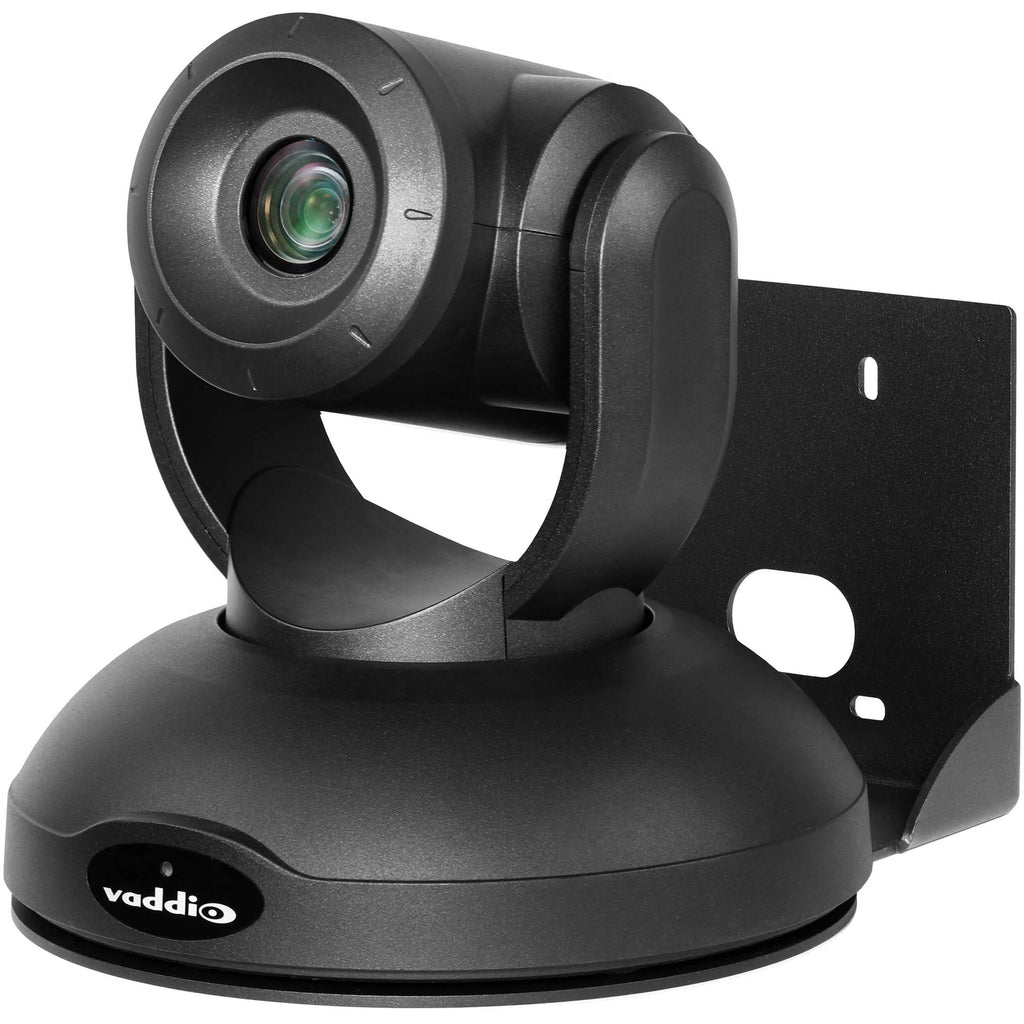

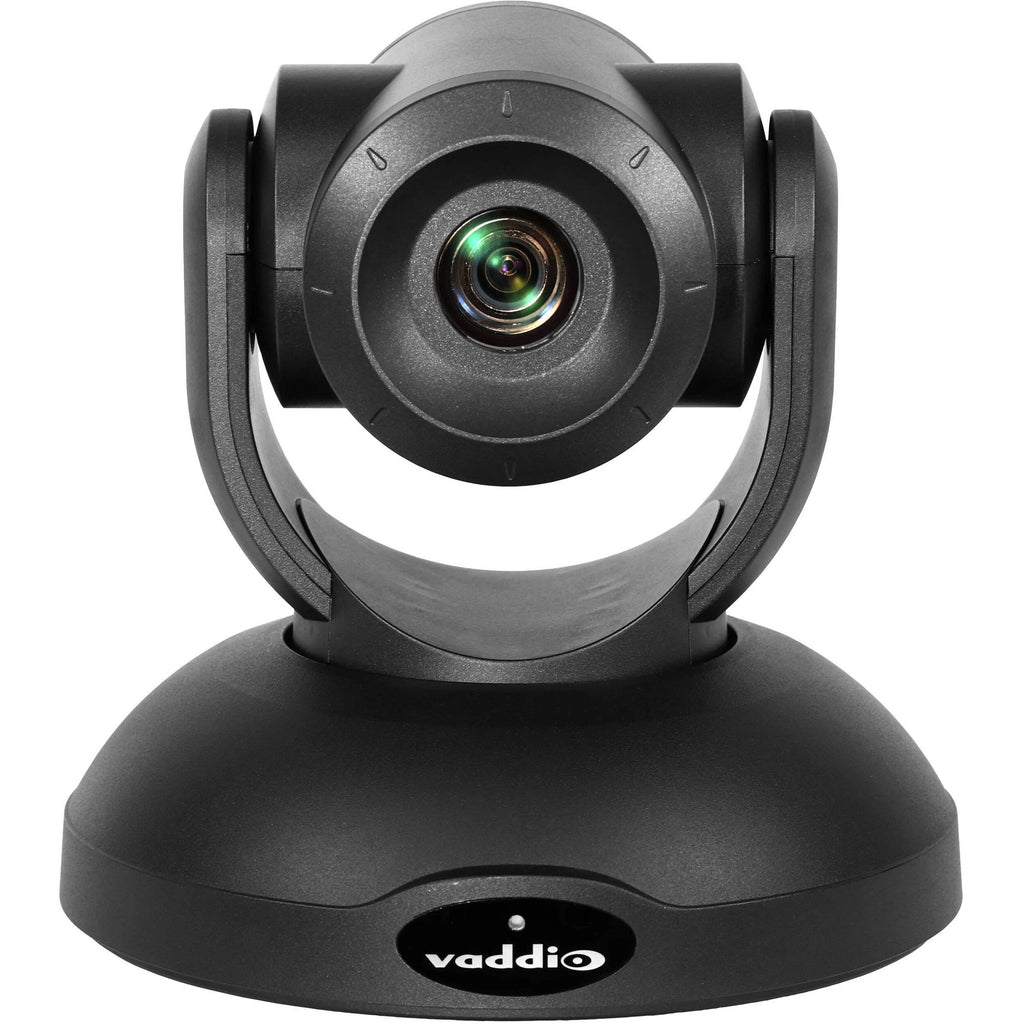

This black RoboSHOT 40 UHD Ultrahigh-Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate, and house of worship. It captures broadcast-quality UHD 4K (3840 x 2160) at 30p or 1080p60 video from a single 1/2.5" type Exmor R sensor. Featuring a 20x optical zoom with 30x lossless zoom in 4K, 40x zoom in HD, the camera has a 70° angle of view at wide, with a 2° angle of view when zoomed in all the way.

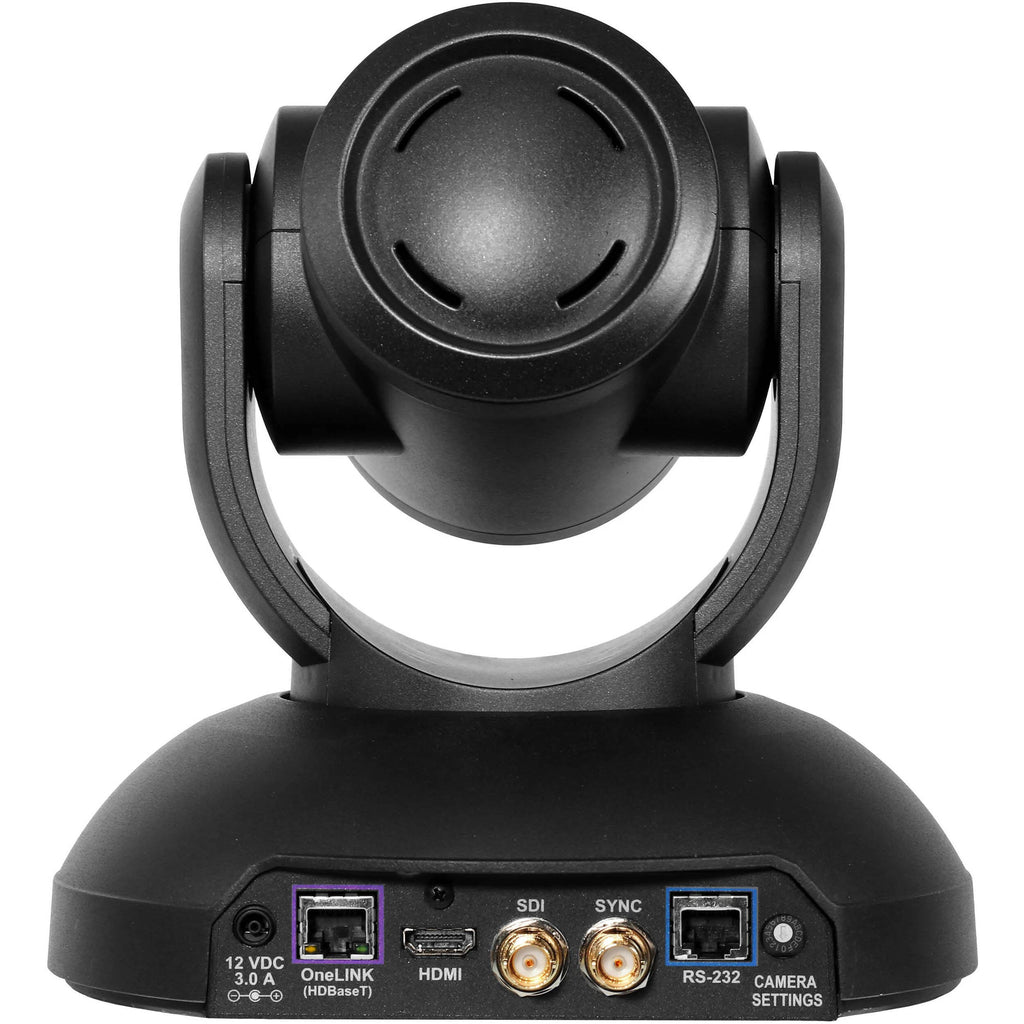

The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. Supporting external genlock makes it easier to integrate the camera into a multi-camera production. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control.

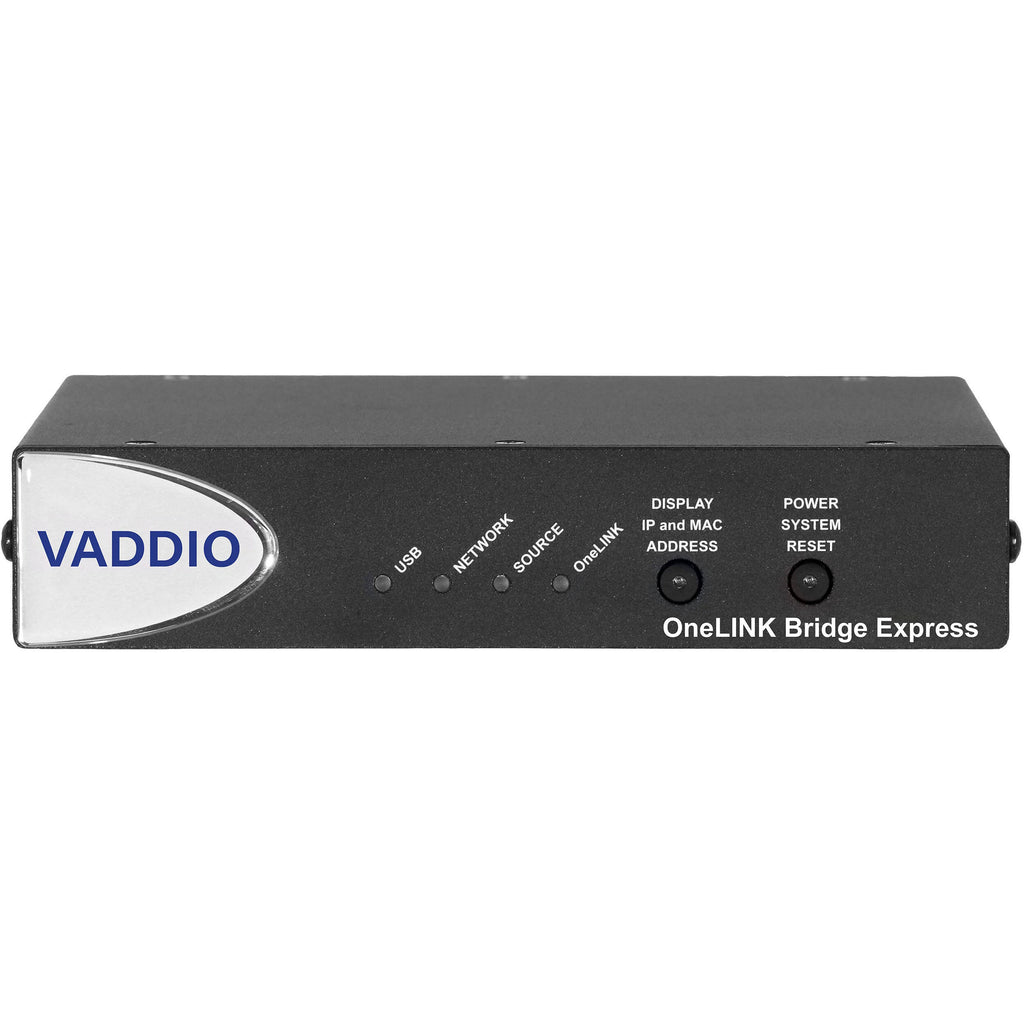

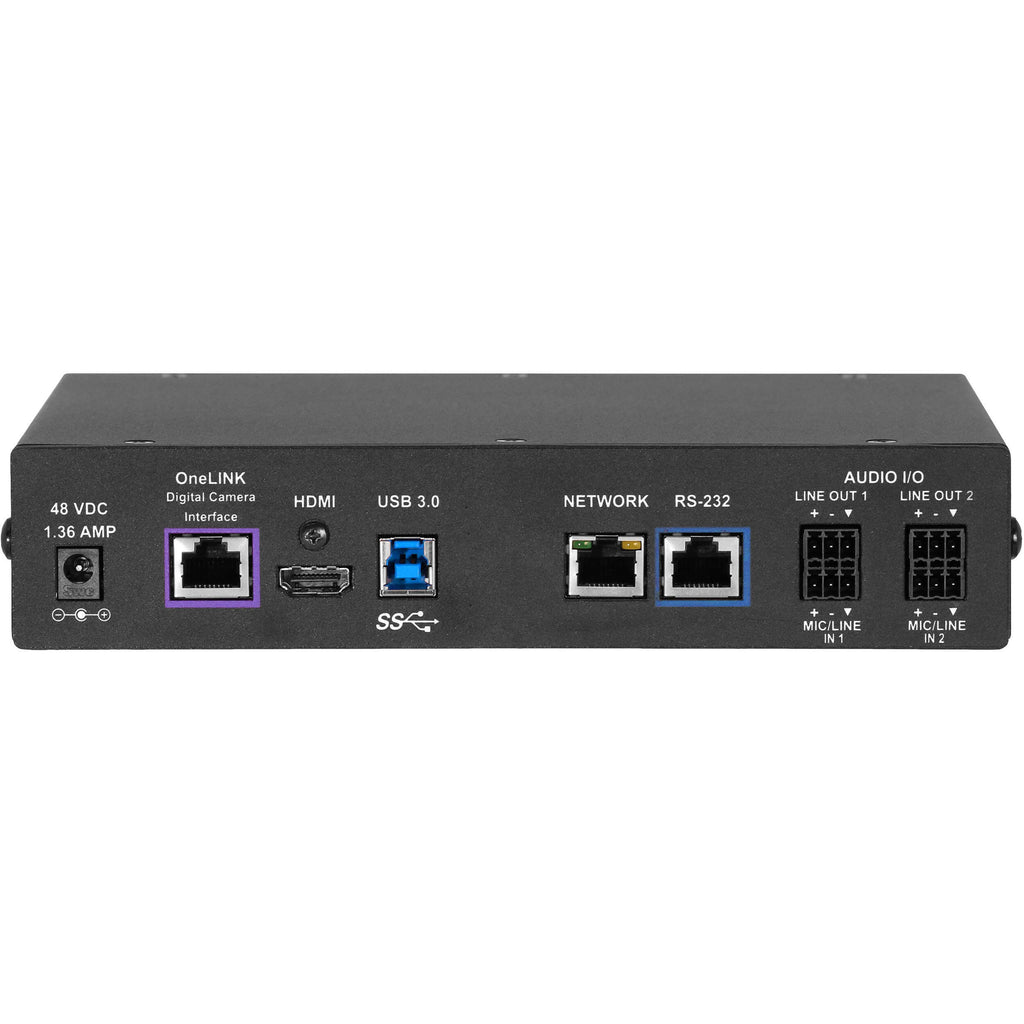

Connect your PTZ camera and analog audio source to a streaming application with the OneLINK Bridge Express from Vaddio. The bridge makes it easy to input PTZ camera video via HDBaseT and output up to 1080p60 video to a USB Type-B port. It can also output video via an HDMI port for monitoring. It also features audio mic/line input and output terminal blocks to input and output balanced analog audio.
The bridge can be used for video conferencing and IP meeting applications in an easy-to-use package. The bridge is powered using its included power adapter and it can input and deliver video over Cat 6 cable over 328' away. It can be controlled via RS-232, telnet, or IP.
In the Box
- Vaddio RoboSHOT 40 UHD Ultrahigh-Definition PTZ Camera (Black)
- Vaddio IR Remote Commander
- AC Adapter with Cord Set
- Thin Profile Wall Mount
- EZCamera RS-232 Control Adapter
- Vaddio OneLINK Bridge Express
- Power Supply
- 4 x 3-Position 3.5mm Phoenix Plug
- USB 3.0 Type-A to Type-B Cable (6')
- RS-232 Adapter
Vaddio RoboSHOT 40 UHD Ultrahigh-Definition PTZ Camera (Black) Specs
| Sensor Type | 1/2.5"-Type CMOS Sensor |
| Sensor Resolution | Effective: 8.51 Megapixel (3840 x 2160) |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Signal-to-Noise Ratio | 50 dB |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 30x ( in UHD 4K) |
| Field of View | 2.05 to 70.2° |
| Maximum Aperture | f/2 |
| External Recording Modes | SDI/BNC 3840 x 2160 HDMI 3840 x 2160 RJ45 3840 x 2160 |
| Broadcast Output | NTSC |
| Presets | 16 |
| Move Speed | Pan: 0.35 to 120°/sec Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 320° (-160 to 160°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP RS-232 |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 (HDBaseT) Output |
| Other I/O | 1 x RJ45 (RS-232) |
| PoE Support | PoE++ 802.3bt |
| Power I/O | 1 x Barrel Input |
| Mobile App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | CE, FCC, TAA *as per Manufacturer |
| Dimensions (W x H x D) | 8 x 7.9 x 5.5" / 20.3 x 20.1 x 14 cm |
| Weight | 6 lb / 2.7 kg |
| Package Weight | 10.325 lb |
| Box Dimensions (LxWxH) | 13.4 x 12.1 x 11.6" |
Vaddio OneLINK Bridge Express Specs
| Compatibility | Vaddio PTZ Cameras Cisco PTZ Cameras Panasonic PTZ Cameras Polycom PTZ Cameras Sony PTZ Cameras Vaddio PTZ Cameras |
| USB I/O | 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Female Output |
| Video I/O | 1 x HDMI Output |
| Audio I/O | 2 x Block 3-Pin Line/Mic Input 2 x Block 3-Pin Line/Mic Output |
| Power Source | AC Input |
| DC Input Power | 48 VDC at 1.36 A |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Dimensions | 8.37 x 6.5 x 1.72" / 21.27 x 16.51 x 4.37 cm |
| Weight | 3.3 lb / 1.5 kg |
| Package Weight | 3.375 lb |
| Box Dimensions (LxWxH) | 12.1 x 9.1 x 3.3" |
Vaddio RoboSHOT 40 Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1079754.2 |
| 3-5 | ₹ 1068736.3 |
| 5-10 | ₹ 1046700.5 |
| 10+ | ₹ 1024664.7 |
Bulk discount will be automatically applied during checkout based on quantity.
