Description
Vaddio RoboSHOT 30E Overview

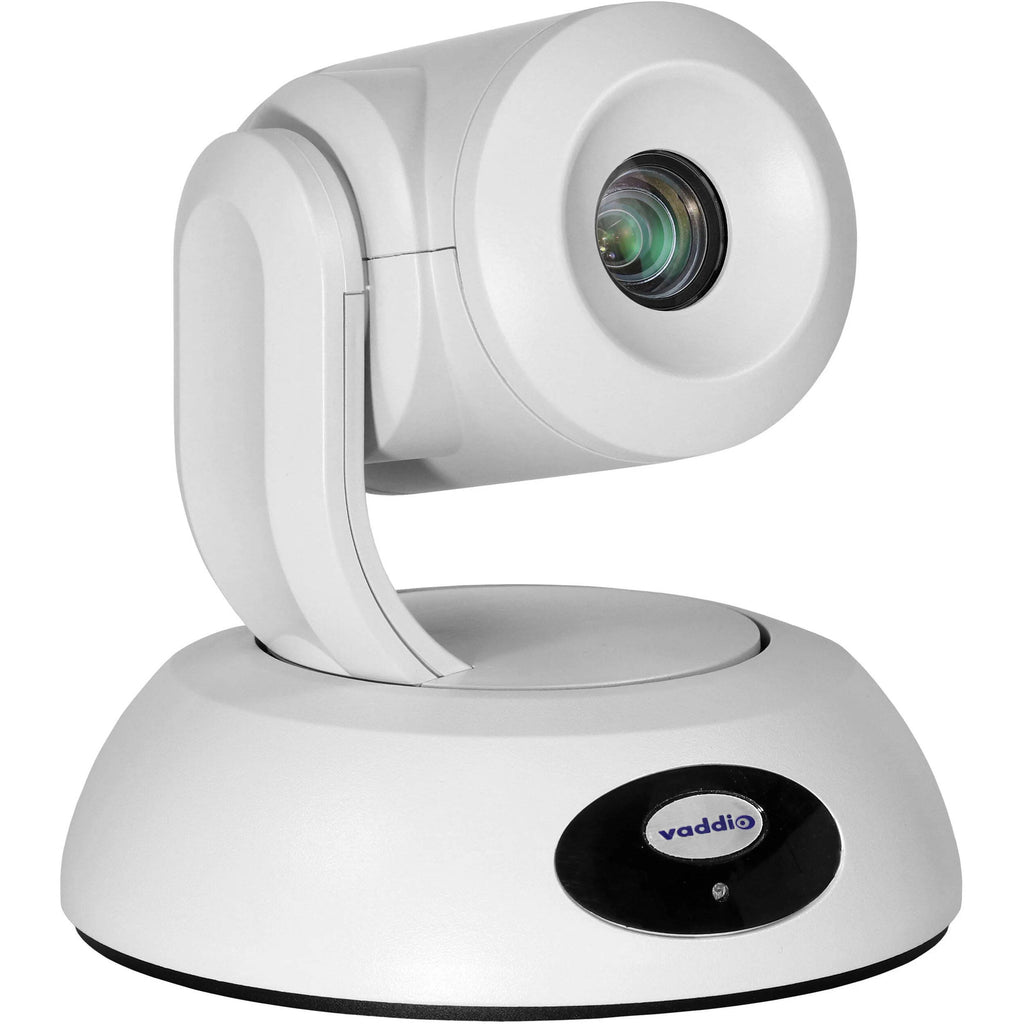

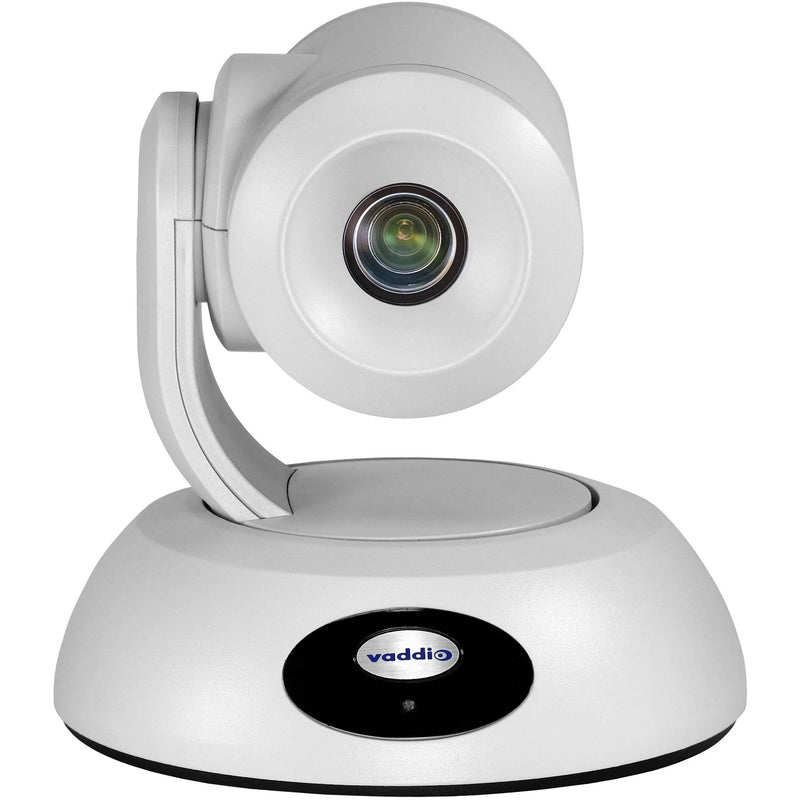

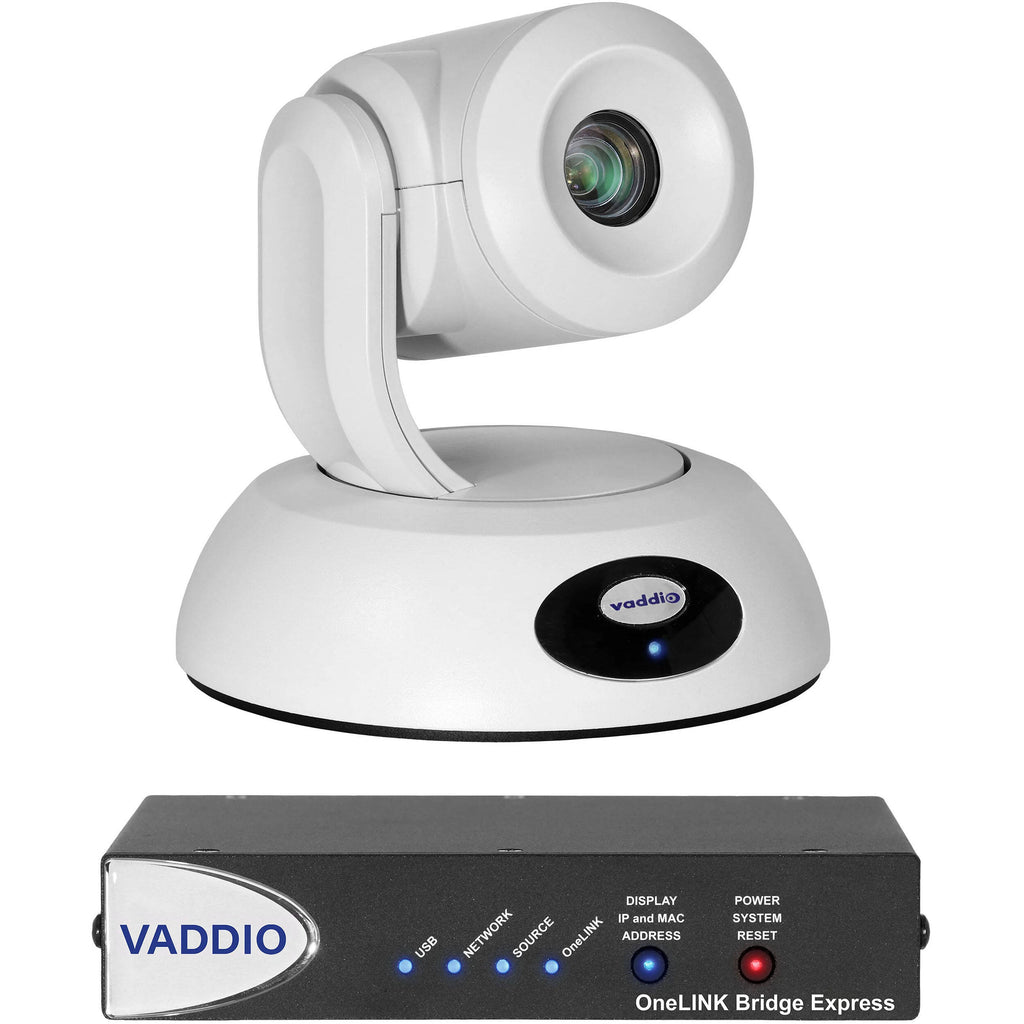

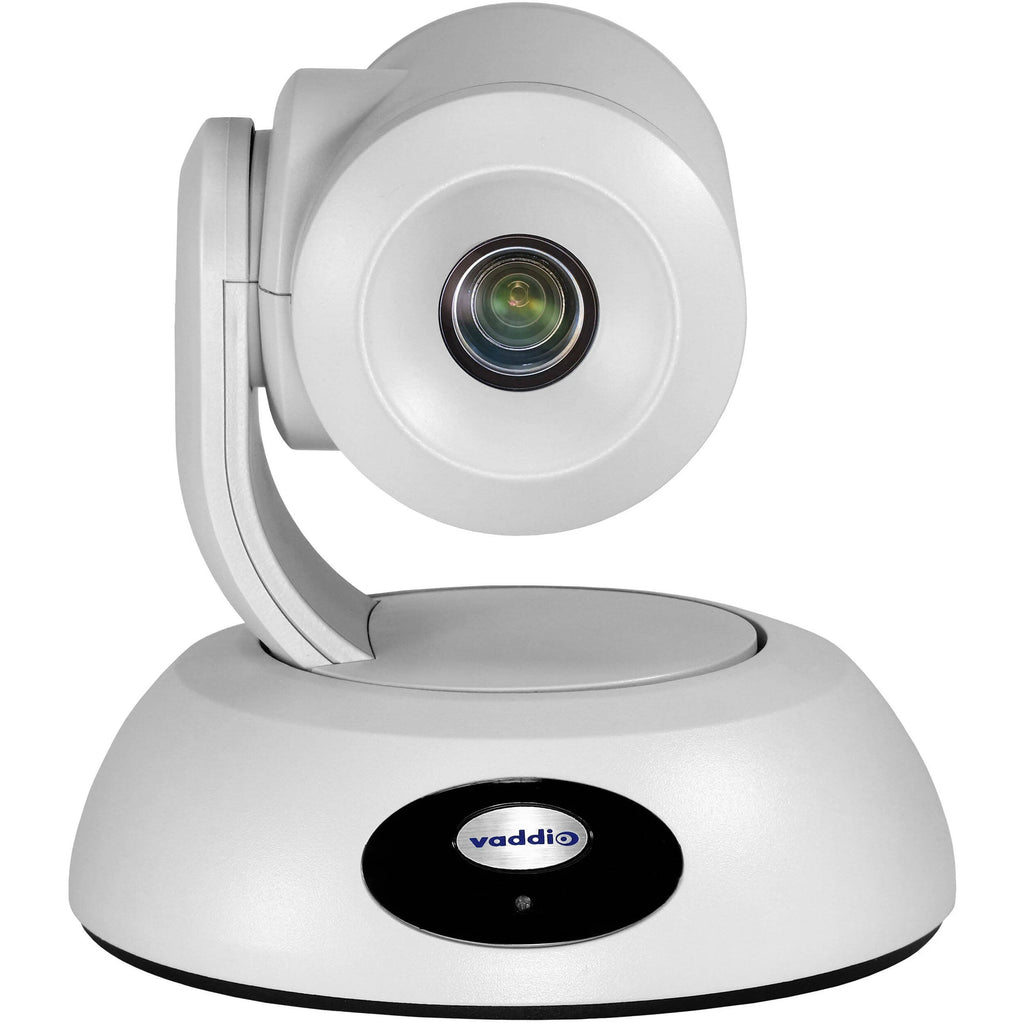

The RoboSHOT 30E HDBT OneLINK Bridge Express System from Vaddio combines a white RoboSHOT 30E HDBT IP Camera System with a OneLINK Bridge Express A/V Interface. The system captures 1080p60 video from a single 1/2.5" type CMOS sensor and transmits it up to 328' over a Cat 5e cable. The combination enables powering the camera, sending control signals, and transmitting video over a single cable.
The PTZ camera features a 30x total zoom with a 70.2° wide horizontal field of view. The OneLINK Bridge Express features HDMI, USB 3.0, and IP streaming video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet.
Capture full motion video in conference rooms, training rooms, and classrooms with the white RoboSHOT 30E HDBT IP Camera System from Vaddio. Designed with 30x total zoom and a 1/2.5" CMOS sensor, the camera delivers high-definition 1080p/60 video resolution. It features image signal processing and a wide dynamic range for enhanced lighting in dimly lit conditions. For smooth and natural motion, the camera features tri-synchronous motion technology allowing all three axes of the camera to move simultaneously. This camera can be controlled via integration-ready Telnet, serial RS-232 control, or an included IR remote control.
The RoboSHOT 12E provides a web-based user interface allowing configuration, management, and control from anywhere in the world over the IP network making this camera ideal for remote management, network operating centers, and overall IT control. Simply enter the camera's streaming URL into any standards-based H.264, RTSP format media player. This camera also allows you to simultaneously stream live events over YouTube, Livestream, and Facebook with the HDBaseT, HDMI, and IP video outputs. To simplify cabling and extend installation distance, you can connect it directly to HDBaseT-compatible devices or pair it with Vaddio OneLINK receivers.
IP (H.264) streaming: 16:9, 3:2, and 4:3

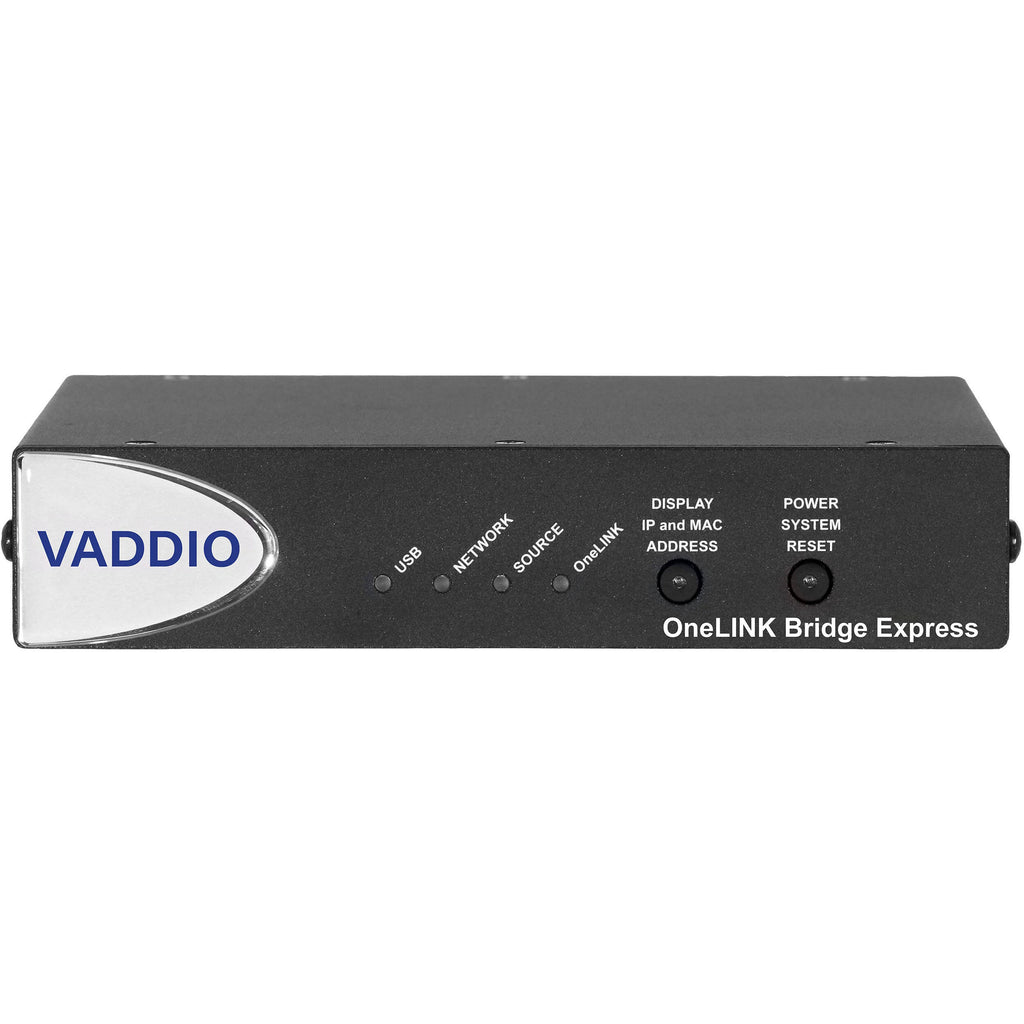

Connect your PTZ camera and analog audio source to a streaming application with the OneLINK Bridge Express from Vaddio. The bridge makes it easy to input PTZ camera video via HDBaseT and output up to 1080p60 video to a USB Type-B port. It can also output video via an HDMI port for monitoring. It also features audio mic/line input and output terminal blocks to input and output balanced analog audio.
The bridge can be used for video conferencing and IP meeting applications in an easy-to-use package. The bridge is powered using its included power adapter and it can input and deliver video over Cat 6 cable over 328' away. It can be controlled via RS-232, telnet, or IP.
In the Box
- Vaddio RoboSHOT 30E HDBT IP Camera System (White)
- PoE+ Midspan Power Injector

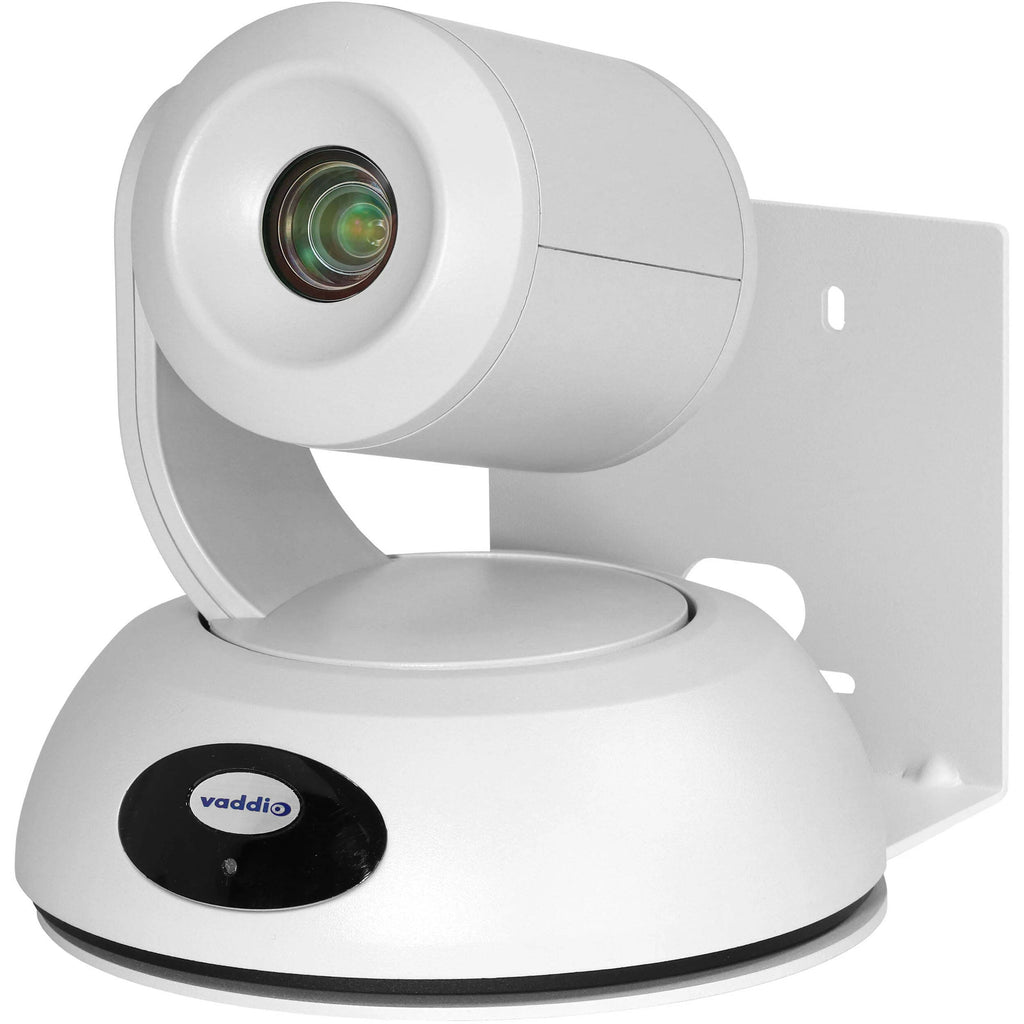

- Thin-Profile White Wall Mount with Mounting Hardware
- IR Remote Commander
- Vaddio OneLINK Bridge Express
- Power Supply
- 4 x 3-Position 3.5mm Phoenix Plug
- USB 3.0 Type-A to Type-B Cable (6')
- RS-232 Adapter
Vaddio RoboSHOT 30E HDBT IP Camera System (White) Specs
| Sensor Type | 1/2.5"-Type CMOS Sensor |
| Sensor Resolution | Effective: 8.51 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1 Second |
| Gain | 0 to 33 dB |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 1.6 Lux |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors |
| Focal Length | 4.4 to 88.4mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 1.5x |
| Field of View | Horizontal: 70.2 to 3.1° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm |
| External Recording Modes | HDMI / RJ45 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, RTMP, RTSP 1920 x 1080 to 352 x 240 |
| Presets | 16 |
| Move Speed | Pan: 0.35 to 120°/sec Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 320° (-160 to 160°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP IR RS-232 |

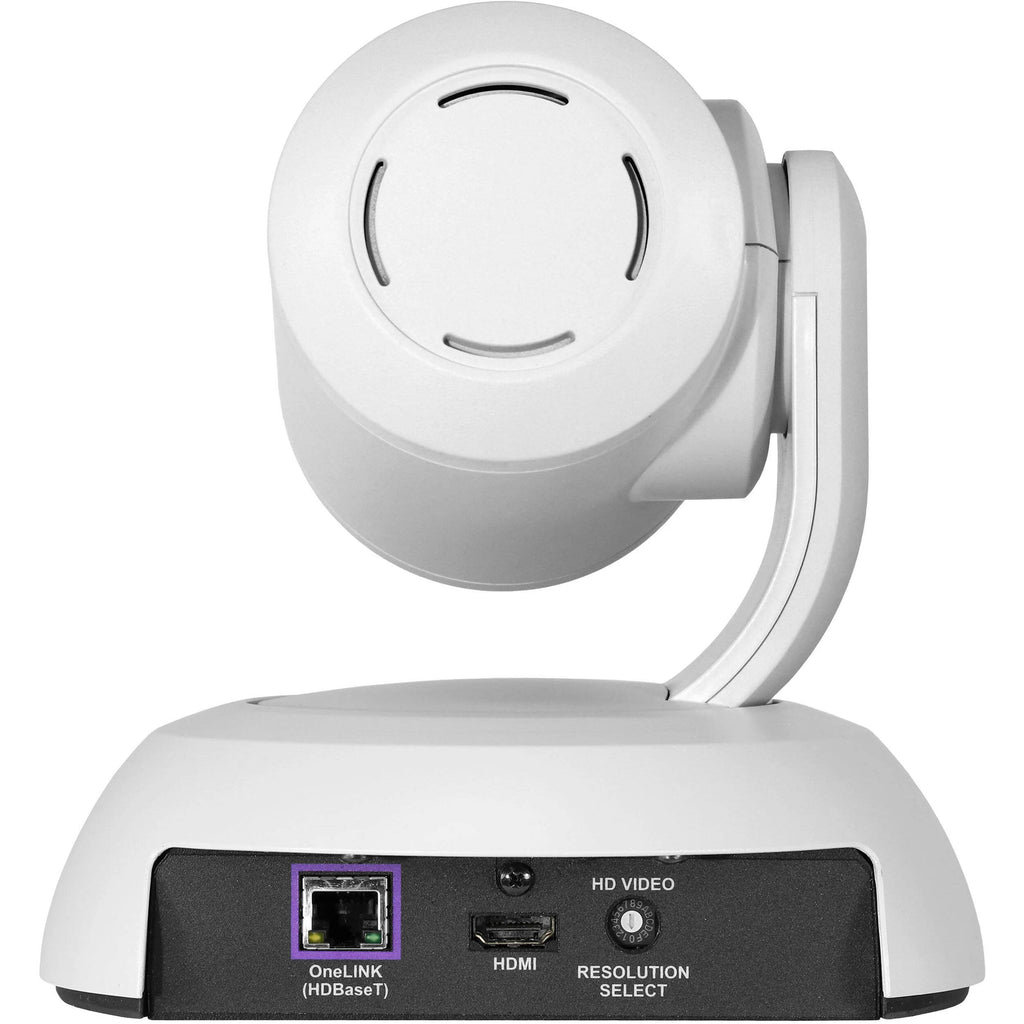

| Video I/O | 1 x RJ45 (HDBaseT) Output 1 x HDMI Output |
| Other I/O | 1 x RJ45 Control Input (Shared with Power Input, Video Output) |
| PoE Support | PoE+ 802.3at |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Certifications | CE, FCC, TAA *as per Manufacturer |
| Dimensions (W x H x D) | 7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.14 cm |
| Weight | 4.85 lb / 2.2 kg |
| Package Weight | 10.3 lb |
| Box Dimensions (LxWxH) | 13.6 x 12.1 x 11.7" |

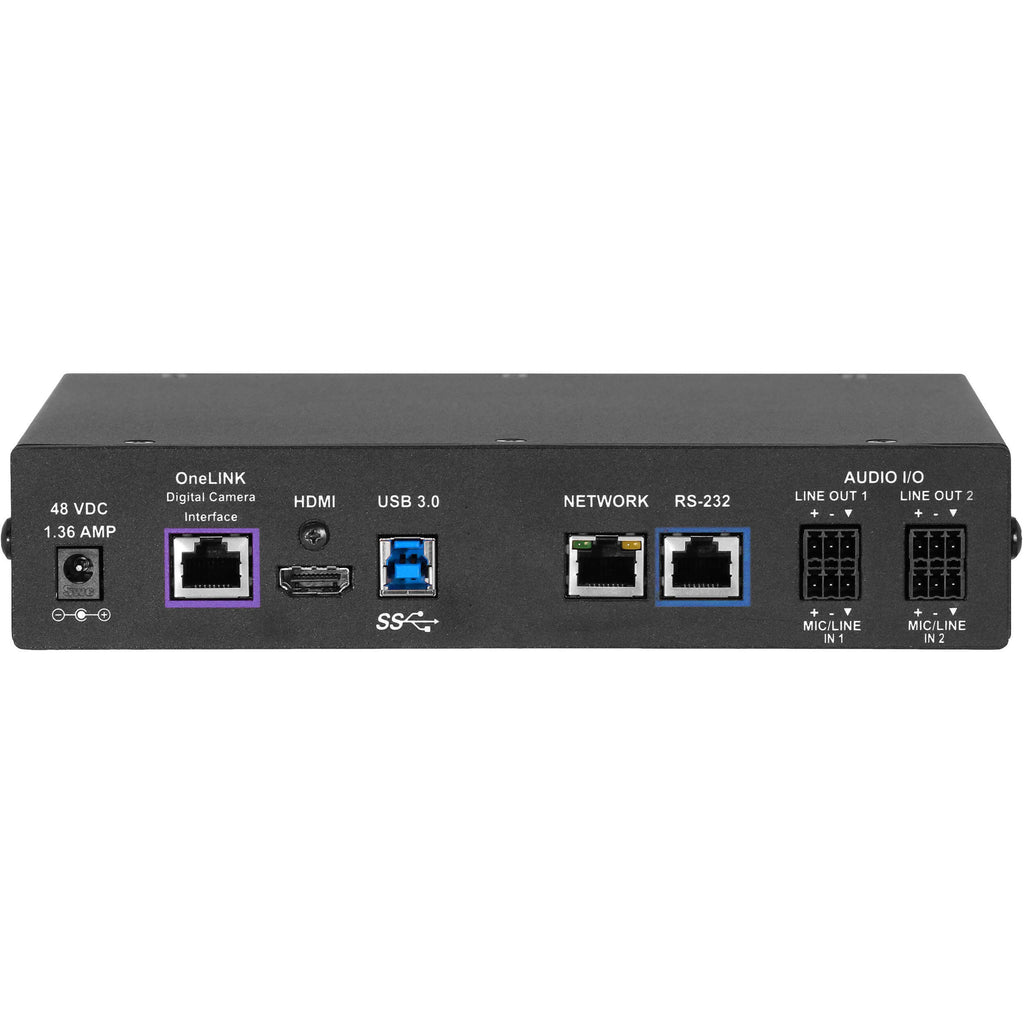

Vaddio OneLINK Bridge Express Specs
| Compatibility | Vaddio PTZ Cameras Cisco PTZ Cameras Panasonic PTZ Cameras Polycom PTZ Cameras Sony PTZ Cameras Vaddio PTZ Cameras |
| USB I/O | 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Female Output |
| Video I/O | 1 x HDMI Output |
| Audio I/O | 2 x Block 3-Pin Line/Mic Input 2 x Block 3-Pin Line/Mic Output |
| Power Source | AC Input |
| DC Input Power | 48 VDC at 1.36 A |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Dimensions | 8.37 x 6.5 x 1.72" / 21.27 x 16.51 x 4.37 cm |
| Weight | 3.3 lb / 1.5 kg |
| Package Weight | 3.375 lb |
| Box Dimensions (LxWxH) | 12.1 x 9.1 x 3.3" |
