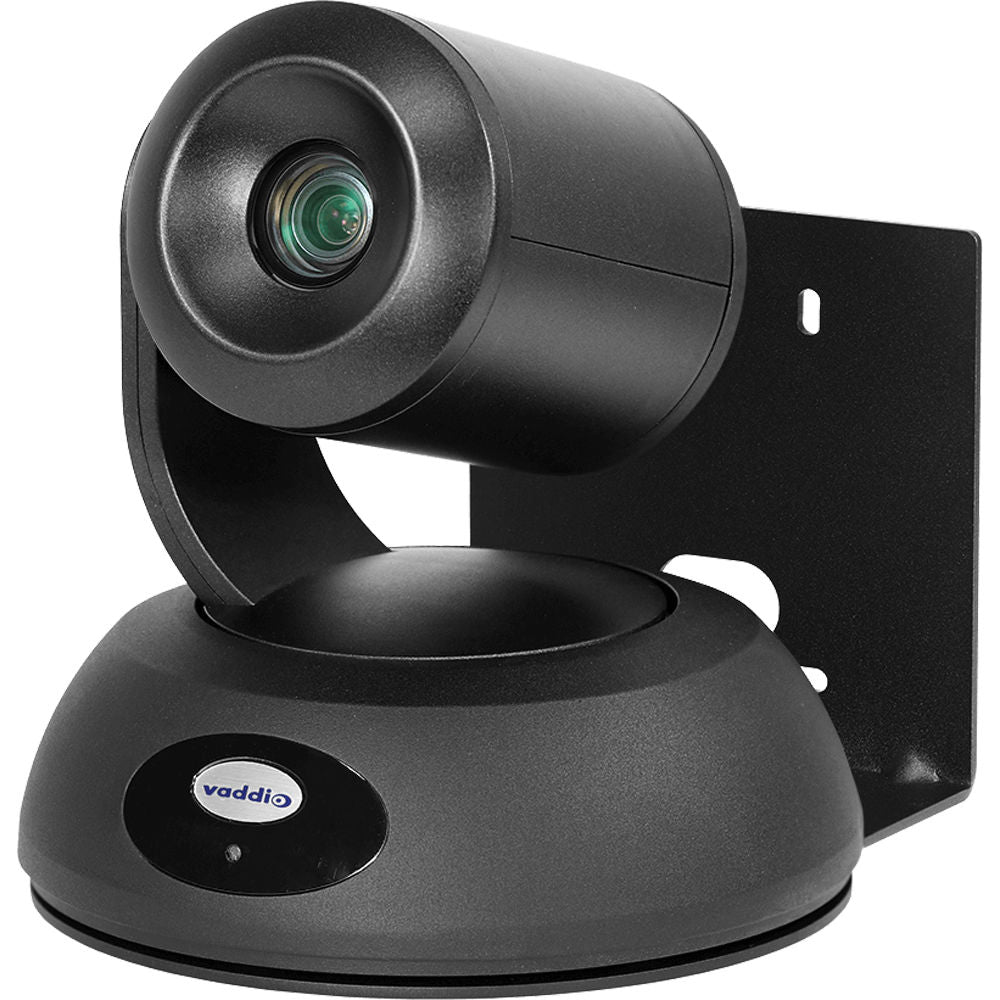

Vaddio RoboSHOT 30E Overview
The black RoboSHOT 30E 1080p PTZ Network Camera from Vaddio features a 1/2.5" Exmor R CMOS sensor that supports video at resolutions up to 1080p at 60 fps. This camera has a 4.4-88.4mm varifocal lens and a horizontal field of view of 70.2-4.1°. Video outputs include simultaneous HDMI and IP (H.264) streaming. This PTZ camera has a 160° pan, a -30 to 90° tilt, a 30x zoom, a 20x optical zoom, and a 10x IntelliZoom. It is powered via PoE+ and is designed for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view. A PoE+ midspan power injector with AC cord set, a thin profile wall mount with mounting hardware, and an IR remote commander are included.
IP streaming (RTSP or RTMP format with H.264 compression) to share live events like lectures or meetings over popular applications like YouTube, Livestream, and Facebook
Web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network
Tri-synchronous motion technology allows all three axes of the camera to move simultaneously for ultrasmooth, natural camera motion
Cutting-edge image signal processing (ISP)
In the Box
- Vaddio RoboSHOT 30E 1080p PTZ Network Camera (Black)
- PoE+ Midspan Power Injector with AC Cord Set
- Thin Profile Wall Mount with Mounting Hardware (Black)
- IR Remote Commander
- Limited 2-Year Warranty
Vaddio RoboSHOT 30E Specs
Image Sensor
| Image Sensor |
1-Chip 1/2.5" CMOS Sensor |
| Sensor Resolution |
1920 x 1080 (8.51 MP) |
| Gain |
0 to 33 dB |
| Signal-to-Noise Ratio |
50 dB |
Camera
| Shutter Speed |
1/1 to 1/10,000 sec |
| Max Digital Zoom |
30x |
Lens
| Optical Zoom Ratio |
20x |
| Focal Length |
4.4 to 88.4mm |
| Field of View |
Horizontal: 70.2 to 4.1° |
| Maximum Aperture |
f/2 to 3.8 |
| Minimum Focus Distance |
Wide: 3.1" / 8.0 cm
Telephoto: 31.5" / 80.0 cm |
| Focus Control |
Autofocus
Manual Focus |
Video Output
| Output Formats |
HDMI: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps |
| IP Streaming |
H.264, RTMP, RTSP: 1080p |
Recording
| Recording Modes |
Not Specified by Manufacturer |
Control
| Presets |
16 |
| Move Speed |
Pan: 0.35 to 120°/sec
Tilt: 0.35 to 120°/sec |
| Movement Range |
Pan: 160°
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols |
IP
IR
RS-232 |

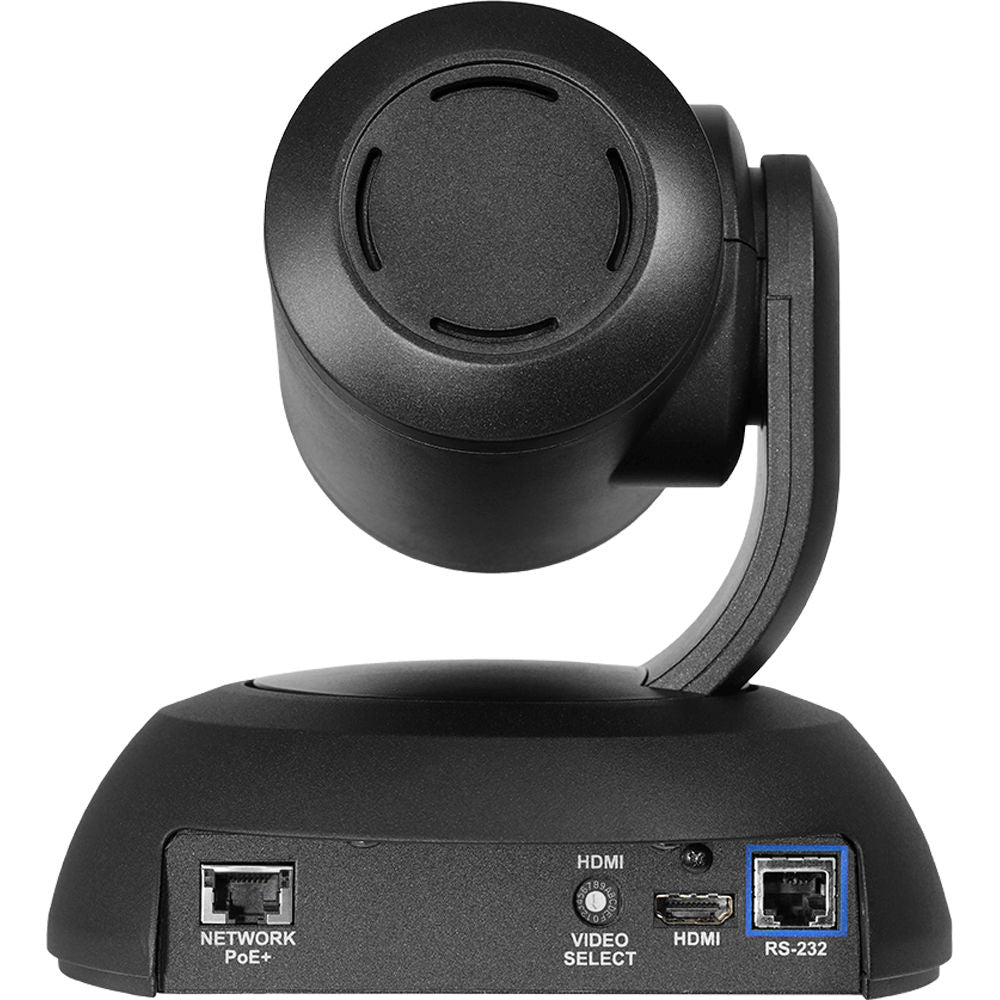

Interfaces
| Video Output Connectors |
1 x HDMI Type A |
| Control Interface |
1 x RJ45 (LAN) Input
1 x RJ45 (RS-232) |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
20 to 80% |
| Storage Humidity |
20 to 80% |
General
| Dimensions |
6.94 x 7.05 x 6.75" / 17.63 x 17.91 x 17.14 cm |
| Weight |
4.85 lb / 2.2 kg |
Packaging Info
| Package Weight |
11.1 lb |
| Box Dimensions (LxWxH) |
13.8 x 12.2 x 11.6" |
